Deploy Your I/O Data to the Cloud,
Quickly and Securely

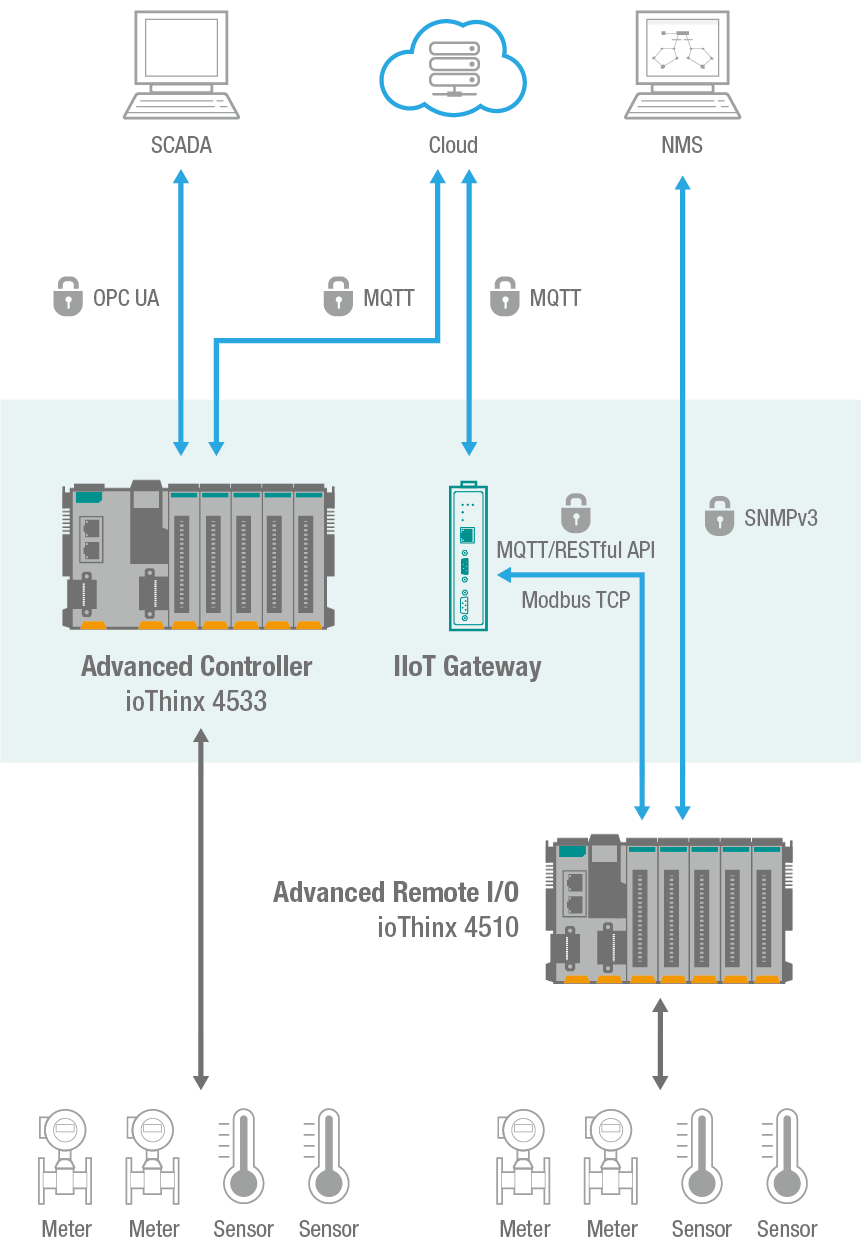

With more and more field devices being connected to the industrial IoT (Internet of Things), the need to keep all those “things” continuously connected to the Internet has put a premium on network devices that can stay connected, without needing an IT engineer to reboot the devices when they crash unexpectedly. Although data is the most important aspect of any I/O application, before the data can be used, it must be extracted from all sorts of industrial sensors and devices. This is often a cumbersome and time-consuming task, not to mention a drain on engineering resources. Moxa’s ioThinx 4500 Series products are IIoT-ready modular controllers and I/Os that feature programmable language capability, cloud connectivity, high computing power for precision control, and system-wide cybersecurity. ioThinx products are designed to help your IIoT applications deploy I/O data to the cloud, quickly and securely.

cloud-quickly-securely

Device-level Security

User Authentication

Verify user identification when logging in to a device.

  1. Three levels of account types
    • Administrator
    • Operator
    • User
  2. Session management
  3. Alphanumeric password management
  4. MQTT over TLS 1.2

Data Integrity & Confidentiality

Encrypt connections to devices for configuration and management.

  1. Web service over HTTPS for device configuration
  2. All IT protocols support data encryption, including:
    • Restful API over HTTPS
    • SNMPv3 (supports SHA256)

Network Access Control & Authentication

Verify which devices are permitted to access the network and communicate with other devices.

  1. IP based whitelist
  2. Network port protection
  3. Service disabled by default

Vulnerability Management

A well-defined process for device suppliers to respond to reported vulnerabilities.

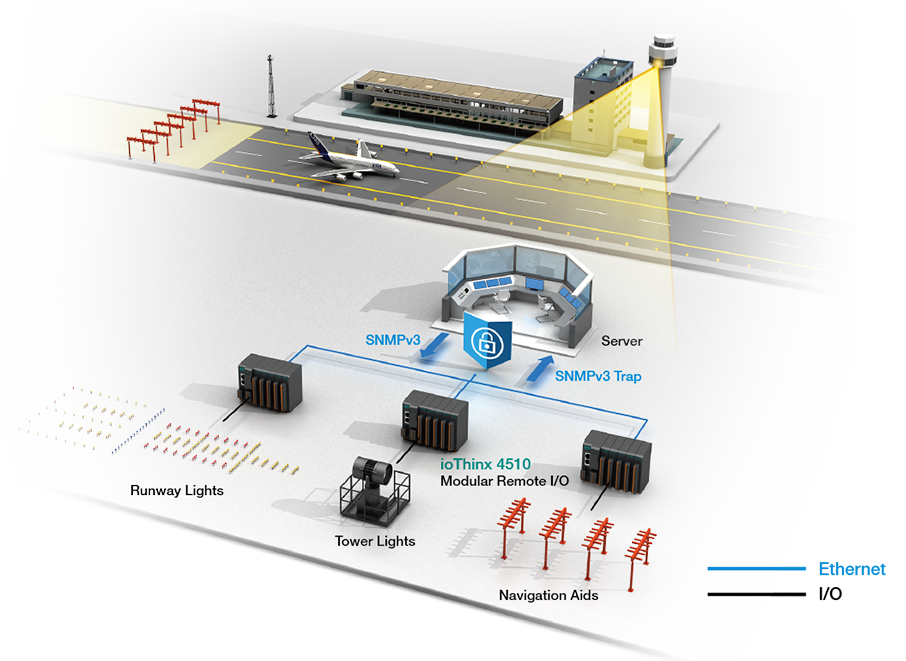

Secure Data Transmission Increases Air Traffic Management Safety

Air Traffic Management (ATM) involves the combination of the airborne and ground-based functions required to ensure the safe and efficient movement of aircraft during all phases of operation. In different phases of operation, many different facilities and devices need to communicate. By deploying remote I/O products with SNMP Trap at airport field sites, operators can acquire a wide range of information, including real-time serial, digital, and analog data related to runway lights, tower beacon lights, and navigation aids. Alarms can then be transmitted in real time to the control center for air traffic control purposes.

  • ioThinx 4533 Series
  • ioThinx 4510 Series

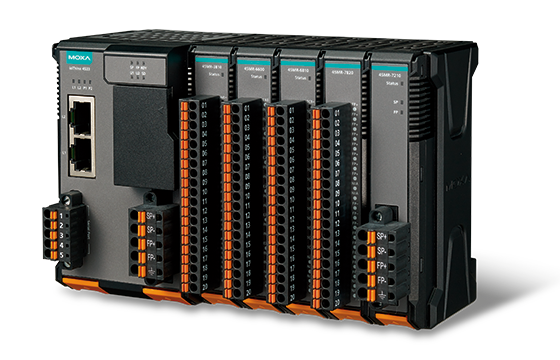

ioThinx 4533 Series Advanced Modular Controller

CPU NXP i.MX7D 1GHz
Power Inputs System Power: 12 to 48 VDC; Field Power: 12/24 VDC
Expansion Modules 64
Operating System Linux kernel 4.4 (CIP, PREEMPT_RT), Debian 9
Memory 512 MB DDR3
Storage (pre-installed) 8 GB eMMC
Programming Language C/C++, Python
Operating Temperature Standard Models: -20 to 60°C (-4 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Cloud Connectivity

Save ELD-site data to the cloud with the built-in Azure/AWS/Alibaba SDK library. In addition, streamline your operations with OPC UA to SCADA capability.

Programming Language

Supports a variety of languages for different programming needs.

Precision Control

Use a real-time OS to achieve control and computing balance in one device by prioritizing APP settings.

System-wide Cybersecurity Design

Systematic Security Protection to help users mitigate security threats.

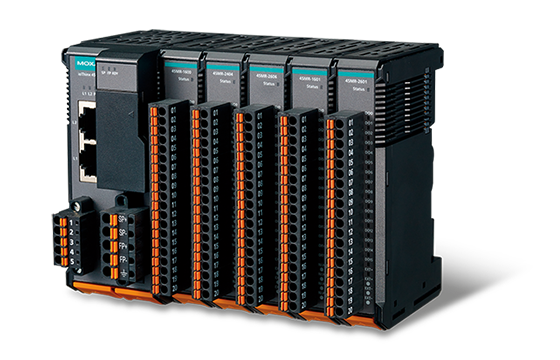

ioThinx 4510 Series Advanced Modular Remote I/O

Power Inputs System Power: 12 to 48 VDC; Field Power: 12/24 VDC
Expansion Modules 32
IT Protocols SNMPv1/v2c/v3, RESTful API, MQTT
OT Protocols Modbus/TCP Server (slave)
Gateway Function Modbus/RTU Master to Modbus/TCP, SNMP, RESTful API, MQTT
Operating Temperature Standard Models: -20 to 60°C (-4 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

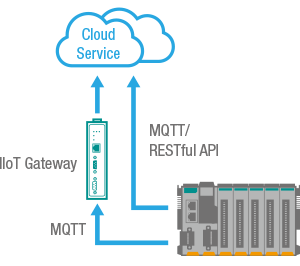

Cloud Connectivity

The ioThinx 4510 Series supports MQTT protocols that can be connected to the cloud with a reasonable number of mouse clicks. If you are using a web HMI or NMS for data supervision on a private cloud, you can make the connection using a RESTful API or SNMP, respectively.

Auto Reconfiguration

You only need to make a few simple changes, with no reconguration effort required. Simply fine tune the modules you want to change, and keep the others as is.

Cybersecurity

The ioThinx 4510 Series is compliant with IEC 62443 level 1.

Confidentiality

  • Authentication: Account management, Login Policy, Session Management

Integrity

  • Access Control: Role-based access control, IP-based whitelist

Availability

  • Interface protection: Network port protection, service disabled by default

Get Started with the ioThinx IIoT Starter Kit

Easily Connects to an IT/OT Cloud

Set up MQTT, RESTful API, SNMP, and Modbus connections in a few simple steps.

Plug-and-play for Rapid Deployment

No wiring required. Everything is connected and ready to go.

Modular Design for Greater Versatility

The ioThinx 4510’s modular design, with the base and I/O boards housed in separate units, gives users the flexibility they need to set up efficient operations. The various I/O modules can be used for different purposes, including debugging, maintenance, and conducting demos.

Learn More

How to Deploy Your I/O Data to the Cloud

How to use Modbus TCP to connect to the ioThinx 4510 Series

How to use MQTT to connect to the ioThinx 4510 Series

How to use RESTful API to connect to the ioThinx 4510 Series

How to connect Modbus RTU meters and I/O devices to a SCADA system

See how Auto Reconfiguration can save deployment time
