Efficient Edge-to-cloud Networking With Our 64-bit Arm-based Computers

Moxa enhances its extensive Arm-based computer family with computers that deliver robust 64-bit dual-core performance while ensuring strict compliance with IEC 62443-4-2 standards. This commitment to industrial-grade design bolsters network efficiency, enabling the seamless handling of complex data-communication requirements of factory-automation, oil and gas, and renewable-energy applications.

The UC-1200A and UC-2200A Series are designed for embedded data-acquisition applications. Their compact design, efficient edge-computing capabilities, and optimal number of I/O interfaces make them ideal for space-constrained applications, offering seamless adaptability. Moreover, these systems boast enhanced security features compliant with the IEC 62443-4-2 standard, ensuring fortifying defense to protect network operations against cyberattacks while guaranteeing uninterrupted data communication.

Features

Wireless

Compact Design, Better Results

The UC-1200A and UC-2200A Series 64-bit Arm-based computers have an excellent computing power to power dissipation ratio enabling them to save about three times the energy compared to other computers and be more efficient and cost-effective. The computers come equipped with optimal number of I/O interfaces, 2 Giga LAN ports, and 2 RS-232/422/485 serial ports, providing users with the most suitable configuration for diverse industrial data communication needs.

Wireless

Enhanced Security

The computers are compliant with the IEC 62443-4-2 SL2 standard. A Secure Boot function secures the hardware and software under a Trusted Platform Module (TPM), ensuring that they can only be decrypted on specific Moxa devices. The system failback function supports the detection of the last secure working state to which the computers can be automatically restored when critical updates fail, or unauthorized software changes are detected. Furthermore, Moxa provides a security hardening guide and tools to support analysis of potential threats and enable devices compliance with the IEC 62443-4-2 SL2 standard.

Wireless

Easy to Deploy and Manage

The Moxa Computer Interface Manager (MCIM) aims to provide a unified software interface for accessing and configuring non-standard computer interfaces. The goal is to save time when programming across different Moxa Arm-based computers and support users to easily deploy their own networks.
Moxa Connection Manager (MCM) is a network management utility designed to manage LAN and WAN networks, including Wi-Fi, cellular, and Ethernet interfaces. With the MXview One software for monitoring all device statuses and data collection in one visualized platform.
These software and tools can help to quickly deploy and manage communication networks significantly reducing maintenance time for both IT and OT teams.

Wireless

Industrial-grade Reliability

The computers are designed for harsh environments and feature a wide operating temperature range from -40 to 70°C. They come with industrial certifications such as CID2, CE, FCC, ATEX and UL for reliable quality even in the harshest conditions encountered in domains such as oil and gas, factory automation, and renewable energy. Operated with Moxa industrial Linux that comes with 10-year long-term support, these Arm-based computers provide a shock and vibration resistant solution with an MTBF close to 1 million hours and include a comprehensive 5-year warranty to ensure industrial-grade reliability and stable operational quality.

Product Highlights

Moxa Solutions
CPU
Memory
Storage Slot
Interface
Wireless
Security
Software
Wide Temperature
Hazardous Location Certification
UC-1200A Series
UC-2200A Series
Arm Cortex-A53 dual-core 1 GHz Arm Cortex-A53 dual-core 1 GHz
2 GB 2 GB
1 microSD 1 microSD
2 LAN, 2 RS-232/422/485, 1 USB 2 LAN, 2 RS-232/422/485, 1 USB
LTE Cat. 4
Compliance with IEC 62443-4-2 standards
Bulit in TPM 2.0
Secure Boot
Security Hardening Guide and Tools 		Compliance with IEC 62443-4-2 standards
Bulit in TPM 2.0
Secure Boot
Security Hardening Guide and Tools
Moxa Industrial Linux
Moxa Computer Interface Manager
Moxa Connection Manager
MXview 		Moxa Industrial Linux
Moxa Computer Interface Manager
Moxa Connection Manager
MXview
-40 to 60°C -40 to 70°C
CID2, CE, FCC, ATEX, UL CID2, CE, FCC, ATEX, UL

Application

  • Efficient Wellhead Monitoring System
  • Enhancing Solar Tracking Systems

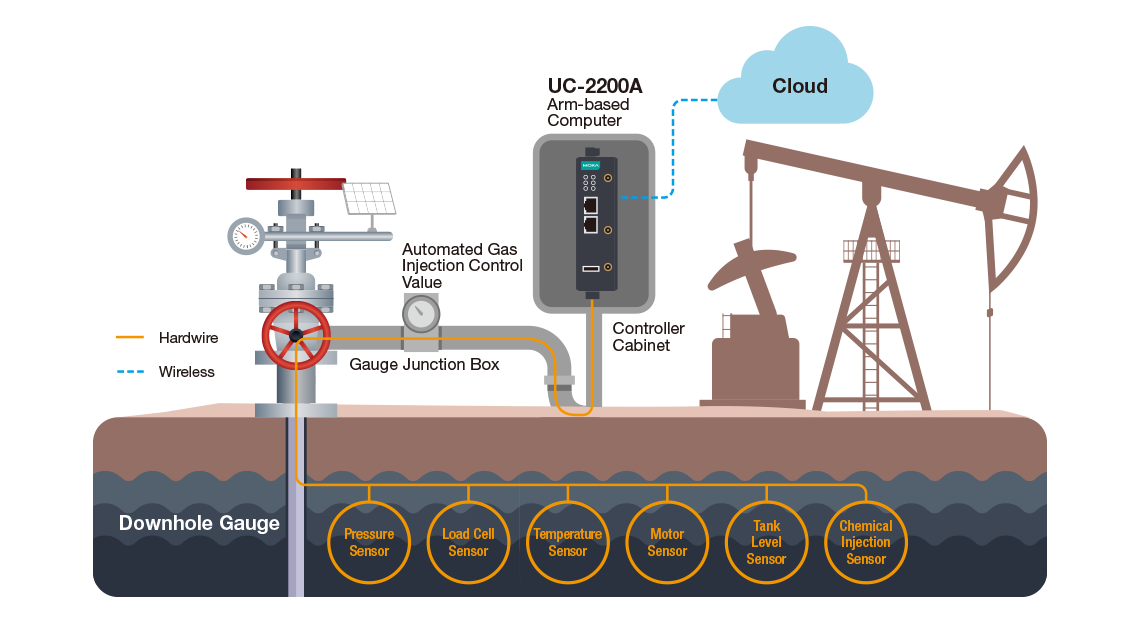

Efficient Wellhead Monitoring System With 64-bit Arm-based Computers and LTE Capability

Reliable, precise, and rugged wellhead monitoring systems are essential for analyzing pressure and temperature information for wells based on the data that is continuously collected from the end devices. Moxa’s UC-2200A Series 64-bit Arm-based computers, designed as embedded data-acquisition gateways, are ideal for data preprocessing and transmission of relevant information to the cloud in real time.

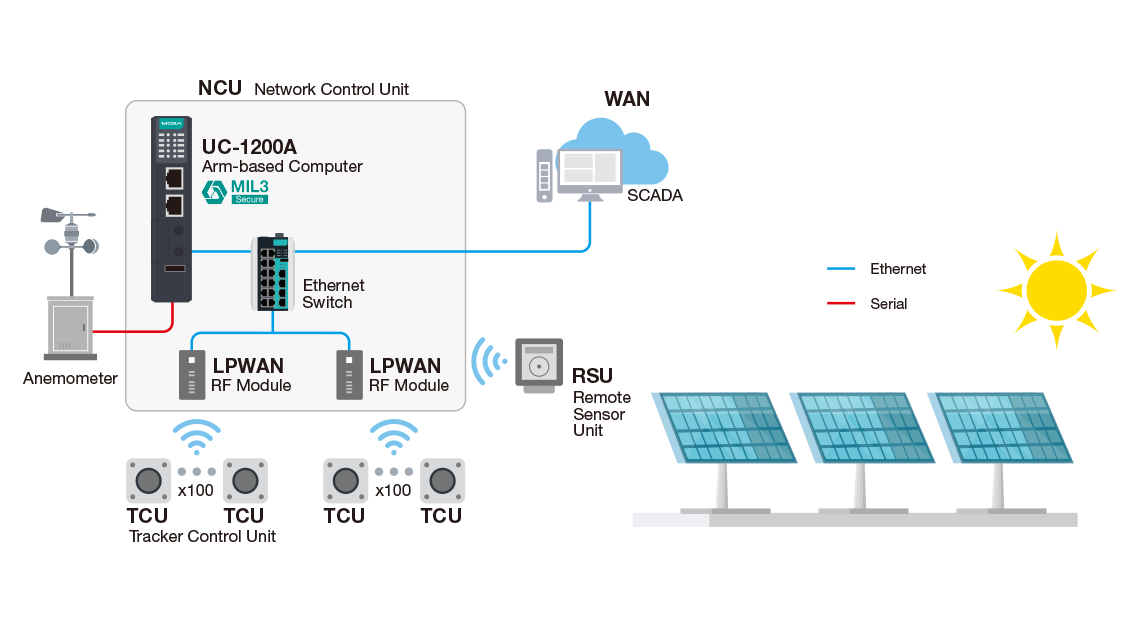

Empower Solar Tracking Systems With High-performance Compact Arm-based Computers

Moxa’s UC-1200A computer is deployed within the Network Control Unit (NCU) to preprocess data from the anemometer and transmit commands to the Tracker Control Unit (TCU). This communication is facilitated through connections with a switch and a Zigbee module, enabling efficient execution of commands. The UC-1200A is a 64-bit Arm-based computer compliant with the IEC 62443-4-2 security standard that offers data preprocessing, device monitoring, information transmission, and instruction provisioning, enabling seamless control of the solar tracking system.
