Unmanaged Simplicity, Unmatched Reliability

5/8-port M12 Unmanaged Ethernet Switches

Unmanaged Simplicity Meets Unmatched Reliability

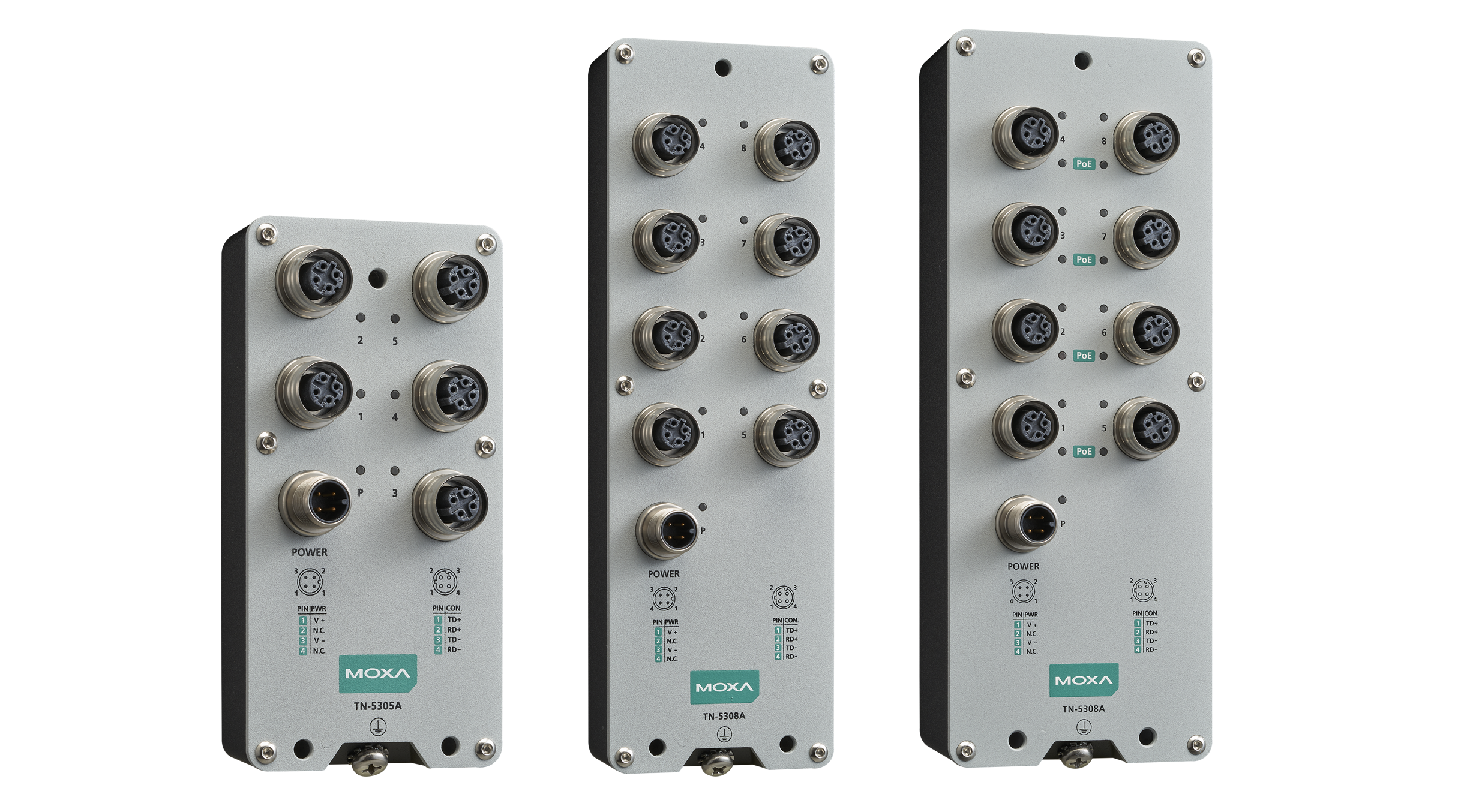

With M12 connectors for robust connections, the TN-5300A Series unmanaged Ethernet switches provide optimal protection in tough environmental conditions. Featuring 5 to 8 Fast Ethernet M12 push-pull ports, an isolated power input range of 24 to 110 VDC, robust die-cast housing, and a -40 to 70°C wide operating temperature range, the TN-5300A Series offers a versatile and reliable solution for industrial Ethernet networks. This switch series also includes PoE options, capable of providing up to 30 W per port with a total PoE budget of 50.2 W.

For Critical Applications

M12 Push-pull Connectors

M12 Push-pull Connectors

24 to 110 VDC Wide Power Input Range

24 to 110 VDC Wide Power Input Range

Compact Size with Wide Power Input Range

Compact Size with Wide Power Input Range

IP54-rated Robust Die-cast Housing (IP67 Also Available)

IP54-rated Robust Die-cast Housing
(IP67 Also Available)

For Harsh Environments

The TN-5300A Series complies with the mandatory parts of the EN 50155 standard, including temperature, power input, surge, ESD, and vibration. These switches are suitable for rolling stock and a variety of other industrial applications, such as factory robots, AGVs, and mining or marine network expansion.
