Built Tough, Built Robust

Rugged Panel Computers for Extreme Outdoor and Hazardous Environments

Harsh and hazardous environments, both indoor and outdoor, present numerous challenges, including extreme temperatures—from scorching heat to freezing cold—high levels of dust, water exposure, and even explosive atmospheres. To safely and effective control and monitor industrial applications in these environments, our new-generation MPC-3000 Series panel PCs offer robust, adaptable, and rugged solutions, specifically optimized for oil and gas, marine, and outdoor applications.

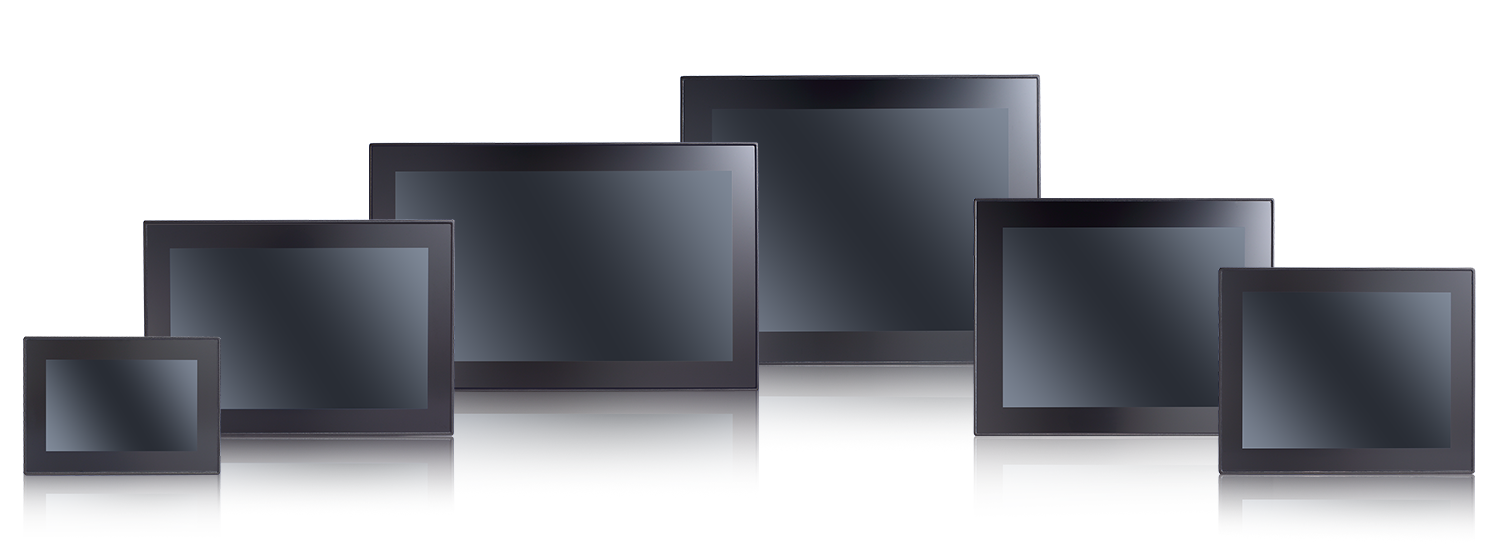

Powered by an Intel Atom® x6000E processor, the MPC-3000 panel computers are organized in six unique series with display sizes ranging from 7 to 15.6 inches, all engineered to excel in extreme conditions to enhance productivity and reliability. The panel PCs also come with an extensive range of industrial certifications, including CID2, IECEx Zone 2 and ATEX Zone 2 as well as for marine standards such as DNV, IEC 60945, and IACS E10.

Why Moxa

  • Industrial-grade Rugged Design for Reliable Operations

    Featuring a fanless design and glove-friendly multi-touch screens, our MPC-3000 panel PCs boast a IP66 metal housing and an operating temperature range -30 to 60°C perfect for outdoor and hazardous applications.

  • Industry Certifications for Performance and Safety

    CID2, ATEX, IECEx, and DNV certifications ensure our MPC-3000 panel computers meet stringent requirements for a range of industrial applications.

  • Modular Design for Easy Maintenance

    The modular design with minimized cabling simplifies maintenance, offering a cableless approach on the front and rear panels that reduces downtime and enhances operational efficiency.

Key Features


Wide Temperature

Designed to work in the -30 to 60°C range

Sunlight Readable

1000-nit display for use in outdoor applications

Advanced Touch Screen

Glove-friendly, multi-touch, G + G screen structure

Fanless Design

Heat sink for efficient heat dissipation

HMI Software Support

Works with various PLCs and SCADA systems

Modular Design

Parts are easy to replace, simplifying maintenance

Metal Housing

Rugged build suitable for industrial applications

Waterproof

IP66-rated enclosure protects against water and dust

Engineered for the Extremes

Experience the rugged performance of the MPC-3000 panel computers designed for industrial automation and monitoring in the toughest environments. Watch this video to explore the key features that include exceptional screen readability, enhanced touchscreen responsiveness, and modular design that simplifies maintenance.

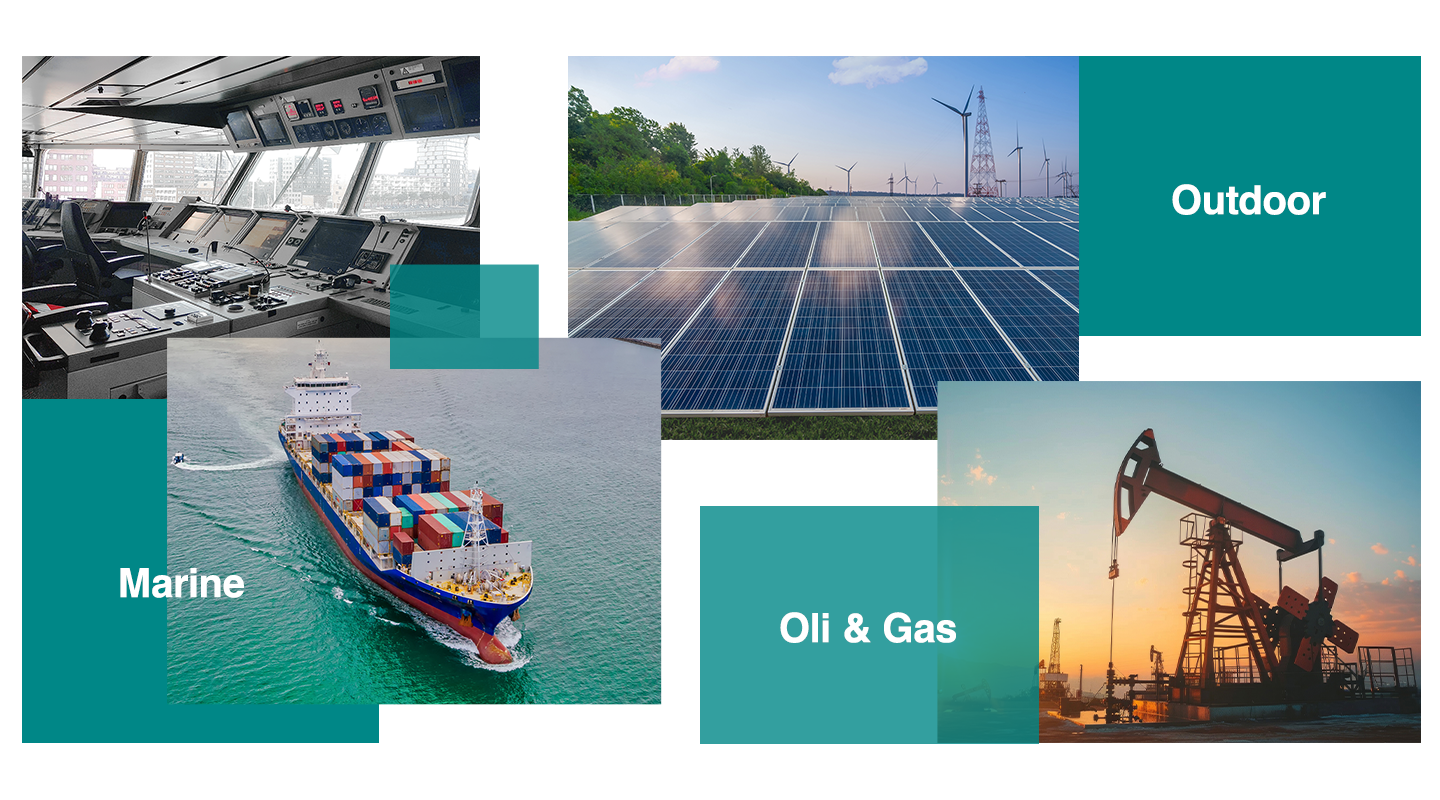

Applications

Our new-generation MPC-3000 panel computers are engineered to perform in some of the most rugged and challenging environments across various industries. The glove-friendly advanced touchscreen, wide operating temperature range, and IP66 enclosure enable their safe use in explosive atmospheres at drilling rigs for seamless monitoring and control in oil and gas applications. The MPC-3000 panel computers are DNV certified for safe operations of alarm and monitoring systems in engine rooms of marine vessels. For outdoor application, the MPC-3000 industrial-grade panel computers offer reliable performance for remote monitoring and data acquisition in solar power plants and EV charging stations, operating effectively across a wide temperature range with sunlight-readable displays.

Industrial Panel Computers

MPC-3000 Series
CPU
Ethernet Ports
Serial Ports
USB 3.0
Light Intensity (Brightness)
Panel Size
Pixels
Touch Type
Input Voltage
IP Rating
Operating Temperature
Standards and Certifications

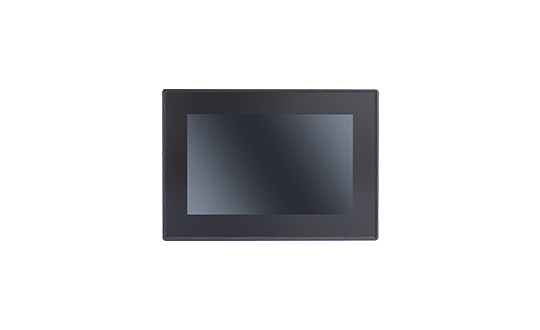

MPC-3070W
Industrial Panel Computers

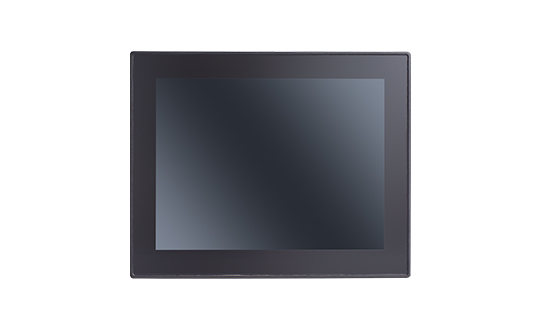

MPC-3100
Industrial Panel Computers

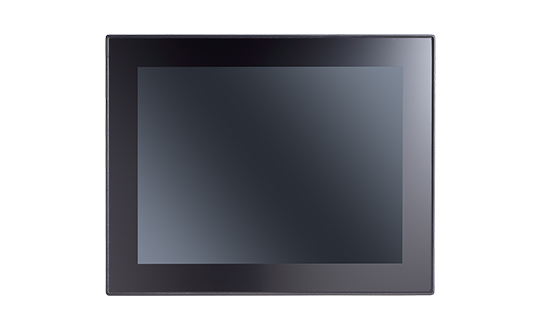

MPC-3120
Industrial Panel Computers

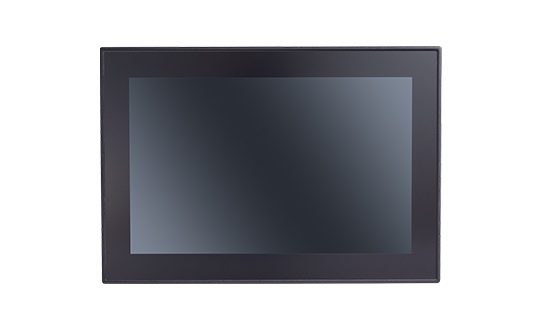

MPC-3120W
Industrial Panel Computers

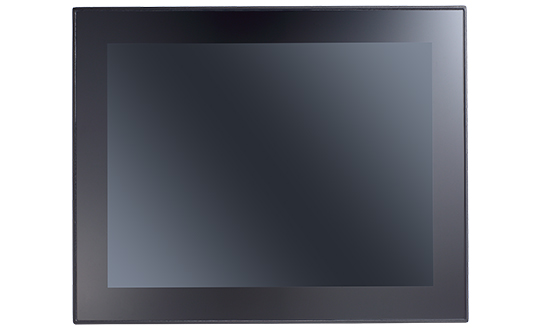

MPC-3150
Industrial Panel Computers

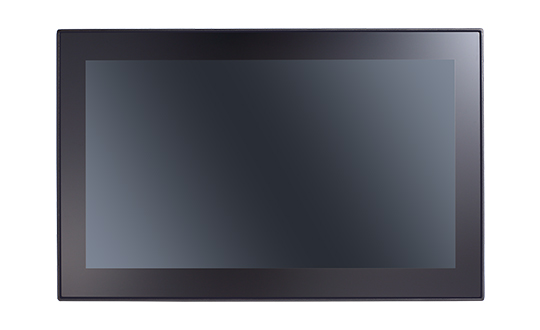

MPC-3150W
Industrial Panel Computers
E2 models: Intel Atom® x6211E Elkhart Lake (dual-core, 1.30 GHz)
E4 models: Intel Atom® x6425E Elkhart Lake (quad-core, 2.0 GHz)
2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector)
2 x RS-232/422/485 ports (software-selectable, DB9 male connector)
2 x USB 3.0 hosts (type-A connector)
400 / 1000 nits
7 in (5:3) 10.4 in (4:3) 12.1 in (4:3) 12.1 in (16:10) 15 in (4:3) 15.6 in (16:9)
800 x 480 1024 x 768 1024 x 768 1280 x 800 1024 x 768 1920 x 1080
Projective capacitive (PCAP) touchscreen
12/24 VDC
IP66 (front), IP20 (rear)
-30 to 60°C (-22 to 140°F)
CID2, ATEX Zone 2, IECEx Zone 2, DNV-CG-0339, IEC 60945, IACS E10,
IEC 62368-1, UL 62368-1, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-61

1 Certification processes underway.
