MPC-3100 Series

10.4-inch multi-interface fanless panel computers

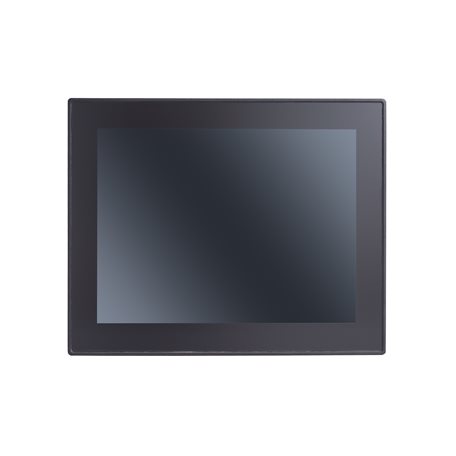

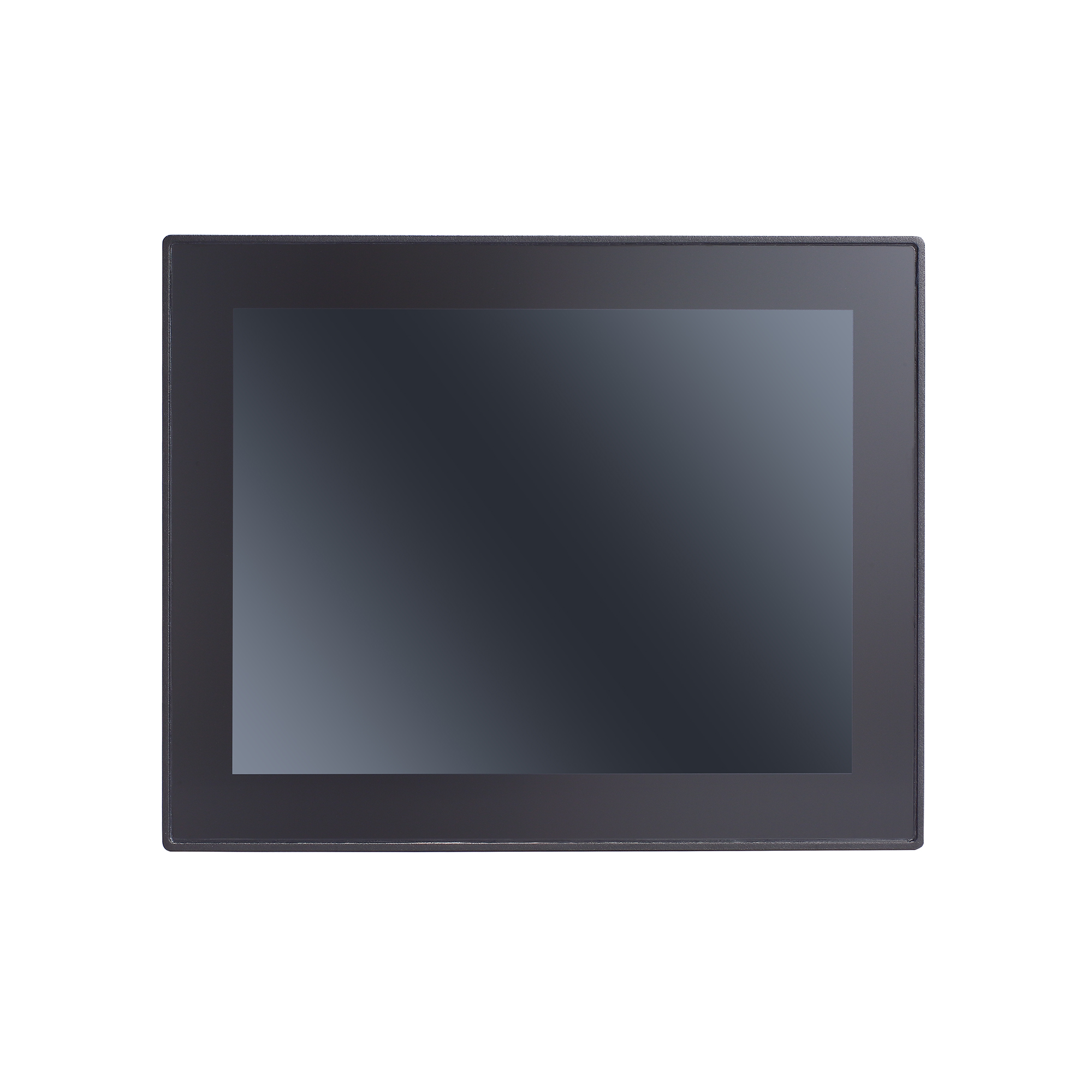

moxa-mpc-3100-series-image-(1).jpg | Moxa

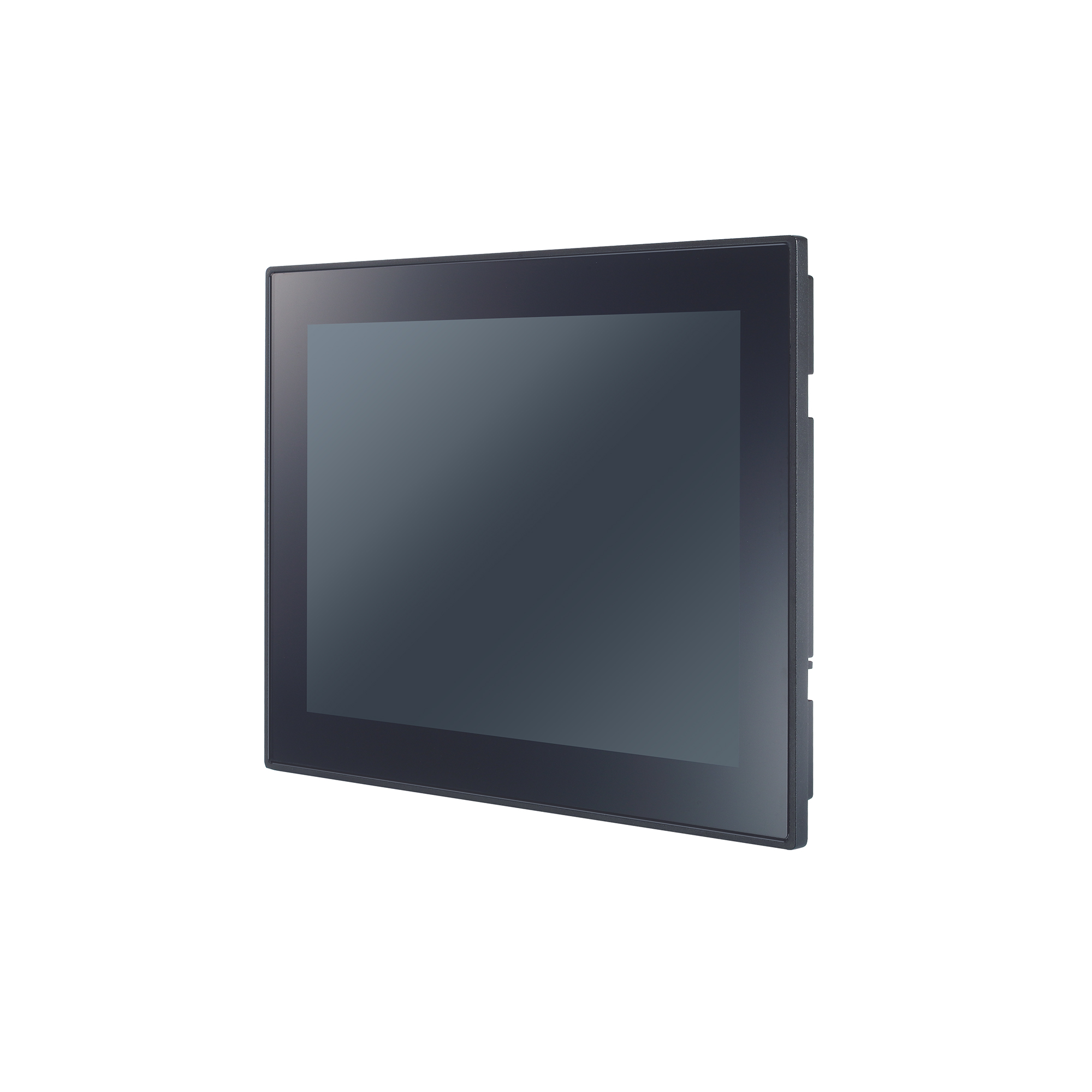

moxa-mpc-3100-series-image-1-(1).jpg | Moxa

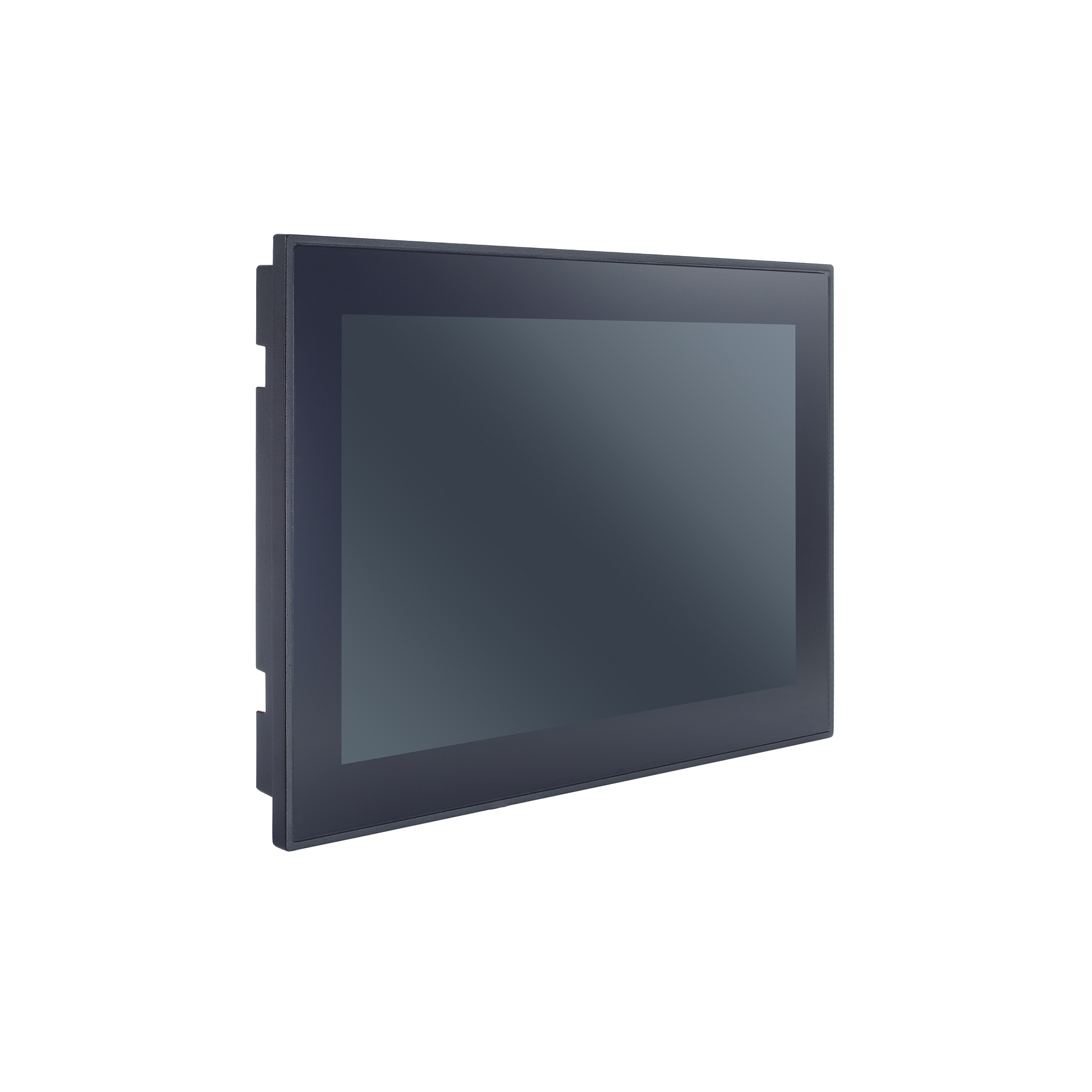

moxa-mpc-3100-series-image-2-(1).jpg | Moxa

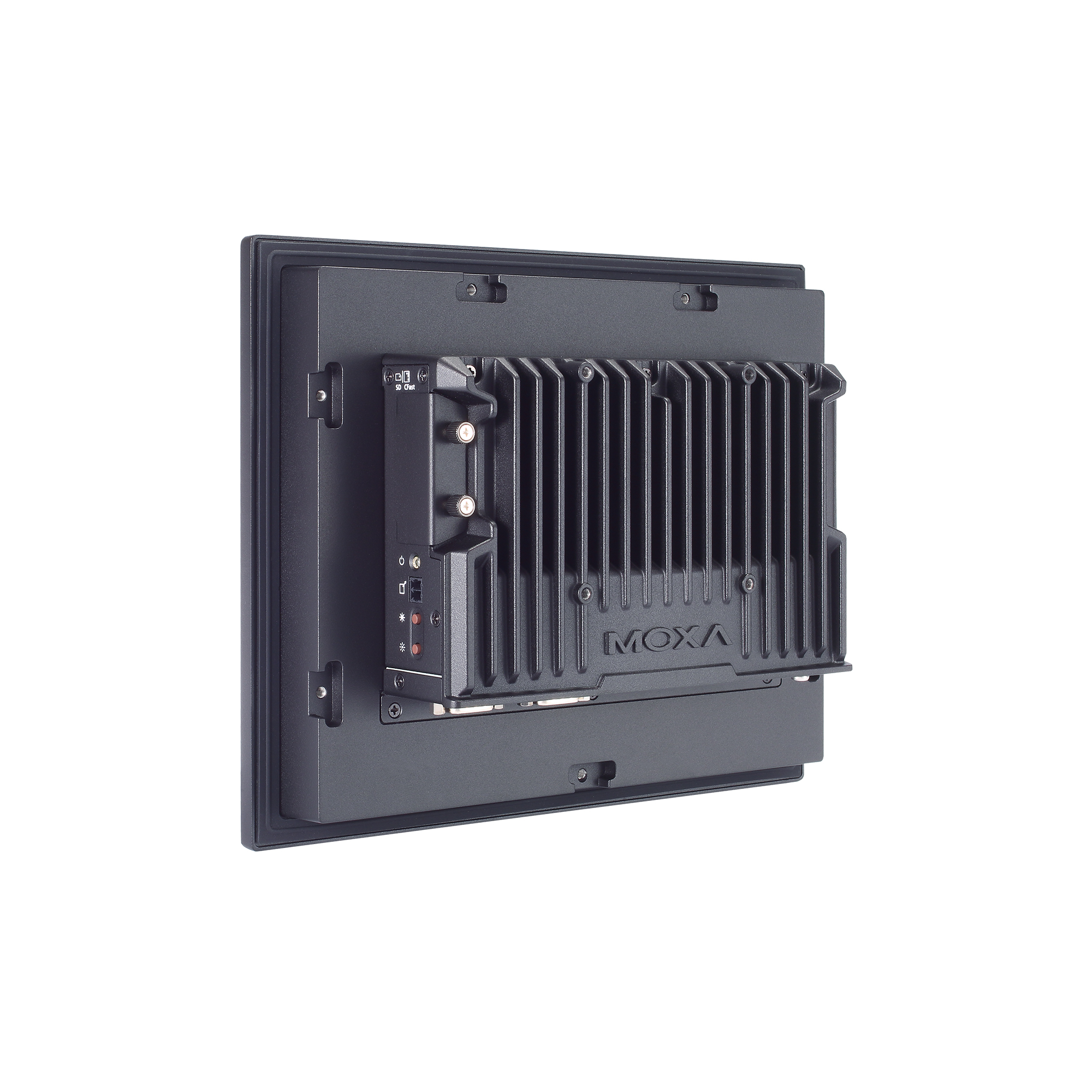

moxa-mpc-3100-series-image-3-(1).jpg | Moxa

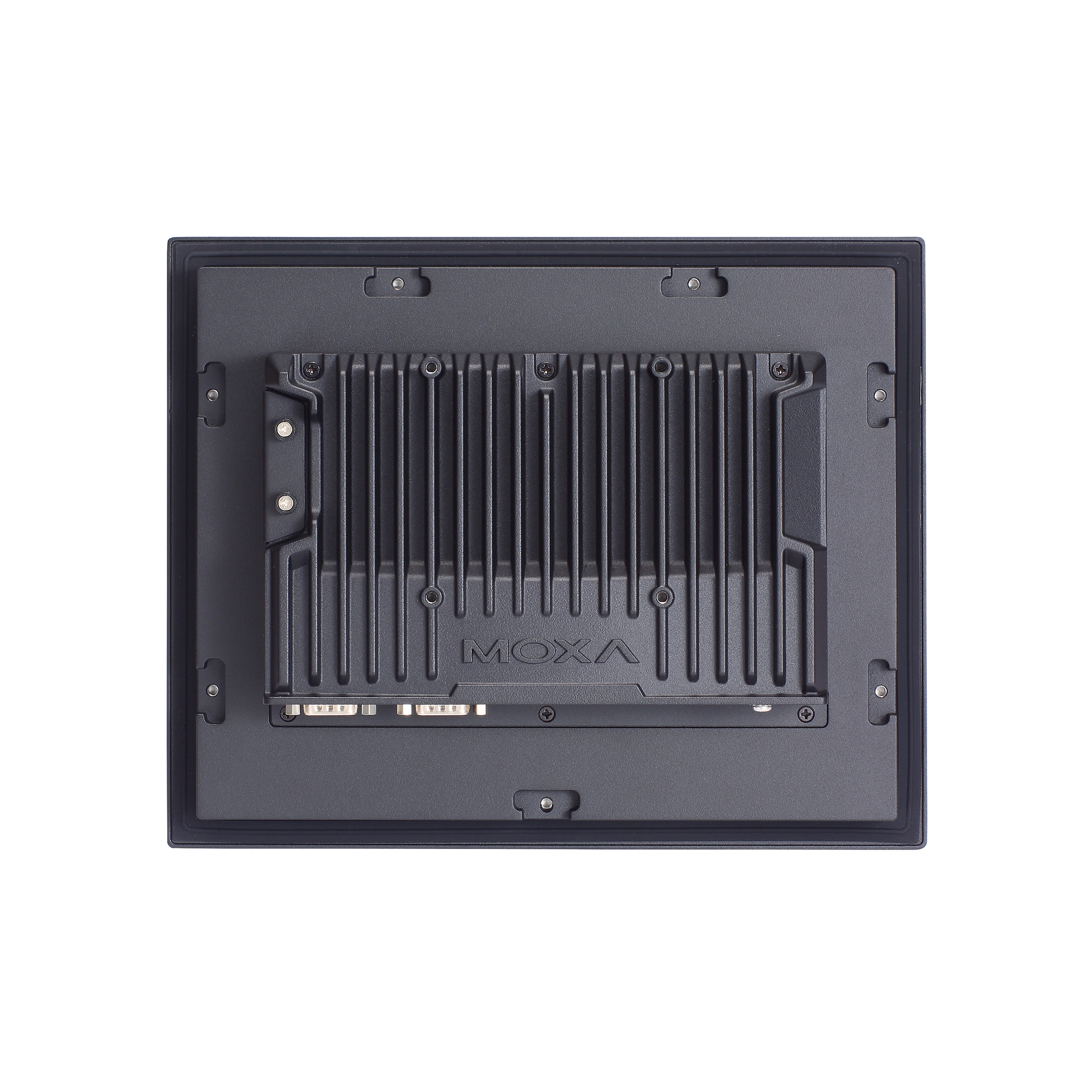

moxa-mpc-3100-series-image-4-(1).jpg | Moxa

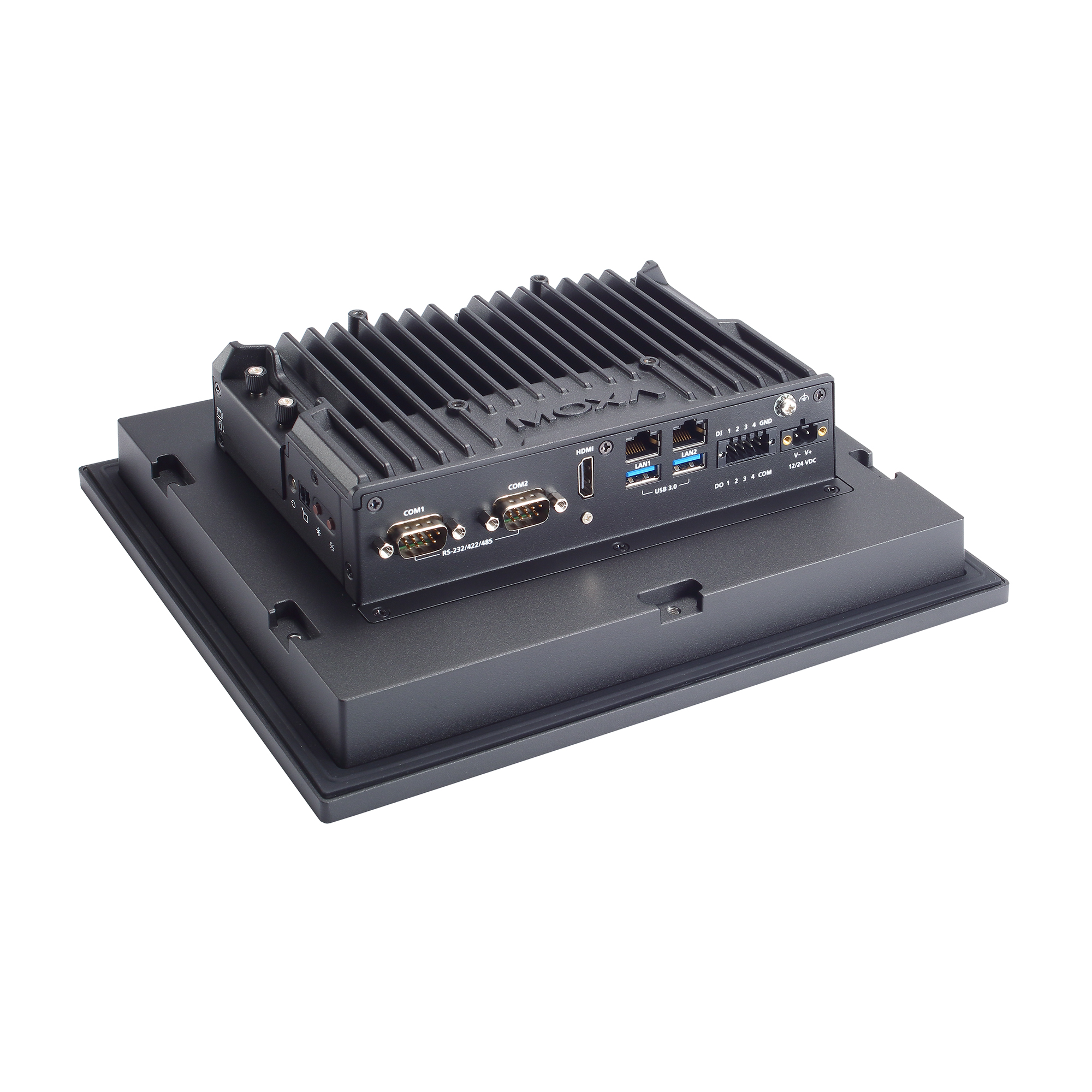

moxa-mpc-3100-series-image-5-(1).jpg | Moxa

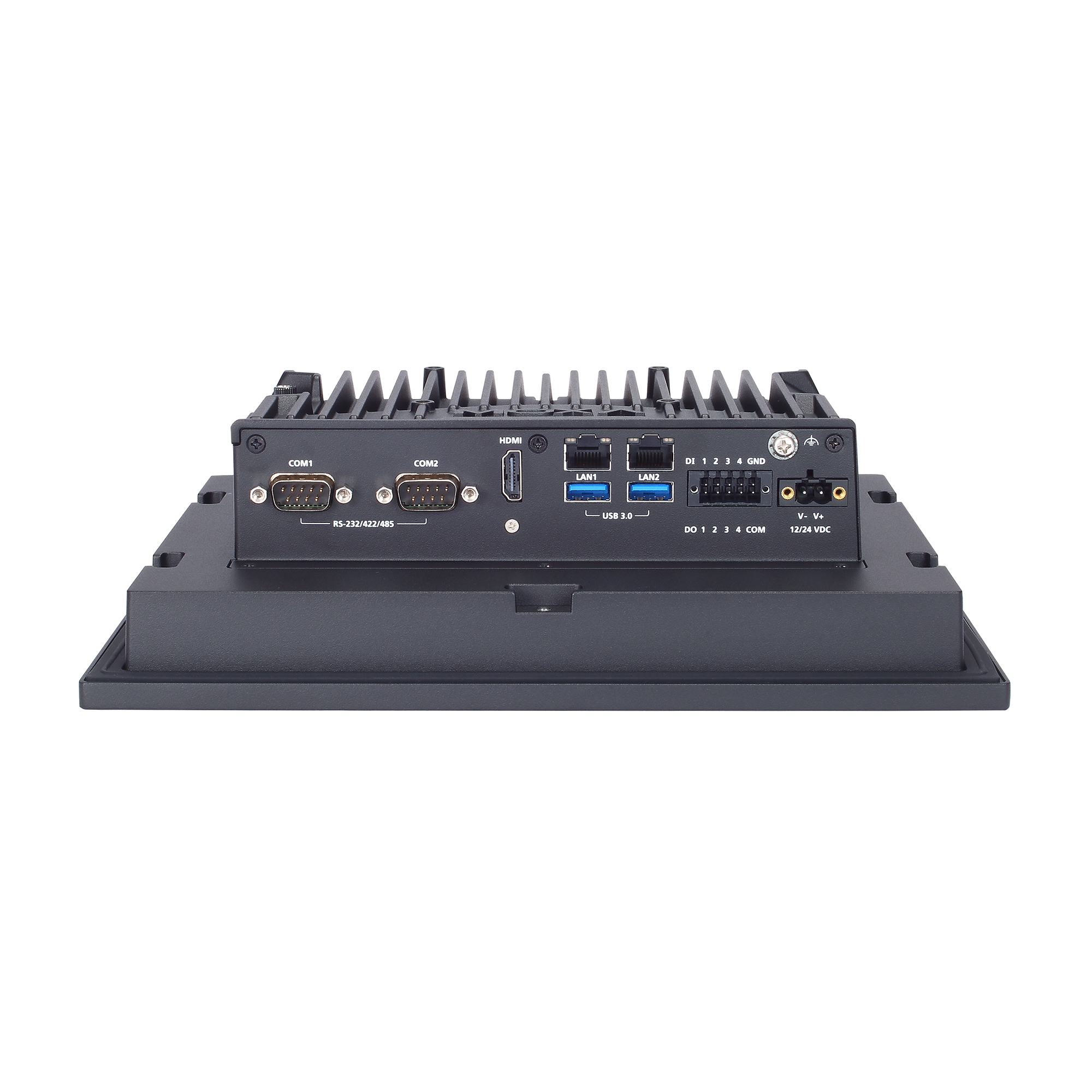

moxa-mpc-3100-series-image-6-(1).jpg | Moxa

Features and Benefits

  • 10.4-inch panel computers
  • Intel Atom® x6211E dual-core or x6425E quad-core processor
  • -30 to 60°C operating temperature, fanless design, no heater required
  • 400-nit or 1000-nit sunlight-readable LCD
  • Glove-friendly, multi-touch screen
  • DNV, CID2, ATEX Zone 2, and IECEx compliant Certification processes are underway.
  • 12/24 VDC power input

Certifications

  • moxa-dnv-certification-logo-image.png | Moxa
  • moxa-iecex-certification-logo-image.png | Moxa
  • moxa-atex-certification-logo-image.png | Moxa

Contact Sales

Introduction

The MPC-3100 10.4-inch panel computers with Intel Atom® x6211E dual-core or x6425E quad-core processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two software selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC-3100 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.

The MPC-3100 panel computers are designed for the -30 to 60°C temperature range, and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation. This makes the computers reliable industrial platforms for harsh, hot, outdoor environments like oil and gas fields and drilling platforms. The MPC-3100 also features a 400–nit or 1000–nit LCD panel offering a sunlight-readable, projected-capacitive, glove-friendly, multi-touch screen for an excellent user experience in outdoor applications.

Appearance

  • CPU

    E2 models: Intel Atom® Elkhart Lake dual-core x6211E 1.30 GHz
    E4 models: Intel Atom® Elkhart Lake quad-core x6425E 2.0 GHz

  • Graphics Controller

    Intel® HD Graphics

  • System Memory Pre-installed

    8 GB DDR4 2400 MHz (32 GB max)

  • System Memory Slot

    SODIMM DDR4 2400 slots x 1

  • Supported OS

    Windows 10 IoT Enterprise LTSC 2021
    Windows 11 Professional (64-bit)
    Debian 11 (kernel 5.10)
    Ubuntu 22.04 LTS (kernel 5.1x)
    RHEL 9 (kernel 5.14)

  • Storage Slot

    CFast slot x 1
    SD slots x 1, SD 3.0 interface (SDHC/SDXC)

  • Ethernet Ports

    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

  • Serial Ports

    RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

  • USB 3.0

    USB 3.0 hosts x 2, type-A connectors

  • Digital Input

    DIs x 4 (with isolation protection)

  • Digital Output

    DOs x 4 (with isolation protection)

  • System

    Power x 1

  • LAN

    2 per port (10/100/1000 Mbps)

  • Panel Size

    10.4 in (viewable image)

  • Aspect Ratio

    4:3

  • Active Display Area

    210.4 (H) x 157.8 (V) mm

  • Contrast Ratio

    1000:1 (typ.)

  • Light Intensity (Brightness)

    MPC-3100-E2-T models: 1000 nits
    MPC-3100-E2–LB-T models: 400 nits

  • Max. No. of Colors

    262k, 16.7M (8-bit/color)

  • Panel Type

    AAS

  • Pixel Pitch (RGB)

    0.2055 (H) x 0.2055 (V) mm

  • Pixels

    1024 x 768

  • Response Time

    25 ms

  • Viewing Angles

    176°/176°

  • Touch Type

    Projective Capacitive touchscreen (PCAP)

  • Touch Support Points

    4 points

  • Glove Support

    Yes

  • Baudrate

    50 bps to 115.2 kbps

  • Data Bits

    5, 6, 7, 8

  • Flow Control

    RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only)

  • Parity

    None, Even, Odd, Space, Mark

  • Stop Bits

    1, 1.5, 2

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Input Voltage

    12/24 VDC

  • Power Consumption

    42 W
    (max, including full USB loading)

  • Housing

    Metal

  • IP Rating

    IP66, front
    IP20, rear

  • Dimensions

    260 x 210 x 73.8 mm (10.28 x 8.27 x 2.91 in)

  • Weight

    2,300 g (5.07 lb)

  • Operating Temperature

    -30 to 60°C (-22 to 140°F)

  • Storage Temperature (package included)

    -40 to 70°C (-40 to 158°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV

  • Environmental Testing

    IEC 60068-2-1, DNV-CG-0339
    IEC 60068-2-1, IEC 60945
    IEC 60068-2-2, DNV-CG-0339
    IEC 60068-2-2, IEC 60945
    IEC 60068-2-30, DNV-CG-0339

  • Hazardous Locations

    ATEX Zone 2
    Class I Division 2
    IECEx Zone 2

  • Maritime

    DNV-CG-0339, IEC 60945, IACS E10

  • Safety

    IEC 62368-1
    UL 62368-1

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6, DNV-CG-0339, IEC 60945
    IEC 60068-2-64, DNV-CG-0339

  • Green Product

    RoHS, CRoHS, WEEE

Software, Firmware, and Drivers

FILTER

All Driver Software Package Utility
Name Type Checksum Version Operating System Release Date
Software Package for MPC-3000 Series (Windows 11 Professional 2023 example code)
18.2 MB 		Software Package
SHA-512
v1.0
  • Windows 11 Professional 2023
 Oct 09, 2024 Oct 09, 2024 Release notes
MPC-3000 Series Computers (Linux drivers and SDK)
6.2 MB 		Software Package
SHA-512
v1.0
  • Debian 11.x
  • RHEL 9
  • Ubuntu 22.04
 Oct 09, 2024 Oct 09, 2024 Release notes
Utility for MPC-3000 Series (Windows 11 Professional 2023)
7.3 MB 		Utility
SHA-512
v1.0
  • Windows 11 Professional 2023
 Oct 09, 2024 Oct 09, 2024 Release notes
Utility for MPC-3000 Series (Windows 10 IoT Enterprise LTSC 21H2)
7.3 MB 		Utility
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
 Oct 09, 2024 Oct 09, 2024 Release notes
Driver for MPC-3000 Series (Windows 11 Professional 2023)
1.8 GB 		Driver
SHA-512
v1.0
  • Windows 11 Professional 2023
 Oct 09, 2024 Oct 09, 2024 Release notes
Software Package for MPC-3000 Series (Windows 10 IoT Enterprise LTSC 21H2 example code)
18.2 MB 		Software Package
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
 Oct 09, 2024 Oct 09, 2024 Release notes
Driver for MPC-3000 Series (Windows 10 IoT Enterprise LTSC 21H2)
1.1 GB 		Driver
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
 Oct 09, 2024 Oct 09, 2024 Release notes

Support Documents

FILTER

All Datasheet Manual QIG
Name Type Version Release Date
MPC-3000 Series Quick Installation Guide
2.4 MB 		QIG v1.0 Oct 09, 2024 Oct 09, 2024
MPC-3000 Series Windows 10 IoT Enterprise LTSC 2021 (21H2) User Manual
14.6 MB 		Manual v1.0 Oct 09, 2024 Oct 09, 2024
MPC-3000 Series Manual (hardware)
7.2 MB 		Manual v1.0 Oct 09, 2024 Oct 09, 2024
MPC-3000 Series Computers Windows 11 Pro 22H2 User Manual
6.8 MB 		Manual v1.0 Oct 09, 2024 Oct 09, 2024
MPC-3000 Series Linux User Manual
1.3 MB 		Manual v1.0 Oct 08, 2024 Oct 08, 2024
Datasheet for MPC-3100 Series
2.2 MB 		Datasheet v1.0 Oct 07, 2024 Oct 07, 2024

Related Content

FILTER

All Video

Available Models (4)

Show Images
Compare
moxa-mpc-3100-e4-lb-t-image.jpg | MoxaMPC-3100-E4-LB-T
Compare
moxa-mpc-3100-e2-lb-t-image.jpg | MoxaMPC-3100-E2-LB-T
Compare
moxa-mpc-3100-e4-t-image.jpg | MoxaMPC-3100-E4-T
Compare
moxa-mpc-3100-e2-t-image.jpg | MoxaMPC-3100-E2-T
Panel10.4" (4:3)
400 nits		10.4" (4:3)
400 nits		10.4" (4:3)
1000 nits		10.4" (4:3)
1000 nits
CPUIntel
Atom®
x6425E		Intel
Atom®
x6211E		Intel
Atom®
x6425E		Intel
Atom®
x6211E
RAM8 GB8 GB8 GB8 GB
TouchscreenPCAPPCAPPCAPPCAP
LAN2222
Serial2222
DI/DO4/44/44/44/4
Power Input12/24 VDC12/24 VDC12/24 VDC12/24 VDC
IP RatingIP66 (front),
IP20 (rear)		IP66 (front),
IP20 (rear)		IP66 (front),
IP20 (rear)		IP66 (front),
IP20 (rear)
Operating Temp.-30 to 60°C-30 to 60°C-30 to 60°C-30 to 60°C
