Ethernet-APL

With intrinsic safety features, Ethernet-APL is revolutionizing the process automation industry

What Is Ethernet-APL?

Ethernet-APL (Advanced Physical Layer) is an enhanced physical layer for single-pair Ethernet based on the IEEE 802.3cg 10BASE-T1L standard. It is designed to meet the rigorous demands of field process automation and usage in hazardous environments. Ethernet-APL simplifies network architecture by supporting both data and power transmissions over a single connection for more efficient and cost-effective installations. Ethernet-APL also provides high-speed, 10 Mbit/s full-duplex communication over distances up to 1,000 meters. These features combined make Ethernet-APL ideal for building scalable and reliable industrial networks, revolutionizing Ethernet accessibility for field-level instruments.

Key Features of Ethernet-APL

Two-wire Ethernet
Two-wire Ethernet

Using only a single twisted pair cable reduces material costs and simplifies installations, saving precious time and resources.

Power and Data
Power and Data

By providing both power and data over a single twisted pair cable, Ethernet-APL eliminates the need for dedicated power lines in industrial settings.

High-speed Connectivity
High-speed Connectivity

Ethernet-APL supports full-duplex data rates of up to 10 Mbit/s, more than 300 times faster than other field communication protocols.

Extended Reach
Extended Reach

Ethernet-APL supports seamless communications across longer distances of up to 1,000 meters.

Intrinsic Safety
Intrinsic Safety

Explosion protection and inherent safety characteristics make Ethernet-APL suitable for use in hazardous environments.

What Is the Difference Between Ethernet-APL and Single-pair Ethernet?

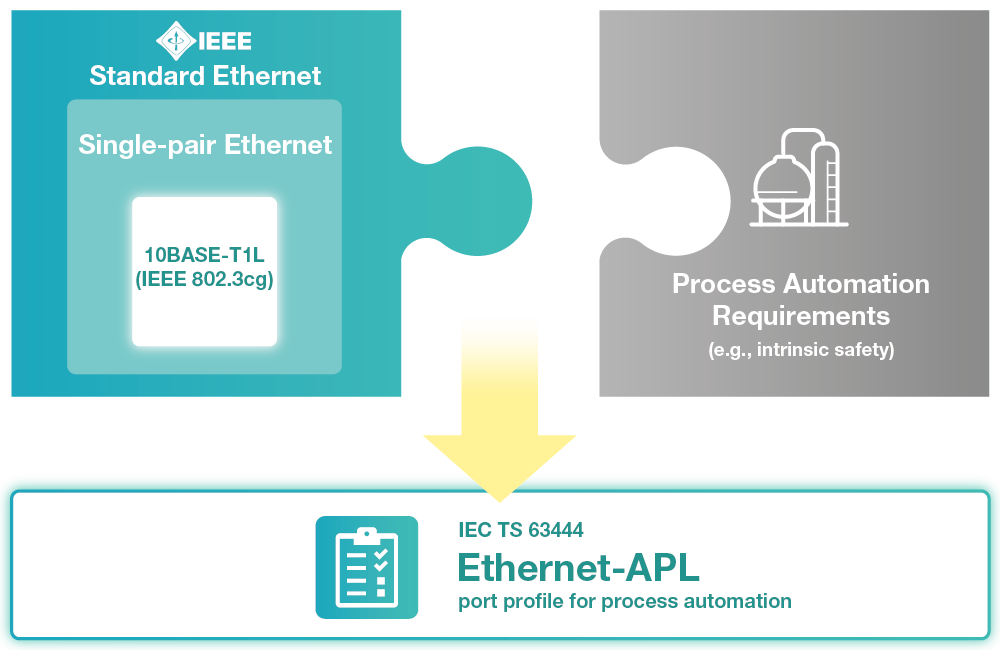

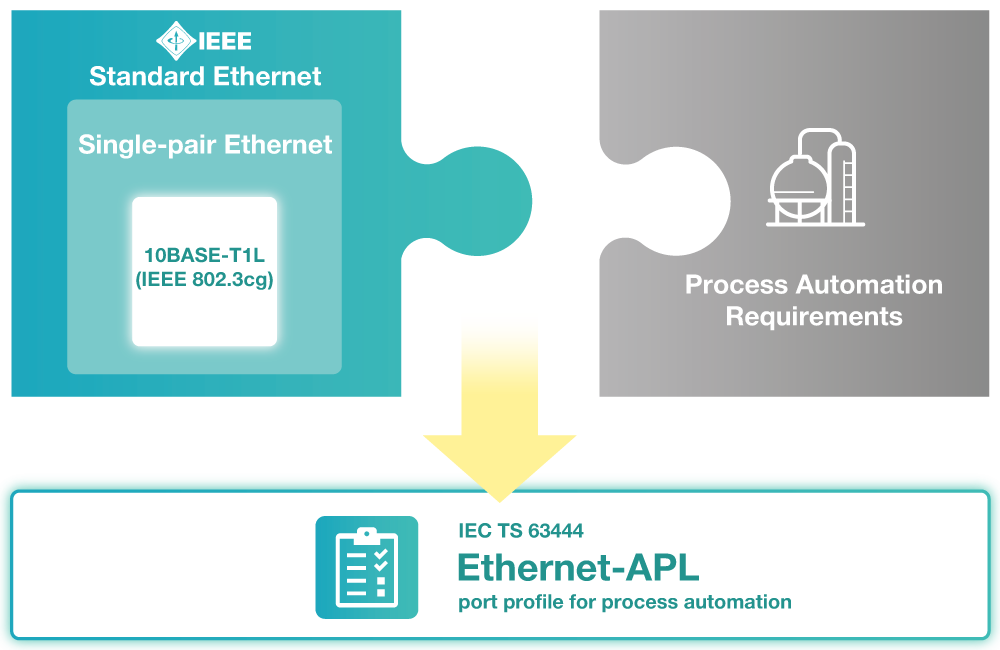

Ethernet-APL combines 10BASE-T1L single-pair Ethernet technology with unique process automation requirements, including intrinsic safety, to achieve IEC TS 63444 compliance.

Ethernet-APL is a specialized technology that combines IEEE 802.3cg 10BASE-T1L single-pair Ethernet (SPE) technology with explosion protection via intrinsic safety (IS) characteristics. Leveraging the extended reach of SPE, Ethernet-APL can transmit data at 10 Mbit/s over distances of up to 1,000 m using a single twisted pair cable. Additionally, Ethernet-APL features intrinsic safety capabilities as outlined in IEC TS 63444:2023 to meet the stringent safety requirements for hazardous areas, such as process automation plants. In summary, Ethernet-APL combines the main benefits of SPE with additional safety measures to enable reliable network communication in harsh and hazardous industrial environments.

How Is Ethernet-APL Revolutionizing the Industry?

Ethernet-APL extends standard Ethernet to the field level, offering robust and reliable digital communication that boosts operational efficiency. This technology features explosion protection and crucial safety features, making it perfect for use in hazardous environments. By using APL-compatible networking equipment and field devices, industries can seamlessly integrate and optimize their processes, enhancing productivity and safety in field process plants. Ethernet-APL is not just an upgrade; it's a game-changer for building smarter and safer industrial operations.

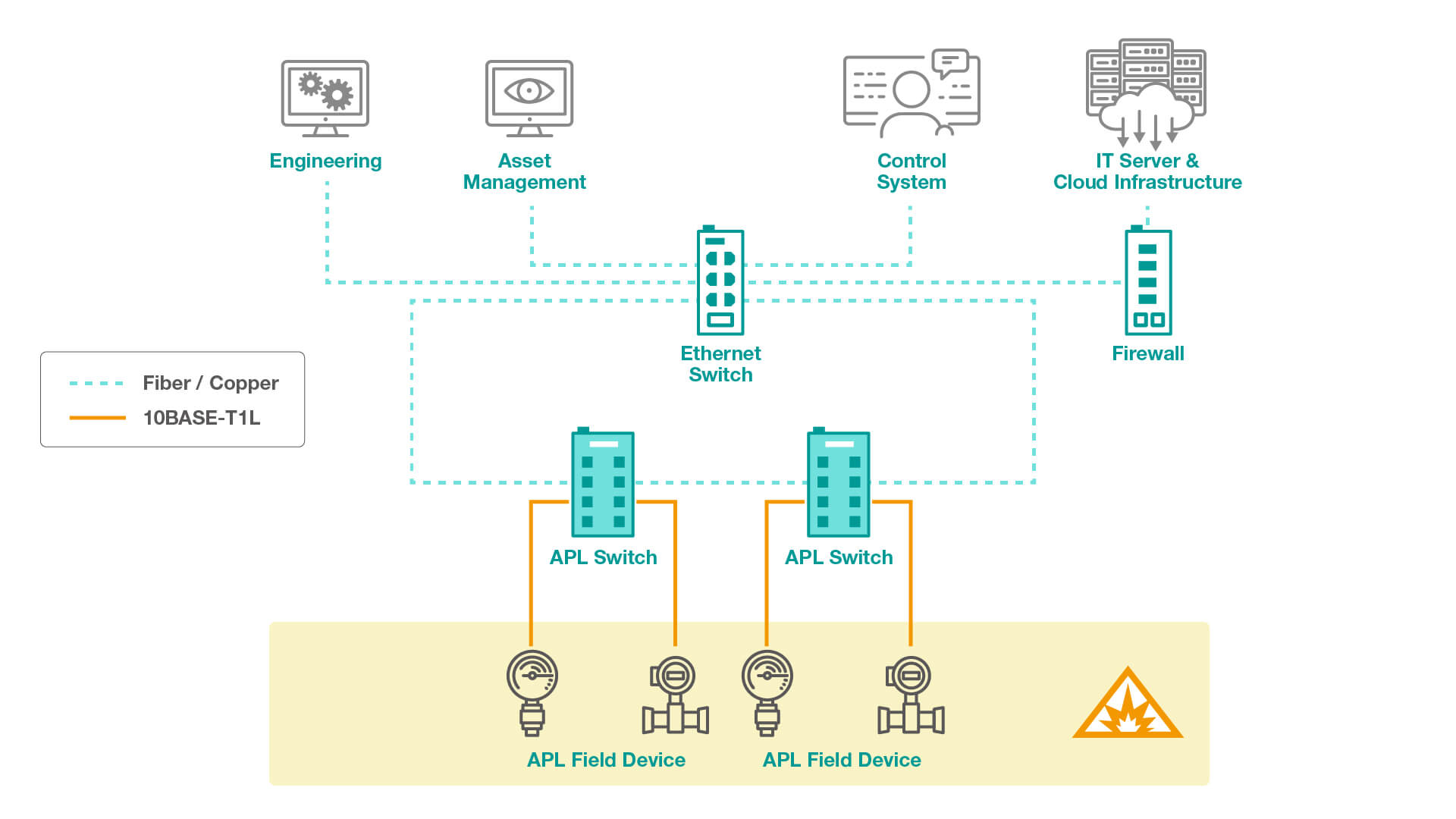

Upper-level network devices connected via regular fiber or copper to field devices in hazardous environments via APL-compatible switches using 10BASE-T1L Ethernet-APL cabling.

Ethernet-APL Applications

Process automation is crucial in industries such as the oil and gas, mining, and chemical sectors, where complex operations and harsh environments demand robust, reliable, and high-performance networking solutions. Ethernet-APL offers several advantages tailored to the specific needs of these industries. Here are just a few ways process automation in these sectors can benefit from Ethernet-APL.

Requirements:

  • Solid reliability to ensure 24/7 continuous operations in harsh and hazardous operating environments.
  • Ability to facilitate large-scale and remote installations.
  • Need for real-time monitoring and control capabilities.

Benefits of Ethernet-APL:

  • Intrinsic Safety: Ethernet-APL is designed for use in hazardous conditions, ensuring safe operations in explosive environments common in the oil and gas, mining, and chemical industries.
  • Long-distance Connectivity: With cable lengths up to 1,000 meters, Ethernet-APL connects scattered industrial field devices over longer distances.
  • Real-time Communication: Featuring data rates up to 10 Mbit/s, Ethernet-APL enables more precise data acquisition and control than other field communication protocols, enhancing decision-making and operational efficiency.

Frequently Asked Questions About Ethernet-APL

Ethernet-APL is revolutionizing industrial communication by delivering reliable, high-speed data over long distances in harsh environments. This FAQ section aims to answer some common questions about Ethernet-APL.

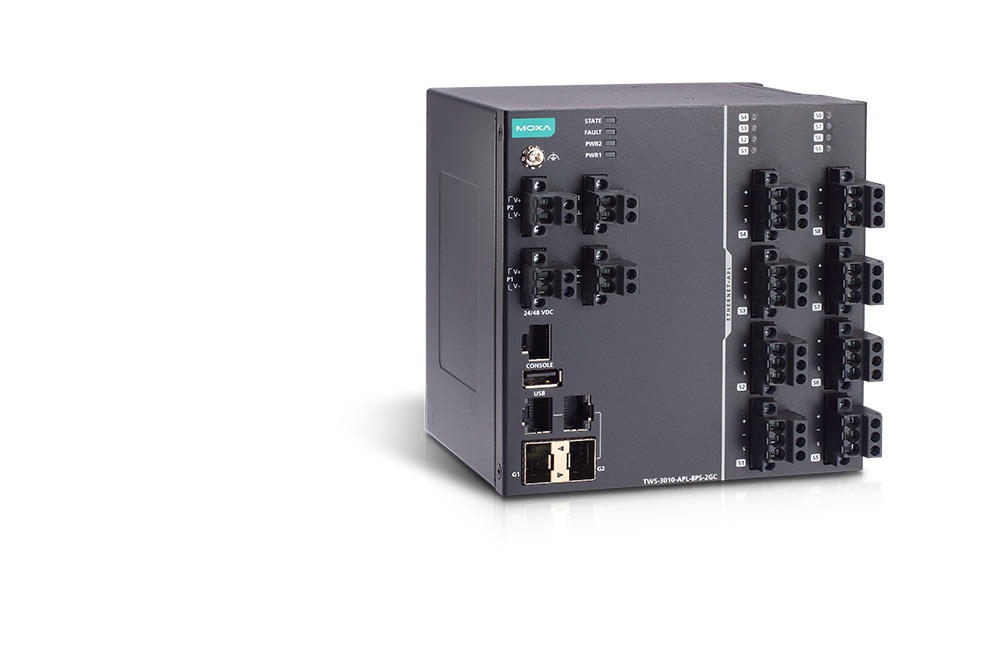

Due to its unique characteristics, Ethernet-APL requires compatible devices to leverage the technological benefits, such as APL field devices like sensors and actuators, and APL switches for network communication. APL-capable devices also eliminate the need for additional function-specific devices, such as gateways or field barriers between components, streamlining the network infrastructure.

Traditional 4-20mA technology is characterized by slow data transmission speeds and point-to-point wiring limitations. In contrast, Ethernet-APL offers faster data rates, flexible network architectures, and seamless integration with existing IT networks. These advantages make Ethernet-APL ideal for modern industrial applications requiring real-time control, advanced analytics, and interoperability between diverse devices and systems.

Traditional fieldbuses enable digital communication at the field level, but suffer from higher complexity, lower data rates, limited scalability, and interoperability issues that often prevent wider adoption. In contrast, Ethernet-APL leverages standard Ethernet protocols, offering higher data rates and streamlined integration with optimized protocol compatibility. This advancement modernizes field-level operations by simplifying connectivity and enhancing overall performance capabilities.

Discover Our Latest Ethernet-APL Resources

Forging Open and Unified Industrial Network Architecture With TSN and Single-pair Ethernet

Discover how game-changing technologies like TSN, single-pair Ethernet, and Ethernet-APL are shaping unified industrial network architectures, driving productivity, efficiency, and innovation across diverse industrial sectors.

How Moxa Is Transforming Industrial Networks

In our latest collaboration with Real Pars, we demonstrate how TSN, single-pair Ethernet, and Ethernet-APL are revolutionizing industrial networking for modern manufacturing. Come and see how these technologies are transforming the industry!

Other Innovative Communication Technologies

Private 5G Networks
Single-pair Ethernet
Time-sensitive Networking
