Retrofit Your Substation With Our IEC 61850 Gateways

Streamline Your IEC 61850 Protocol Communications

Connecting legacy power systems to IEC 61850 communication networks can be complex, as a variety of industrial protocols are used in field sites. Furthermore, bringing them into networks raises serious security concerns. Moxa’s IEC 61850 gateways support power industry-related protocols, such as Modbus, DNP3, IEC 60870-5-101/104, and IEC 61850, helping you easily enable communication between power SCADA systems and a variety of field devices.

  • Quicker Setting

    Don’t let complex conversion setting wear you down. Our MGate features a user-friendly function to generate SCL files, saving the time and effort for additional tools.

  • Minimal Downtime

    It’s crucial to maintain stable connections in extreme environments where power devices are placed. Our MGate features built-in diagnostic tools that quickly identify root cause.

  • Secure Communications

    Cybersecurity is paramount for substations. Our MGate 5192/5119 Series offer IEC 61850 MMS Communication Encryption (SSL) and adhere to the IEC 62443 and NERC CIP standards.

Applications

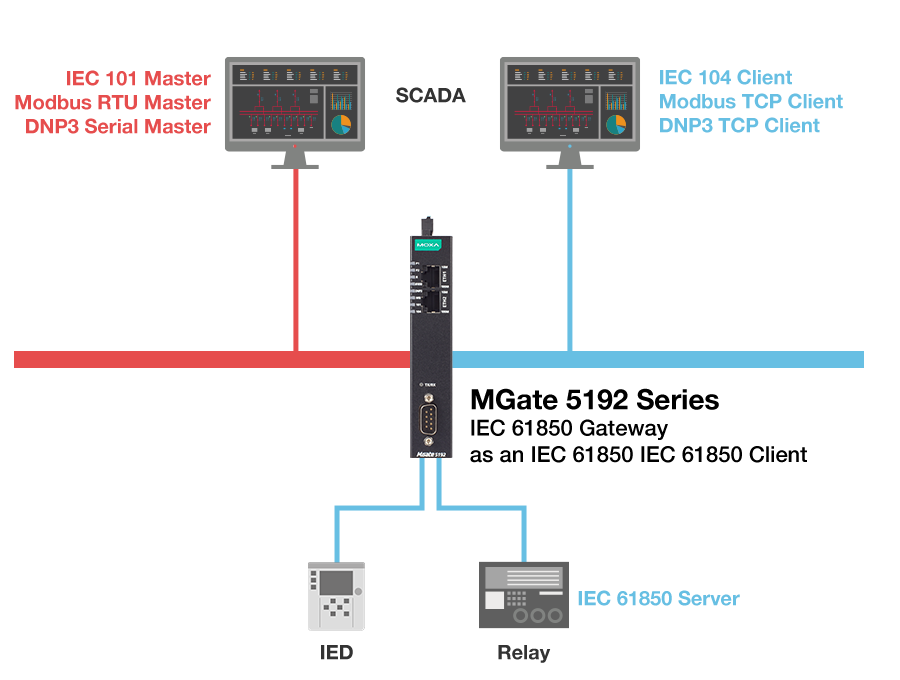

  • IEC 61850 Client

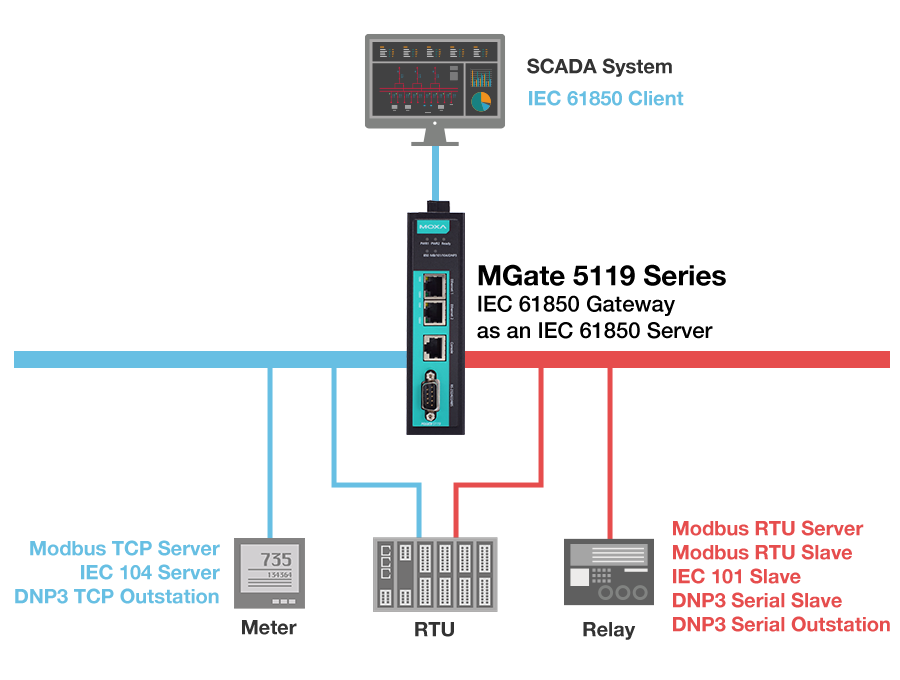

  • IEC 61850 Server

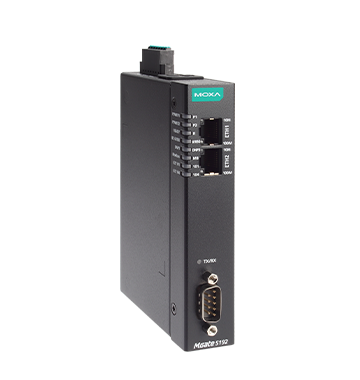

MGate 5192

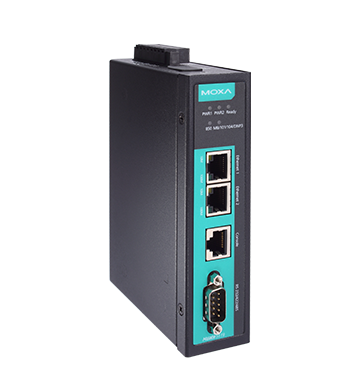

MGate 5119

Product Selection


Product Model
Supported Protocol Conversions
Data Points
Max. IEC 61850 Connections
Import SCL/CID
Data View
Operating Temperature
Dimensions
Warranty
MGate 5192 Series
MGate 5192 Series
MGate 5119 Series
MGate 5119 Series
IEC 61850 MMS client
to
Modbus TCP/RTU/ASCII server, or DNP3 TCP/serial outstation, or IEC 60870-5-101 slave, or IEC 60870-5-104 server 		Modbus TCP/RTU/ASCII client, or DNP3 TCP/serial master, or IEC 60870-5-101 master, or IEC 60870-5-104
to
IEC 61850 MMS server
5,000 points 1,200 points
32 connections to IEC 61850 server 16 connections from IEC 61850 client
  • Protocol traffic monitoring
  • Real-time data monitoring
  • Active write value test from MGate
  • Protocol traffic monitoring
  • Real-time data monitoring
-40 to 75°C
25 x 90 x 129.6 mm 36 x 120 x 150 mm
5 years
