MGate 5192 Series

1-port IEC 61850-to-DNP3/IEC 101/IEC 104/Modbus gateways

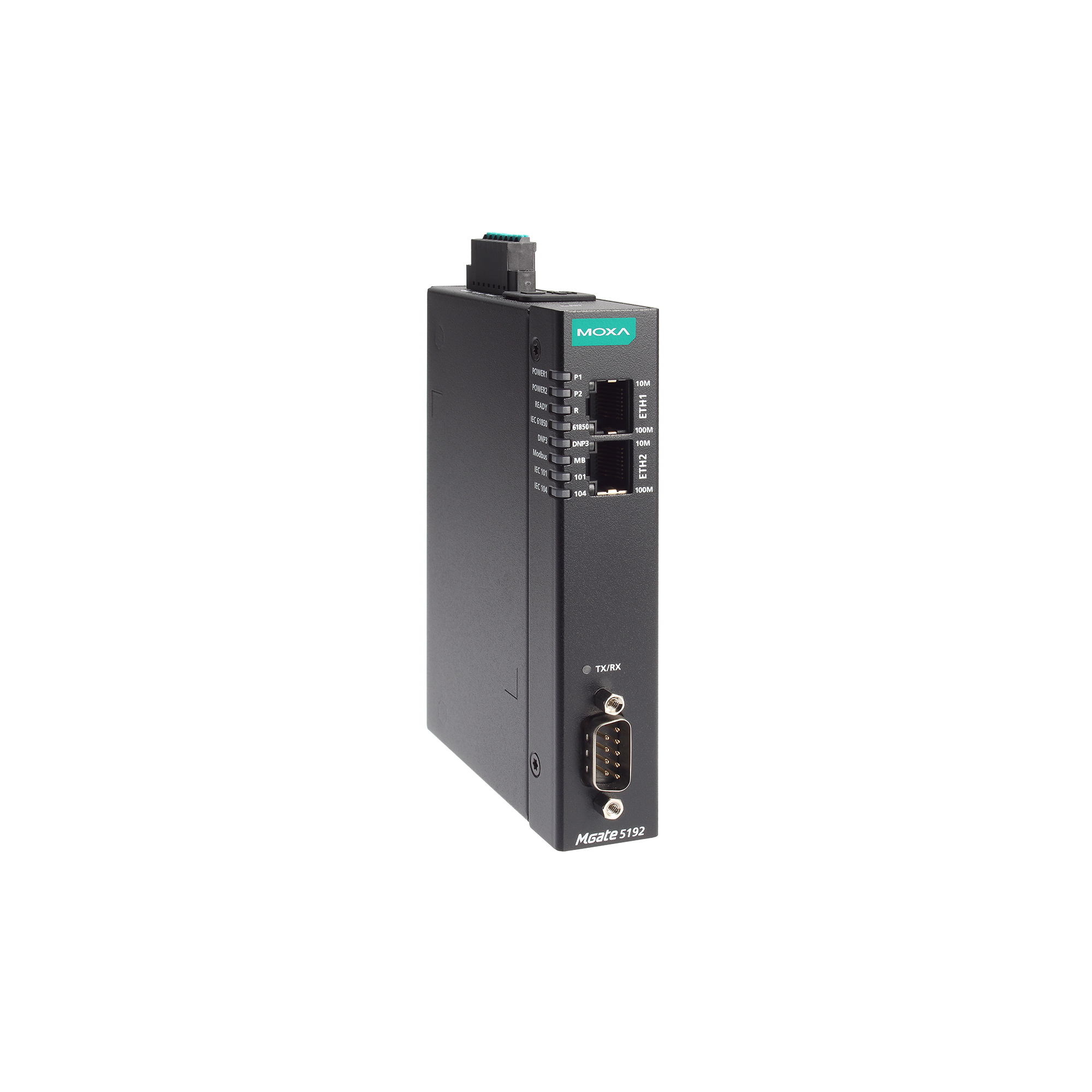

moxa-mgate-5192-series-image-(1).jpg | Moxa

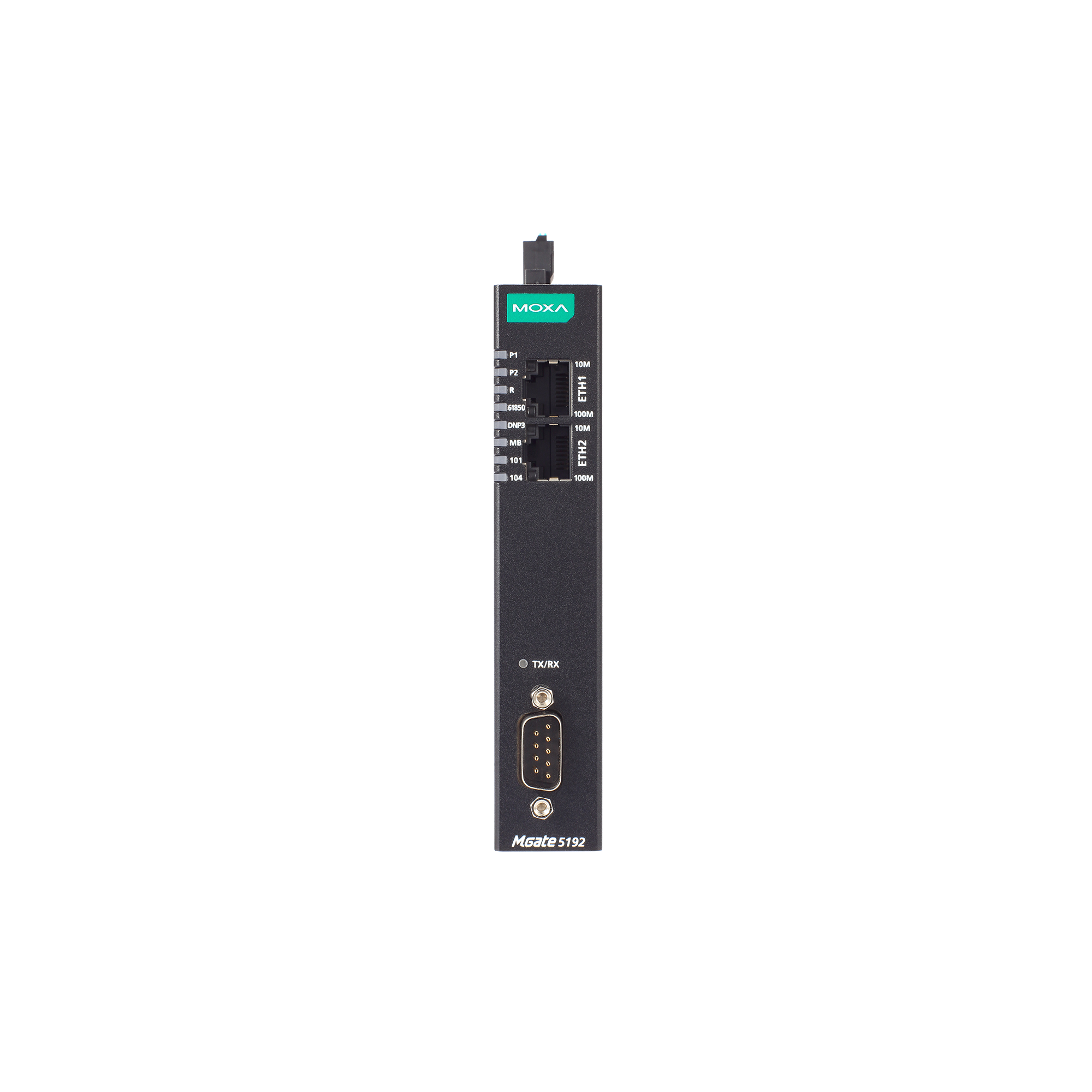

moxa-mgate-5192-series-image-1-(1).jpg | Moxa

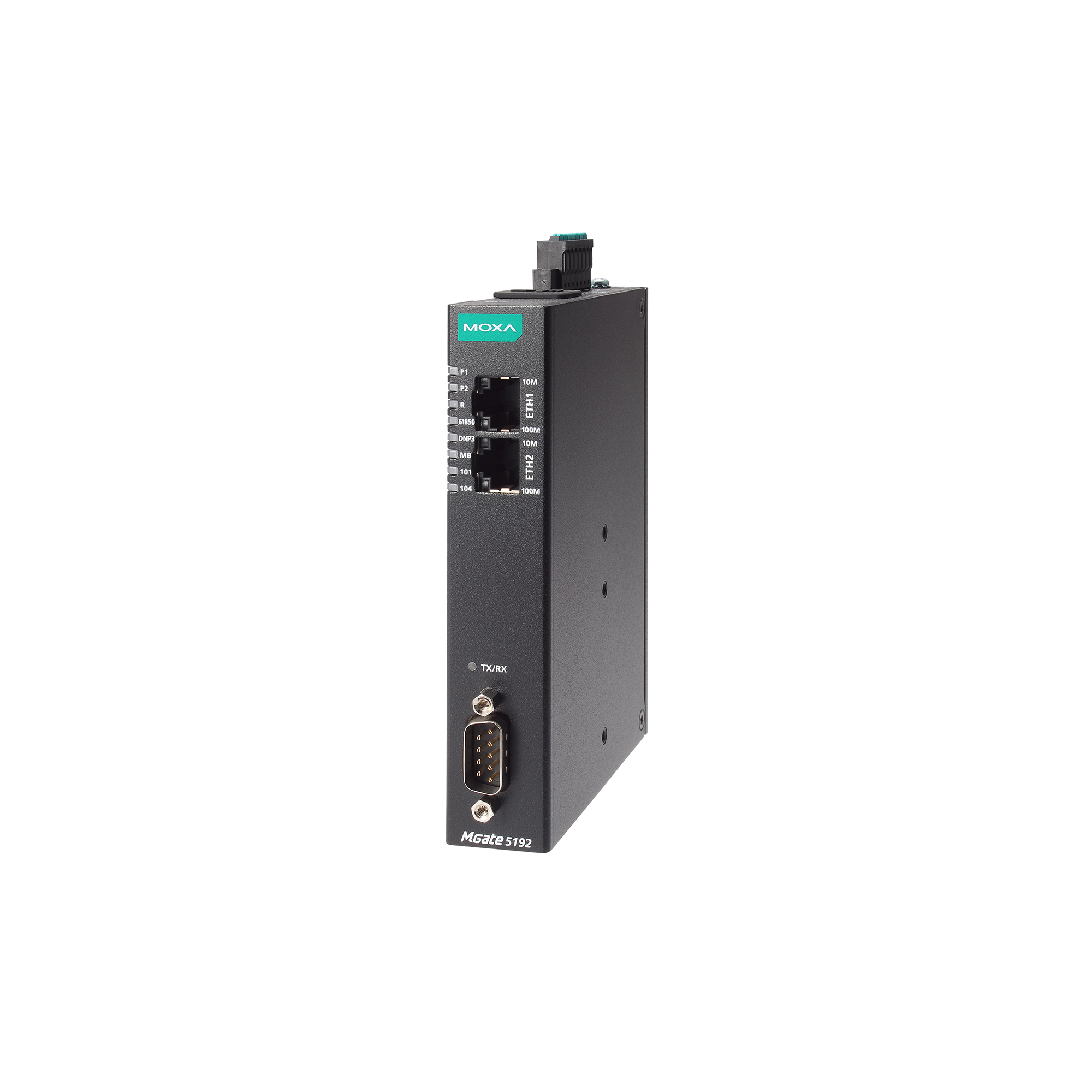

moxa-mgate-5192-series-image-2-(1).jpg | Moxa

Features and Benefits

  • Supports IEC 61850 MMS client
  • Supports DNP3 serial/TCP/UDP outstation
  • Supports IEC 60870-5-101 server
  • Supports IEC 60870-5-104 client
  • Supports Modbus RTU/ASCII/TCP server
  • Flexible deployment with Ethernet cascading and dual subnet
  • Embedded traffic monitoring/diagnostic information for easy troubleshooting
  • Easy device configuration via a web-based console
  • microSD card for configuration backup/duplication
  • Supports dual redundant DC power inputs and 1 relay output
  • Serial port with 2 kV isolation protection
  • -40 to 75°C wide operating temperature models available
  • Developed according to IEC 62443-4-2 with Secure Boot

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-iec61850-3-ieee1613-black-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The MGate 5192 is an industrial protocol gateway for converting IEC 61850 MMS to Modbus RTU/ASCII/TCP, DNP3 serial/TCP/UDP, IEC 60870-5- 101, or IEC 60870-5-104 communications. To integrate existing IEC 61850 devices, such as IEDs or relays, into a Modbus, DNP3, IEC 101, or IEC 104 network, use the MGate 5192 as an IEC 61850 MMS client to collect and exchange data with Modbus RTU/ASCII/TCP, DNP3 serial/TCP/UDP, IEC 60870-5-101, or IEC 60870-5-104 SCADA/devices. All models are protected by a rugged and compact metal housing, are DIN-rail mountable, and offer built-in serial isolation. The rugged design is suitable for industrial applications such as power substation and renewable energy-related applications.

Easy Configuration

The MGate 5192 gateways are provided with a web console to make configuration easy without having to install an extra utility. In addition, HTTPS encryption of communication ensures higher network security. In most data-acquisition applications, configuration of devices with Modbus commands can be time-consuming and increase costs. The MGate 5192 gateways provide offline configuration via a CSV file to help complete the Modbus settings quickly. The MGate gateways provide software-configurable pull high/low and termination resistor settings for RS-485 2-wire to reduce efforts by eliminating the need to open the chassis.

Easy Troubleshooting

The MGate 5192 gateways provide a variety of maintenance functions to reduce troubleshooting time and cost, including LED indicators, protocol diagnostics, traffic monitor, and tag view. These tools help you capture and check data to easily identify the root cause of issues, especially during the installation stage. The MGate gateways also come with status monitoring and fault protection functions. The status monitoring function notifies a SCADA system when a IEC 61850 device gets disconnected or does not respond, in which case the process SCADA gets the status of each end device and then issues alarms to notify operators. The fault protection function keeps the latest data without sending output data to the IEC 61850 devices. When a SCADA gets disconnected, the end devices keep the last operation and do not go offline.

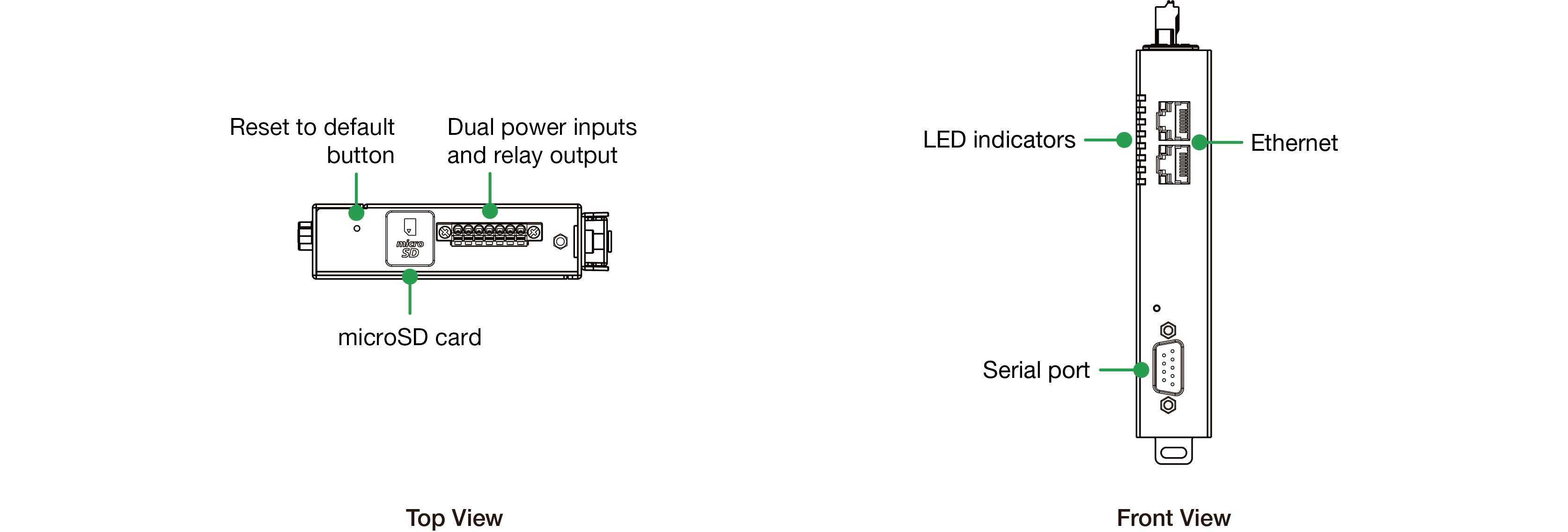

Appearance

  • 10/100BaseT(X) Ports (RJ45 connector)

    2
    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Industrial Protocols

    IEC 61850 MMS Client
    Modbus TCP Server
    IEC 60870-5-104 Server
    DNP3 TCP/UDP Outstation

  • Configuration Options

    Web Console (HTTPS)
    Device Search Utility (DSU)

  • Management

    ARP
    DHCP Client
    DNS
    HTTP
    HTTPS
    SMTP
    SNMP Trap
    SNMPv1/v2c/v3
    TCP/IP
    UDP

  • MIB

    RFC1213, RFC1317

  • Time Management

    NTP Client

  • Authentication

    Local database

  • Encryption

    HTTPS
    AES-128
    AES-256
    SHA-256

  • Security Protocols

    SNMPv3
    SNMPv2c Trap
    HTTPS (TLS 1.3)

  • No. of Ports

    1

  • Connector

    DB9 male

  • Serial Standards

    RS-232/422/485

  • Baudrate

    300 bps to 921.6 kbps

  • Data Bits

    7, 8

  • Parity

    None
    Even
    Odd
    Space
    Mark

  • Stop Bits

    1, 2

  • Flow Control

    RTS Toggle (RS-232 only)
    RTS/CTS

  • RS-485 Data Direction Control

    Automatic Data Direction Control (ADDC)

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms
    software configurable

  • Terminator for RS-485

    120 ohms
    software configurable

  • Isolation

    2 kV (built-in)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Industrial Protocols

    Modbus RTU/ASCII Server
    IEC 60870-5-101 Server
    DNP3 Serial Outstation

  • Mode

    MMS Client

  • Max. No. of Server Connections

    32

  • Max. No. of Data Objects

    5000 points

  • Mode

    Server

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Client Connections

    16

  • Max. No. of Data Tags

    5000 tags

  • Mode

    Server

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Client Connections

    1

  • Max. No. of Data Tags

    5000 tags

  • Mode

    Outstation

  • Objects Supported

    Binary inputs
    Analog inputs
    Counters
    Frozen counters
    Binary outputs
    Analog outputs

  • Max. No. of Client Connections

    1

  • Protocol Security

    Secure Authentication v5

  • Max. No. of Objects

    5000 points

  • Mode

    Outstation

  • Objects Supported

    Binary inputs
    Analog inputs
    Counters
    Frozen counters
    Binary outputs
    Analog outputs

  • Max. No. of Client Connections

    1

  • Max. No. of Objects

    5000 points

  • Mode

    Server (balanced/unbalanced)

  • Objects Supported

    Single point
    Double point
    Step position
    Bit string of 32 bit
    Measured value (normalized)
    Measured value (scaled)
    Measured value (floating)
    Integrated totals

  • Max. No. of Client Connections

    1

  • Max. No. of Information Objects

    5000 points

  • Mode

    Server

  • Objects Supported

    Single point
    Double point
    Step position
    Bit string of 32 bit
    Measured value (normalized)
    Measured value (scaled)
    Measured value (floating)
    Integrated totals

  • Max. No. of Client Connections

    32

  • Max. No. of Information Objects

    5000 points

  • microSD Slot

    Up to 32 GB (SD 2.0 compatible)

  • Input Voltage

    12 to 48 VDC

  • Input Current

    455 mA (max)

  • Power Connector

    Spring-type Euroblock terminal

  • Contact Current Rating

    Resistive load: 2 A @ 30 VDC

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    25 x 90 x 129.6 mm (0.98 x 3.54 x 5.1 in)

  • Weight

    294 g (0.65 lb)

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    EN 61010-2-201
    UL 61010-2-201

  • EMC

    EN 61000-6-2/-6-4

  • EMI

    FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
    IEC 61000-4-6 CS: 10 V/m
    IEC 61000-4-8 PFMF: 100 A/m

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6
    IEC 60068-2-64

  • Power Substation

    IEEE 1613
    IEC 61850-3

  • International Approval

    UKCA
    KC

  • Time

    1,240,821 hrs

  • Standards

    Telcordia SR332
