Why Moxa

• Proactive

  Our remote I/Os feature event-driven push and Click&Go Plus Logic to move beyond polling, reducing host reliance and streamlining IT/OT integration.

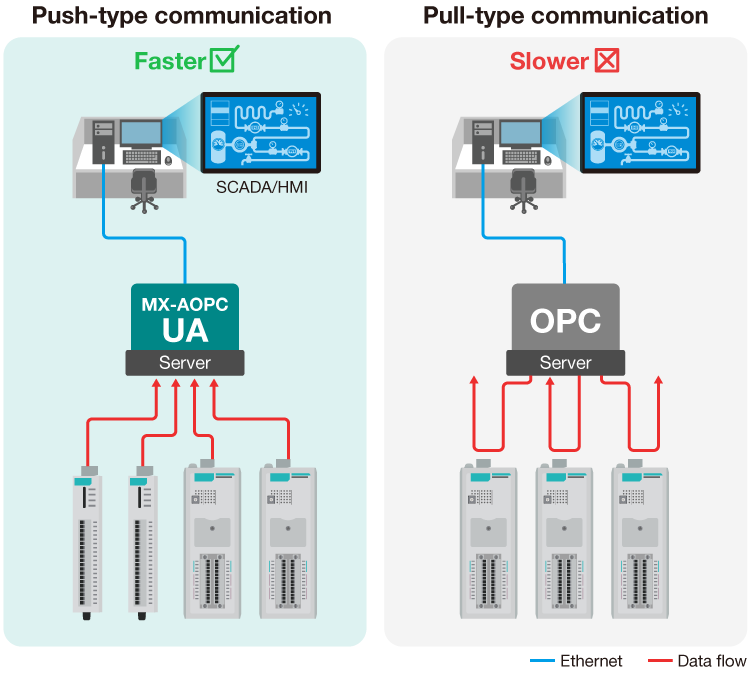

  Event-driven push technology

  With push-type communication, remote I/Os send data only when changes occur, significantly reducing unnecessary network traffic. Unlike pull-based systems that constantly poll devices, this method enables faster system responses and lowers overall bandwidth usage. More importantly, by offloading routine data handling from the host system, push communication helps free up computing resources, allowing the upper system to focus on higher-level applications and real-time analysis.




  Supported Models:
  ioLogik E1200 Series, ioLogik 2500 Series, MX-AOPC UA Suite

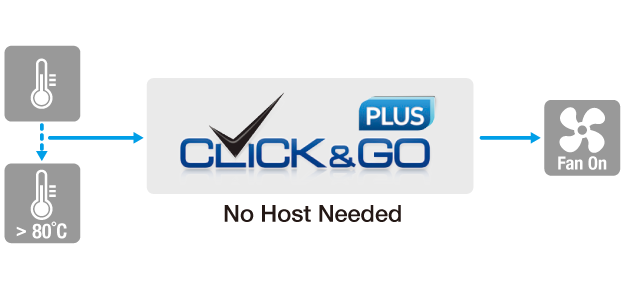

  Intuitive Click&Go Plus logic

  Moxa’s Click&Go Plus Logic enables smart, front-end control logic by executing event-based actions directly on the device—eliminating the need for constant communication with a host. You can configure logic rules using an intuitive graphical interface with simple if-then-else conditions. By processing logic at the edge, devices react instantly to field events and reduce host dependency to boost overall efficiency.




  Supported Models: ioLogik 2500 Series



• Easy to Use

  Effortless setup with front wiring and daisy-chained Ethernet simplifies installation and lowers effort, cost, and complexity.

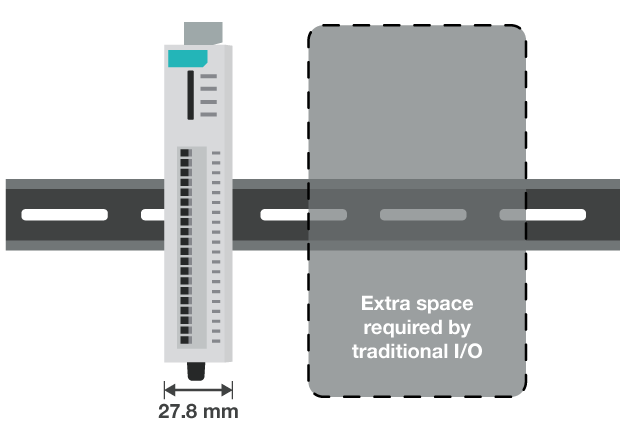

  Front-wiring design

  The front-facing wiring design makes installation easier and more efficient by allowing direct access to terminals. This design not only simplifies wiring but also helps save over 50% of the required DIN-rail installation space, making it ideal for compact control panels.




  Supported Models:
  ioLogik E1200 Series, ioLogik R1200 Series, ioLogik 2500 Series, ioThinx 4510 Series

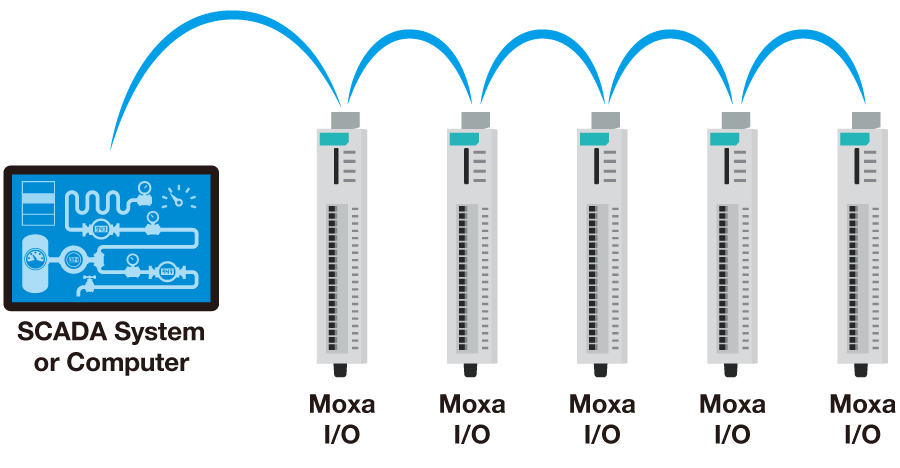

  Dual LAN ports for daisy-chain networks

  With two built-in LAN ports, devices can be directly connected in a daisy-chain configuration without needing an external switch. This simplifies network architecture, reduces wiring complexity, and lowers both installation time and costs.




  Supported Models: ioLogik E1200 Series, ioThinx 4510 Series

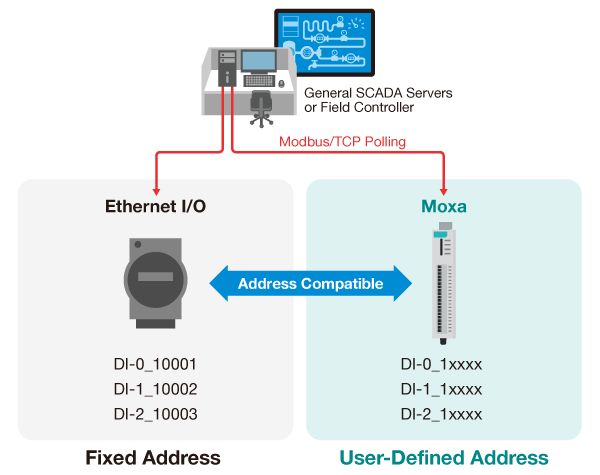

  User-defined Modbus address

  The ability to modify Modbus addresses allows the device to fit easily into existing systems without requiring major changes to configurations. This flexibility reduces implementation effort, minimizes downtime, and ensures smoother integration with legacy equipment.




  Supported Models: ioLogik E1200 Series, ioLogik 2500 Series, ioThinx 4510 Series



• Reliable

  Designed for harsh environments, our remote I/Os ensure reliable performance from manufacturing to outdoor deployments.

  Industry-leading 5-year warranty They are designed for long-term reliability, offering the longest warranty in the industry for peace of mind.

  Wide operating temperature Devices are engineered to withstand extreme heat and cold, ensuring stable performance in harsh environments.

  High-stability RS-485 They provide 137% better noise immunity for robust and secure communication (ioLogik R1200 available only).



Selection Guide

Remote I/Os
I/O
Front-end logic
Ethernet port
Serial
Northbound protocol
Active protocol
Southbound protocol
Operating Temp. range
Standards and Certifications

ioLogik E1200 Series	ioLogik R1200 Series	ioLogik 2500 Series	ioThinx 4510 Series
DI, DO, Relay, AI, AO, RTD, TC	DI, DO, Relay, AI, AO	DI, DO, AI (Relay, AO, RTD, TC expandable by ioLogik E1200 series)	DI, DO, Relay, AI, AO, RTD, TC expandable by 45MR Series
		Click&Go Plus
2		4	2
	2 x RS-485	2 x RS-232/422/485	1 x RS-232/422 or 2 x RS-485
Modbus TCP server (slave) EtherNet/IP adapter SNMPv1/v2c RESTful API	Modbus RTU Server (Slave)	Modbus TCP server (slave) SNMPv1/v2c/v3 RESTful API	Modbus TCP server (slave) SNMPv1/v2c/v3 RESTful API via TLS
Moxa AOPC (Active tag) SNMPv1 Trap		Moxa AOPC (Active tag) SNMPv1/v2c Trap CGI command	MQTT via TLS SNMPv1/v2c/v3 Trap SNMPv2c/v3 Inform
		Modbus TCP client (master) Modbus RTU client (master)	Modbus RTU client
Standard models: -10 to 60°C (14 to 140°F) Wide temp. models: -40 to 75°C (-40 to 167°F)	Standard models: -10 to 75°C (14 to 167°F) Wide temp. models: -40 to 85°C (-40 to 185°F)	Standard models: -10 to 60°C (14 to 140°F) Wide temp. models: -40 to 75°C (-40 to 167°F)	Standard models: -20 to 60°C (-4 to 140°F) Wide temp. models: -40 to 75°C (-40 to 167°F)
CID2, ATEX Zone 2, CE, FCC, UL	CE, FCC, UL	CID2, ATEX Zone 2, CE, FCC, UL	CID2, ATEX Zone 2, CE, FCC, UL
