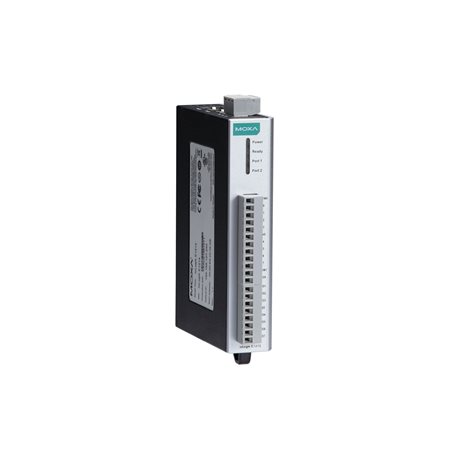

ioLogik E1200 Series

Ethernet remote I/O with 2-port Ethernet switch

moxa-iologik-e1200-series-image-1-(1).jpg | Moxa

Features and Benefits

  • User-definable Modbus TCP Slave addressing
  • Supports RESTful API for IIoT applications
  • Supports EtherNet/IP Adapter
  • 2-port Ethernet switch for daisy-chain topologies
  • Saves time and wiring costs with peer-to-peer communications
  • Active communication with MX-AOPC UA Server
  • Supports SNMP v1/v2c
  • Easy mass deployment and configuration with ioSearch utility
  • Friendly configuration via web browser
  • Simplifies I/O management with MXIO library for Windows or Linux
  • Class I Division 2, ATEX Zone 2 certification Class I Division 2 and ATEX currently do not apply to the E1213/E1213-T models.
  • Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments

Certifications

  • moxa-atex-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The ioLogik E1200 Series supports the most often-used protocols for retrieving I/O data, making it capable of handling a wide variety of applications. Most IT engineers use SNMP or RESTful API protocols, but OT engineers are more familiar with OT-based protocols, such as Modbus and EtherNet/IP. Moxa's Smart I/O makes it possible for both IT and OT engineers to conveniently retrieve data from the same I/O device. The ioLogik E1200 Series speaks six different protocols, including Modbus TCP, EtherNet/IP, and Moxa AOPC for OT engineers, as well as SNMP, RESTful API, and Moxa MXIO library for IT engineers. The ioLogik E1200 retrieves I/O data and converts the data to any of these protocols at the same time, allowing you to get your applications connected easily and effortlessly.

Daisy-Chained Ethernet I/O Connection

This industrial Ethernet remote I/O comes with two switched Ethernet ports to allow for the free flow of information downstream to another local Ethernet device, or upstream to a control server via expandable daisy-chained Ethernet I/O arrays. Applications such as factory automation, security and surveillance systems, and tunneled connections can make use of daisy-chained Ethernet for building multidrop I/O networks over standard Ethernet cables. Many industrial automation users are familiar with multidrop as the configuration most typically used in fieldbus solutions. The daisy-chain capabilities supported by ioLogik Ethernet remote I/O units not only increase the expandability and installation possibilities for your remote I/O applications, but also lower overall costs by reducing the need for separate Ethernet switches. Daisy-chaining devices in this way will also reduce overall labor and cabling expenses.

Save Time and Wiring Costs with Peer-to-Peer Communications

In remote automation applications, the control room and sensors are often far removed, making wiring over long distances a constant challenge. With peer-to-peer networking, users may now map a pair of ioLogik Series modules so that input values will be directly transferred to output channels, greatly simplifying the wiring process and reducing wiring costs.

User-Definable Modbus TCP Addressing for Painless Upgrading of Existing Systems

For Modbus devices that are controlled and detected by fixed addresses, users need to spend a vast amount of time researching and verifying initial configurations. Users need to locate each device’s networking details, such as I/O channels or vendor-defined addresses, to enable the initial or start address of a SCADA system or PLC. Devices that support user-definable Modbus TCP addressing offer greater flexibility and easier setup. Instead of worrying about individual devices, users simply configure the function and address map to fit their needs.

Push Technology for Events

When used with MX-AOPC UA Server, devices can use active push communications when communicating changes in state and/or events to a SCADA system. Unlike a polling system, when using a push architecture for communications with a SCADA system, messages will only be delivered when changes in state or configured events occur, resulting in higher accuracy and lower amounts of data that need to be transferred.

  • Digital Input Channels

    ioLogik E1210 Series: 16
    ioLogik E1212/E1213 Series: 8
    ioLogik E1214 Series: 6
    ioLogik E1242 Series: 4

  • Digital Output Channels

    ioLogik E1211 Series: 16
    ioLogik E1213 Series: 4

  • Configurable DIO Channels (by jumper)

    ioLogik E1212 Series: 8
    ioLogik E1213/E1242 Series: 4

  • Relay Channels

    ioLogik E1214 Series: 6

  • Analog Input Channels

    ioLogik E1240 Series: 8
    ioLogik E1242 Series: 4

  • Analog Output Channels

    ioLogik E1241 Series: 4

  • RTD Channels

    ioLogik E1260 Series: 6

  • Thermocouple Channels

    ioLogik E1262 Series: 8

  • Isolation

    3k VDC or 2k Vrms

  • Buttons

    Reset button

  • Connector

    Screw-fastened Euroblock terminal

  • Sensor Type

    Dry contact
    Wet contact (NPN or PNP)

  • I/O Mode

    DI or event counter

  • Dry Contact

    On: short to GND
    Off: open

  • Wet Contact (DI to COM)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • Counter Frequency

    250 Hz

  • Digital Filtering Time Interval

    Software configurable

  • Points per COM

    ioLogik E1210/E1212 Series: 8 channels
    ioLogik E1213 Series: 12 channels
    ioLogik E1214 Series: 6 channels
    ioLogik E1242 Series: 4 channels

  • Connector

    Screw-fastened Euroblock terminal

  • I/O Type

    ioLogik E1211/E1212/E1242 Series: Sink
    ioLogik E1213 Series: Source

  • I/O Mode

    DO or pulse output

  • Current Rating

    ioLogik E1211/E1212/E1242 Series: 200 mA per channel
    ioLogik E1213 Series: 500 mA per channel

  • Pulse Output Frequency

    500 Hz (max.)

  • Over-Current Protection

    ioLogik E1211/E1212/E1242 Series: 2.6 A per channel @ 25°C
    ioLogik E1213 Series: 1.5 A per channel @ 25°C

  • Over-Temperature Shutdown

    175°C (typical), 150°C (min.)

  • Over-Voltage Protection

    35 VDC

  • Connector

    Screw-fastened Euroblock terminal

  • Type

    Form A (N.O.) power relay

  • I/O Mode

    Relay or pulse output

  • Pulse Output Frequency

    0.3 Hz at rated load (max.)

  • Contact Current Rating

    Resistive load: 5 A @ 30 VDC, 250 VAC, 110 VAC

  • Contact Resistance

    100 milli-ohms (max.)

  • Mechanical Endurance

    5,000,000 operations

  • Electrical Endurance

    100,000 operations @ 5 A resistive load

  • Breakdown Voltage

    500 VAC

  • Initial Insulation Resistance

    1,000 mega-ohms (min.) @ 500 VDC

  • Note

    Ambient humidity must be non-condensing and remain between 5 and 95%. The relays may malfunction when operating in high condensation environments below 0°C.

  • Connector

    Screw-fastened Euroblock terminal

  • I/O Mode

    Voltage/Current

  • I/O Type

    Differential

  • Resolution

    16 bits

  • Input Range

    0 to 10 VDC
    0 to 20 mA
    4 to 20 mA
    4 to 20 mA (with burn-out detection)

  • Accuracy

    ioLogik E1240/E1242:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -10 to 60°C

    ioLogik E1240-T/E1242-T:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -10 to 60°C
    ±0.5% FSR @ -40 to 75°C

  • Sampling Rate

    ioLogik E1240: 12 samples/sec per module (shared between up to 8 channels) If N channels are enabled, the sampling rate for each enabled channel = 12/N samples/sec.
    ioLogik E1242: 12 samples/sec per module (shared between up to 4 channels) If N channels are enabled, the sampling rate for each enabled channel = 12/N samples/sec.

  • Built-in Resistor for Current Input

    120 ohms

  • Input Impedance

    10 mega-ohms (min.)

  • Connector

    Screw-fastened Euroblock terminal

  • I/O Mode

    Voltage/Current

  • Output Range

    0 to 10 VDC
    4 to 20 mA

  • Resolution

    12-bit

  • Accuracy

    ioLogik E1241:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -10 to 60°C

    ioLogik E1241-T:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 to 75°C

  • Voltage Output Short-Circuit Protection

    10 mA

  • Internal Resistor

    400 ohms
    Note: 24 V of external power required when loading exceeds 1000 ohms

  • Connector

    Screw-fastened Euroblock terminal

  • Sensor Type

    PT1000 (-200 to 350°C)
    PT50, PT100, PT200, PT500 (-200 to 850°C)

  • Resistance Type

    310, 620, 1250, and 2200 ohms

  • Input Connection

    2- or 3-wire

  • Sampling Rate

    ioLogik E1260: 12 samples/sec per module (shared between up to 6 channels) If N channels are enabled, the sampling rate for each enabled channel = 12/N samples/sec.

  • Resolution

    0.1°C or 0.1 ohms

  • Accuracy

    ioLogik E1260:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -10 to 60°C

    ioLogik E1260-T:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 to 75°C

  • Input Impedance

    625 kilo-ohms (min.)

  • Connector

    Screw-fastened Euroblock terminal

  • Sensor Type

    J, K, T, E, R, S, B, N

  • Millivolt Type

    ±19.532 mV
    ±39.062 mV
    ±78.126 mV
    Fault and over-voltage protection: -35 to +35 VDC (power off); -25 to +30 VDC (power on)

  • Resolution

    16 bits

  • Millivolt Accuracy

    ioLogik E1262:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -10 to 60°C

    ioLogik E1262-T:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 to 75°C

  • TC Accuracy

    Types J, T, E, S, B: ±5°C
    Types K, R, N: ±8°C

  • CJC Accuracy

    ±0.5°C @ 25°C
    ±1.5°C @ -40 to 75°C

  • Sampling Rate

    ioLogik E1262: 12 samples/sec per module (shared between up to 8 channels) If N channels are enabled, the sampling rate for each enabled channel = 12/N samples/sec.

  • Input Impedance

    10 mega-ohms (min.)

  • 10/100BaseT(X) Ports (RJ45 connector)

    2, 1 MAC address (Ethernet bypass)

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Web Console (HTTP), Windows Utility (ioSearch), MCC Tool

  • Industrial Protocols

    Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, EtherNet/IP Adapter

  • Management

    RESTful API, SNMPv1/v2c, SNMPv1 Trap, HTTP, DHCP Client, BOOTP, IPv4, TCP/IP, UDP

  • MIB

    Device Settings MIB

  • Security

    Access control list

  • LED Indicators

    Power, Ready, Port 1, Port 2

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Mode

    Server (Slave)

  • Max. No. of Client Connections

    10

  • Mode

    Adapter

  • Max. No. of Scanner Connections

    9 (for read-only), 1 (for read/write)

  • Power Connector

    Screw-fastened Euroblock terminal

  • No. of Power Inputs

    1

  • Input Voltage

    12 to 36 VDC

  • Power Consumption

    ioLogik E1210 Series: 110 mA @ 24 VDC
    ioLogik E1211 Series: 200 mA @ 24 VDC
    ioLogik E1212 Series: 155 mA @ 24 VDC
    ioLogik E1213 Series: 130 mA @ 24 VDC
    ioLogik E1214 Series: 188 mA @ 24 VDC
    ioLogik E1240 Series: 121 mA @ 24 VDC
    ioLogik E1241 Series: 194 mA @ 24 VDC
    ioLogik E1242 Series: 139 mA @ 24 VDC
    ioLogik E1260 Series: 110 mA @ 24 VDC
    ioLogik E1262 Series: 118 mA @ 24 VDC

  • Housing

    Plastic

  • Dimensions

    27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)

  • Weight

    200 g (0.44 lb)

  • Installation

    DIN-rail mounting, Wall mounting

  • Wiring

    I/O cable, 16 to 26 AWG
    Power cable, 12 to 24 AWG

  • Operating Temperature

    Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    4000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

  • EMC

    EN 55032/24, EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Hazardous Locations

    ATEX, Class I Division 2 ATEX and Class I Division 2 currently do not apply to the ioLogik E1213/E1213-T models.

  • Safety

    UL 508

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-32

  • Vibration

    IEC 60068-2-6

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    ioLogik E1210 Series: 671,345 hrs
    ioLogik E1211 Series: 923,027 hrs
    ioLogik E1212 Series: 561,930 hrs
    ioLogik E1213 Series: 715,256 hrs
    ioLogik E1214 Series: 808,744 hrs
    ioLogik E1240 Series: 474,053 hrs
    ioLogik E1241 Series: 888,656 hrs
    ioLogik E1242 Series: 502,210 hrs
    ioLogik E1260 Series: 660,260 hrs
    ioLogik E1262 Series: 631,418 hrs

  • Standards

    Telcordia SR332

  • Warranty Period

    ioLogik E1214: 2 years Because of the limited lifetime of power relays, products that use this component are covered by a 2-year warranty.
    ioLogik E1210/E1211/E1212/E1213/E1240/E1241/E1242/E1260/E1262: 5 years
