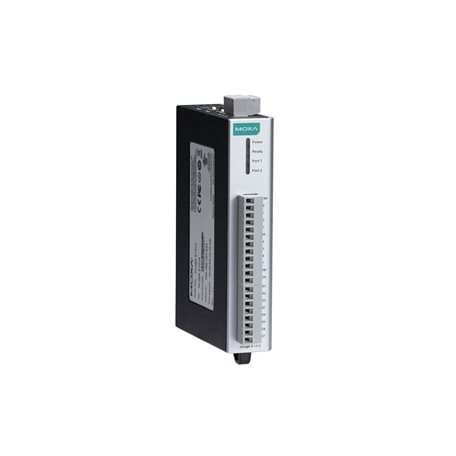

ioLogik E1241-T
ioLogik E1200 Series

Universal I/O, 4 AOs, -40 to 75°C operating temperature

Input/Output Interface
  • Analog Output Channels

    • 4
  • Isolation

    • 3k VDC or 2k Vrms
  • Buttons

    • Reset button
Analog Outputs
  • Connector

    • Screw-fastened Euroblock terminal
  • I/O Mode

    • Voltage/Current
  • Output Range

    • 0 to 10 VDC
      0 to 20 mA
      4 to 20 mA
  • Resolution

    • 12-bit
  • Accuracy

    • ±0.1% FSR @ 25°C
      ±0.3% FSR @ -40 to 75°C
  • Load (Current Mode)

    • Internal power: 400 ohms (max.)
      24 V external power: 1000 ohms (max.)
  • Voltage Output Short-Circuit Protection

    • 10 mA
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2, 1 MAC address (Ethernet bypass)
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Configuration Options

    • Web Console (HTTP)
      Windows Utility (ioSearch)
      MCC Tool
  • Industrial Protocols

    • Modbus TCP Server (Slave)
      Moxa AOPC (Active Tag)
      MXIO Library
      EtherNet/IP Adapter
  • Management

    • RESTful API
      SNMPv1/v2c
      SNMPv1 Trap
      HTTP
      DHCP Client
      BOOTP
      IPv4
      TCP/IP
      UDP
  • MIB

    • Device Settings MIB
  • Security

    • Access control list
Security Functions
  • Authentication

    • Local database
LED Interface
  • LED Indicators

    • Power, Ready, Port 1, Port 2
Modbus TCP
  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Mode

    • Server (Slave)
  • Max. No. of Client Connections

    • 10
EtherNet/IP
  • Mode

    • Adapter
  • Max. No. of Scanner Connections

    • 9 (for read-only), 1 (for read/write)
Power Parameters
  • Power Connector

    • Screw-fastened Euroblock terminal
  • No. of Power Inputs

    • 1
  • Input Voltage

    • 12 to 36 VDC
  • Power Consumption

    • 194 mA @ 24 VDC
Physical Characteristics
  • Housing

    • Plastic
  • Dimensions

    • 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)
  • Weight

    • 200 g (0.44 lb)
  • Installation

    • DIN-rail mounting
      Wall mounting
  • Wiring

    • I/O cable, 16 to 26 AWG
      Power cable, 12 to 24 AWG
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • 4000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
  • EMC

    • EN 55032/24
      EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Hazardous Locations

    • ATEX
      Class I Division 2
  • Safety

    • UL 508
  • Shock

    • IEC 60068-2-27
  • Freefall

    • IEC 60068-2-32
  • Vibration

    • IEC 60068-2-6
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 888,656 hrs
  • Standards

    • Telcordia Standard SR-332
Warranty
