Choosing the Right Secure Networking Devices to Empower Your Operations

Visit Selection Guide

Futureproof Your Industrial Network Security

With over 35 years of expertise in industrial automation, Moxa is proud to be one of the first companies globally to achieve both IEC 62443-4-1 certification for our secure development life-cycle (SDL) and IEC 62443-4-2 certification for a range of our networking products. These prestigious certifications underscore our commitment to delivering the highest level of security and reliability. We recognize your requirements for improved network uptime and reduced security risks. Trust our secure networking solutions—switches, routers, firewalls, and network management software—to help you build a resilient and secure industrial network while minimizing disruption to your operations.

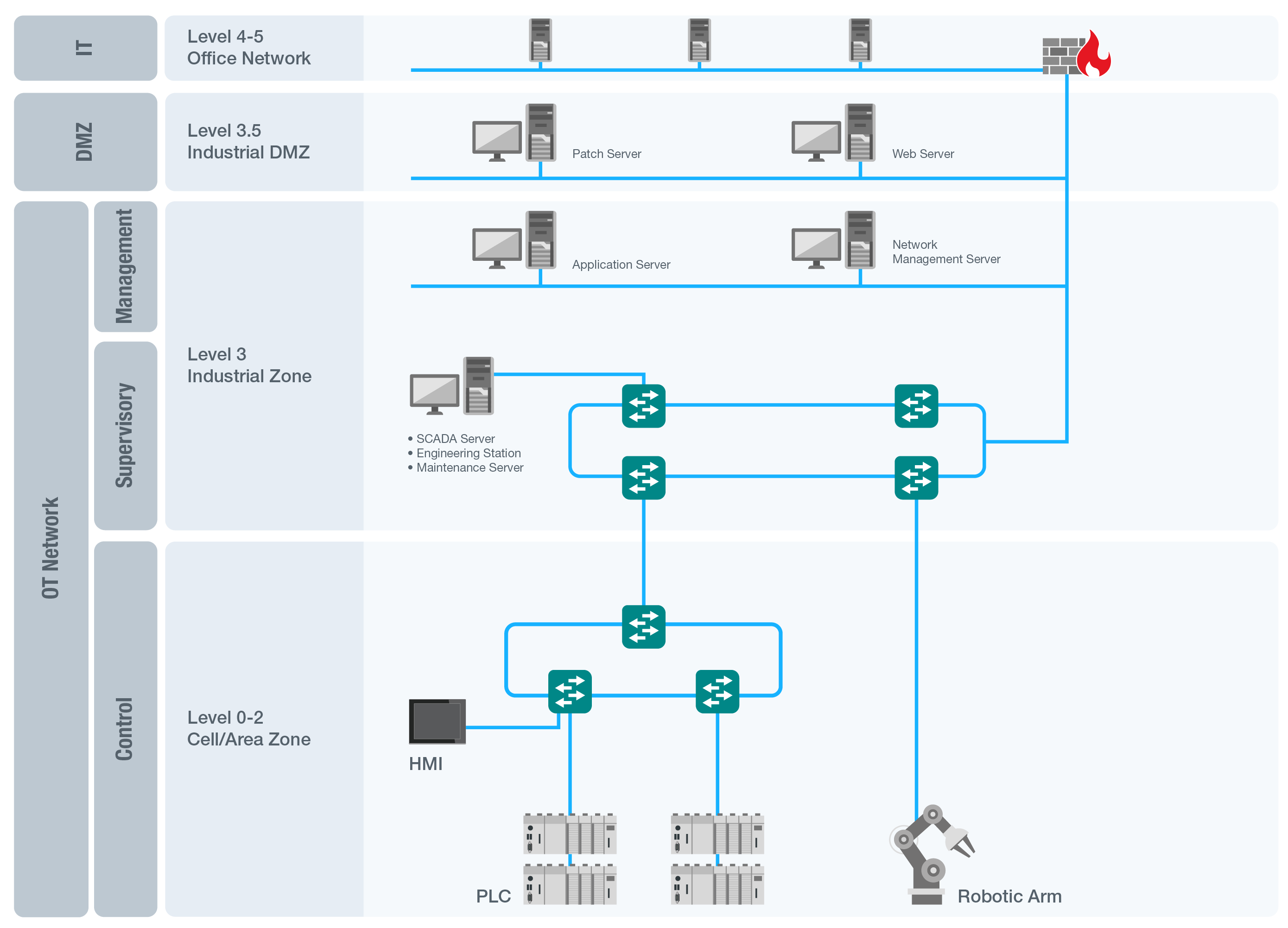

Discover the Right Secure Networking Solutions for Your Industrial Networks

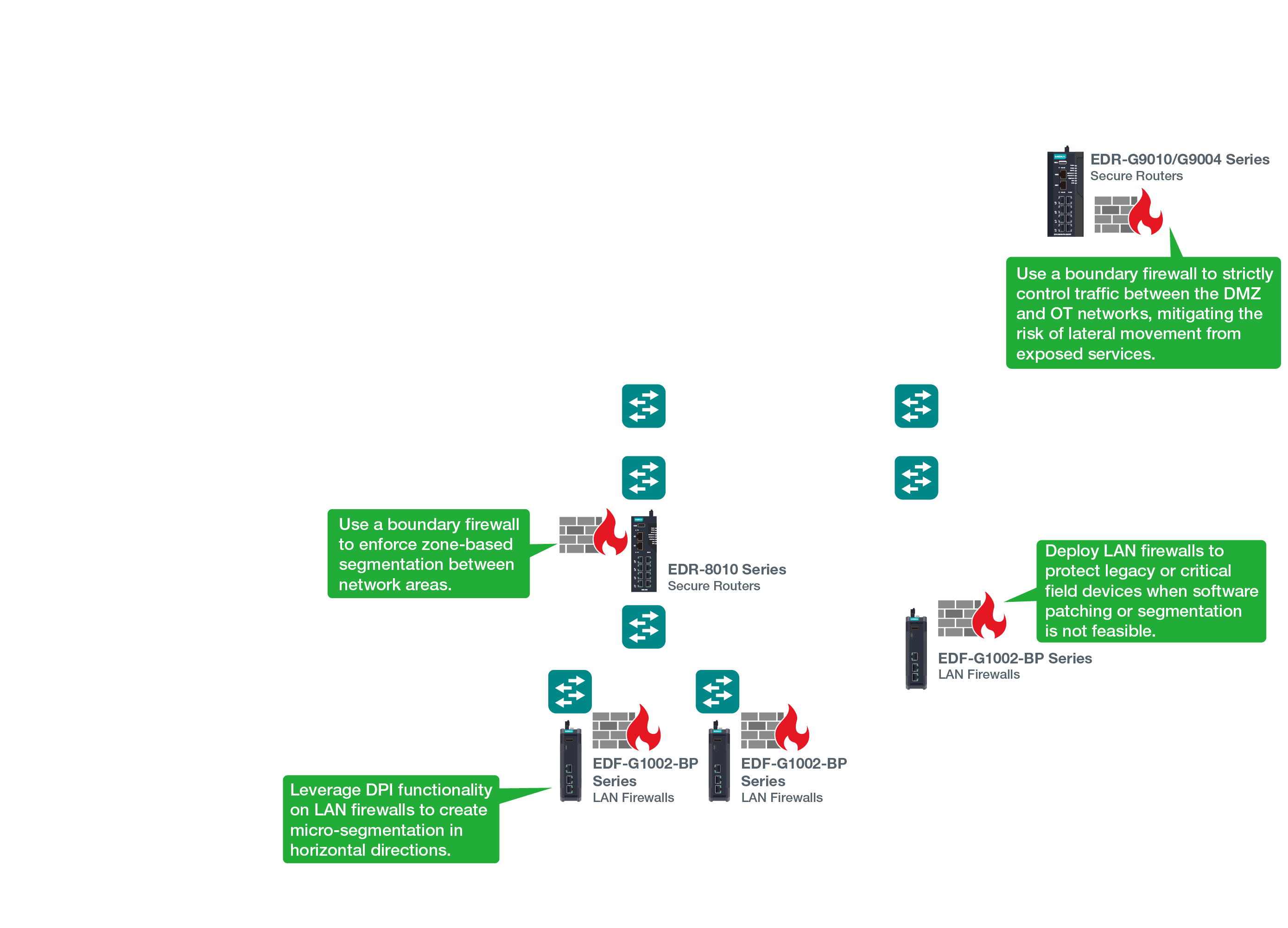

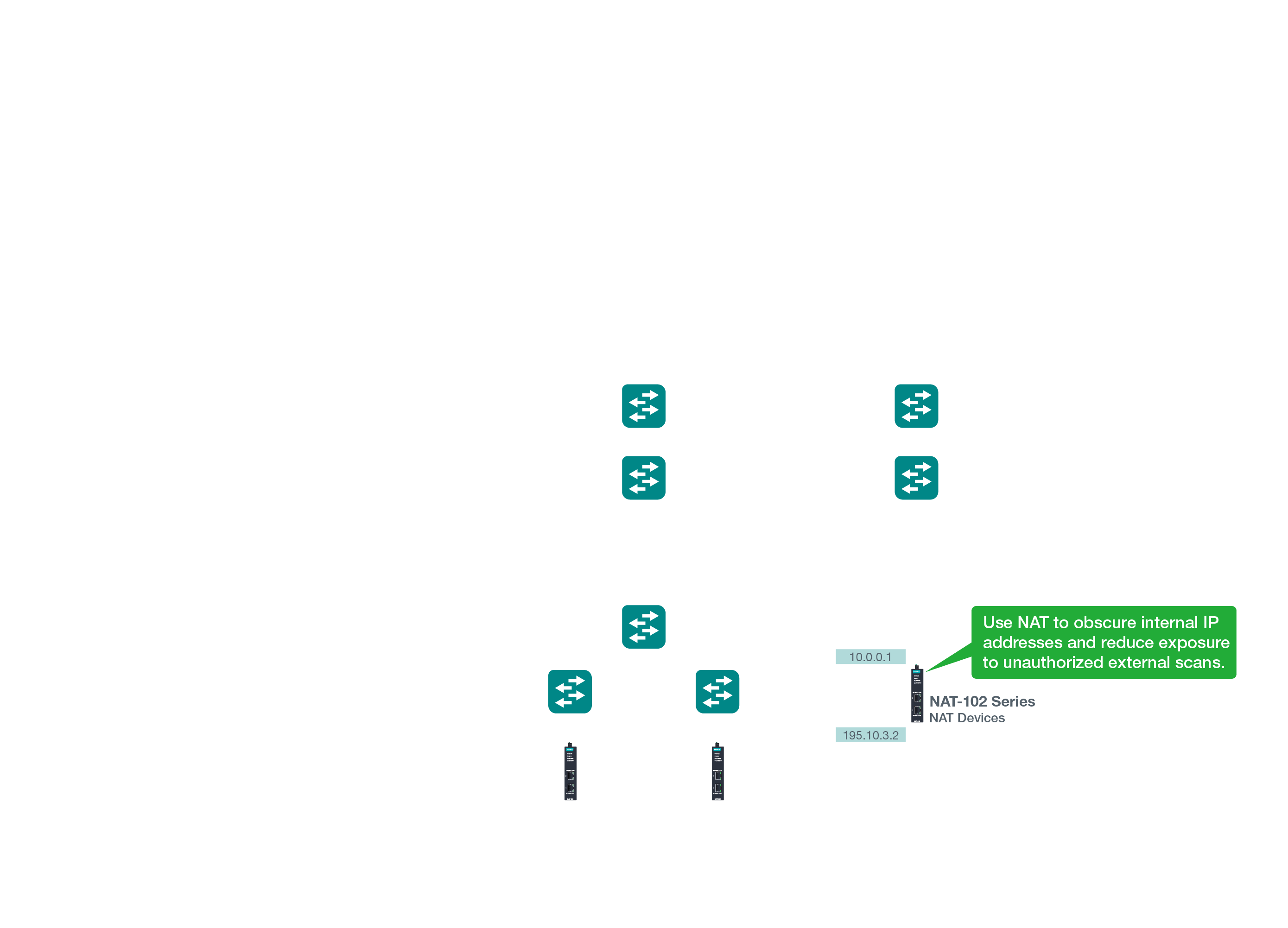

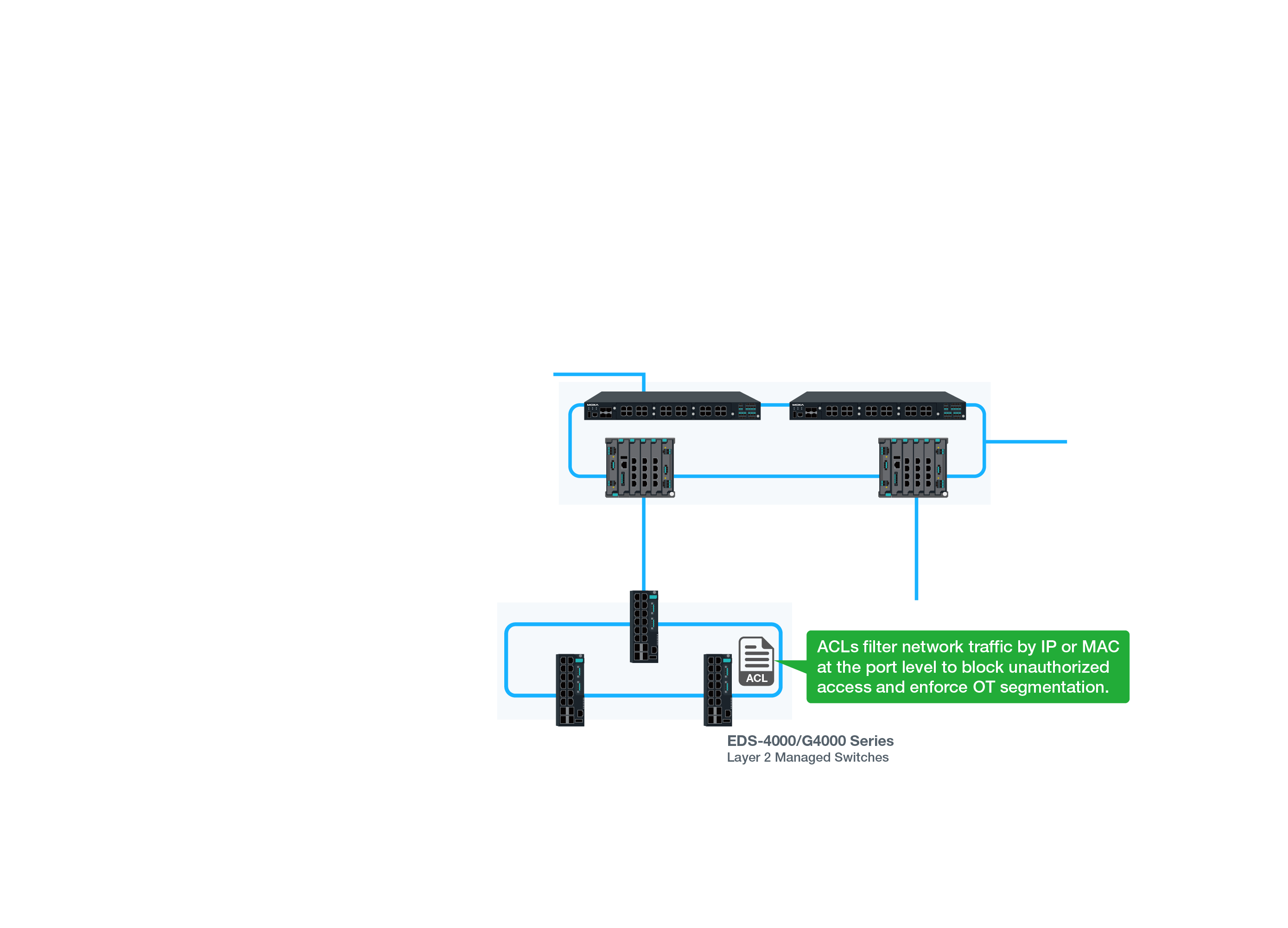

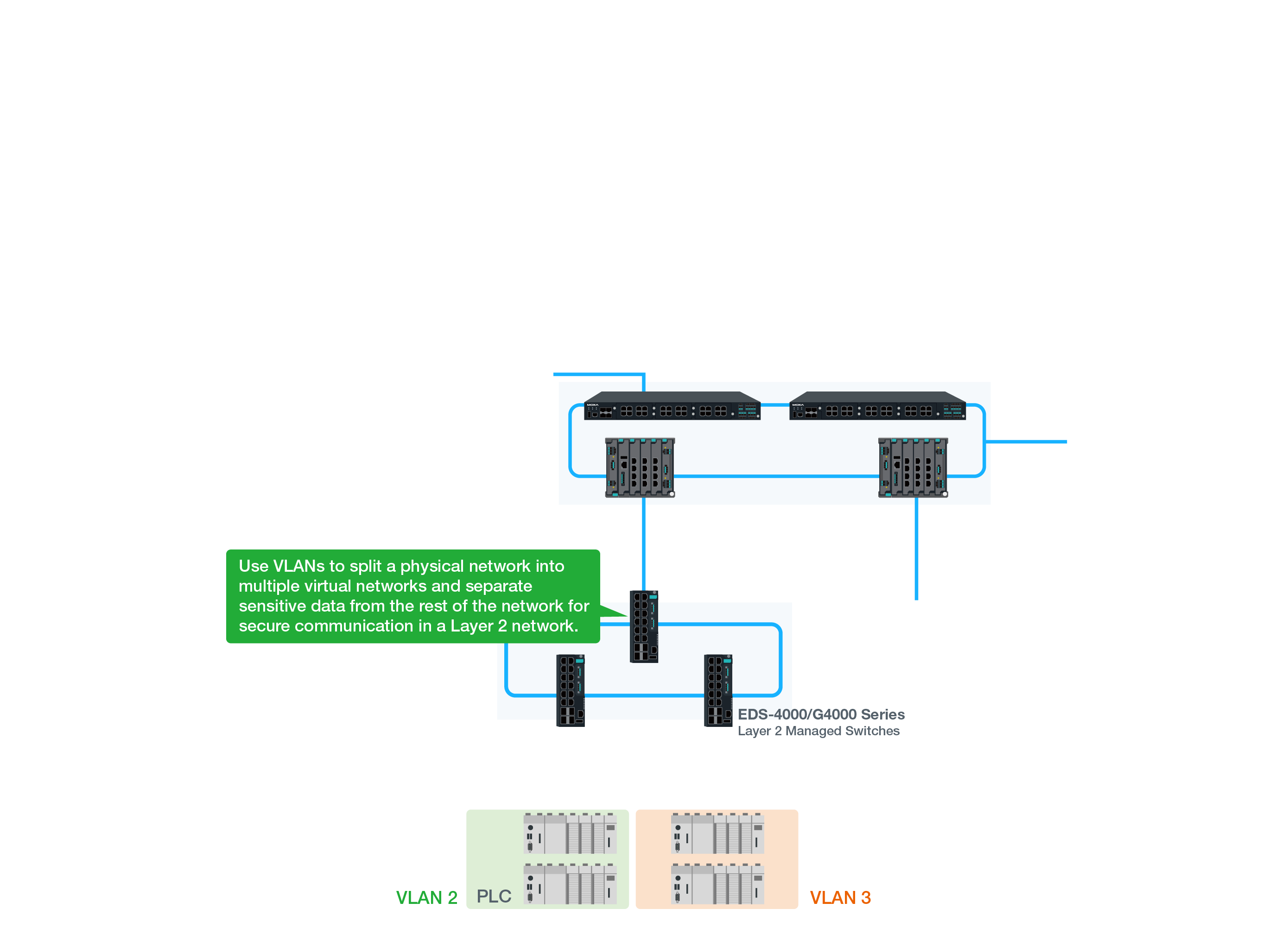

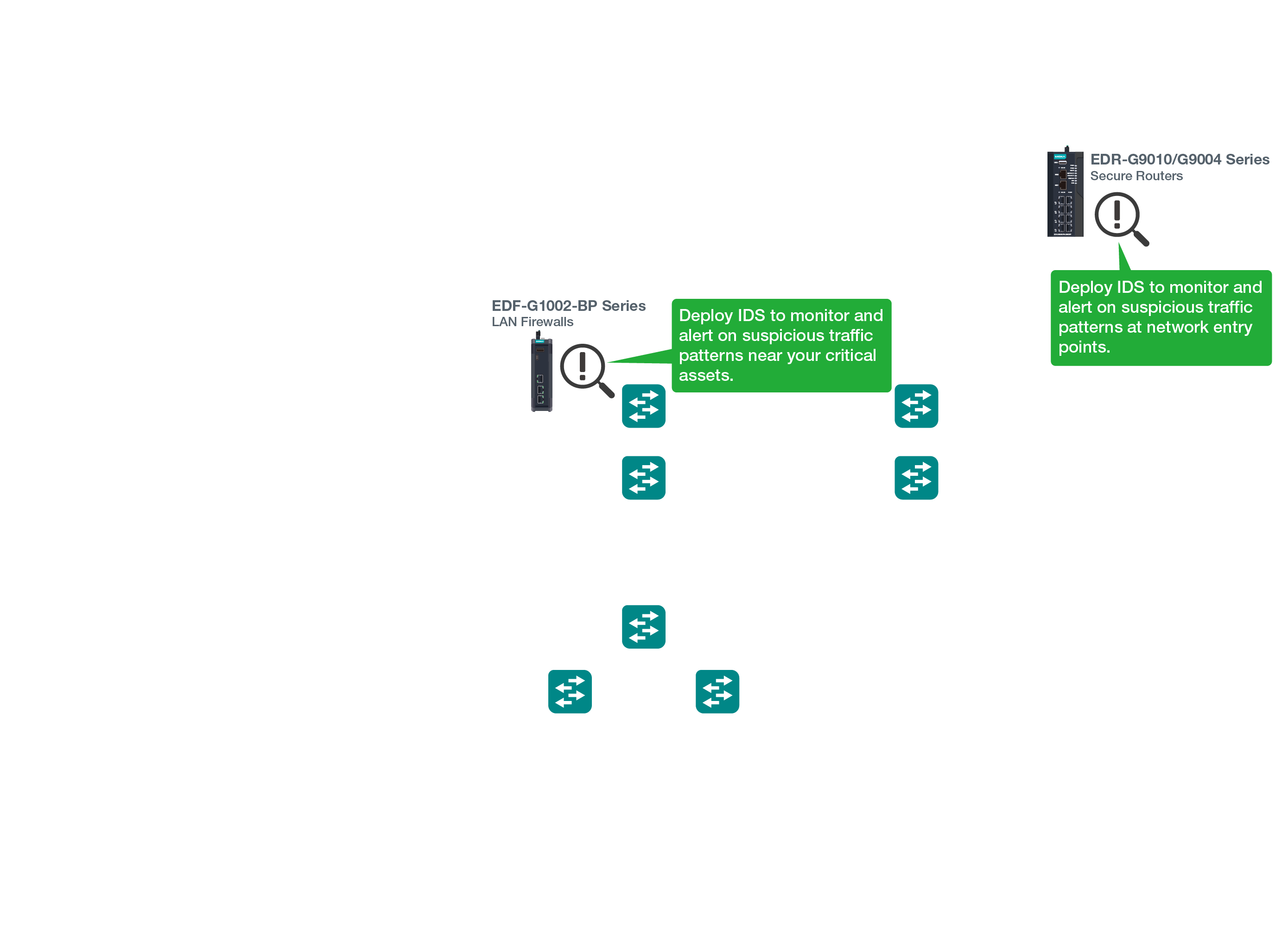

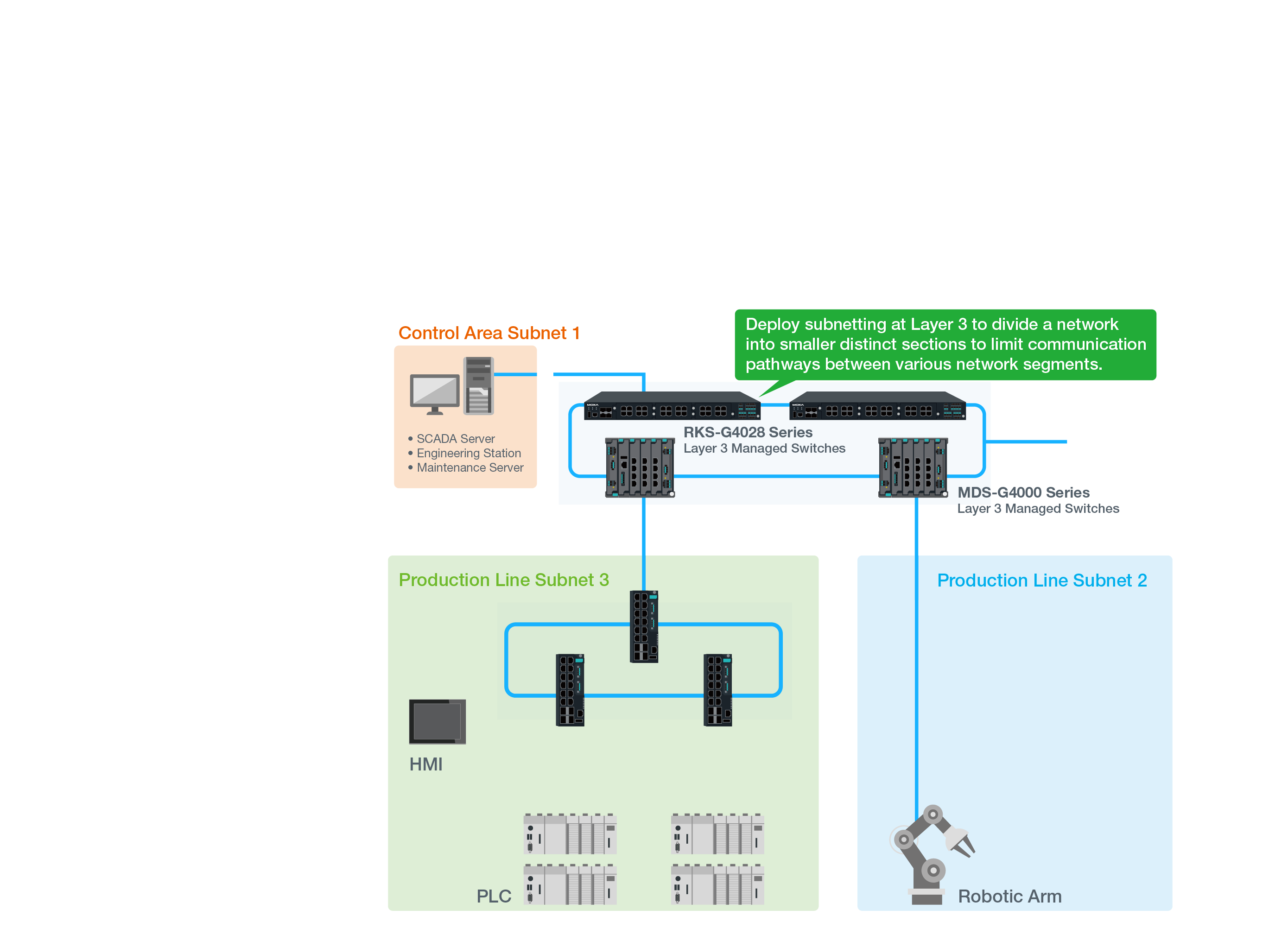

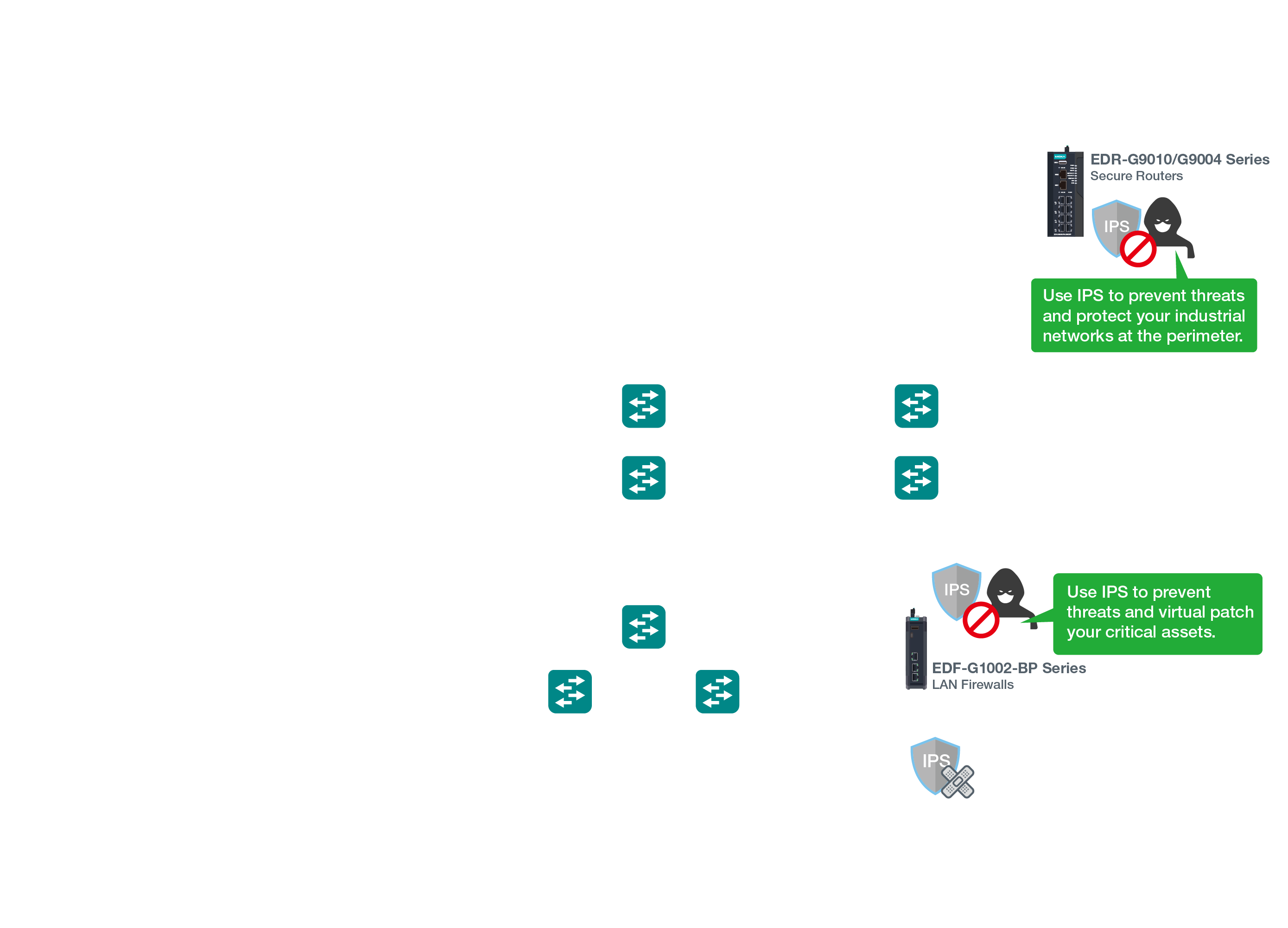

Moxa combines industrial networking and cybersecurity expertise to provide layered protection for your industrial networks. Explore how these solutions work.

Moxa’s Secure Networking Solutions

Secure Routers/Firewalls
Secure Managed Switches

Make Secure Network Infrastructure Easier to Deploy and Maintain

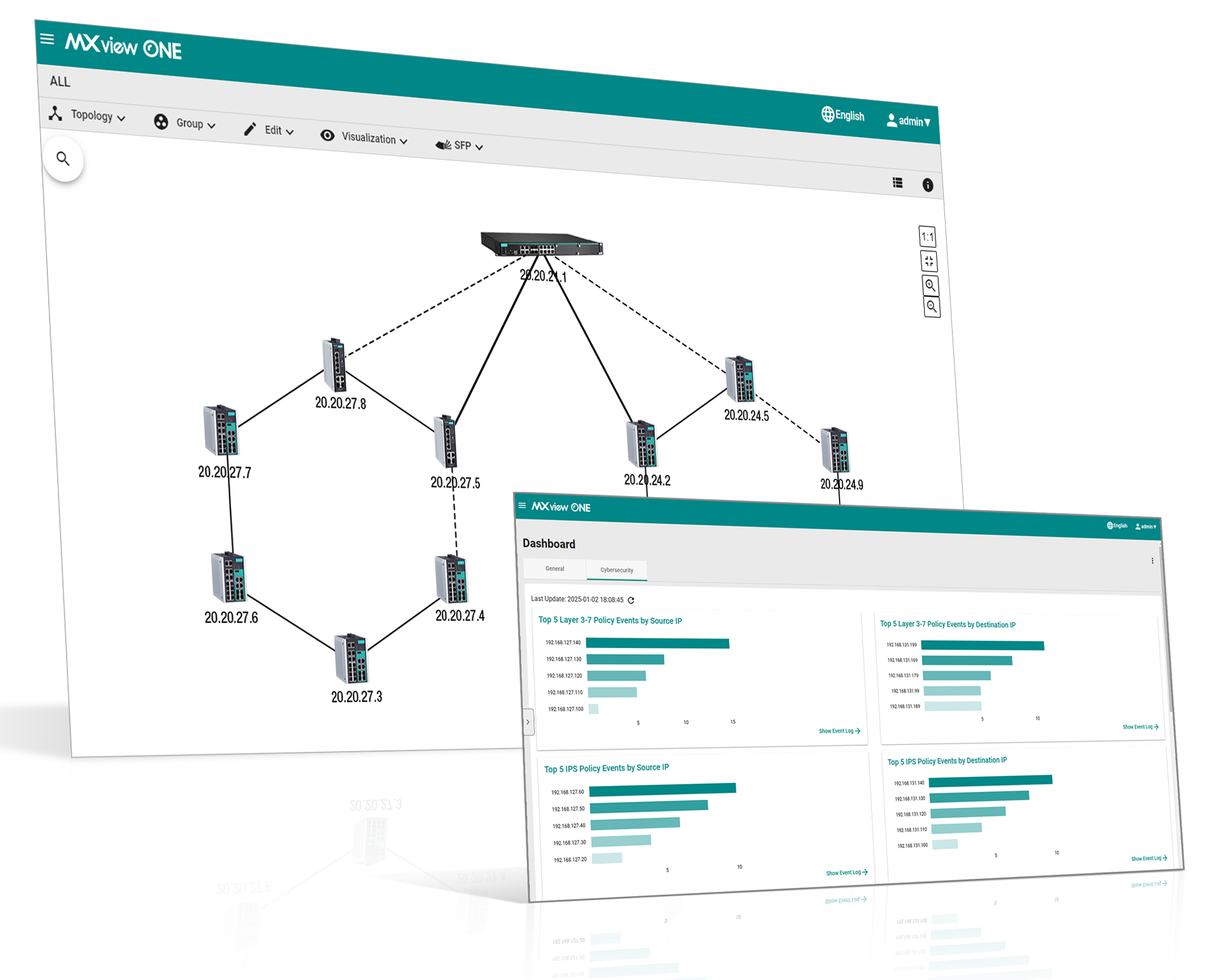

You can easily manage and maintain our secure routers, firewalls, and managed switches using one platform. Our MXview One Series simplifies device security management, allowing you to easily adjust security levels and receive alerts for any abnormal activity. Additionally, our software includes a network security add-on that enables centralized firewall policy management and provides a dashboard for at-a-glance network security monitoring.

Find the Secure Networking Products That Match Your Demands

  • Secure Managed Switches
  • Secure Routers
  • LAN Firewalls
Secure Switches
Ports
Security Features
Redundancy Protocols
Software Management
Industrial Certifications

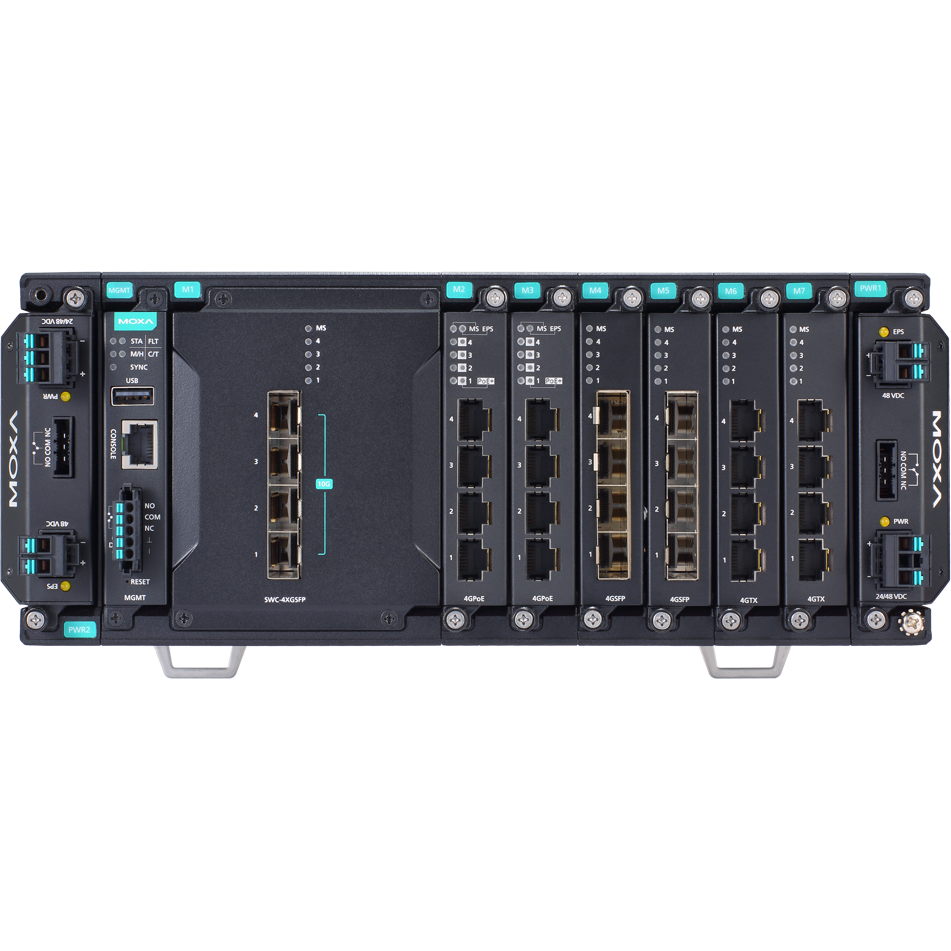

MDS-G4000
MDS-G4000

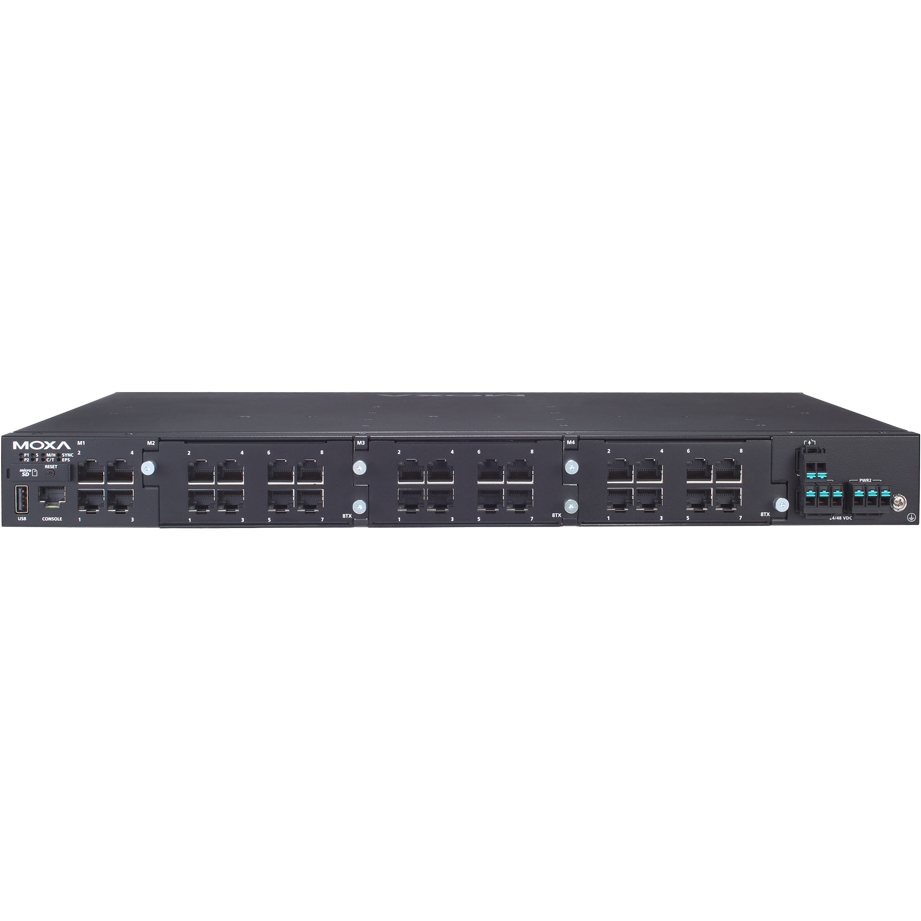

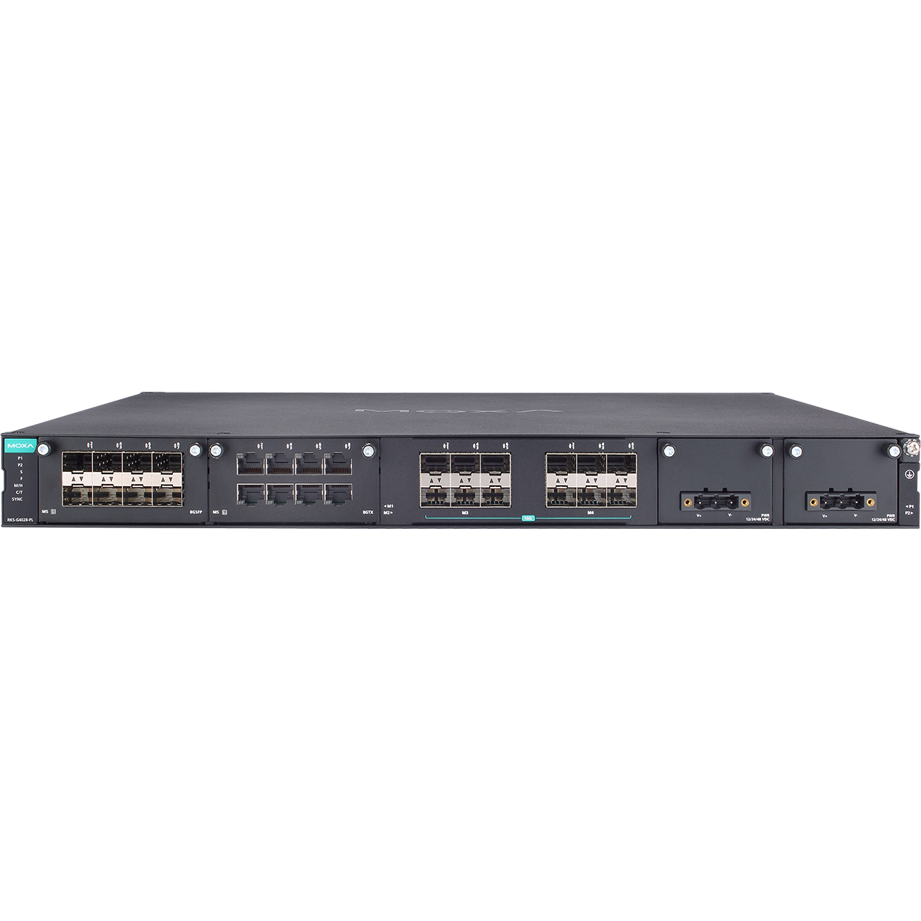

RKS-G4028
RKS-G4028

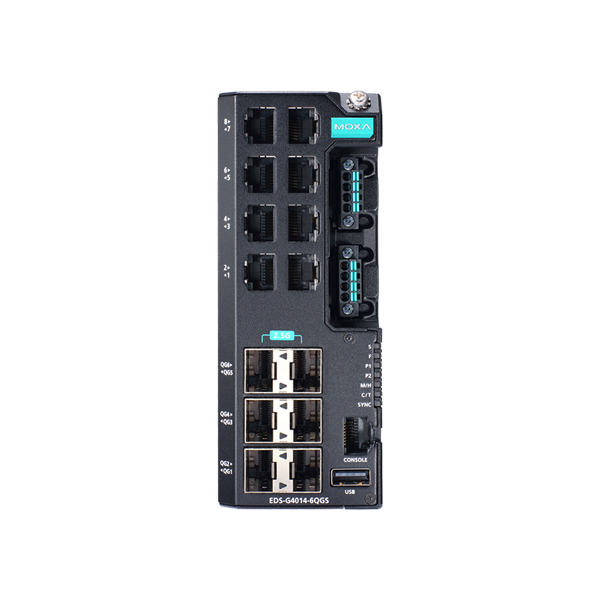

EDS-G4000
EDS-G4000

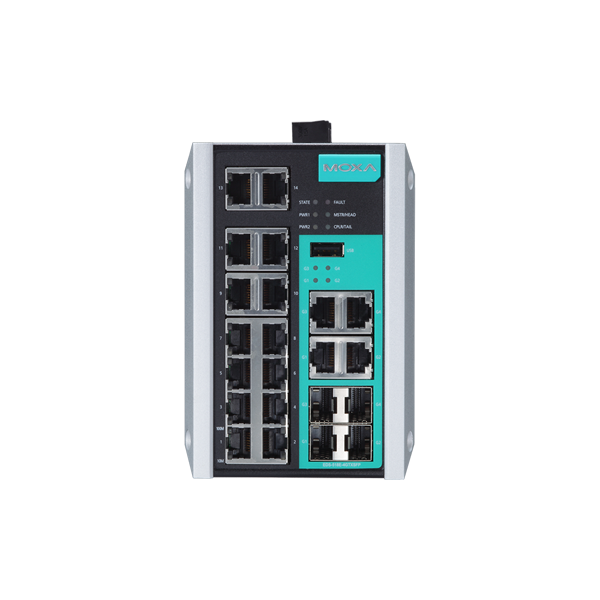

EDS-500E
EDS-500E
Up to 4 10GbE + 24 GbE Up to 28 GbE Up to 6 2.5GbE + 8 GbE Up to 4 GbE + 24 FE

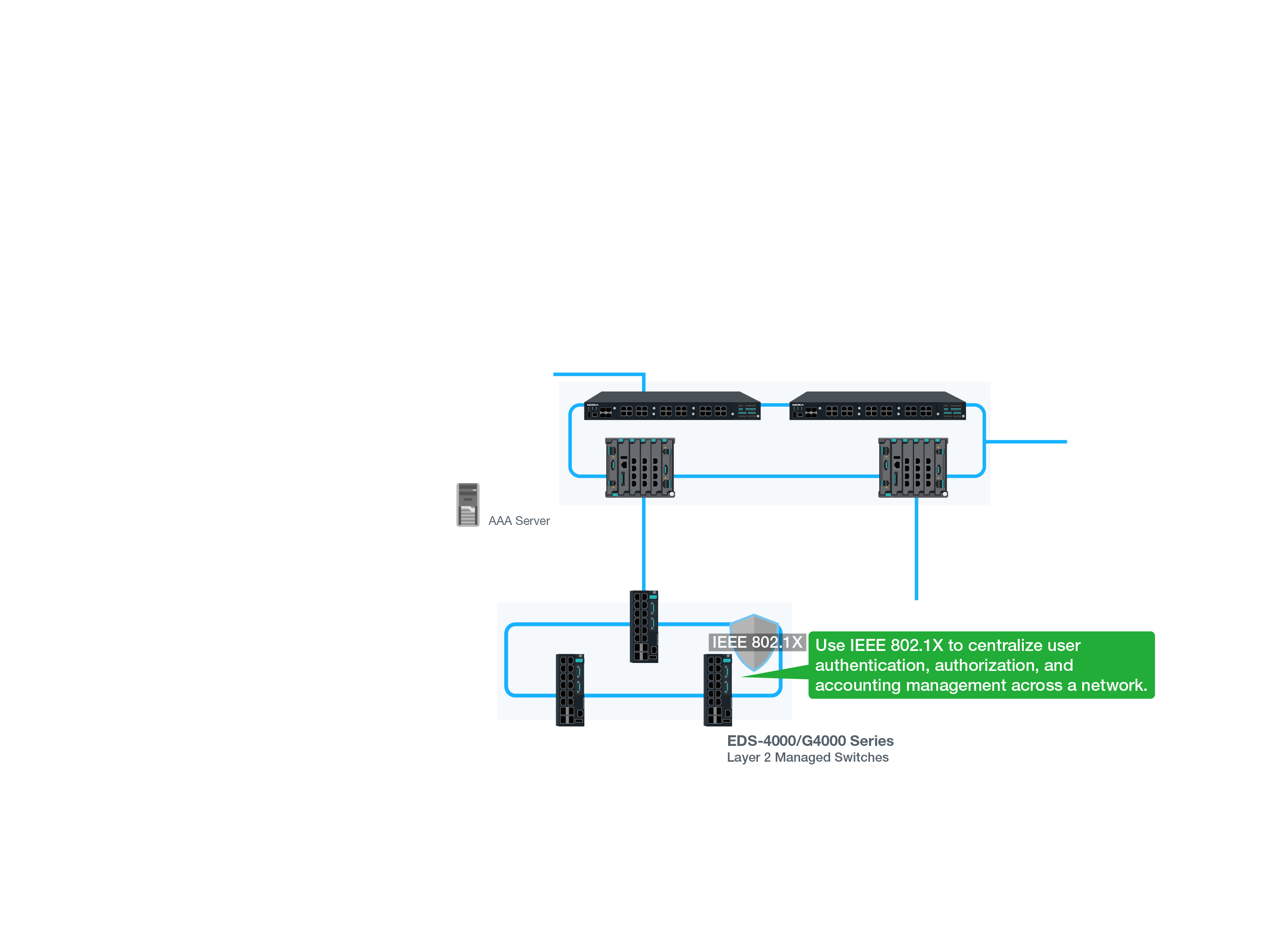

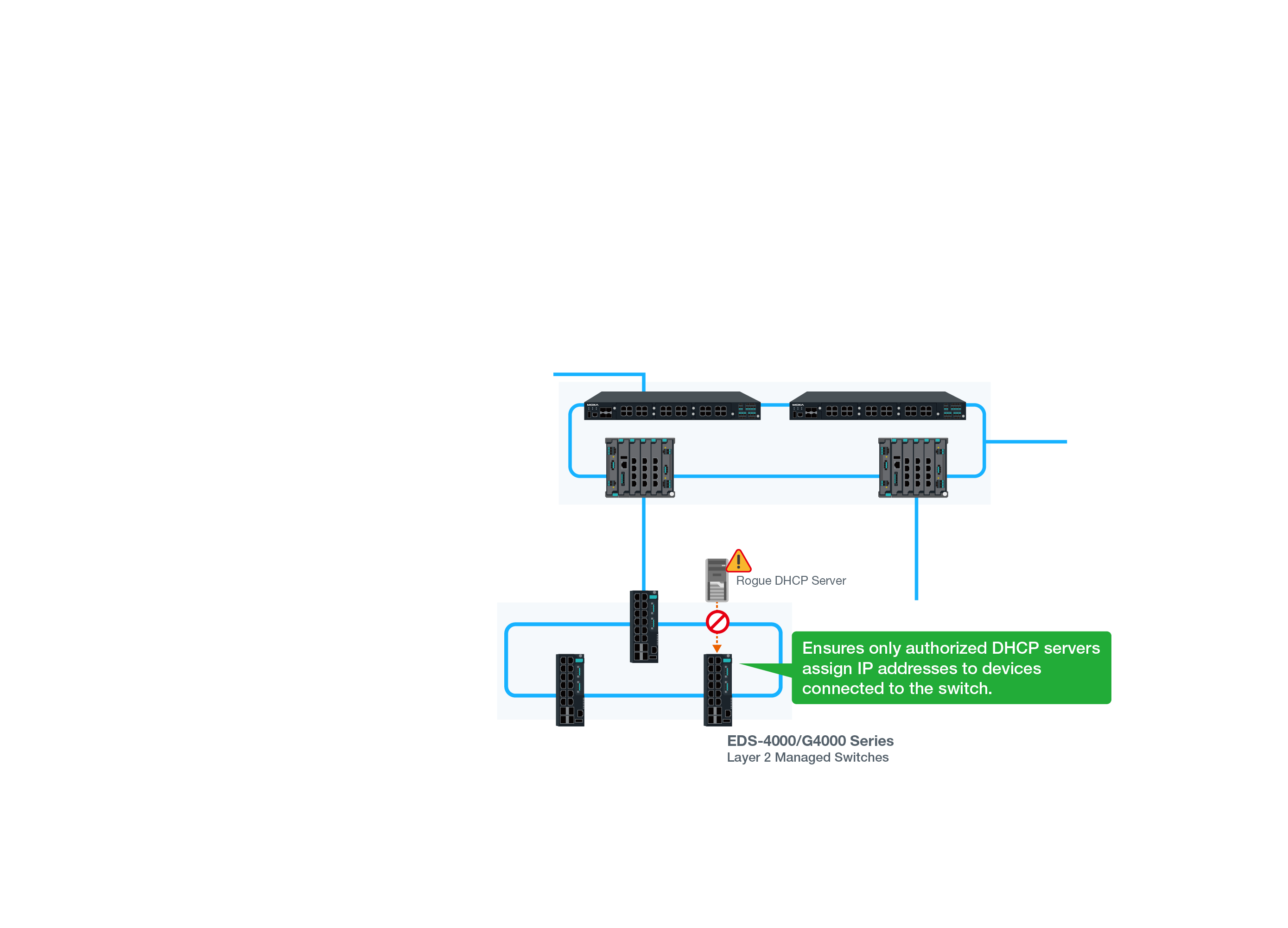

HTTPS, SSL/SSH, ACL, IEEE 802.1X, Port Security, DHCP Snooping, Secure Boot1 HTTPS, SSL/SSH, ACL, IEEE 802.1X, Port Security, DHCP Snooping, Secure Boot HTTPS, SSL/SSH, ACL2, IEEE 802.1X
Turbo Ring, Turbo Chain, RSTP/STP, MRP, VRRP (L3 Model) Turbo Ring, Turbo Chain, RSTP/STP, MRP
MXview One
IEC 61850-3, IEEE 1613, EN 50121-4, NEMA TS2, ATEX3, CID23 IEC 62443-4-2 SL2, IEC 61850-3, IEEE 1613, EN 50121-4, NEMA TS2 IEC 62443-4-2 SL2, IEC 61850-3, IEEE 1613 (Class 1), DNV4, ABS4, NK4, LR4, EN 50121-4, NEMA TS2, ATEX5, CID25, IECEx5 IEC 61850-3, IEEE 1613, DNV6, ABS6, NK6, LR6, EN 50121-46, NEMA TS26, ATEX6, CID26
  • 1. Only available for -4XGS models.
  • 2. Only available for 18 and 28 port models.
  • 3. Only available for the non-4XGS models.
  • 4. Only available for -LV and PoE models.
  • 5. Only available for -LV models.
  • 6. Only available for 10 and 18 port models.
Secure Routers
Ports
NAT
Firewalls
IPS/IDS
DPI
VPN
Routing Throughput (based on RFC 2544)
Redundancy Protocols
Software Management
Industrial Certifications

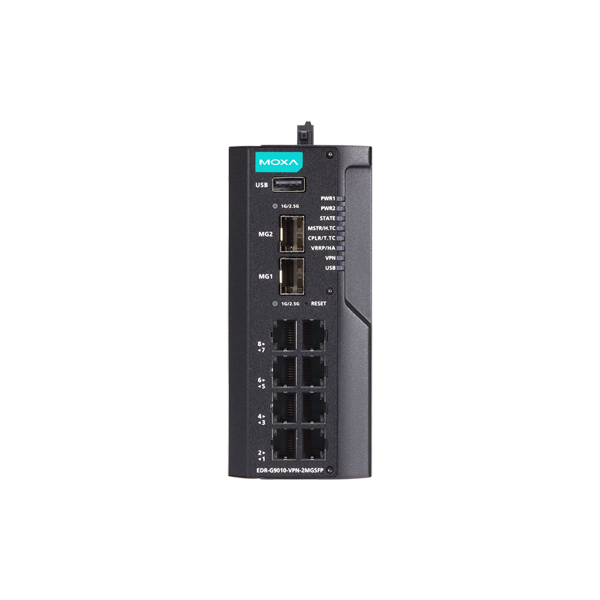

EDR-G9010
EDR-G9010

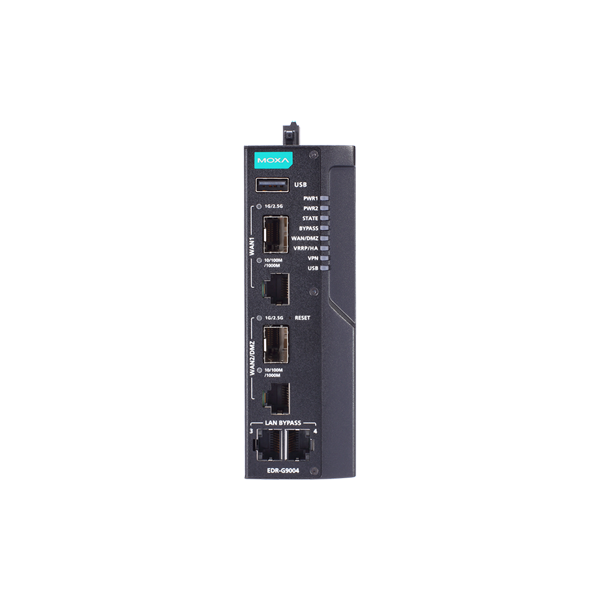

EDR-G9004
EDR-G9004

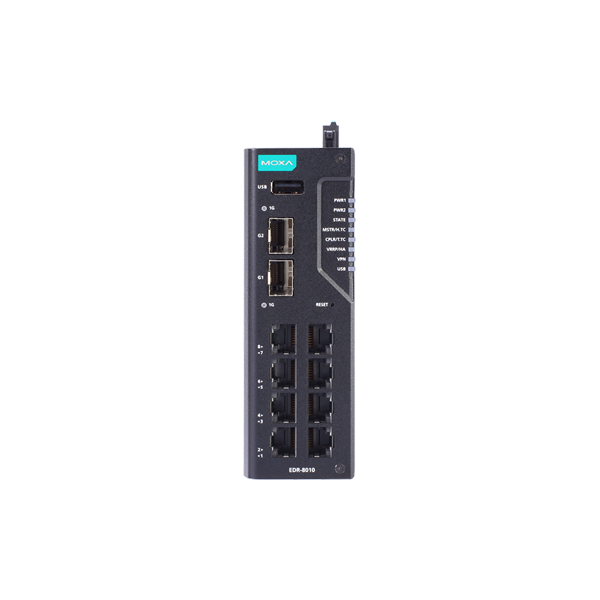

EDR-8010
EDR-8010

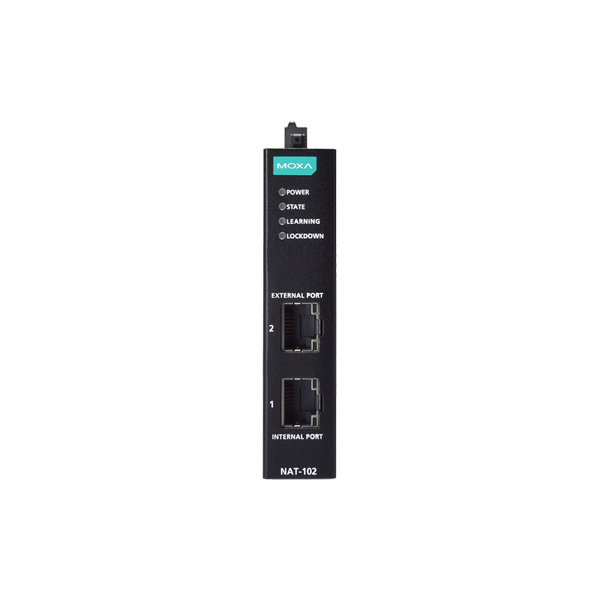

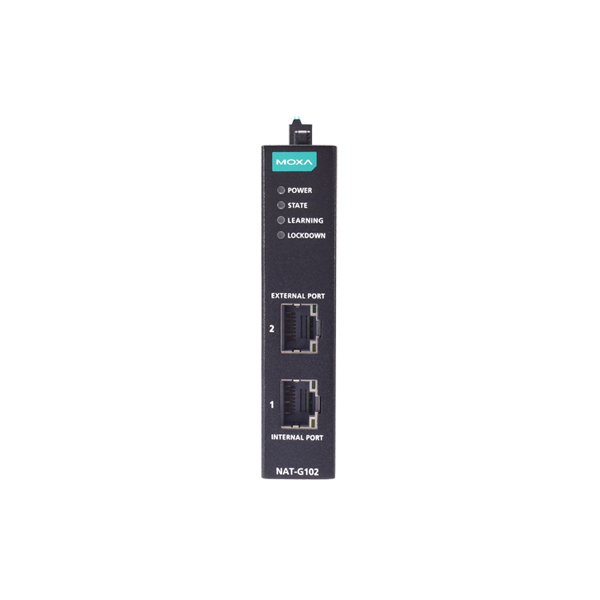

NAT-102
NAT-102

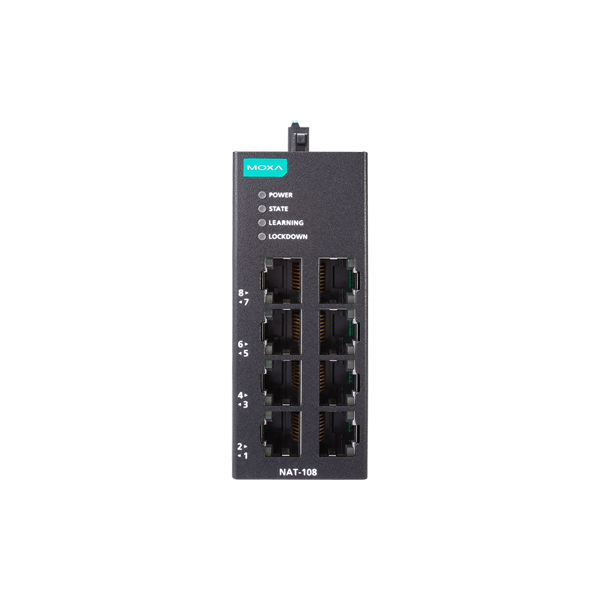

NAT-108
NAT-108
2 2.5GbE + 8 GbE1 Up to 2 2.5GbE + 2 GbE (1/2 DMZ/WAN ports) 2 GbE + 8 FE1 2 FE 8 FE
1-to-1, N-to-1, NAT loopback, Port forwarding, IP Twins Mapping4
DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports IP address, MAC address (Device Lockdown), Ports
Requires an additional license - -
DNP3, EtherNet/IP, IEC 60870-5-104, IEC 61850 MMS, Modbus TCP, Modbus UDP, Omron FINS, Siemens S7 Comm., Siemens S7 Comm. Plus, OPC UA, MELSEC communication protocol - -
Up to 250 IPsec VPN tunnels Up to 50 IPsec VPN tunnels - -
Max. 350K packets per second / 2 Gbps Max. 50K packets per second / 500 Mbps Max. 15K packets per second /100 Mbps
VRRP, Turbo Ring, Turbo Chain, RSTP/STP VRRP VRRP, Turbo Ring, Turbo Chain, RSTP/STP - -
MXview One, MXview Security3, MXsecurity MXview One, MXview Security3, MXsecurity MXview One, MXview Security3, MXsecurity MXview One MXview One
IEC 62443-4-2 SL2, IEEE 1613, IEC 61850-3 Ed. 2.0, ATEX2, CID22, EN 50121-42, NEMA TS22, DNV2, DNV IEC 61162-460 Edition 3.02, DNV security profile 22, IACS UR E27 Rev.12, IEC 609452 IEEE 1613, IEC 61850-3 Ed. 2.0, ATEX, CID2, IECEx, EN 50121-4, NEMA TS2, DNV IEEE 1613, IEC 61850-3 Ed. 2.0, ATEX, CID2, IECEx, EN 50121-4, NEMA TS2, DNV, DNV IEC 61162-460 Edition 3.0, DNV security profile 2, IACS UR E27 Rev.1, IEC 60945 EN 50121-4, NEMA TS2, ATEX, CID2 -
  • 1. Supports user-configurable DMZ/WAN ports.
  • 2. Only available for -LV models.
  • 3. An active MXview One license is required in order to activate the MXview Security add-on license.
  • 4. NAT-108 Series only.
LAN Firewalls
Ports
Firewalls
IPS/IDS
DPI
Software Management
Industrial Certifications

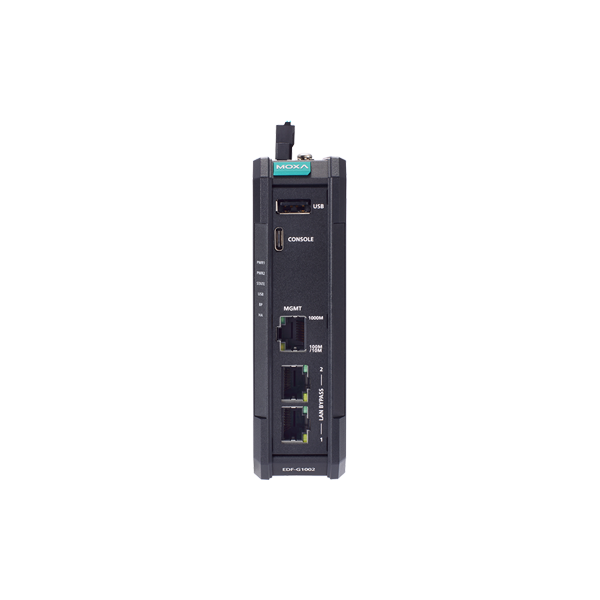

EDF-G1002-BP
EDF-G1002-BP
2 GbE (Gen3 LAN Bypass)
DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports
Enabled by default. IPS pattern update functionality requires an additional license.
DNP3, EtherNet/IP, IEC 60870-5-104, IEC 61850 MMS, Modbus TCP, Modbus UDP, Omron FINS, Siemens S7 Comm., Siemens S7 Comm. Plus, OPC UA, MELSEC communication protocol
MXview One, MXview Security1, MXsecurity
NEMA TS2, EN 50121-4, CID2, ATEX, IECEx, DNV
  • 1. An active MXview One license is required in order to activate the MXview Security add-on license.
