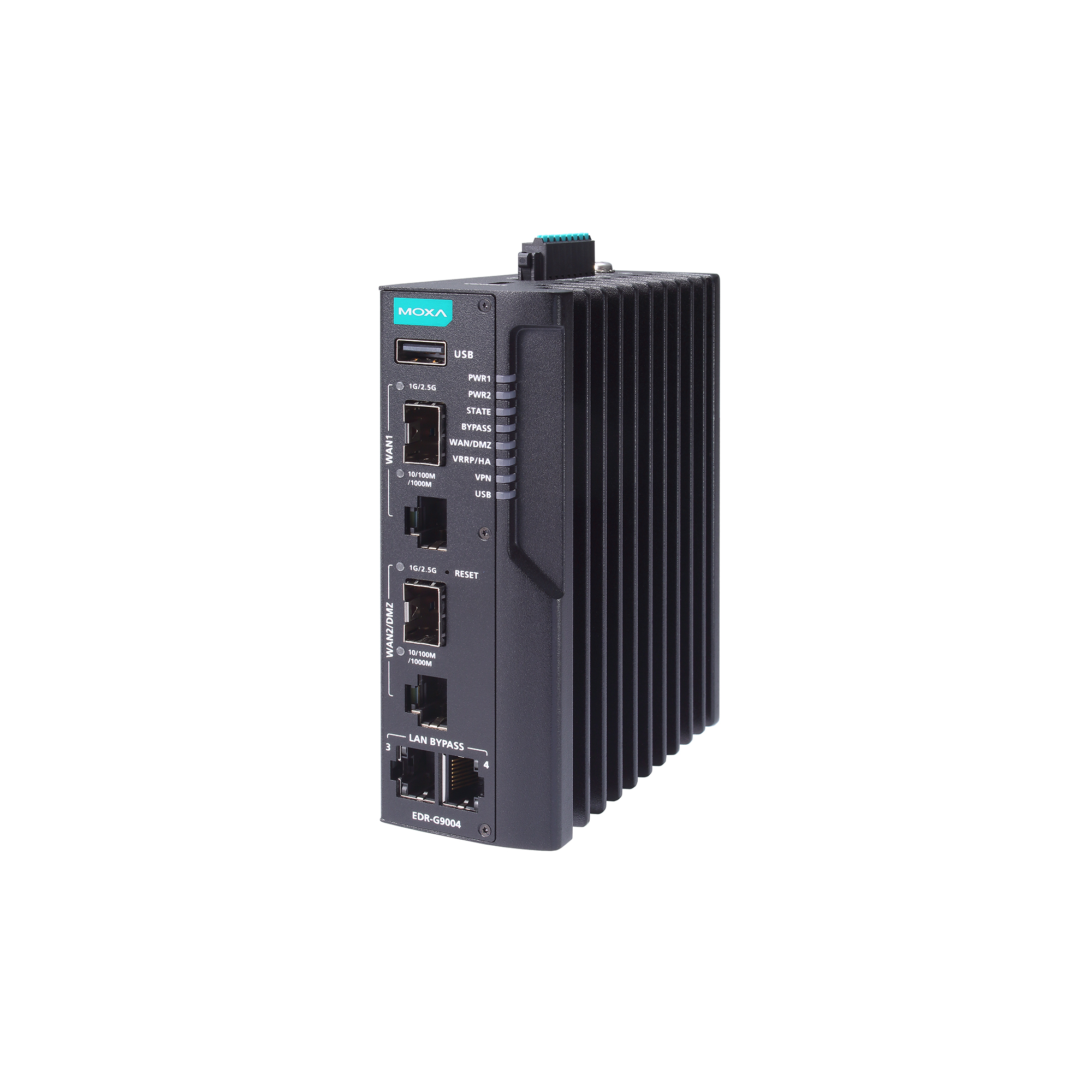

EDR-G9004 Series

2 Gigabit copper + 2 Gigabit copper/SFP combo port industrial secure routers

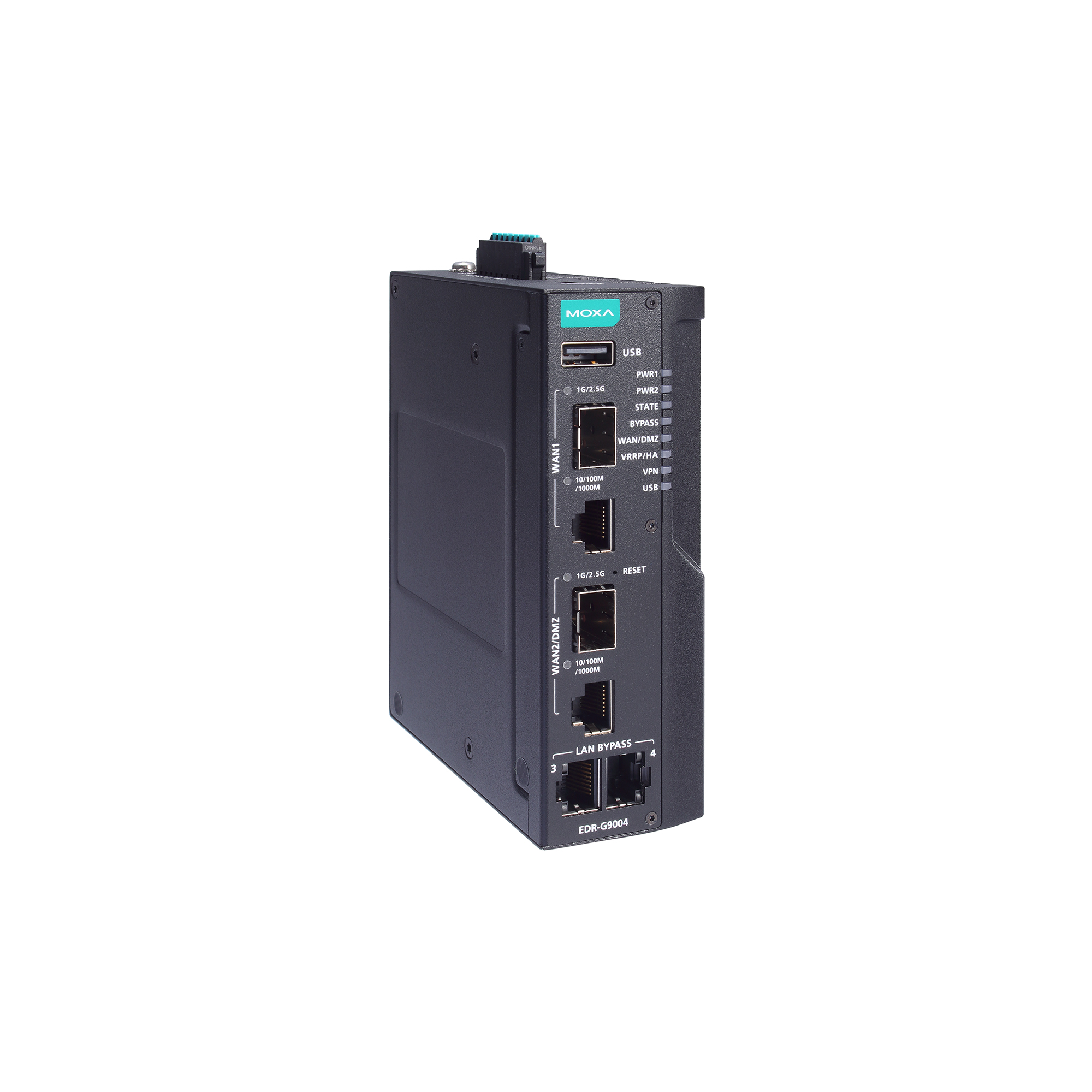

moxa-edr-g9004-series-image-(1).jpg | Moxa

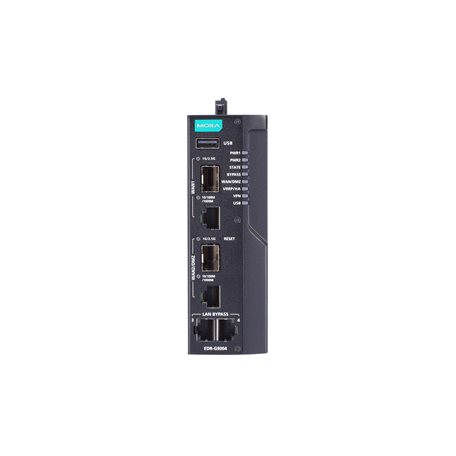

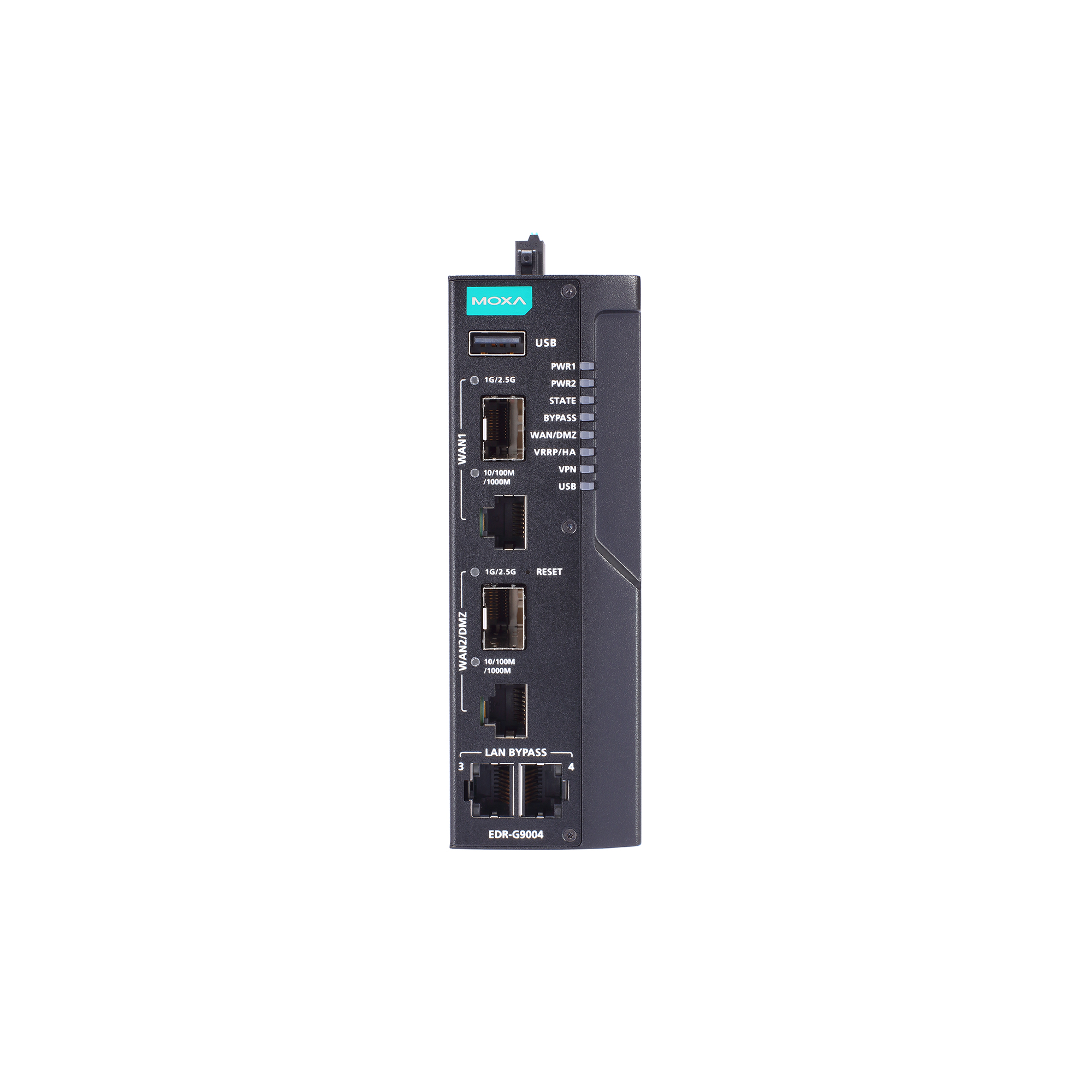

moxa-edr-g9004-series-image-1-(1).jpg | Moxa

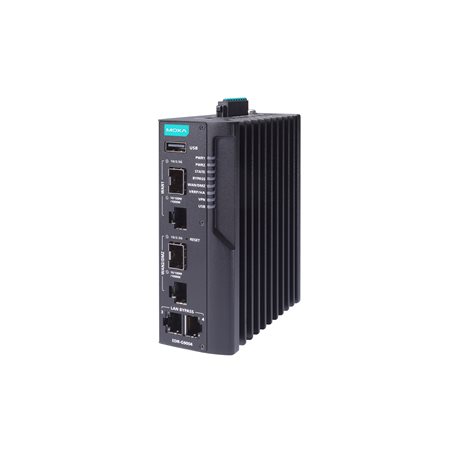

moxa-edr-g9004-series-image-2-(1).jpg | Moxa

Features and Benefits

  • 4-port Gigabit all-in-one firewall/NAT/VPN/router
  • Gen3 LAN Bypass for system fault tolerance
  • Dual WAN redundant interfaces through public networks
  • Industrial-grade Intrusion Prevention/Detection System (IPS/IDS)
  • Visualize OT security with the MXsecurity management software
  • Secure remote access tunnel with VPN
  • Examine industrial protocol data with Deep Packet Inspection (DPI) technology
  • Easy network setup with Network Address Translation (NAT)
  • Developed according to IEC 62443-4-2 with Secure Boot
  • -40 to 75°C operating temperature range (-T model)

Certifications

  • moxa-en50121-4-certification-logo-image.png | Moxa

Contact Sales

Introduction

The EDR-G9004 Series is a set of highly integrated industrial multi-port secure routers with firewall/NAT/VPN functions. These devices are designed for Ethernet-based security applications in critical remote control or monitoring networks. These secure routers provide an electronic security perimeter to protect critical cyber assets including substations in power applications, pump-and-treat systems in water stations, distributed control systems in oil and gas applications, and PLC/SCADA systems in factory automation. Furthermore, with the addition of IDS/IPS, the EDR-G9004 Series is an industrial next-generation firewall, equipped with threat detection and prevention capabilities to further protect critical infrastructure from cybersecurity attacks.

Defend Against Malicious Threats With Advanced Cybersecurity Features

The EDR-G9004 Series’ embedded firewall uses policy rules to control network traffic between trusted zones while Network Address Translation (NAT) shields the internal network from unauthorized access by outside hosts. The Virtual Private Networking (VPN) functionality further provides users with secure communication tunnels when accessing the private network from the public Internet. To help protect your OT assets from cyberattacks, the EDR-G9004 Series supports Deep Packet Inspection (DPI) to examine the data portion of network packets for various OT-specific protocols.

Simplify Configurations With the User-friendly Interface and Quick Settings

The EDR-G9004 Series’ Setup Wizard provides an easy way for users to set up DMZ ports to create a secure network buffer zone in just three steps. In addition, the object-based firewall management feature gives engineers a simple way to configure and maintain firewall filtering for IP addresses and subnets, network services, industrial application services, and user-defined services.

Industrial-grade Design to Ensure Uninterrupted Network Connectivity

The EDR-G9004 Series’ rugged hardware makes these secure routers ideal for harsh industrial environments, featuring wide-temperature models that are built to operate reliably in hazardous conditions and extreme temperatures of -40 up to 75°C. Moreover, the EDR-G9004 Series supports WAN, Layer 3 redundancy mechanisms, and Gen3 LAN Bypass fault tolerance to ensure that your network stays connected at all times.

Virtual Patching and Intelligent Threat Protection

Patching remains a major challenge in OT environments because OT applications cannot afford interrupting operations by shutting down systems to apply patches. Virtual patching technology can help complement existing patch management processes by shielding known and unknown vulnerabilities. In addition, the EDR-G9004 features intelligent IPS functionality for continuous protection against cyberthreats which uses pattern-based detection to identify and block known attacks.

MX-ROS Addresses Growing Cybersecurity Threats

Moxa’s MX-ROS (https://www.moxa.com/en/spotlight/portfolio/mx-ros/index) is a software platform for industrial security routers and firewalls. The platform supports the robust security and user-friendly operation of secure routers through simplified web and CLI interfaces. In addition to adhering to IEC 62443-4-2, MX-ROS devices offer a wealth of the latest cross-industry Operational Technology (OT) network management features with each release to safeguard hardware and software.

  • Alarm Contact Channels

    Resistive load: 1 A @ 24 VDC

  • Buttons

    Reset button

  • Digital Input Channels

    +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    2 (with Gen3 LAN Bypass)

  • Combo Ports (10/100/1000BaseT(X) or 1000/2500BaseSFP)

    2

  • DMZ

    Supports DMZ port

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
    IEEE 802.3x for flow control

  • Management

    Back Pressure Flow Control
    DDNS
    DHCP Server/Client
    Web Console (HTTP/HTTPS)
    LLDP
    SNMPv1/v2c/v3
    Telnet
    TFTP
    HTTPS
    SSH

  • Routing Throughput

    Max. 350K packets per second / 2 Gbps (based on RFC 2544)

  • Routing Table

    Max. 4K routing rules

  • Concurrent Connections

    Max. 400K (based on RFC 3511)

  • Connections Per Second

    Max. 20K (based on RFC 3511)

  • Routing Redundancy

    VRRP

  • Security

    Secure Boot
    IPsec
    L2TP (server)
    RADIUS
    TACACS+
    Trust access control
    SCP
    SFTP
    NTP authentication
    Syslog Authentication

  • Time Management

    NTP Server/Client
    SNTP

  • Multicast Routing

    Static Route

  • Unicast Routing

    OSPF
    RIPV1/V2
    Static Route

  • LED Indicators

    PWR1, PWR2, STATE, BYPASS, WAN/DMZ, VRRP/HA, VPN, USB

  • Technology

    ARP-Flood
    FIN Scan
    ICMP Flood
    TCP Sessions Without SYN
    NMAP-ID Scan
    NMAP-Xmas Scan
    Null Scan
    SYN/FIN Scan
    SYN/RST Scan
    SYN-Flood
    Xmas Scan

  • Filter

    DDoS
    Ethernet protocols
    ICMP
    IP address
    MAC address
    Ports

  • Stateful Inspection

    Router firewall
    Transparent (bridge) firewall

  • Deep Packet Inspection

    Modbus TCP
    Modbus UDP
    DNP3
    IEC 60870-5-104
    IEC 61850 MMS
    EtherNet/IP
    MELSEC
    Omron FINS
    OPC UA
    Siemens S7 Comm.
    Siemens S7 Comm. Plus
    Additional protocols will be supported through future firmware updates.

  • Intrusion Prevention System

    Requires an additional license.

  • Throughput

    Firewall:
    Max. 350K packets per second / 2 Gbps (based on RFC 2544)

    IPS:
    Max. 200K packets per second / 2 Gbps (based on RFC 2544)

  • Authentication

    MD5 and SHA (SHA-512)
    RSA (key size: 1024-bit, 2048-bit)
    X.509 v3 certificate

  • Concurrent VPN Tunnels

    Max. 250 IPsec VPN tunnels

  • Encryption

    DES
    3DES
    AES-128
    AES-192
    AES-256
    AES-256-GCM

  • Protocols

    IPsec
    L2TP (server)
    PPTP (client)

  • Throughput

    Conditions: AES-256, SHA-256
    Max. 100K packets per second / 800 Mbps (based on RFC 2544)

  • Features

    1-to-1
    N-to-1
    NAT loopback
    Port forwarding

  • Event Type

    Firewall event
    VPN event

  • Media

    Local storage
    SNMP Trap
    Syslog server

  • Console Port

    RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)

  • Connector

    USB Type-C

  • Connection

    Removable terminal block

  • Input Voltage

    12/24/48 VDC, redundant dual inputs

  • Operating Voltage

    9.6 to 60 VDC

  • Input Current

    1.01 A @ 12 VDC
    0.51 A @ 24 VDC
    0.27 A @ 48 VDC

  • Reverse Polarity Protection

    Supported

  • Housing

    Metal

  • IP Rating

    IP40

  • Dimensions

    45 x 135 x 105 mm (1.77 x 5.31 x 4.13 in)

  • Weight

    800 g (1.76 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Operating Temperature

    Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    IEC 62368-1
    UL 62368-1

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Railway

    EN 50121-4

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-32

  • Vibration

    IEC 60068-2-6

  • Time

    1,876,185 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
SNMP MIB file for EDR-G9004 Series
176.2 KB
Software Package
SHA-512
v3.13
Oct 09, 2024 Oct 09, 2024 Release notes
Firmware for EDR-G9004 Series
73.8 MB
Firmware
SHA-512
v3.13
Oct 09, 2024 Oct 09, 2024 Release notes
Software Package for MXview One Series (Windows version)
300.8 MB
Software Package
SHA-512
v1.4.1
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
Sep 20, 2024 Sep 20, 2024 Release notes
Software Package for MXview One Series (Linux version)
404.8 MB
Software Package
SHA-512
v1.4.1
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
Sep 20, 2024 Sep 20, 2024 Release notes
Network Security Package for EDR-G9004 Series
8.1 MB
Software Package
SHA-512
v9.0.12
Aug 30, 2024 Aug 30, 2024 Release notes

Support Documents

Name Type Version Release Date
FOSS Statement for MX-ROS products
3.2 MB
Declaration v3.13 Oct 29, 2024 Oct 29, 2024
CLI Manual for MX-ROS V3
4.4 MB
Manual v1.3 Oct 09, 2024 Oct 09, 2024
Datasheet for EDR-G9004 Series
1.5 MB
Datasheet v1.2 Oct 09, 2024 Oct 09, 2024
Manual for MX-ROS V3
23.7 MB
Manual v1.7 Oct 09, 2024 Oct 09, 2024
Declaration of Conformity for EDR-G9004 Series
312.5 KB
Declaration v1.0 Sep 26, 2024 Sep 26, 2024
QIG for EDR-G9004 Series
2.6 MB
QIG v1.0 Jul 26, 2024 Jul 26, 2024

Available Models (4)

Show Images
moxa-edr-g9004-vpn-2mgtxsfp-ct-image.jpg | MoxaEDR-G9004-VPN-2MGTXSFP-CTmoxa-edr-g9004-vpn-2mgtxsfp-ct-t-image.jpg | MoxaEDR-G9004-VPN-2MGTXSFP-CT-Tmoxa-edr-g9004-vpn-2mgtxsfp-image.jpg | MoxaEDR-G9004-VPN-2MGTXSFPmoxa-edr-g9004-vpn-2mgtxsfp-t-image.jpg | MoxaEDR-G9004-VPN-2MGTXSFP-T
10/100/1000BaseT(X) Ports (RJ45 Connector)2222
10/100/1000BaseT(X) or 1000BaseSFP Combo Ports2222
Firewall
NAT
VPN
Input Voltage12/24/48 VDC12/24/48 VDC12/24/48 VDC12/24/48 VDC
Conformal Coating
Operating Temp.-10 to 60°C-40 to 75°C-10 to 60°C-40 to 75°C
