EDR-8010 Series

8 FE copper and 2 GbE SFP multiport industrial secure routers

moxa-edr-8010-series-image-(1).jpg | Moxa

Features and Benefits

  • 8 FE + 2 Gigabit port all-in-one firewall/NAT/VPN/router/switch
  • Visualize OT security with the MXsecurity management software
  • Secure remote access tunnel with VPN
  • Examine industrial protocol data with Deep Packet Inspection (DPI) technology
  • Easy network setup with Network Address Translation (NAT)
  • RSTP/Turbo Ring redundant protocol enhances network redundancy
  • Security features based on IEC 62443/NERC CIP
  • Supports secure boot for checking system integrity
  • -40 to 75°C operating temperature range (-T model)

Certifications

  • moxa-nema-ts2-certification-logo-image.png | Moxa
  • moxa-dnv-certification-logo-image.png | Moxa

Contact Sales

Introduction

The EDR-8010 Series is a set of highly integrated industrial multi-port secure routers with firewall/NAT/VPN and managed Layer 2 switch functions. These devices are designed for Ethernet-based security applications in critical remote control or monitoring networks. These secure routers provide an electronic security perimeter to protect critical cyber assets including substations in power applications, pump-and-treat systems in water stations, distributed control systems in oil and gas applications, and PLC/SCADA systems in factory automation.

Defend Against Malicious Threats With Advanced Cybersecurity Features

The EDR-8010 Series’ embedded firewall uses policy rules to control network traffic between trusted zones while Network Address Translation (NAT) shields the internal network from unauthorized access by outside hosts. The Virtual Private Networking (VPN) functionality further provides users with secure communication tunnels when accessing the private network from the public Internet. To help protect your OT assets from cyberattacks, the EDR-8010 Series supports Deep Packet Inspection (DPI) to examine the data portion of network packets for various OT-specific protocols.

Simplify Configurations With the User-friendly Interface and Quick Settings

The EDR-8010 Series’ Setup Wizard provides an easy way for users to set up WAN, LAN, and Bridge ports for routing functionality in just four steps. In addition, the object-based firewall management feature gives engineers a simple way to configure and maintain firewall filtering for IP addresses and subnets, network services, industrial application services, and user-defined services.

Industrial-grade Design to Ensure Uninterrupted Network Connectivity

The EDR-8010 Series’ rugged hardware makes these secure routers ideal for harsh industrial environments, featuring wide-temperature models that are built to operate reliably in hazardous conditions and extreme temperatures of -40 up to 75°C. Moreover, the EDR-8010 Series supports comprehensive Layer 2 and Layer 3 redundancy mechanisms to ensure that your network stays connected at all times.

  • Alarm Contact Channels

    Resistive load: 1 A @ 24 VDC

  • Buttons

    Reset button

  • Digital Input Channels

    +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA

  • 10/100BaseT(X) Ports (RJ45 connector)

    8

  • 1000BaseSFP Slots

    2

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
    IEEE 802.3x for flow control
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1X for authentication
    Static Port Trunk

  • Broadcast Forwarding

    IP directed broadcast, broadcast forwarding

  • Management

    Back Pressure Flow Control
    DDNS
    DHCP Server/Client
    Web Console (HTTP/HTTPS)
    LLDP
    QoS/CoS/ToS
    SNMPv1/v2c/v3
    Telnet
    TFTP
    HTTPS
    SSH

  • Redundancy Protocols

    RSTP
    STP
    Turbo Ring v2

  • Routing

    Throughput: 50K packets per second (max. 500 Mbps)

  • Routing Table

    Max. 4K routing rules

  • Concurrent Connections

    Max. 120K

  • Connections Per Second

    Max. 6K

  • Routing Redundancy

    VRRP

  • Security

    Secure Boot
    IPsec
    L2TP (server)
    RADIUS
    Trust access control

  • Time Management

    NTP Server/Client
    SNTP

  • Unicast Routing

    OSPF
    RIPV1/V2
    Static Route

  • Multicast Routing

    Static Route

  • Filter

    IGMP v1/v2/v3

  • VLAN ID Range

    VID 1 to 4094

  • IGMP Groups

    256

  • Max. No. of VLANs

    16

  • LED Indicators

    PWR1, PWR2, STATE, MSTR/H.TC, CPLR/T.TC, VRRP/HA, VPN, USB

  • Technology

    ARP-Flood
    FIN Scan
    ICMP-Death
    NEWWithout-SYN Scan
    NMAP-ID Scan
    NMAP-Xmas Scan
    Null Scan
    SYN/FIN Scan
    SYN/RST Scan
    SYN-Flood
    Xmas Scan

  • Filter

    DDoS
    Ethernet protocols
    ICMP
    IP address
    MAC address
    Ports

  • Stateful Inspection

    Router firewall
    Transparent (bridge) firewall

  • Deep Packet Inspection

    Modbus TCP
    Modbus UDP
    DNP3
    IEC 60870-5-104
    IEC 61850 MMS
    Additional protocols will be supported through future firmware updates.

  • Throughput

    Max. 50K packets per second (max. 500 Mbps)

  • Authentication

    MD5 and SHA (SHA-256)
    RSA (key size: 1024-bit, 2048-bit)
    X.509 v3 certificate

  • Concurrent VPN Tunnels

    Max. 50 IPsec VPN tunnels

  • Encryption

    DES
    3DES
    AES-128
    AES-192
    AES-256

  • Protocols

    IPsec
    L2TP (server)
    PPTP (client)

  • Throughput

    Max. 200 Mbps (Conditions: AES-256, SHA-256)

  • Features

    1-to-1
    N-to-1
    Port forwarding
    NAT loopback

  • Event Type

    Firewall event
    VPN event

  • Media

    Local storage
    SNMP Trap
    Syslog server

  • Console Port

    RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)

  • Connector

    USB Type-C

  • Connection

    Removable terminal block

  • Operating Voltage

    9.6 to 60 VDC

  • Input Voltage

    12/24/48 VDC

  • Input Current

    0.53 A @ 12 VDC
    0.26 A @ 24 VDC
    0.14 A @ 48 VDC

  • Reverse Polarity Protection

    Supported

  • Housing

    Metal

  • Dimensions

    45 x 135 x 105 mm (1.77 x 5.31 x 4.13 in)

  • Weight

    520 g (1.15 lb)

  • Installation

    DIN-rail mounting (DNV-certified)
    Wall mounting (with optional kit)

  • Operating Temperature

    Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

    All Models: DNV-certified for -25 to 70°C (-13 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    IEC 62368-1
    UL 62368-1

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Railway

    EN 50121-4

  • Traffic Control

    NEMA TS2

  • Maritime

    IEC 60945
    DNV

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-32

  • Vibration

    IEC 60068-2-6

  • Time

    1,347,225 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
SNMP MIB file for EDR-8010 Series
165.5 KB
Software Package
SHA-512
v3.1
Sep 20, 2023 Sep 20, 2023 Release notes
Firmware for EDR-8010 Series
71.6 MB
Firmware
SHA-512
v3.1
Sep 20, 2023 Sep 20, 2023 Release notes

Support Documents

Name Type Version Release Date
Datasheet for EDR-8010 Series
1.3 MB
Datasheet v1.0 Sep 20, 2023 Sep 20, 2023
QIG for EDR-8010 Series
1.5 MB
QIG v1.1 Sep 20, 2023 Sep 20, 2023
Manual for MX-ROS V3
17.1 MB
Manual v1.0 Aug 31, 2023 Aug 31, 2023
CLI Manual for Industrial Secure Routers
2.3 MB
Manual v3.0 Aug 31, 2023 Aug 31, 2023

Available Models (8)

Show Images

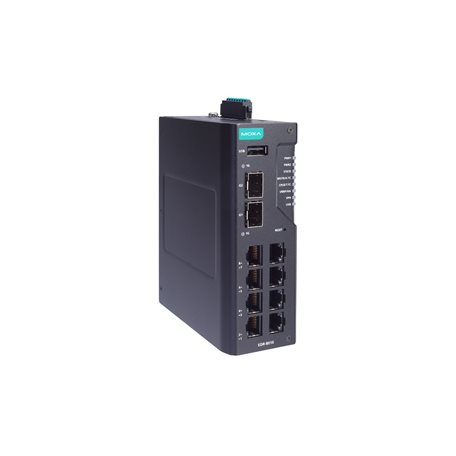

moxa-edr-8010-2gsfp-t-image.jpg | MoxaEDR-8010-2GSFP-Tmoxa-edr-8010-2gsfp-ct-t-image.jpg | MoxaEDR-8010-2GSFP-CT-Tmoxa-edr-8010-2gsfp-ct-image.jpg | MoxaEDR-8010-2GSFP-CTmoxa-edr-8010-vpn-2gsfp-ct-t-image.jpg | MoxaEDR-8010-VPN-2GSFP-CT-T
