クラウド接続がシンプルに

Moxaのクラウド対応型IIoTエッジゲートウェイのご紹介

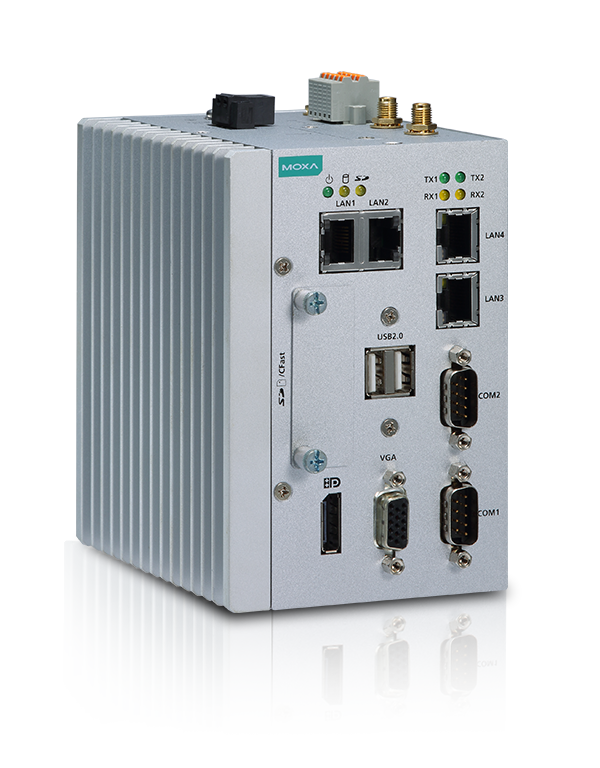

Moxaのクラウド対応型IIoTエッジ・ゲートウェイファミリーは、太陽光発電、上下水道、石油およびガス、ファクトリーオートメーション部門のエッジコンピューティングアプリケーション向けに最適化された産業用コンピュータで構成されています。当社のサプリメンタリIIoTソフトウェアThingsPro®により、クラウドへのエッジデータの接続が簡素化されます。Modbusや一般的なMQTT/HTTPSプロトコルなどの複数の接続オプションを提供し、AWSやAzureクラウドサービスに接続するための組込みクライアントが付属しています。

現場での遠隔監視や遠隔測定といったアプリケーション向けに設計されたこれらのIIoTエッジ・ゲートウェイはコンパクトで、電力効率の高いIntel Atom®またはArmプロセッサを搭載しており、-40～70℃と広範にわたる動作温度範囲内の環境下での信頼性の高い無線接続を実現します。

ソフトウェアの特長

プライベートクラウド対応

以下の方法で、オンプレミスクラウドをThingsProと簡単に統合できます。
- 一般的なMQTT
- HTTPSのサポート
- RESTful APIのサポート
- C/Python APIのサポート
パブリッククラウド対応

MoxaのThingsProには以下の組込みクライアントが付属しています。
- AWS IoT Core
- Azure IoT Hub
- Ignition
- Wonderware Online
- Alibaba Cloud IoT Platform
エッジインテリジェンス対応

当社のIIoTエッジ・ゲートウェイは、以下のエッジソフトウェアと連携するように最適化されています。
- AWS Greengrass
- Azure IoT Edge
- ThingsProソフトウェアでの迅速な開発

ハードウェアの特長

堅固な設計
- 産業用グレードのファンレス設計
- メタルハウジング
- C1D2、ATEX/IECEx Zone 2、DNV GLの認証済み
堅牢な接続
- 動作温度が -40～70°C
- デュアルSIMまたWi-Fi/LTEの冗長化に対応
長期サポート

業界をリードするハードウェア保証付き
- Arm搭載コンピュータ：5年
- x86コンピュータ：3年

IIoTアプリケーションガイド

MoxaのIIoTエッジ・ゲートウェイがエッジデータとクラウドサービスの統合を簡素化する方法をご覧ください。

太陽光発電所の監視/制御システム
住宅用太陽光発電監視システム
ITS向けのリモート資産管理
自然災害警報用の地理情報システム
石油およびガスの坑口装置の監視
ファクトリーオートメーション

ガイドブック

MoxaのIIoTエッジ・ゲートウェイとThingsProソフトウェアについての詳細はこちら

FAQs

Connect to Your Private Cloud
Connect to a Public Cloud
Enable Edge Intelligence

What is Moxa’s ThingsPro Software Suite and how does it work?
Moxa’s ThingsPro Software Suite is a collection of software programs designed to simplify IIoT gateway application development. It currently includes two programs:
- ThingsPro Gateway: A software for IIoT edge gateways, which provides an easy-to-use GUI for Modbus data logging, tag-based data acquisition, LTE connectivity, and MQTT/HTTPS communication. Also included are C and Python APIs for developing your own applications, and client interfaces for multiple cloud-based services.
- ThingsPro Server: A cloud-based service to locate and manage your IIoT edge gateways. It can be hosted on cloud platforms such as AWS and offers RESTful APIs for integrating information with your dashboards.
To learn more, watch the ThingsPro introduction video.
Which devices and what kind of OS can ThingsPro run on?

ThingsPro Gateway Software is currently supported on Moxa’s UC-8100 and MC-1121 Series IIoT edge gateways that run Debian Linux OS. Additional devices will be supported in the future.

Check the ThingsPro product page for the most up-to-date information.
What protocols does ThingsPro support for connecting to a private cloud?

ThingsPro Gateway allows you to connect to your own cloud by using HTTPS protocol and MQTT broker.

For details, refer to these technical notes.

Does ThingsPro provide APIs to develop my own programs on Moxa's edge gateways?
ThingsPro Gateway Software provides C/Python/RESTful APIs for users to develop their own data-processing programs on Moxa's edge gateways. For more details, refer to the following technical notes and guides:
- Technical notes
- User’s manuals and programmer’s guide
If I have a number of geographically-distributed edge gateways, how can I effectively manage them?

ThingsPro Server allows users to locate and remotely access gateway devices with a web-based UI. Device management functions include firmware upgrades, configuration changes, and user-program uploads, on demand, or as per a pre-determined schedule. ThingsPro Server also provides an account management tool for role-based access control.

For more details, refer to these technical notes.
Is there a programmer’s guide available for ThingsPro?
For programming guidelines and instructions on developing applications, refer to the following:
- User’s manuals and programmer’s guide
- Technical notes

What is Moxa’s ThingsPro Software Suite and how does it work?
Moxa’s ThingsPro Software Suite is a collection of software programs designed to simplify IIoT gateway application development. It currently includes two programs:
- ThingsPro Gateway: A software for IIoT edge gateways, which provides an easy-to-use GUI for Modbus data logging, tag-based data acquisition, LTE connectivity, and MQTT/HTTPS communication. Also included are C and Python APIs for developing your own applications, and client interfaces for multiple cloud-based services.
- ThingsPro Server: A cloud-based service to locate and manage your IIoT edge gateways. It can be hosted on cloud platforms such as AWS and offers RESTful APIs for integrating information with your dashboards.
To learn more, watch the ThingsPro introduction video.
Which devices and what kind of OS can ThingsPro run on?

ThingsPro Gateway Software is currently supported on Moxa’s UC-8100 and MC-1121 Series IIoT edge gateways that run Debian Linux OS. Additional devices will be supported in the future.

Check the ThingsPro product page for the most up-to-date information.
Which public cloud services does ThingsPro support, and how do I connect to them?

ThingsPro Gateway includes GUIs to help you set up connections and access popular cloud-based services in just a few clicks. It currently supports AWS, Azure, Ignition Edge (Sparkplug), Schneider Wonderware Online, and generic MQTT/HTTPS services.

To learn more, refer to these technical notes.

Does ThingsPro provide APIs to develop my own programs on Moxa's edge gateways?
ThingsPro Gateway Software provides C/Python/RESTful APIs for users to develop their own data-processing programs on Moxa's edge gateways. For more details, refer to the following technical notes and guides:
- Technical notes
- User’s manuals and programmer’s guide
If I have a number of geographically-distributed edge gateways, how can I effectively manage them?

ThingsPro Server allows users to locate and remotely access gateway devices with a web-based UI. Device management functions include firmware upgrades, configuration changes, and user-program uploads, on demand, or as per a pre-determined schedule. ThingsPro Server also provides an account management tool for role-based access control.

For more details, refer to these technical notes.
Is there a programmer’s guide available for ThingsPro?
For programming guidelines and instructions on developing applications, refer to the following:
- User’s manuals and programmer’s guide
- Technical notes

How do Moxa’s IIoT edge gateways enable edge intelligence?

Moxa's IIoT edge gateways currently support AWS Greengrass and Microsoft IoT Edge to enable edge intelligence, thereby making it easy to perform machine learning tasks on these edge computers.
Which Moxa devices support AWS Greengrass and Microsoft IoT Edge?
- Models that have been pretested to work with AWS Greengrass:
  - MC-1122 (Windows 10)
  - UC-8112-ME-T-US-LTE-LX1 (Debian Linux)
- Models that have been pretested to work with Microsoft IoT Edge:
  - MC-1122 (Win 10 LTSB)
  - UC-8112-ME-T-US-LTE-LX1 (Debian Linux)
Can I install AWS Greengrass/Microsoft IoT Edge on my existing Moxa devices?

You can install either AWS Greengrass or Microsoft IoT Edge on Moxa edge computers listed in Which Moxa devices support AWS Greengrass and Microsoft IoT Edge

For detailed installation instructions, refer to these technical notes.

Can I install ThingsPro along with AWS Greengrass or Microsoft IoT Edge on Moxa’s IIoT edge gateways?

This depends on the CPU and RAM specification of the IIoT edge gateway and the applications you intend to run on the gateway. For additional questions regarding programming on Moxa’s IIoT edge gateways, contact Moxa.
Where can I find programming guides for AWS Greengrass or Microsoft IoT Edge?
For programming resources for AWS Greengrass and Microsoft IoT Edge, refer to the resources from Amazon and Microsoft:
- AWS Greengrass
- Microsoft IoT Edge

IIoTエッジゲートウェイを選ぶ

モデル
CPU
メモリ
インターフェース
無線接続
危険な場所で使用するための認証
クラウド接続サポート（オプション）
データシート

MC-1121	UC-2104	UC-3101/3111	UC-5112	UC-8112A-ME-T
Intel Atom® E3845 クアッドコア 1.91 GHz	TI AM3352 Arm Cortex-A8 600 MHz	TI AM3352 Arm Cortex-A8 1 GHz	TI AM3352 Arm Cortex-A8 1 GHz	TI AM3352 Arm Cortex-A8 1 GHz
4 GB	256 MB	512 MB	512 MB	1 GB
シリアルx2、ギガLANx4、DIOx4、USB 2.0x2	LANx1	シリアルx1または2、LANx2、USB 2.0x1	シリアルx4、LANx2、DIOx4、CANx2、USB 2.0x1	シリアルx2、LANx2、USB 2.0x1
Wi-FiまたはLTE Cat.4	Wi-FiまたはLTE Cat.1	Wi-Fi/LTE Cat.1（デュアルSIMスロット搭載）	Wi-FiまたはLTE Cat.1（デュアルSIMスロット搭載）	Wi-FiまたはLTE Cat.4
C1D2、ATEX/IECEx Zone 2、DNV GL	-	C1D2、ATEX/IECEx Zone 2	-	C1D2、ATEX/IECEx Zone 2
AWS Greengrass* Azure IoT Edge ThingsProソフトウェア	ThingsProソフトウェア	ThingsProソフトウェア	ThingsProソフトウェア	Azure IoT Edge ThingsProソフトウェア

*現在、認証を取得中
