Moxa Industrial Linux

Secure Edge, Trusted Platform

Our Commitment

Secure and Reliable Solutions for Decades to Come


Moxa, a dedicated member of the Civil Infrastructure Platform (CIP) and OpenChain Project under The Linux Foundation® and also a Linux Debian sponsor of the Debian Long Term Support (LTS) initiative, is committed to ensuring long-term stability for Debian-based systems. In line with this commitment, Moxa delivers Moxa Industrial Linux (MIL)—a secure, industrial-grade Debian-based Linux operating system.


MIL offers industry-leading 10-year OS support with security patches, which combined with the world’s first IEC 62443-4-2 Security Level 2 certified computer provides unmatched long-term reliability. Built on Debian and the standard Linux kernel, MIL accelerates application development and time-to-market with intuitive Moxa utilities for system, network, and I/O management.


Reliable, Secure, and Developer-friendly Industrial Linux

  • Reliability
    • Robust filesystem for data integrity
    • Crash-free failover filesystem
    • Built-in network connection keep-alive with intelligent failover
  • Security
    • Save at least 6 months of development with IEC 62443-4-2 Security Level 2 certified computers*
    • Secure Boot with hardware Root-of-trust authentication
    • 10-year long-term OS support reduces costs of security updates and maintenance

    *See selection table for details

  • Easy Development
    • Debian-based OS for effortless migration of Ubuntu and Raspberry Pi applications
    • Built-in tools for streamlining system, network, and interface management
    • Intuitive GUI for quick setup and configuring network connection failover

The Foundation of Industrial Stability

Moxa Industrial Linux (MIL) is a reliable and secure open-source Debian-based operating system that leverages the Civil Infrastructure Platform (CIP) to provide long-term stability to your applications. Our focus is on quick deployment and long-term support of the Linux kernel for system stability and security, eliminating frequent major upgrades. In addition, built-in user-friendly utilities streamline system tasks such as data management, wireless connectivity, I/O interface control, and asset security.

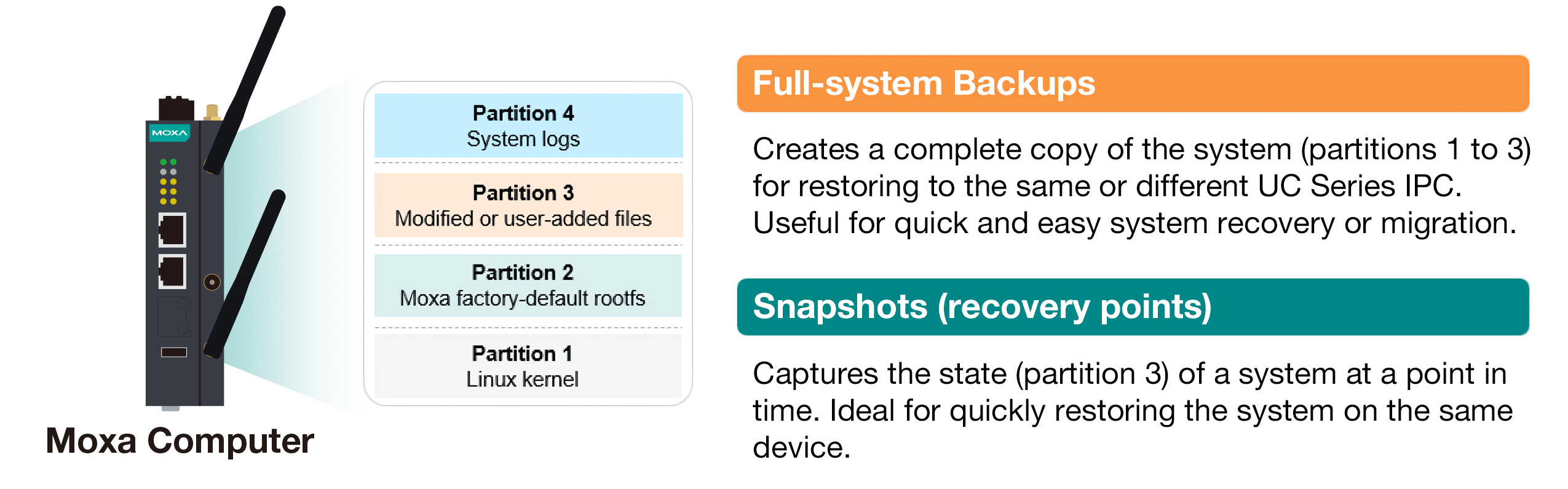

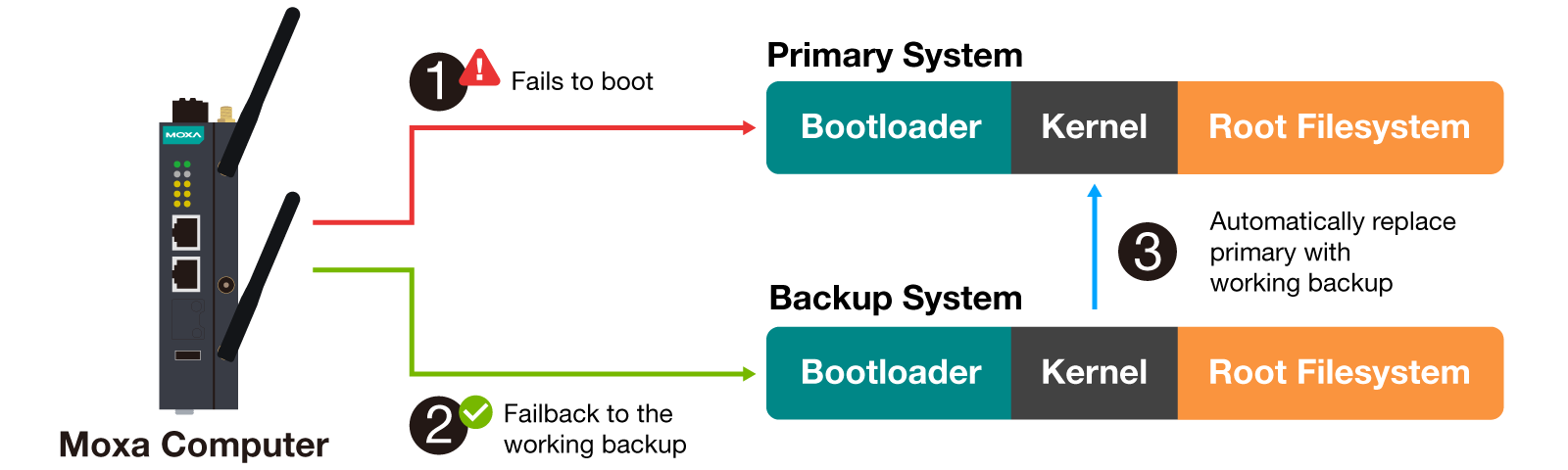

Moxa System Manager (MSM)

MSM enables full-system snapshots and backup and restore for quick recovery after system failures. MSM supports system failover during system bootup, factory reset, and decommissioning to help maintain system availability and life-cycle management.

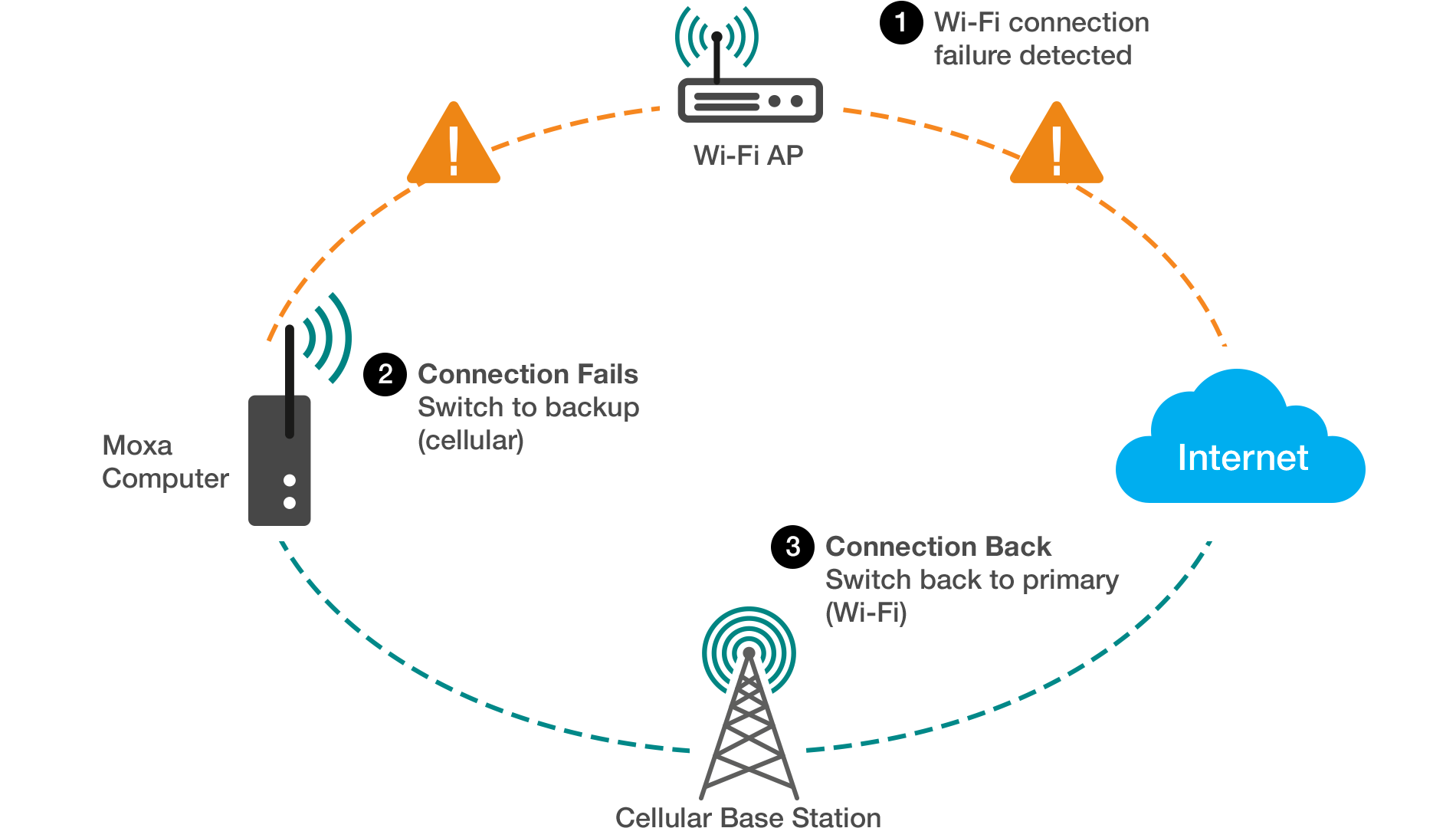

Moxa Connection Manager (MCM)

MCM offers an intuitive GUI for configuring and prioritizing Ethernet, Wi-Fi, and cellular network profiles. MCM maintains connections with failover and failback, even during the cyberattacks. MCM supports connection diagnostics, making it ideal for applications requiring reliable network switching and multi-channel connectivity.

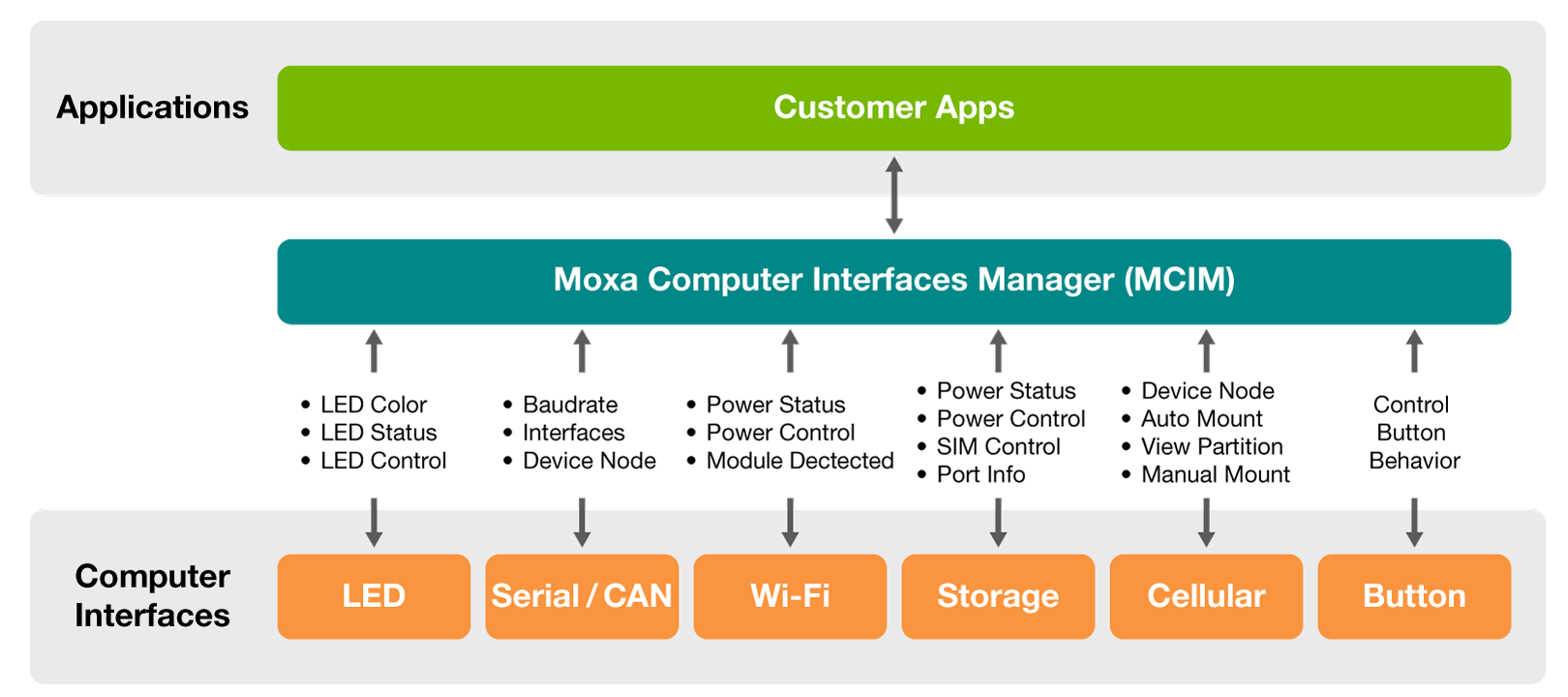

Moxa Computer Interface Manager (MCIM)

MCIM simplifies system integration by providing a unified interface for managing various I/O hardware and non-standard components—such as DI/DO, buttons, disks, buzzers, and RS-232/422/485 mode switching. With CLI support, MCIM eliminates the need to adapt control logic for different SoC platforms, reducing complexity and accelerating application development.

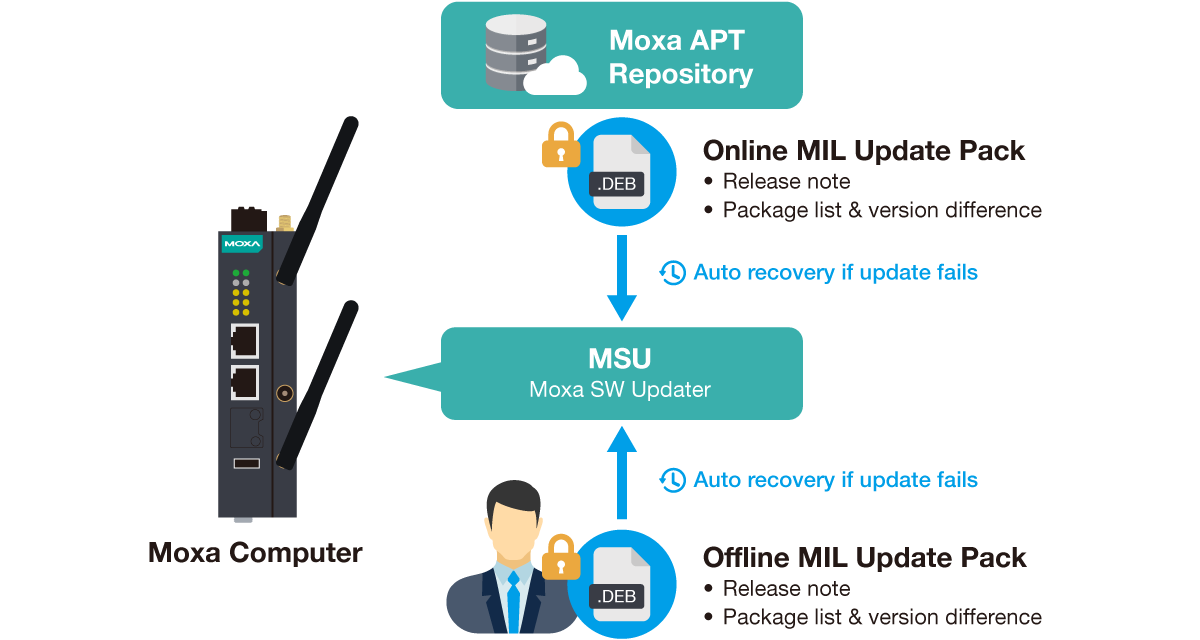

Moxa Software Updater (MSU)

MSU enables you to keep the Moxa Industrial Linux up-to-date with the latest security patches, including fixes for known common vulnerabilities and exposures (CVEs). MSU supports both online and offline updates and includes an auto-recovery mechanism to ensure a safe update process even if an update fails.

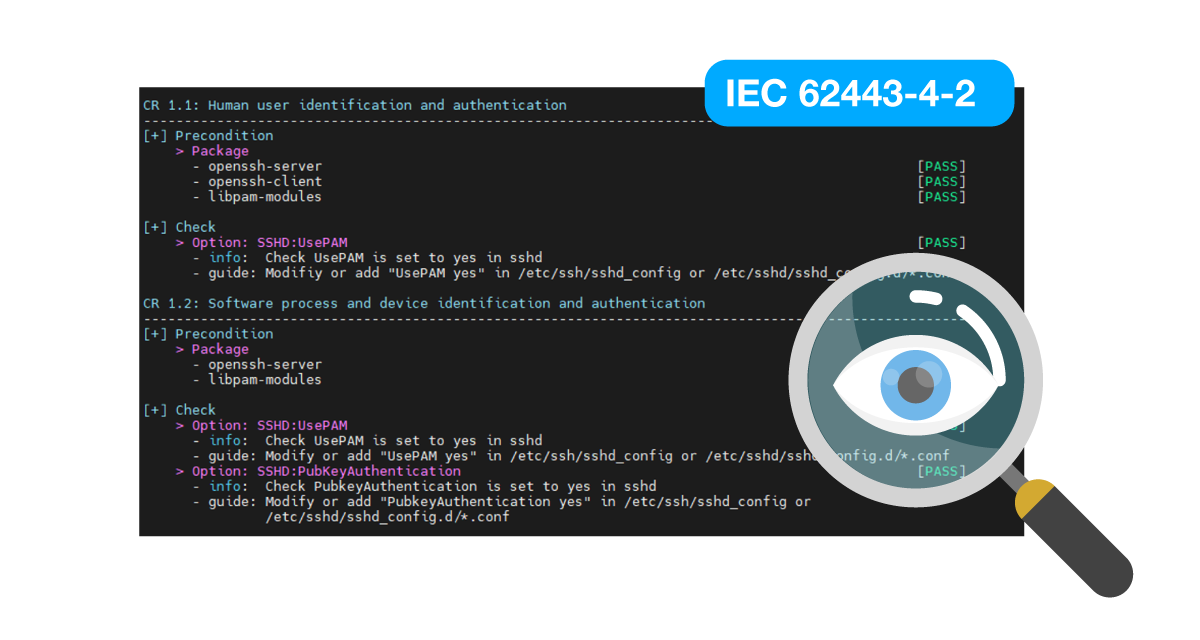

Moxa Guardian

Moxa Guardian enables security diagnostics to evaluate the compliance of the device with IEC 62443-4-2 Security Level 2 requirements. It compares current system settings against the recommended secure baseline, identifies deviations, and provides actionable suggestions—including an option for a one-click remedy—to help users maintain both compliance and security robustness.

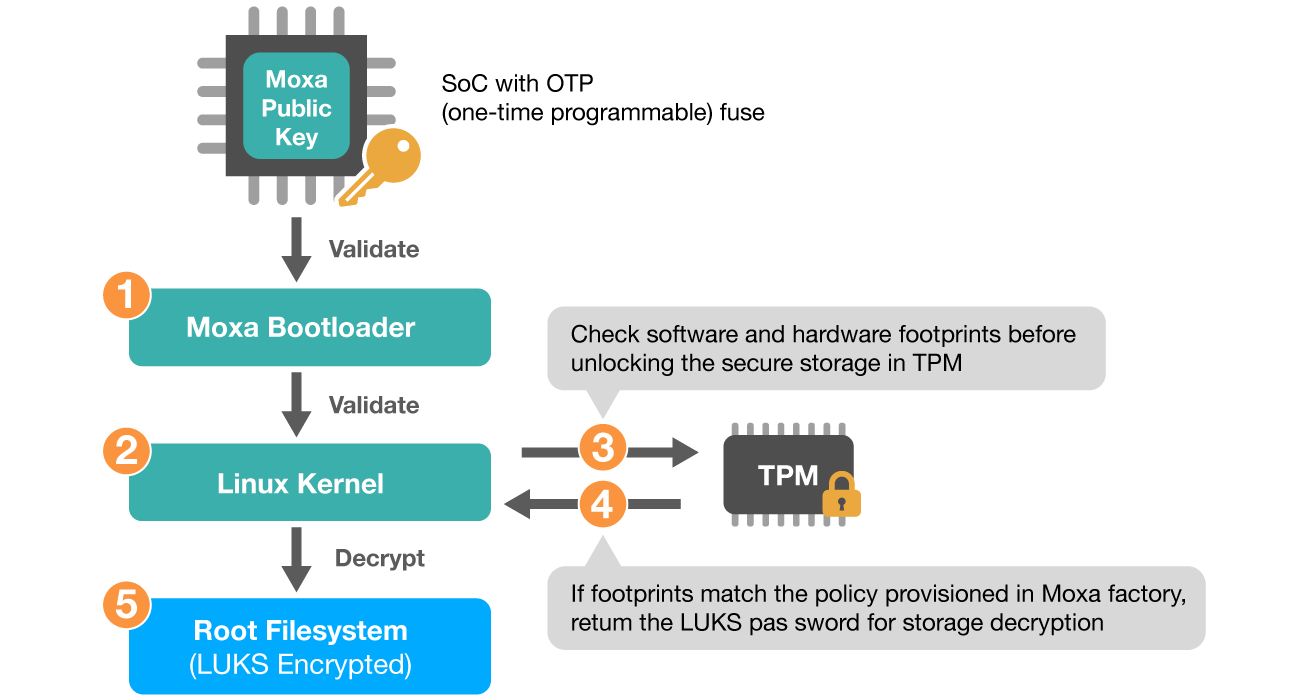

Secure Boot

Secure Boot performs a Chain-of-trust validation starting with the SoC’s OTP fuse validation of the bootloader, which then verifies the Linux kernel. The kernel checks system footprints using TPM. Only if the system footprints match Moxa’s factory-set policy, TPM provides the LUKS key to decrypt the root filesystem.

Debian-compatible Applications


Python & Web Development

Monitoring & Alerts

Data Management

Container & Docker

Moxa Industrial Linux
User Space
System Recovery
Moxa System Manager
Interface Management
Moxa Computer Interface Manager
Wireless Connectivity
Moxa Connection Manager
Software Update
Moxa Software Updater
Security
Moxa Guardian
Debian-base OS

CIP’s Super-long-term Support (SLTS) kernel

CPU

Hardware Root-of-trust validation

Bootloader

Digitally signed

TPM

Stores encryption keys

Secure
Boot

Why Choose MIL


Reliable Network Connectivity

Moxa Connection Manager ensures reliable connectivity with automatic failover and failback across Ethernet, Wi-Fi, and cellular networks, all via an intuitive GUI.

Long-term Support

10-year OS support with security updates, CVE patches, and kernel stability for long-term reliability.

Cost Efficiency

MIL’s 10-year support saves an estimated 250 person-days or $150,000 yearly on security fixes and over 6 months of development efforts for compliance with IEC 62443-4-2 Security Level 2 requirements.

Industrial-grade Security

MIL is developed according to IEC 62443-4-1 certified development life cycle procedure ensuring security and reliability in diverse industrial network settings.

Faster Development

Built-in tools for interface and network management and system recovery. Debian-based MIL enables easy migration from Ubuntu and Raspberry Pi.

Enterprise-grade Services

Dedicated FAE teams support system integration and troubleshooting. Our PSIRT team ensures fast, expert response to cybersecurity incidents and critical issues.

A Comparison of MIL Versions

Features
Debian Version
IEC 62443-4-2 Security Level 2**
Cybersecurity Compliance
10-year Long-term Support
Middleware for I/O Communication & Control
Network Connection & Management Tool
Provisioning Tool & Device Management
Security Diagnostic Tool
Secure Boot / Disk Protection
Dynamic Interface Control
Secure Updates & Decommission
Backup & Auto-recovery Tool
Host-based Intrusion Detection
Network Security Monitoring & Brute-force Protection
Security Event Auditing
MIL3 / MIL4*
Secure
MIL3 / MIL4
Standard
MIL1
MIL 3: Debian 11
MIL 4: Debian 13 		 MIL 3: Debian 11
MIL 4: Debian 13 		 Debian 9
MIL 3: Compliant
MIL 4: Certified
JC-Star Certified
RED-DA (EN 18031-1) Compliant		 JC-Star Certified
RED-DA (EN 18031-1) Compliant		 RED-DA (EN 18031-1) Compliant
MIL3: 2022-2031
MIL4: 2025-2035		 MIL3: 2022-2031
MIL4: 2025-2035		 2018-2027
Managed connection:
keep-alive and failover		 Managed connection:
keep-alive and failover		 Basic connect-only utilities
(Swift & DLM) (Swift & DLM)
LUKS encrypted, Secure Boot
Predefined monitoring rule,
User-config.		 Use-defined monitoring rule
Advanced
(Syslog + auditd)		 Basic
(Syslog)		 Basic
(Syslog)

*UC-8200 with MIL3 Secure and all 64-bit UC Series with MIL4 Secure are IEC 62443-4-2 SL2 certified
** IEC 62443-4-2 SL2 according to IECEE scheme



Learn More About our MIL Software Life-cycle Policy

MIL Supported Devices

  • MIL4 Secure / Standard
  • MIL3 Secure
  • MIL3 Standard
  • MIL1

FAQs


Q1: How can I order a specific MIL version for my Moxa computer?

Refer to the following table for model-specific ordering instructions. To order a different MIL version (such as MIL4 Secure), use the Computer Configuration Service (CCS) and select the corresponding model with the “(CTO)” suffix.


Moxa Computer Series
UC-1200A Series
UC-2200A Series
UC-3400A Series
UC-4400A Series
UC-8600A Series
UC-8200 Series
V1200 Series
V3200 Series
V3400 Series
ioThinx 4530 Series
Preinstalled MIL OS
How to Order MIL Versions
IEC 62443-4-2 Security Level 2*
MIL3 Standard
(Debian 11, kernel 5.10)		 MIL3 Secure, MIL4 Secure or Standard:
Use CCS and select the “UC-1200A (CTO)” model		 MIL4 Secure Certified
MIL3 Standard
(Debian 11, kernel 5.10)		 MIL3 Secure, MIL4 Secure or Standard:
Use CCS and select the “UC-2200A (CTO)” model		 MIL4 Secure Certified
MIL3 Standard
(Debian 11, kernel 5.10)		 MIL3 Secure, MIL4 Secure or Standard:
Use CCS and select the “UC-3400A (CTO)” model		 MIL4 Secure Certified
MIL3 Standard
(Debian 11, kernel 5.10)		 MIL3 Secure, MIL4 Secure or Standard:
Use CCS and select the “UC-4400A (CTO)” model		 MIL4 Secure Certified
MIL4 Standard
(Debian 13, kernel 6.12)		 MIL4 Secure:
Use CCS and select the “UC-8600A (CTO)” model		 MIL4 Secure Certified
MIL1
(Debian 9, kernel 4.4)		 MIL3 Secure, MIL4 Secure or Standard:
Use CCS and select the “UC-8200 (CTO)” model 		MIL3 Secure Certified
MIL3 Secure
(Debian 11, kernel 5.10)		 N/A
Only MIL3 Secure is available for this series		 Compliance
OS NOT preinstalled MIL3 Secure:
Use CCS and select the “V3210 (CTO)” model		 Compliance
OS NOT preinstalled MIL3 Secure:
Use CCS and select the “V3400 (CTO)” model		 Compliance
MIL3 Secure
(Debian 11, kernel 5.10)		 N/A
Only MIL3 Standard is available for this series		 N/A

*Note : IEC 62443-4-2 Security Level 2 certified requires MIL Secure version

Q2: Why and how should I migrate from Raspberry Pi OS to Moxa Industrial Linux (MIL)?

Refer to “Migrating From Raspberry Pi to Moxa Industrial Linux (MIL)” for benefits of Long-term support (LTS) and industrial-grade design as well as module descriptions, security standards, and migration FAQs.

Q3: Why and how should I migrate from Ubuntu to Moxa Industrial Linux (MIL)?

Refer to “Migrating From Ubuntu to Moxa Industrial Linux (MIL)” for benefits of Long-term support (LTS) and industrial-grade design as well as module descriptions, security standards, and migration FAQs.

Q4: What are the benefits of Long-Term Support (LTS) in MIL?

Refer to “Long Term Support (LTS)—Understanding the Value Via Practical Insights” for benefits of Long-term support (LTS) including life-cycle guarantees, reduced TCO, compliance, and security patches.

Q5: Where can I find the Security Hardening Guide for MIL?

Check the document “Security Hardening Guide” in “Moxa Industrial Linux Resource” page. The manual includes best practices for system hardening to align with industrial cybersecurity standards such as IEC 62443. For more information, you may refer to our Software & Documentation page.
