UC-1200A Series

Arm® Cortex®-A53 dual-core 64-bit 1-GHz industrial computers with 1 mPCIe expansion slot, -40 to 60°C operating temperature

moxa-uc-1200a-series-image-(1).jpg | Moxa
moxa-uc-1200a-series-image-1-(1).jpg | Moxa
moxa-uc-1200a-series-image-2-(1).jpg | Moxa
moxa-uc-1200a-series-image-3-(1).jpg | Moxa

Features and Benefits

  • Armv8 Cortex-A53 dual-core 1 GHz processor
  • 2 auto-sensing 10/100/1000 Mbps Ethernet ports
  • Rich programmable LEDs and a programmable button for easy installation and maintenance
  • Mini-PCIe slot for wireless module
  • -40 to 60°C operating temperature range
  • Long-term Linux support until 2031; includes bug fixes and security patches

Certifications

  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa

Contact Sales

Introduction

The UC-1200A computing platform is designed for embedded data-acquisition applications. The computer comes with dual RS-232/422/485 serial ports and dual 10/100/1000 Mbps Ethernet ports, as well as a Mini PCIe socket to support a wireless module. These versatile capabilities let users efficiently adapt the UC-1200A to a variety of complex communications solutions.

The UC-1200A is built around a Cortex-A53 processor that has been optimized for use in energy monitoring systems, but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communications platform for many other large-scale deployments.

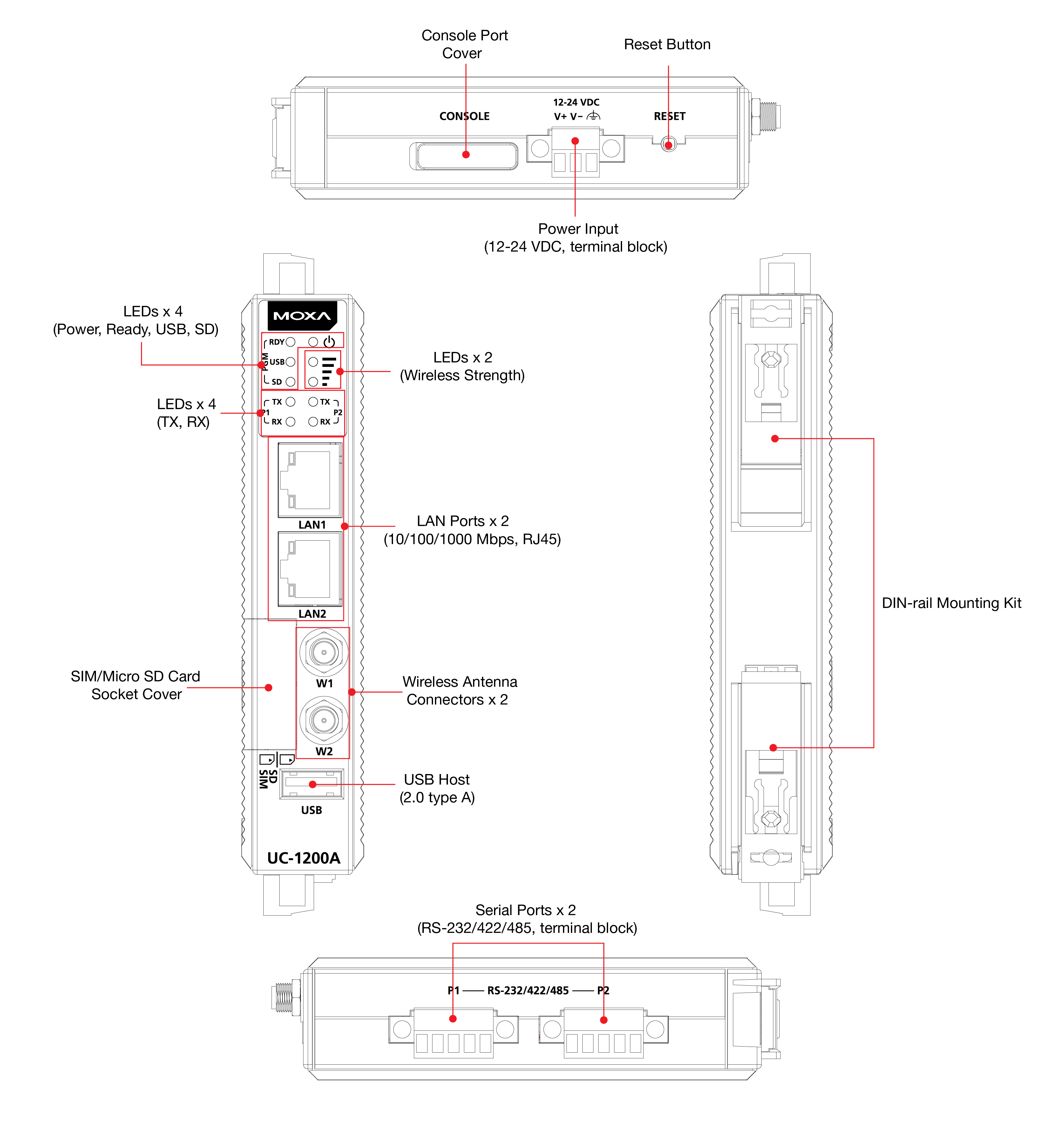

Appearance

  • CPU

    Armv8 Cortex-A53 dual-core 1GHz

  • DRAM

    2 GB DDR4

  • Pre-installed OS

    Moxa Industrial Linux (Debian 11, kernel 5.10), 2031 EOL
    See www.moxa.com/MIL

  • Storage Pre-installed

    16 GB eMMC

  • Storage Slot

    micro SD slots x 1

  • Ethernet Ports

    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

  • Serial Ports

    RS-232/422/485 ports x 2, software selectable (terminal block)

  • USB 2.0

    USB 2.0 hosts x 1, type-A connectors

  • Console Port

    RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)

  • Expansion Slots

    mPCIe slots x 1

  • Number of SIMs

    1

  • SIM Format

    Nano

  • Buttons

    Reset button

  • TPM

    TPM v2.0

  • Ethernet Ports

    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Baudrate

    300 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Parity

    None, Even, Odd, Space, Mark

  • Stop Bits

    1, 1.5, 2

  • Flow Control

    RTS/CTS
    XON/XOFF
    Automatic Data Direction Control (ADDC) for RS-485
    RTS Toggle (RS-232 only)

  • RS-232

    TxD, RxD, RTS, CTS, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • System

    Power x 1
    SW ready (programmable)
    USB (programmable) x 1
    Micro SD slot (programmable) x 1
    Serial Port: TX x 2, RX x 2

  • Wireless Signal Strength

    Cellular x 2; programmable
    Disconnected: None
    Very Poor Signal: 1 LED (blinking)
    Poor Signal: 1 LED
    Good Signal: 2 LEDs

  • Input Current

    600 mA @ 12 VDC
    300 mA @ 24 VDC

  • Input Voltage

    12 to 24 VDC

  • Power Consumption

    4.5 W (minimum; without external USB device attached)
    7.2 W (maximum; with external USB device attached)

  • Alert Tools

    External RTC (real-time clock)
    External WDT (watchdog timer)

  • Dimensions

    101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in)

  • Weight

    224 g (0.5 lb)

  • Housing

    Polycarbonate (PC)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Operating Temperature

    -40 to 60°C (-40 to 140°F)

  • Storage Temperature (package included)

    -40 to 80°C (-40 to 176°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Shock

    IEC 60068-2-27

  • Vibration

    2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-3 RS: 1.4 GHz to 6 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-5 L-PE: 1 kV ; L –L: 0.5 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Safety

    EN 62368-1
    UL 62368-1

  • International Approval

    RCM
    KC
    BSMI

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    924,676 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR
