Moxa Industrial Linux

Moxa's Debian-based industrial-grade stable Linux distribution for long-term projects

moxa-moxa-industrial-linux-image-(1).jpg | Moxa

Features and Benefits

  • Debian-based distribution that can use all standard Debian packages
  • Developed as per IEC 62443-4-1 and compliant with IEC 62443-4-2 industrial cybersecurity standards (Moxa Industrial Linux 3 Secure)
  • Long-term support until 2027 for Moxa Industrial Linux 1 and 2031 for Moxa Industrial Linux 3
  • Wireless connection management utility with automatic network keep alive and failover
  • Ready-to-use APIs and library to ease access to hardware and I/O interfaces
  • Crash-free robust file system
  • Over-the-air (OTA) software updates

Contact Sales

Introduction

Moxa Industrial Linux (MIL) is a high-performance industrial-grade Linux distribution developed by Moxa to help accelerate your industrial projects. MIL is based on Debian and the standard Linux kernel, which makes it easy to deploy your applications on multiple systems.

To address the long-term system needs of smart cities and industries such as power, water, oil and gas, transportation, and factory automation, every odd-number version (e.g., MIL v1.0, MIL v3.0) of MIL comes with 10-year Linux support that includes security patches and bug fixes, making industrial projects secure and sustainable.

In addition, Moxa is working with industry leaders to create a reliable and secure Linux-based embedded software platform that can be sustained for more than 10 years. Moxa is a member of The Linux Foundation® and is part of its Civil Infrastructure Platform (CIP) project that aims to create an open-source platform for managing and monitoring smart cities, civil infrastructure, and factories, to make them secure, reliable, scalable, and sustainable.

Debian Compatibility

Moxa Industrial Linux is a Debian-based distribution that can use all standard Debian packages for the kernel version. Benefits include:

  • Access to the comprehensive repository of packages from Debian

  • Field-proven OS stability

Hardware Root of Trust Secure Boot (MIL2 and later only in secure version of models)

A one-time-programmable (OTP) fuse is used as the hardware Root of Trust to initiate a chain of trust validation sequence during boot up, which ensures the integrity and authenticity of the bootloader and kernel before allowing access to the root filesystem.

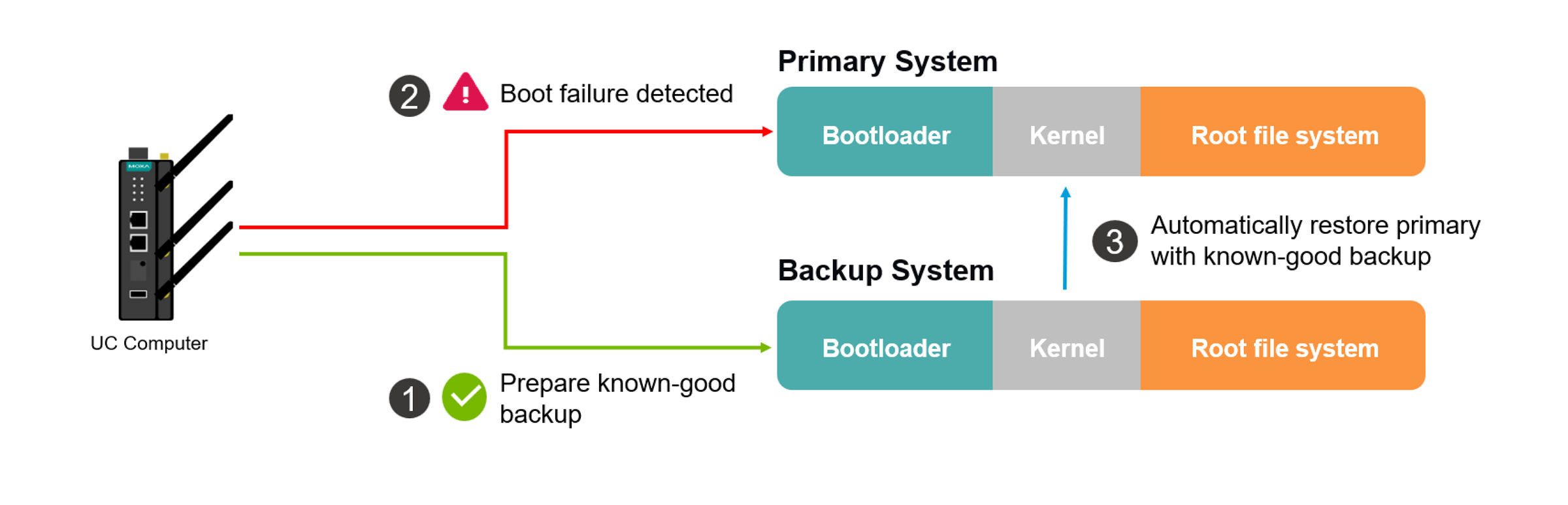

Automatic System Failback (MIL2 and later)

Automatically restores the system to the last known secure working state when the system fails to boot due to a power outage during a critical update or due to an unauthorized change to a critical software that causes Secure Boot to fail.

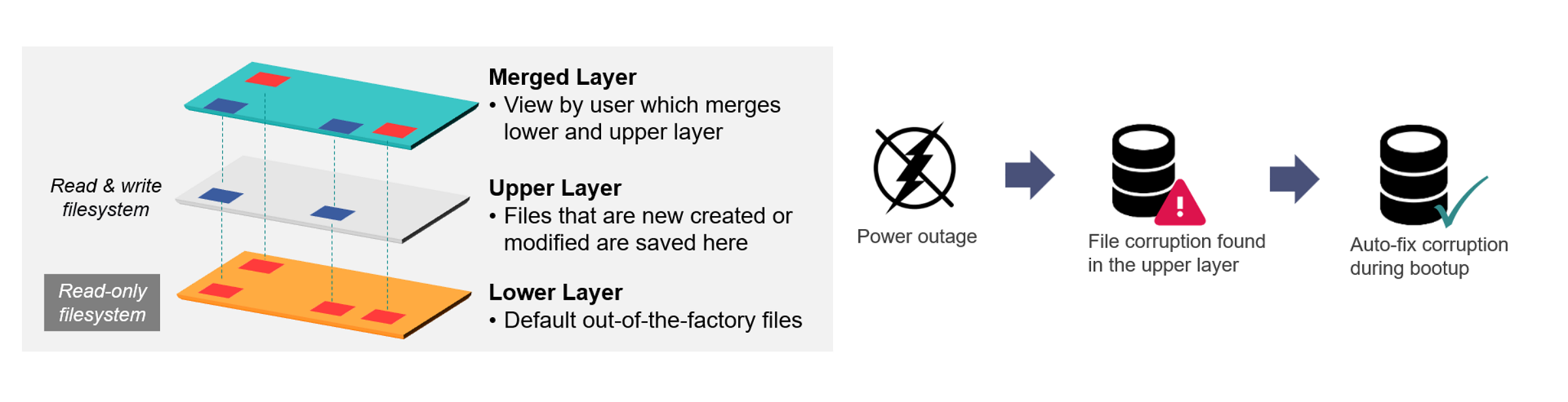

Robust File System

The robust file system integrated into Moxa Industrial Linux provides extra protection during firmware upgrades and downgrades with:

  • Guaranteed system operation when there are power losses during firmware upgrades/downgrades

  • Fast and secure reset-to-default function built into the system

Over-the-air (OTA) Software Updates

Because gateway computers are usually located at remote sites, it is a challenge to upgrade the system and applications. A suitable way to upgrade the firmware on remote computers is to use wireless technology such as cellular or Wi-Fi. Moxa Industrial Linux supports secure Advanced Packaging Tools (APT) for OTA remote update and uses a GPG Key to validate the package source list obtained from the software repository.

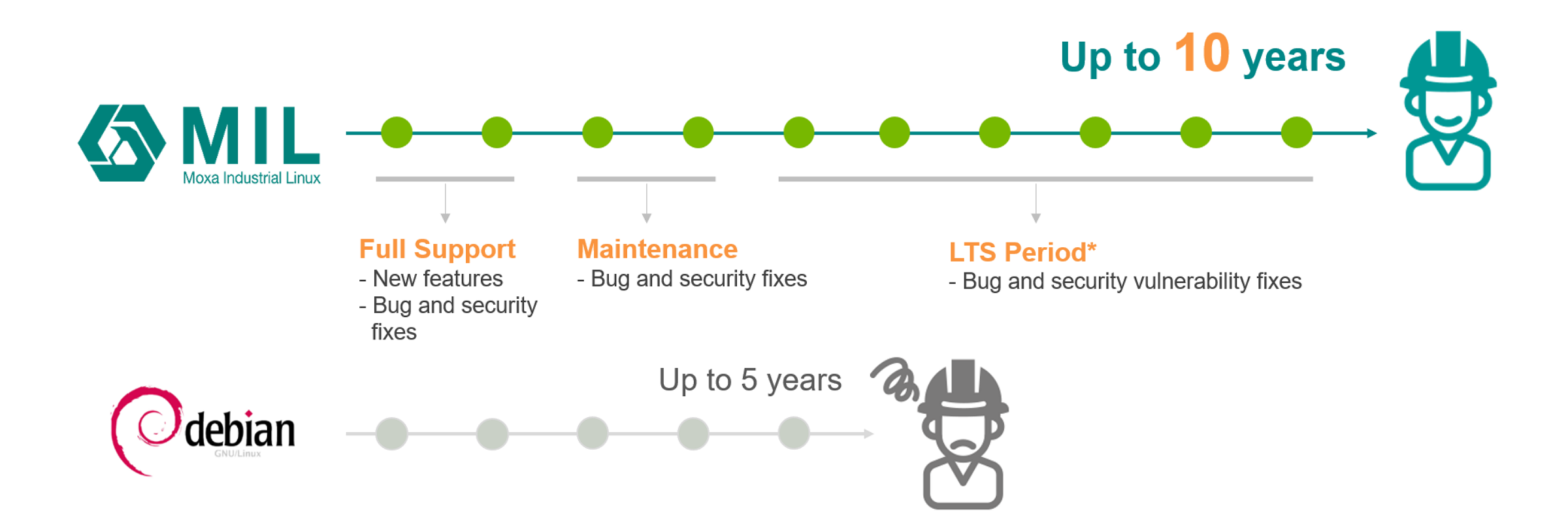

Long-term Support

Moxa Industrial Linux allows users to keep the same kernel version and Debian user space without having to frequently upgrade the entire system. In addition, subscription services for Moxa Industrial Linux, throughout its 10-year life-cycle phase provide security updates and bug fixes that include:

  • Critical security patches

  • High-priority bug fixes

  • Hardware-based Security

    TPM 2.0
    Hardware Root of Trust Secure Boot

  • Intrusion Detection

    Host-based Intrusion Detection

  • Security Tools

    Security Diagnostic Tool
    Security Event Auditing
    Secure Update

  • Disk Protection

    LUKS Disk Encryption

  • Recovery

    One-step recovery to the last known secure state
    Dual-system design with automatic failback

  • Reliability

    Network Keep Alive
    Network Failover and Failback

  • Moxa Industrial Linux 1

    All Models Revision 1.0.0 and Later:
    - UC-2100/2100-W Series
    - UC-3100 Series
    - UC-5100 Series
    - UC-8100A-ME-T Series
    - UC-8200 Series
    - UC-8540/8580 Series

    Revision 2.1.0 and Later:
    - UC-8410A Series: Models UC-8410A (CTO) and UC-8410A-T (CTO)

    Revision 3.0.0 and later:
    - UC-8100 Series
    - UC-8100-ME-T Series

  • Moxa Industrial Linux 2

    - V2406C Series: WL models (Revision 1.0.0 and later)

  • Moxa Industrial Linux 3

    - UC-8200 Series Models (Revision 1.0.0 and later): UC-8220-T-LX (CTO)/ T-LX-S (CTO), UC-8220-T-LX-US-S (CTO)/ EU-S (CTO)/ AP-S (CTO)

Support Documents

Name Type Version Release Date
Datasheet for Moxa Industrial Linux
1.1 MB
Datasheet v2.0 Jan 12, 2023 Jan 12, 2023
Moxa Industrial Linux 3 (Debian 11) Manual (with security hardening guide)
2.9 MB
Manual v1.0 Jan 12, 2023 Jan 12, 2023
Moxa Industrial Linux 1 (Debian 9) Manual for Arm-based Computers
1.9 MB
Manual v5.1 Dec 06, 2022 Dec 06, 2022
Tech Note: Keeping IIoT Gateway Software Up-to-date and Free of Vulnerabilities
279.2 KB
Tech Note v1.0 Jul 12, 2021 Jul 12, 2021
