UC-8100 Series

Arm Cortex-A8 300 MHz/600 MHz/1 GHz IIoT gateways with 1 Mini PCIe expansion slot for a wireless module, -10 to 60°C operating temperature

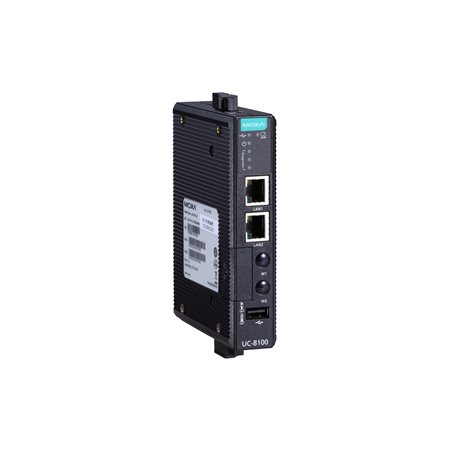

moxa-uc-8100-series-image-1-(1).jpg | Moxa

Features and Benefits

Armv7 Cortex-A8 300/600/1000 MHz processor
Dual auto-sensing 10/100 Mbps Ethernet ports
Rich programmable LEDs and a programmable button for easy installation and maintenance
Moxa Industrial Linux with 10-year superior long-term support
Debian 9 open platform

Certifications

Contact Sales

Introduction

The UC-8100 computing platform is designed for embedded data-acquisition applications. The computer comes with one or two RS-232/422/485 serial ports and dual 10/100 Mbps Ethernet LAN ports, as well as a mini PCIe slot to support cellular modules. These versatile communication capabilities let users efficiently adapt the UC-8100 to a variety of complex communications solutions.

The UC-8100 is built around a Cortex-A8 Arm–based processor that has been optimized for use in energy monitoring systems, but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communication platform for many other large-scale deployments.

Appearance

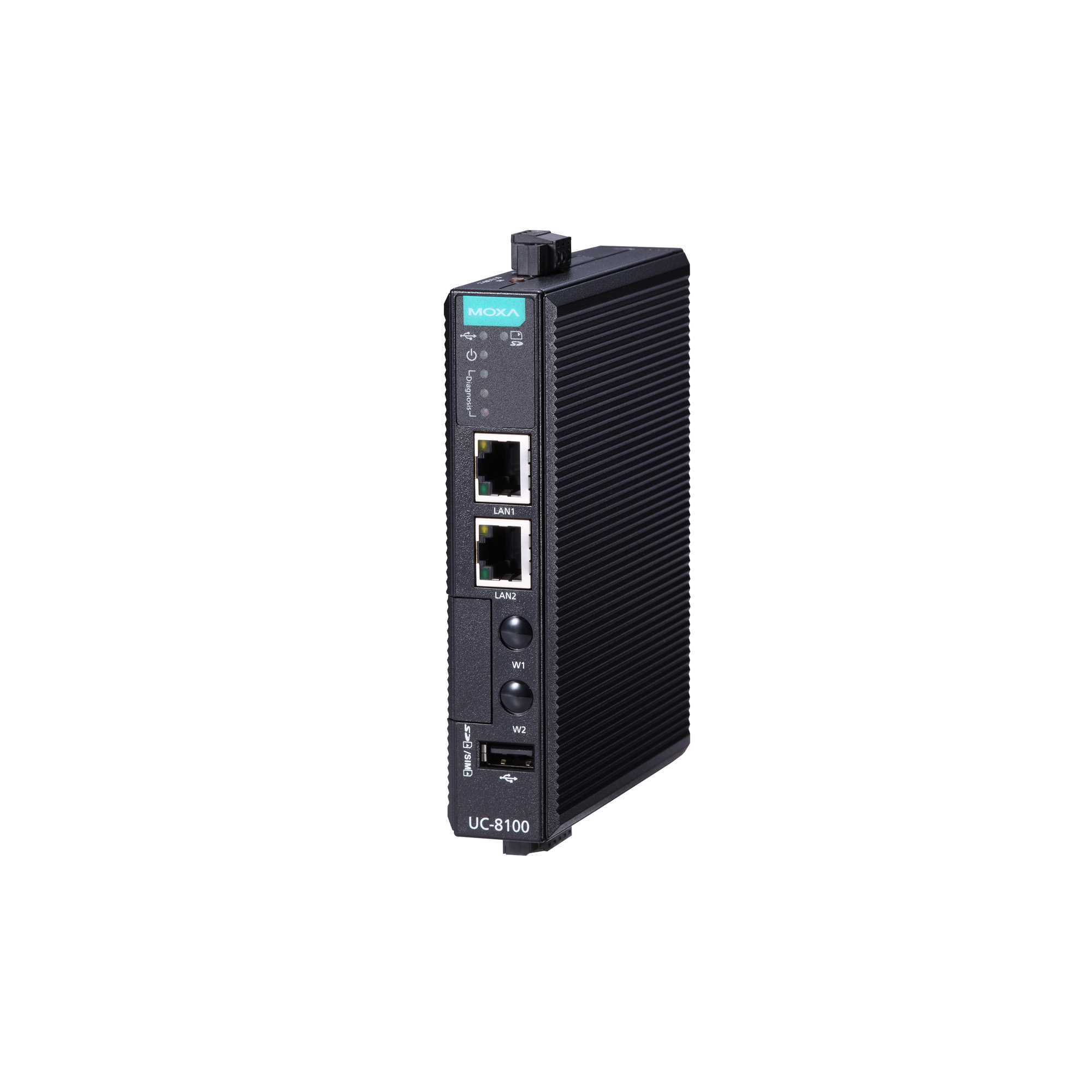

Front View

Top View

Bottom View

Download datasheet
Print this page
Save

You can manage and share your saved list in My Moxa

CPU

UC-8131-LX: Armv7 Cortex-A8 300 MHz
UC-8132-LX: Armv7 Cortex-A8 300 MHz
UC-8162-LX: Armv7 Cortex-A8 600 MHz
UC-8112-LX: Armv7 Cortex-A8 1 GHz
DRAM

UC-8112-LX: 512 MB DDR3
UC-8131-LX: 256 MB DDR3
UC-8132-LX: 256 MB DDR3
UC-8162-LX: 512 MB DDR3
Supported OS

Linux Debian 9 kernel 4.4 (Moxa Industrial Linux)
See www.moxa.com/MIL
Storage Pre-installed

8 GB eMMC
Storage Slot

SD slots x 1

Ethernet Ports

Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
Serial Ports

UC-8112-LX: RS-232/422/485 ports x 2, software-selectable (terminal block)
UC-8131-LX: RS-232/422/485 ports x 1, software-selectable (terminal block)
UC-8132-LX: RS-232/422/485 ports x 2, software-selectable (terminal block)
UC-8162-LX: RS-232/422/485 ports x 2, software-selectable (terminal block)
USB 2.0

USB 2.0 hosts x 1, type-A connectors
Expansion Slots

UC-8112-LX: mPCIe slot x 1
UC-8131-LX: mPCIe slot x 1
UC-8132-LX: mPCIe slot x 1
UC-8162-LX: mPCIe slot x 1
Number of SIMs

UC-8112-LX: 1
UC-8131-LX: 1
UC-8132-LX: 1
UC-8162-LX: 1
SIM Format

Mini
Buttons

Reset button
Console Port

RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)

Magnetic Isolation Protection

1.5 kV (built-in)

Data Bits

5, 6, 7, 8
Parity

None, Even, Odd, Space, Mark
Stop Bits

1, 1.5, 2
Baudrate

300 bps to 921.6 kbps

RS-232

TxD, RxD, RTS, CTS, GND
RS-422

Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w

Data+, Data-, GND
RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

System

Power x 1
SD slots x 1
Programmable x 3
USB x 1
Wireless Signal Strength

Cellular/Wi-Fi x 3

Input Voltage

12 to 24 VDC
Input Current

480 mA @ 12 VDC
225 mA @ 24 VDC
Power Consumption

5.4 W

Alert Tools

RTC (real-time clock)
Automatic Reboot Trigger

Built-in WDT

Housing

Plastic
Dimensions

101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in)
Weight

224 g (0.5 lb)
Installation

DIN-rail mounting, Wall mounting (with optional kit)

Operating Temperature

-10 to 60°C (14 to 140°F)
Storage Temperature (package included)

-20 to 80°C (-4 to 176°F)
Ambient Relative Humidity

5 to 95% (non-condensing)
Shock

IEC 60068-2-27
Vibration

2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)

Safety

UL 60950-1
EMC

EN 55032/24, KC (UC-8162)
EMI

CISPR 32, FCC Part 15B Class A
EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0.5 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
Green Product

RoHS, CRoHS, WEEE

Time

UC-8131-LX: 1,465,546 hrs
UC-8132-LX/8162-LX: 1,195,173 hrs
UC-8112-LX: 1,149,242 hrs
Standards

Telcordia (Bellcore) Standard

Warranty Period

5 years
Details

See www.moxa.com/warranty
