V1200 Series

Arm-based compact rail computers with options for wireless and cellular expansion

moxa-v1200-series-image-(1).jpg | Moxa
moxa-v1200-series-image-1-(1).jpg | Moxa

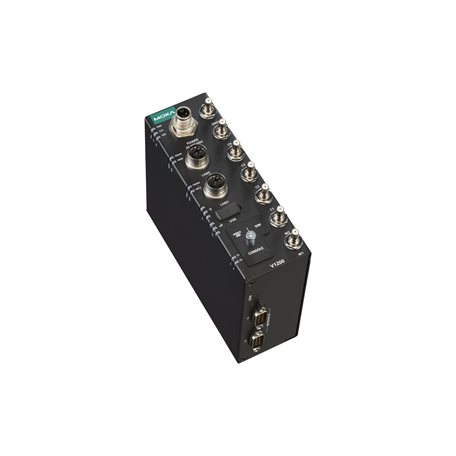

moxa-v1200-series-image-2-(1).jpg | Moxa

Features and Benefits

  • Arm Cortex-A53 quad-core 1.6 GHz processor
  • Slim, compact design with multiple mounting options
  • Integrated 5G Sub-6GHz NR module and Wi-Fi 6 module with dual SIM
  • Built-in TPM 2.0 module
  • Moxa Industrial Linux built-in for long-term Linux support
  • Isolated power with 24 to 110 VDC power supply range
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • Compliance with IEC 62443-4-2 Security Level 2 requirements

Certifications

  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The V1200 computing platform is designed for railway TCMS data-acquisition and train-to-ground applications. The computer comes with dual M12 10/100/1000 Mbps Ethernet ports, built-in 5G and Wi-Fi 6 modules and dual RS-232/422/485 serial ports. The slim, compact design with multiple mounting options reduces installation space and provides flexibility for mounting in various cabinets or onboard locations.

The V1200 comes with Moxa Industrial Linux (MIL) and long-term Linux support and vulnerability patching. A web-based interface is provided for easy configuration of Ethernet and wireless network settings without the need for programming.

The V1200 wireless-enabled models are thoroughly tested in a testing chamber, guaranteeing they meet the EN 50155 mandatory requirements and OT4 operating temperature (-40 to 70°C with cellular and Wi- Fi modules enabled) requirements, making them suitable for wide-temperature applications.

Appearance

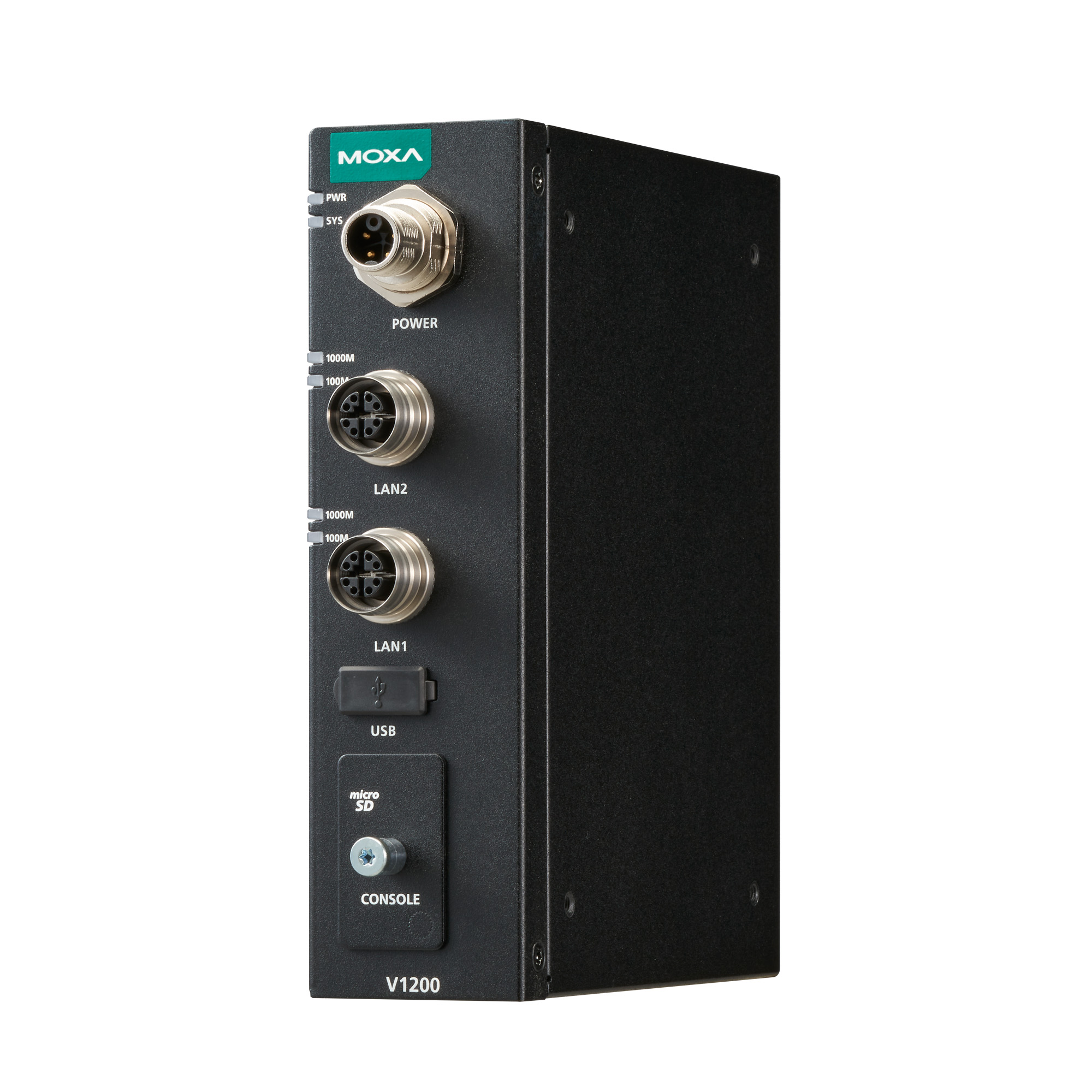

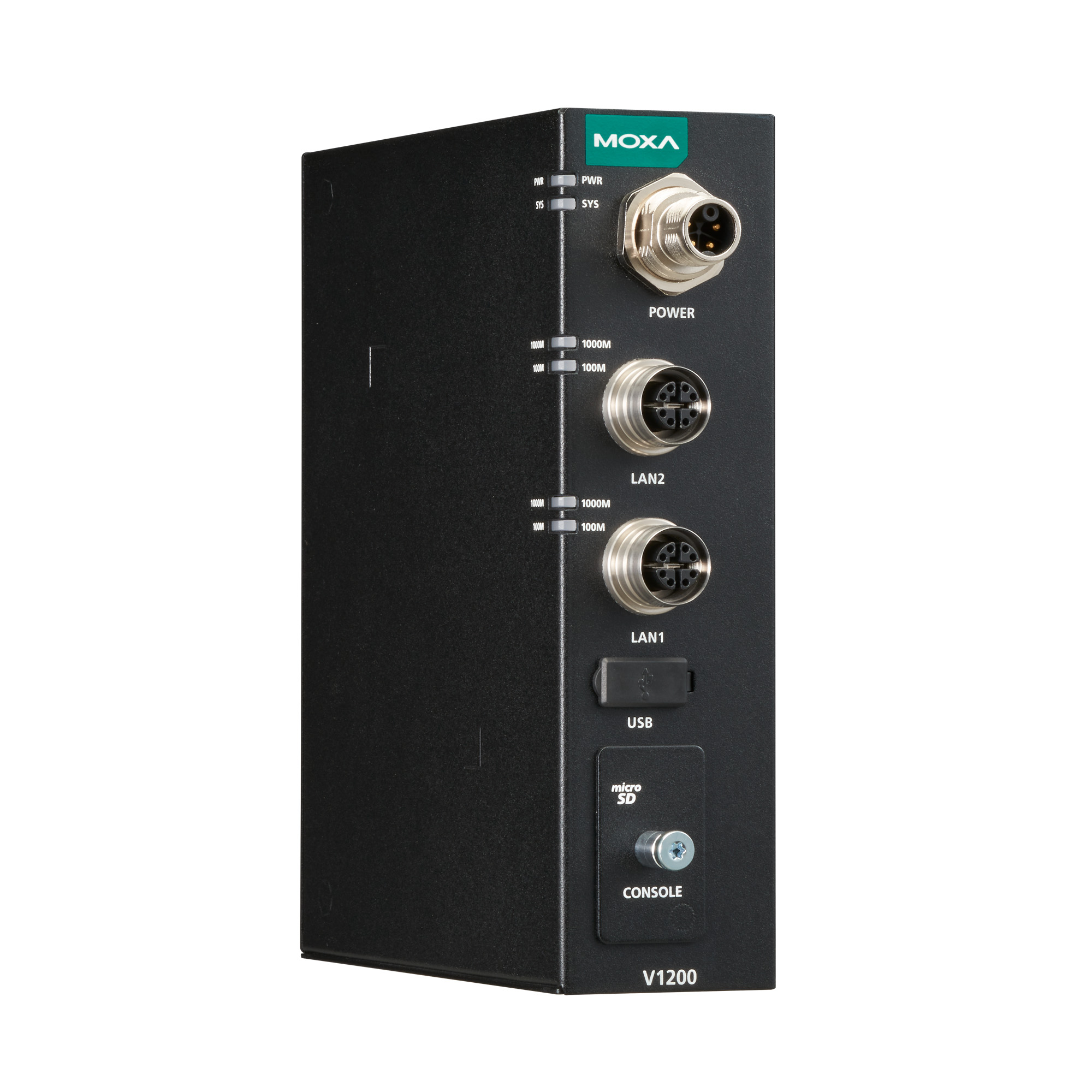

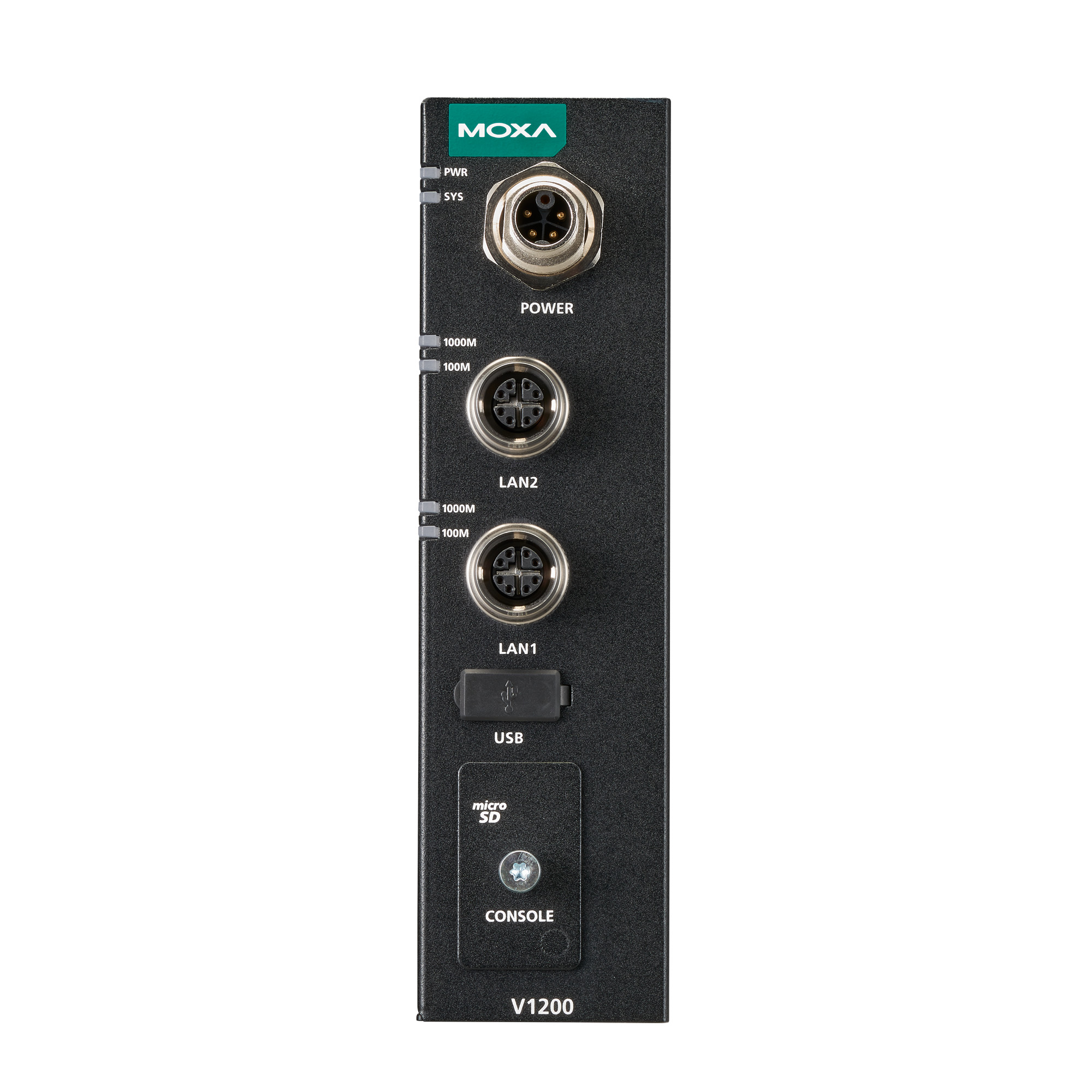

V1202-CT-T Model

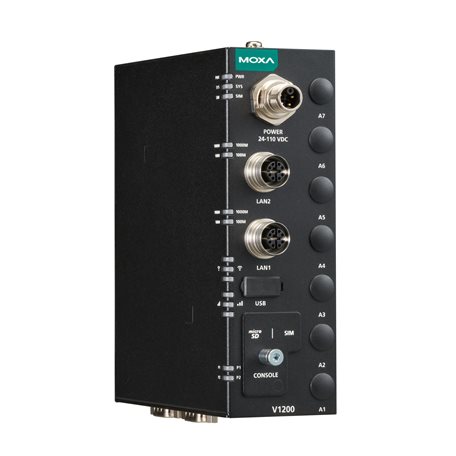

V1222-CT-T Model

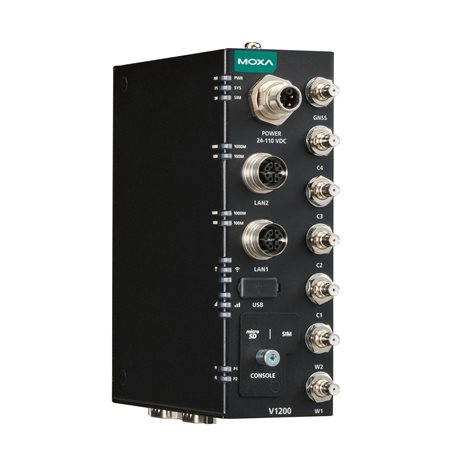

V1222-W-CT-T Model

  • CPU

    Arm Cortex-A53 quad-core 1.6 GHz

  • DRAM

    4 GB LPDDR4

  • Supported OS

    Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL
    See www.moxa.com/MIL

  • Storage Pre-installed

    16 GB eMMC

  • Expansion Slots

    microSD socket x 1

  • Ethernet Ports

    Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2

  • Serial Ports

    V1222-CT-T, V1222-W-CT-T:
    RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

  • USB 2.0

    USB 2.0 hosts x 1, type-A connectors

  • Wi-Fi Antenna Connector

    V1222-CT-T, V1222-W-CT-T: QMA x 2

  • Cellular Antenna Connector

    V1222-CT-T, V1222-W-CT-T: QMA x 4

  • GPS Antenna Connector

    V1222-CT-T, V1222-W-CT-T: QMA x 1

  • Console Port

    3-pin header output (115200, n, 8, 1)

  • Expansion Slots

    M.2 E-key slot x1 (for Wi-Fi 6)
    M.2 B-key slot x1 (for 5G)
    mPCIe slot x1 (for LTE)

    Note: 5G and LTE cannot be operated at the same time.

  • SIM Format

    V1222-CT-T, V1222-W-CT-T: Nano

  • Number of SIMs

    V1222-CT-T: 2 for 5G or 2 for LTE
    V1222-W-CT-T: 2 for 5G

  • Buttons

    Reset button

  • TPM

    TPM v2.0

  • No. of Ports

    V1222-CT-T, V1222-W-CT-T: 2

  • Baudrate

    50 bps to 921.60 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    RTS/CTS, XON/XOFF
    ADDC (automatic data direction control) for RS-485
    RTS Toggle (RS-232 only)

  • Isolation

    N/A

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • 5G NR Bands

    5G NSA and SA bands:
    n1 (2100 MHz), n2 (1900 MHz), n3 (1800 MHz), n5 (850 MHz), n7 (2600 MHz), n8 (900 MHz), n20 (800 MHz), n25 (1900 MHz), n28 (700 MHz), n30 (2300 MHz), n38 (2600 MHz), n41 (2500 MHz), n48 (3600 MHz), n66 (1700 MHz), n71 (600 MHz), n75 (1500 MHz), n77 (3700 MHz), n78 (3500 MHz), n79 (4500 MHz)

  • LTE Bands

    B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz), B5 (850 MHz), B7 (2600 MHz), B8 (900 MHz), B12 (700 MHz), B13 (700 MHz), B14 (700 MHz), B17 (700 MHz), B18 (800 MHz), B19 (800 MHz), B20 (800 MHz), B25 (1900 MHz), B26 (850 MHz), B28 (700 MHz), B29 (700 MHz), B30 (2300 MHz), B32 (1500 MHz), B34 (2000 MHz), B38 (2600 MHz), B39 (1900 MHz), B40 (2300 MHz), B41 (2500 MHz), B42 (3500 MHz), B43 (3600 MHz), B46 (5200 MHz), B48 (3600 MHz), B66 (1700 MHz), B71 (600 MHz)

  • UMTS/HSPA Bands

    B1 (2100 MHz)
    B2 (1900 MHz)
    B4 (1700 MHz)
    B5 (850 MHz)
    B6 (850 MHz)
    B8 (900 MHz)
    B19 (800 MHz)

  • Frequency Range

    Wide-band GNSS: 1559 to 1606 MHz (recommended)
    GPS: BW NB GPS 2.046 MHz (centered at 1575.42 MHz)
    GLONASS: BW 8.3 MHz approx. (1597.05 to 1606 MHz)
    BeiDou: 4.092 MHz BW (1559.05 to 1563.14 MHz)
    Galileo: 4.092 MHz BW (centered at 1575.42 MHz)

  • Antenna Types Supported

    Active antenna (default)
    Passive antenna

  • Time to First Fix (TTFF)

    Hot start: 1 s
    Warm start: 27 s
    Cold start: 28 s

  • Sensitivity

    Cold starts: -146 dBm
    Tracking: -161 dBm
    Acquisition: -148 dBm

  • Update Rate

    Minimum 1 Hz

  • WLAN Standards

    802.11a/b/g/n/ac/ax

  • Frequency Band

    2.4 GHz / 6 GHz
    2.4 GHz / 5 GHz

  • System

    Power x 1
    System x 1
    SIM card indicator x 1

  • LAN

    2 ports, 1 per port (10/100/1000 Mbps)

  • Serial

    V1222-CT-T, V1222-W-CT-T:
    1 LED per port for 2 serial ports

  • Wireless Signal Strength

    Cellular x 3
    Wi-Fi x 3

  • No. of Power Inputs

    1

  • Input Voltage

    24 to 110 VDC

  • Input Current

    V1202-CT-T: 0.4 A @ 24 VDC, 0.1A @ 110 VDC
    V1222-W-CT-T: 0.48 A @ 24 VDC, 0.105A @ 110 VDC

  • Power Consumption

    V1202-CT-T: 7.4 W at 95% CPU loading
    V1222-W-CT-T: 13 W (with 5G & Wi-Fi) at 95% CPU loading

  • Power Connector

    M12 K-code power connector

  • Reverse Polarity Protection

    Supported

  • Automatic Reboot Trigger

    External RTC (real-time clock)

  • Alert Tools

    External WDT (watchdog timer)

  • Housing

    Metal
    SECC

  • IP Rating

    IP40

  • Dimensions

    V1202-CT-T: 150 x 120 x 41 mm
    V1222-CT-T / V1222-W-CT-T:
    150 x 120 x 50 mm

  • Weight

    V1202-CT-T: 665g (without mount ears)
    V1222-W-CT-T : 1000g (without mount ears)

  • Installation

    Wall mounting (standard)
    Desk mounting (with optional kit)
    DIN-rail mounting (with optional kit)

  • Operating Temperature

    With Cellular and Wi-Fi: -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: line-to-line 2 kV, Signal: line-to-ground 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz; Signal: 10 V
    IEC 61000-4-8 PFMF

  • Cellular Standards

    EN 301 908-1 (WCDMA/LTE)
    EN 301 489-1/-19 (GPS)
    EN 301 489-1/-52 (WCDMA/LTE)
    EN 303 413 (GPS)

  • WLAN Standards

    EN 303 687 (6 GHz)
    EN 301 893 (5 GHz)
    EN 301 489-1-17
    EN 300 328 (2.4 GHz)

  • Radio Frequency

    FCC
    RCM
    CE (RED)
    UKCA
    EN 62311

  • International Approval

    FCC
    CE
    UKCA
    RCM (V1202-CT-T and V1222-CT-T)
    BSMI (V1222-CT-T)

  • Safety

    IEC 62368-1
    UL 62368-1

  • Railway Fire Protection

    EN 45545-2
    NFPA130

  • Railway

    EN 50155: 2021
    EN 50121-4

  • Shock

    IEC 60068-2-27
    IEC 61373
    EN 50155

  • Vibration

    IEC 60068-2-64
    IEC 61373
    EN 50155

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    V1202-CT-T: 2,755,789 hrs
    V1222-CT-T: 1,430,568 hrs
    V1222-W-CT-T: 1,324,329 hrs

  • Standards

    Telcordia Standard SR332 Issue 4

Software, Firmware, and Drivers

FILTER

All Firmware
Name Type Checksum Version Operating System Release Date
OS Image for V1200 Series
296.4 MB 		Firmware
SHA-512
v1.0
  • Moxa Industrial Linux 3 (Debian 11)
 Feb 24, 2025 Feb 24, 2025 Release notes

Support Documents

FILTER

All Datasheet Declaration Manual QIG
Name Type Version Release Date
Datasheet for V1200 Series
2.1 MB 		Datasheet v1.2 Apr 21, 2025 Apr 21, 2025
Manual for V1200 Series (hardware)
7.3 MB 		Manual v1.0 Feb 14, 2025 Feb 14, 2025
QIG for V1200 Series
5.0 MB 		QIG v1.0 Feb 14, 2025 Feb 14, 2025
Moxa Industrial Linux 3.x (Debian 11) Arm-based Computers Manual (with Security Hardening Guide)
4.5 MB 		Manual v2.1 Feb 12, 2025 Feb 12, 2025
Declaration of Conformity for V1200 Series
314.7 KB 		Declaration v1.0 Feb 11, 2025 Feb 11, 2025
