MOXA

Arm-Based Computers

Moxa's Arm-based compact fanless industrial-grade computers are wireless-ready and come with comprehensive security features. They are built for space-critical applications. The computers are specifically designed for long-term operations and come with both a 5-year hardware warranty and 10-year support for Moxa Industrial Linux, making them an ideal choice for remote monitoring and data-acquisition applications.



For more information, visit our Arm Linux IIoT gateway solution portal site.

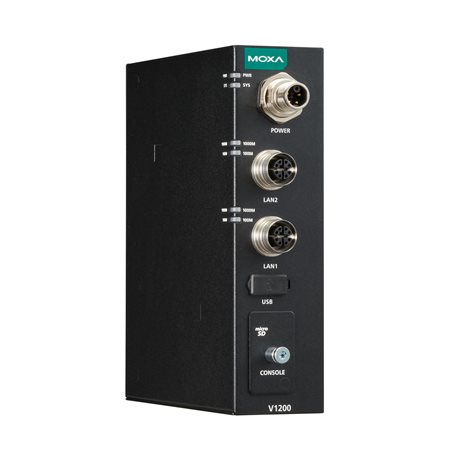

V1202-CT-T
V1200 Series

Arm-based compact rail computer with 2 GbE ports, 1 USB port, 1 microSD slot, 24 to 110 VDC, -40 to 70°C operating temperature, conformal coating

Computer

  • CPU

    • Arm Cortex-A53 quad-core 1.6 GHz

  • DRAM

    • 4 GB LPDDR4

  • Supported OS

    • Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL
      See www.moxa.com/MIL

  • Storage Pre-installed

    • 16 GB eMMC

  • Expansion Slots

    • microSD socket x 1
Computer Interface

  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2

  • Serial Ports

    • V1222-CT-T, V1222-W-CT-T:
      RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

  • USB 2.0

    • USB 2.0 hosts x 1, type-A connectors

  • Wi-Fi Antenna Connector

    • V1222-CT-T, V1222-W-CT-T: QMA x 2

  • Cellular Antenna Connector

    • V1222-CT-T, V1222-W-CT-T: QMA x 4

  • GPS Antenna Connector

    • V1222-CT-T, V1222-W-CT-T: QMA x 1

  • Console Port

    • 3-pin header output (115200, n, 8, 1)

  • Expansion Slots

    • V1222-CT-T models:
      M.2 E-key slot x1 (for Wi-Fi 6)
      M.2 B-key slot x1 (for 5G)
      mPCIe slot x1 (for LTE)

      Note: 5G and LTE cannot be operated at the same time.

  • SIM Format

    • V1222-CT-T, V1222-W-CT-T: Nano

  • Number of SIMs

    • V1222-CT-T: 2 for 5G or 2 for LTE
      V1222-W-CT-T: 2 for 5G

  • Buttons

    • Reset button

  • TPM

    • TPM v2.0
Serial Interface

  • No. of Ports

    • V1222-CT-T, V1222-W-CT-T: 2

  • Baudrate

    • 50 bps to 921.60 kbps

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • RTS/CTS, XON/XOFF
      ADDC (automatic data direction control) for RS-485
      RTS Toggle (RS-232 only)

  • Isolation

    • N/A
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Cellular Interface

  • 5G NR Bands

    • 5G NSA and SA bands:
      n1 (2100 MHz), n2 (1900 MHz), n3 (1800 MHz), n5 (850 MHz), n7 (2600 MHz), n8 (900 MHz), n20 (800 MHz), n25 (1900 MHz), n28 (700 MHz), n30 (2300 MHz), n38 (2600 MHz), n41 (2500 MHz), n48 (3600 MHz), n66 (1700 MHz), n71 (600 MHz), n75 (1500 MHz), n77 (3700 MHz), n78 (3500 MHz), n79 (4500 MHz)

  • LTE Bands

    • B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz), B5 (850 MHz), B7 (2600 MHz), B8 (900 MHz), B12 (700 MHz), B13 (700 MHz), B14 (700 MHz), B17 (700 MHz), B18 (800 MHz), B19 (800 MHz), B20 (800 MHz), B25 (1900 MHz), B26 (850 MHz), B28 (700 MHz), B29 (700 MHz), B30 (2300 MHz), B32 (1500 MHz), B34 (2000 MHz), B38 (2600 MHz), B39 (1900 MHz), B40 (2300 MHz), B41 (2500 MHz), B42 (3500 MHz), B43 (3600 MHz), B46 (5200 MHz), B48 (3600 MHz), B66 (1700 MHz), B71 (600 MHz)

  • UMTS/HSPA Bands

    • B1 (2100 MHz)
      B2 (1900 MHz)
      B4 (1700 MHz)
      B5 (850 MHz)
      B6 (850 MHz)
      B8 (900 MHz)
      B19 (800 MHz)
GPS Interface

  • Frequency Range

    • Wide-band GNSS: 1559 to 1606 MHz (recommended)
      GPS: BW NB GPS 2.046 MHz (centered at 1575.42 MHz)
      GLONASS: BW 8.3 MHz approx. (1597.05 to 1606 MHz)
      BeiDou: 4.092 MHz BW (1559.05 to 1563.14 MHz)
      Galileo: 4.092 MHz BW (centered at 1575.42 MHz)

  • Antenna Types Supported

    • Active antenna (default)
      Passive antenna

  • Time to First Fix (TTFF)

    • Hot start: 1 s
      Warm start: 27 s
      Cold start: 28 s

  • Sensitivity

    • Cold starts: -146 dBm
      Tracking: -161 dBm
      Acquisition: -148 dBm

  • Update Rate

    • Minimum 1 Hz
WLAN Interface

  • WLAN Standards

    • 802.11a/b/g/n/ac/ax

  • Frequency Band

    • 2.4 GHz / 6 GHz
      2.4 GHz / 5 GHz
LED Indicators

  • System

    • Power x 1
      System x 1
      SIM card indicator x 1

  • LAN

    • 2 ports, 1 per port (10/100/1000 Mbps)

  • Serial

    • V1222-CT-T, V1222-W-CT-T:
      1 LED per port for 2 serial ports

  • Wireless Signal Strength

    • Cellular x 3
      Wi-Fi x 3
Power Parameters

  • No. of Power Inputs

    • Redundant dual inputs

  • Input Voltage

    • 24 to 110 VDC

  • Input Current

    • V1202-CT-T: 0.4 A @ 24 VDC, 0.1A @ 110 VDC
      V1222-W-CT-T: 0.48 A @ 24 VDC, 0.105A @ 110 VDC

  • Power Consumption

    • V1202-CT-T: 7.4W @ 95%CPU loading
      V1222-W-CT-T: 12.7W (with 5G & Wi-Fi ) @ 95%CPU loading

  • Power Connector

    • M12 K-code power connector

  • Reverse Polarity Protection

    • Supported
Reliability

  • Automatic Reboot Trigger

    • External RTC (real-time clock)

  • Alert Tools

    • External WDT (watchdog timer)
Physical Characteristics

  • Housing

    • Metal
      SECC

  • IP Rating

    • IP40

  • Dimensions

    • V1202-CT-T: 150 x 120 x 41 mm
      V1222-CT-T / V1222-W-CT-T:
      150 x 120 x 50 mm

  • Weight

    • V1202-CT-T: 665g (without mount ears)
      V1222-W-CT-T : 1000g (without mount ears)

  • Installation

    • Wall mounting (standard)
      Desk mounting (with optional kit)
      DIN-rail mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • With Cellular and Wi-Fi: -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: line-to-line 2 kV, Signal: line-to-ground 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz; Signal: 10 V
      IEC 61000-4-8 PFMF

  • Cellular Standards

    • EN 301 908-1 (WCDMA/LTE)
      EN 301 489-1/-19 (GPS)
      EN 301 489-1/-52 (WCDMA/LTE)
      EN 303 413 (GPS)

  • WLAN Standards

    • EN 303 687 (6 GHz)
      EN 301 893 (5 GHz)
      EN 301 489-1-17
      EN 300 328 (2.4 GHz)

  • Radio Frequency

    • FCC
      RCM
      CE (RED)
      UKCA
      EN 62311

  • International Approval

    • FCC
      CE
      UKCA
      RCM (V1202-CT-T and V1222-CT-T)
      BSMI (V1222-CT-T)

  • Safety

    • IEC 62368-1
      UL 62368-1

  • Railway Fire Protection

    • EN 45545-2

  • Railway

    • EN 50155: 2021
      EN 50121-4

  • Shock

    • IEC 60068-2-27
      IEC 61373
      EN 50155

  • Vibration

    • IEC 60068-2-64
      IEC 61373
      EN 50155

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • V1202-CT-T: 2,755,789 hrs
      V1222-CT-T: 1,430,568 hrs
      V1222-W-CT-T: 1,324,329 hrs

  • Standards

    • Telcordia Standard SR332 Issue 4
Warranty
