CANbus Serial Boards

Moxa's CANbus serial boards are a result of more than 30 years of fieldbus interface board experience. These serial boards are rugged, high-quality CAN interface modules with features that include ESD surge protection and long-term driver support.

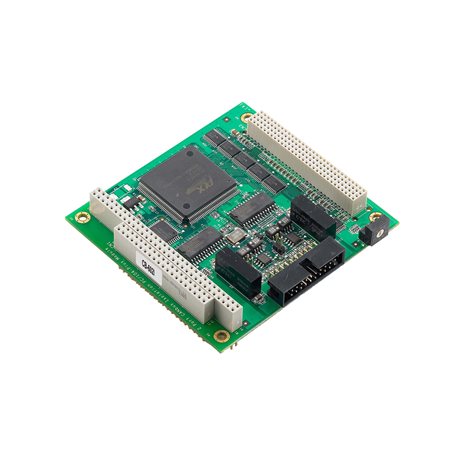

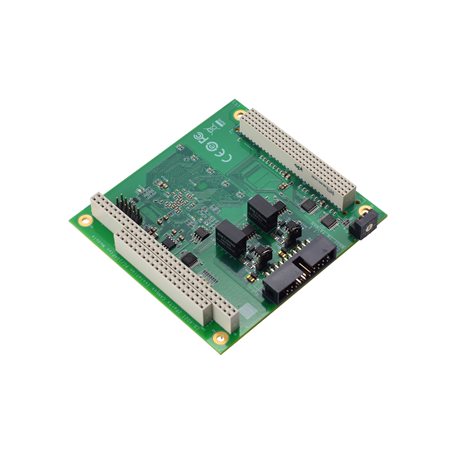

CB-602I w/o Cable
CB-602I Series

2-port CAN bus PC/104-Plus module, with isolation, 0 to 55°C operating temperature

Serial Interface
  • Isolation

    • 2 kV
  • Max. No. of Boards per PC

    • 8
CAN Interface
  • Baudrate

    • 10/20/50/125/250/500/800/1000 kbps, user-defined
  • Connector

    • 20-pin box header
  • No. of Ports

    • 2
Environmental Limits
  • Operating Temperature

    • 0 to 55°C (32 to 131°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class B
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 248,563 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
