NAT-102 Series

2-port industrial Network Address Translation (NAT) devices

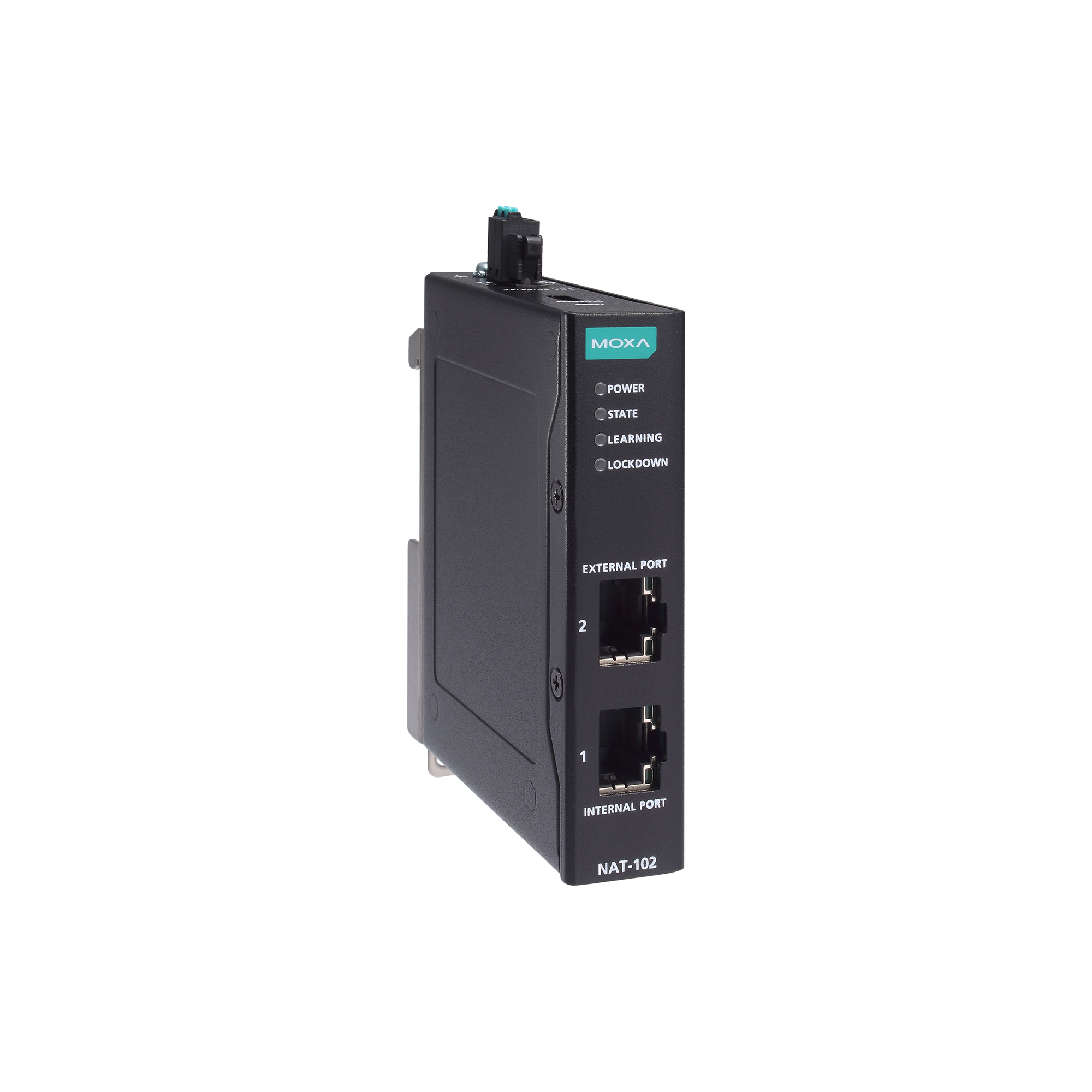

moxa-nat-102-series-image-(1).jpg | Moxa

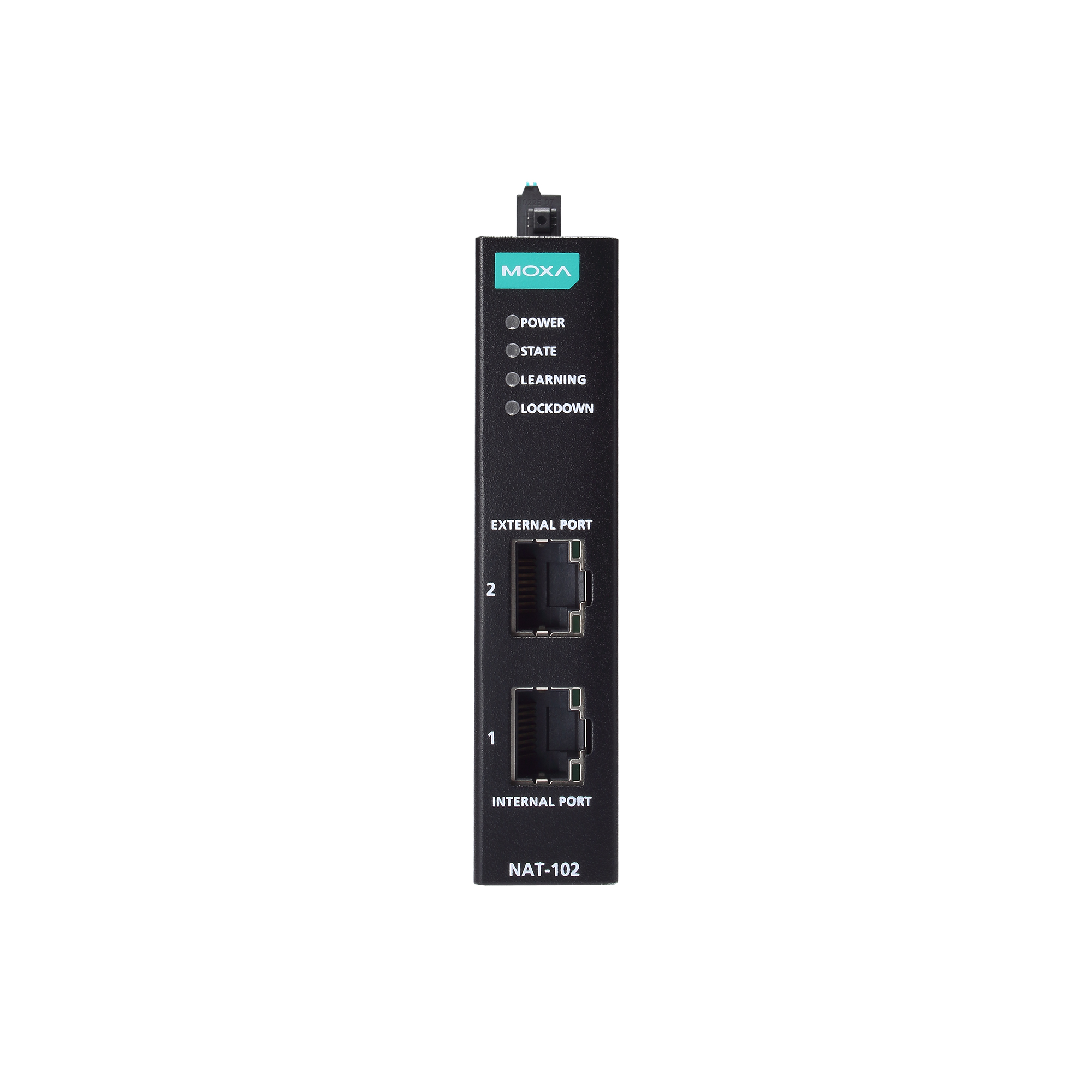

moxa-nat-102-series-image-1-(1).jpg | Moxa

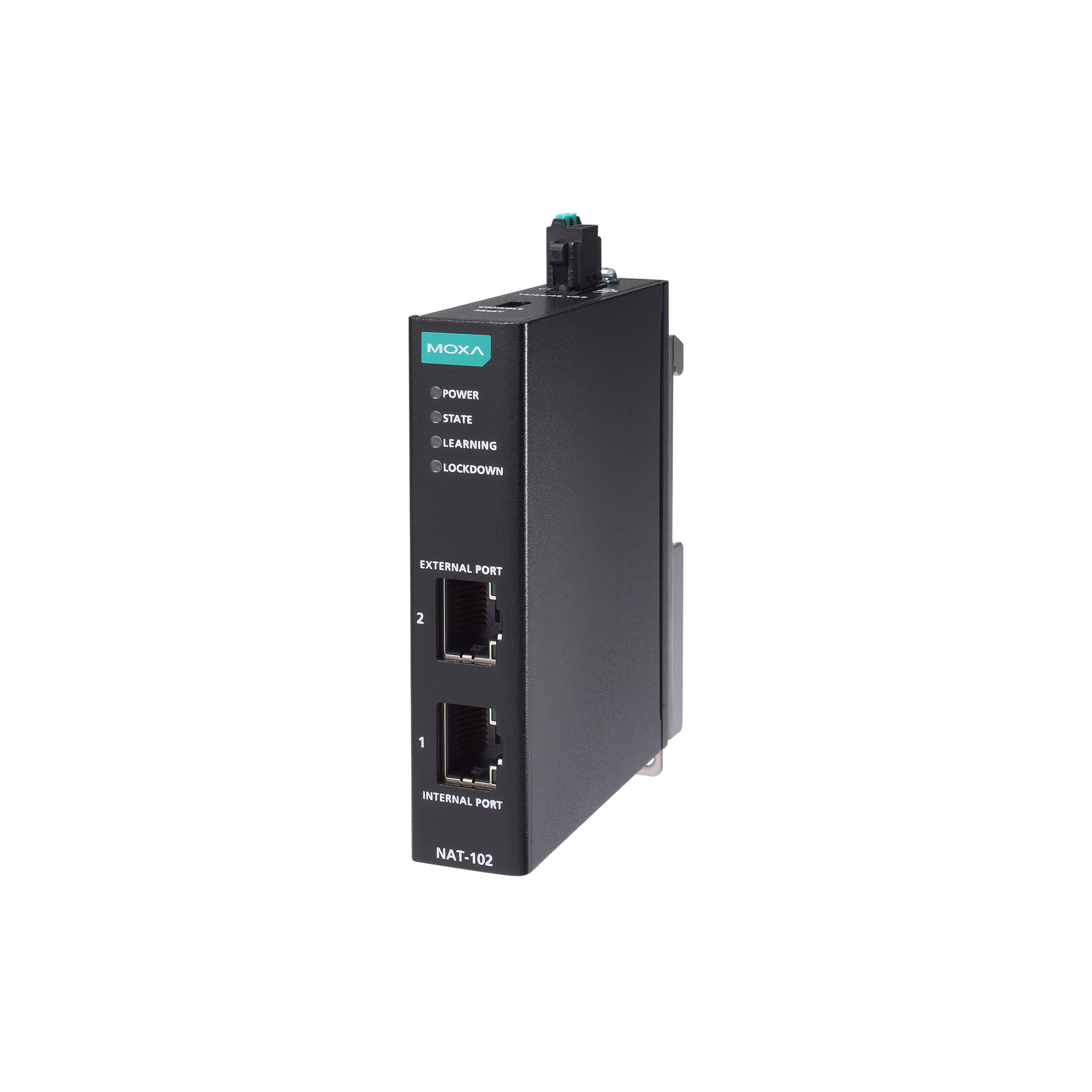

moxa-nat-102-series-image-2-(1).jpg | Moxa

Features and Benefits

  • User-friendly NAT functionality simplifies network integration
  • Hands-free network access control through automatic whitelisting of locally connected devices
  • Ultra-compact size and robust industrial design suitable for cabinet installation
  • Integrated security features to ensure device and network safety
  • Supports secure boot for checking system integrity
  • -40 to 75°C operating temperature range (-T model)

Certifications

  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-atex-certification-logo-image.png | Moxa
  • moxa-nema-ts2-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa

Contact Sales

Introduction

The NAT-102 Series is an industrial NAT device that is designed to simplify the IP configuration of machines in existing network infrastructure in factory automation environments. The NAT-102 Series provides complete NAT functionality to adapt your machines to specific network scenarios without complicated, costly, and time-consuming configurations. These devices also protect the internal network from unauthorized access by outside hosts.

Quick and User-friendly Access Control

The NAT-102 Series’ Auto Learning Lock feature automatically learns the IP and MAC address of locally connected devices and binds them to the access list. This feature not only helps you manage access control but also makes device replacements much more efficient.

Industrial-grade and Ultra-compact Design

The NAT-102 Series’ rugged hardware makes these NAT devices ideal for deployment in harsh industrial environments, featuring wide-temperature models that are built to operate reliably in hazardous conditions and extreme temperatures of -40 up to 75°C. Moreover, the ultra-compact size allows the NAT-102 Series to be easily installed into cabinets.

  • Buttons

    Reset button

  • 10/100BaseT(X) Ports (RJ45 connector)

    2

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)

  • Management

    Web Console (HTTP/HTTPS)
    LLDP
    Telnet
    TFTP
    HTTPS
    SSH

  • Security

    Secure Boot
    Trust access control

  • Time Management

    NTP Server/Client
    SNTP

  • Unicast Routing

    Static Route

  • Routing

    Throughput: 15K packets per second (max. 100 Mbps)

  • Routing Table

    Max. 32 routing rules

  • Concurrent Connections

    Max. 30K

  • Connections Per Second

    Max. 4.5K

  • LED Indicators

    POWER, STATE, LEARNING, LOCKDOWN

  • Filter

    IP address
    MAC address
    Ports

  • Port-based Auto Learning Lock

    MAC address
    IP address

  • Throughput

    Max. 15K packets per second (max. 100 Mbps)

  • Features

    1-to-1
    N-to-1
    Port forwarding
    NAT loopback

  • Throughput

    Max. 15K packets per second (max. 100 Mbps)

  • Event Type

    Policy enforcement

  • Media

    Local storage
    Syslog server

  • Console Port

    RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)

  • Connector

    USB Type-C

  • Connection

    Removable terminal block

  • Operating Voltage

    9.6 to 60 VDC

  • Input Voltage

    12/24/48 VDC

  • Input Current

    0.196 A @ 12 VDC
    0.100 A @ 24 VDC
    0.056 A @ 48 VDC

  • Reverse Polarity Protection

    Supported

  • Housing

    Metal

  • Dimensions

    20 x 90 x 73 mm (0.79 x 3.54 x 2.87 in)

  • Weight

    210 g (0.47 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Operating Temperature

    Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    UL 62368-1

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Hazardous Locations

    ATEX
    Class I Division 2

  • Traffic Control

    NEMA TS2

  • Railway

    EN 50121-4

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-32

  • Vibration

    IEC 60068-2-6

  • Time

    2,135,469 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

All Firmware Software Package
Name Type Checksum Version Operating System Release Date
Software Package for MXview One Series (Linux version)
508.2 MB 		Software Package
SHA-512
v1.5.0
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
 Jan 22, 2025 Jan 22, 2025 Release notes
Software Package for MXview One Series (Windows version)
284.5 MB 		Software Package
SHA-512
v1.5.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
 Jan 22, 2025 Jan 22, 2025 Release notes
MIB files for NAT-102 Series
195.8 KB 		Software Package
SHA-512
v3.15
Jan 09, 2025 Jan 09, 2025 Release notes
Firmware for NAT-102 Series
47.5 MB 		Firmware
SHA-512
v3.15
Jan 09, 2025 Jan 09, 2025 Release notes

Support Documents

FILTER

All Datasheet Declaration Manual QIG
Name Type Version Release Date
FOSS Statement for NAT-102 Series
239.6 KB 		Declaration v3.15 Mar 10, 2025 Mar 10, 2025
CLI Manual for MX-ROS V3
5.5 MB 		Manual v1.5 Jan 14, 2025 Jan 14, 2025
Manual for MX-ROS V3
30.0 MB 		Manual v1.10 Jan 13, 2025 Jan 13, 2025
Declaration of Conformity for NAT-102 Series
303.5 KB 		Declaration v1.0 Nov 13, 2023 Nov 13, 2023
Datasheet for NAT-102 Series
822.5 KB 		Datasheet v1.2 Aug 28, 2023 Aug 28, 2023
QIG for NAT-102 Series
1.3 MB 		QIG v1.1 Aug 28, 2023 Aug 28, 2023
Manual for NAT-102 Series
8.1 MB 		Manual v1.0 Dec 24, 2021 Dec 24, 2021

Related Content

FILTER

All Application Note

Available Models (2)

Show Images
Compare

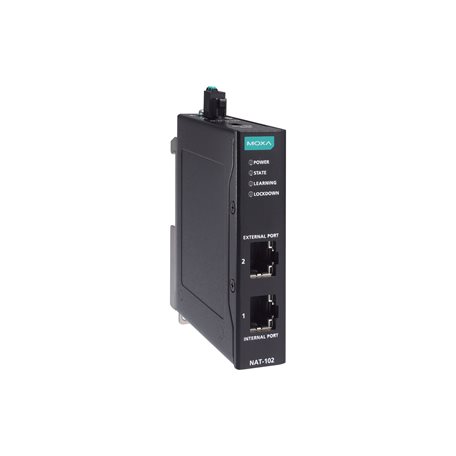

moxa-nat-102-t-image.jpg | MoxaNAT-102-T
Compare
moxa-nat-102-image.jpg | MoxaNAT-102
10/100BaseT(X) Ports (RJ45 Connector)22
NAT✓✓
Operating Temp.-40 to 75°C-10 to 60°C
