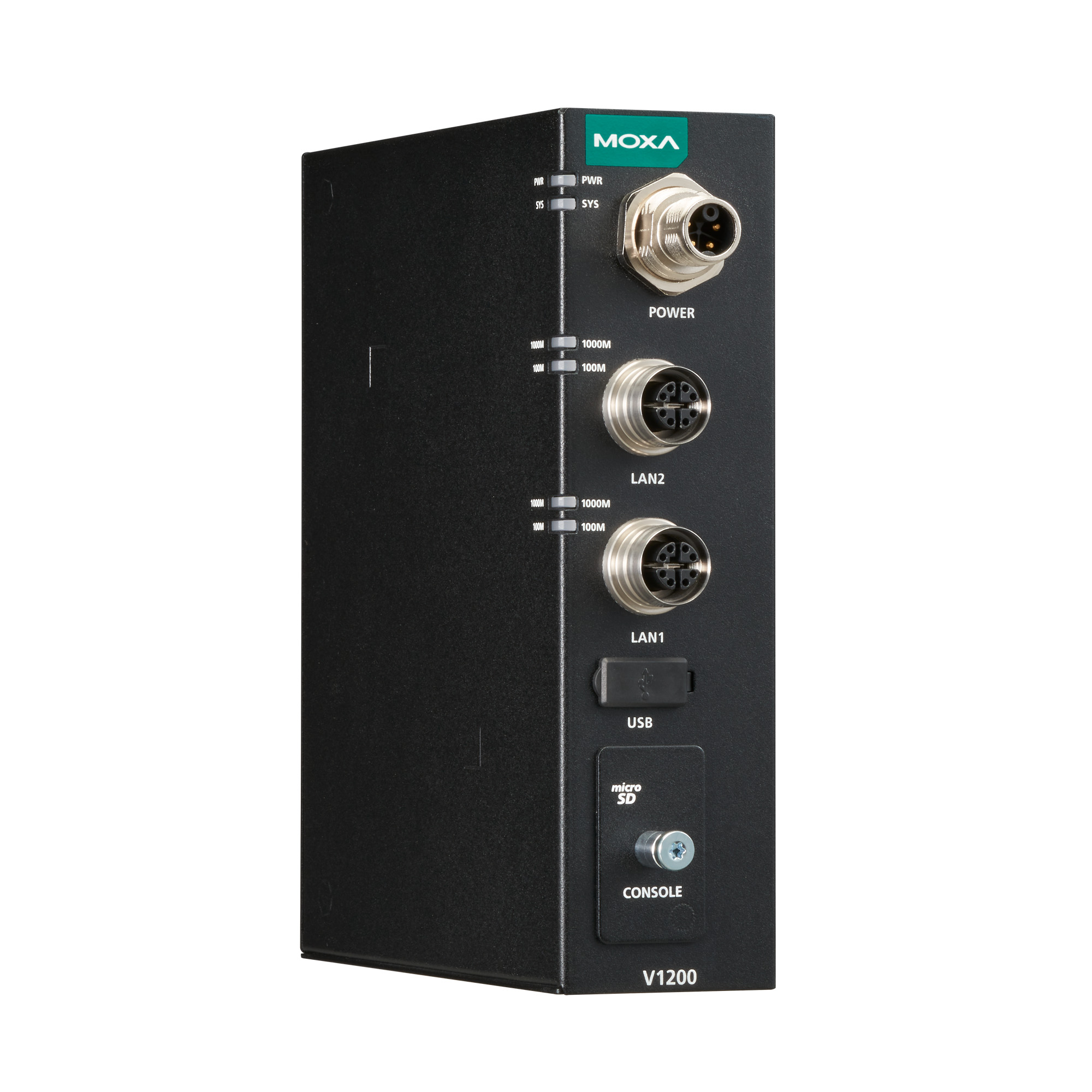

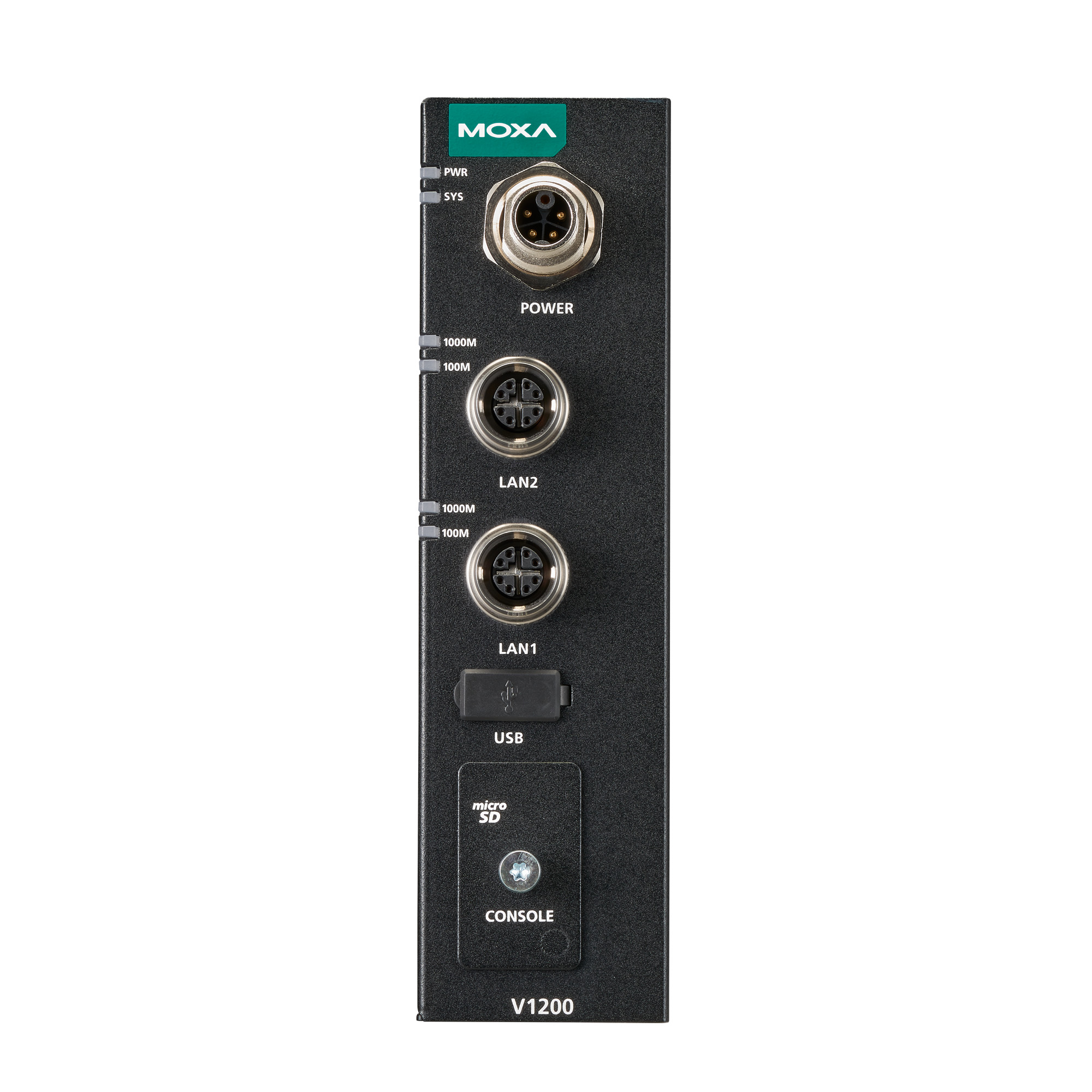

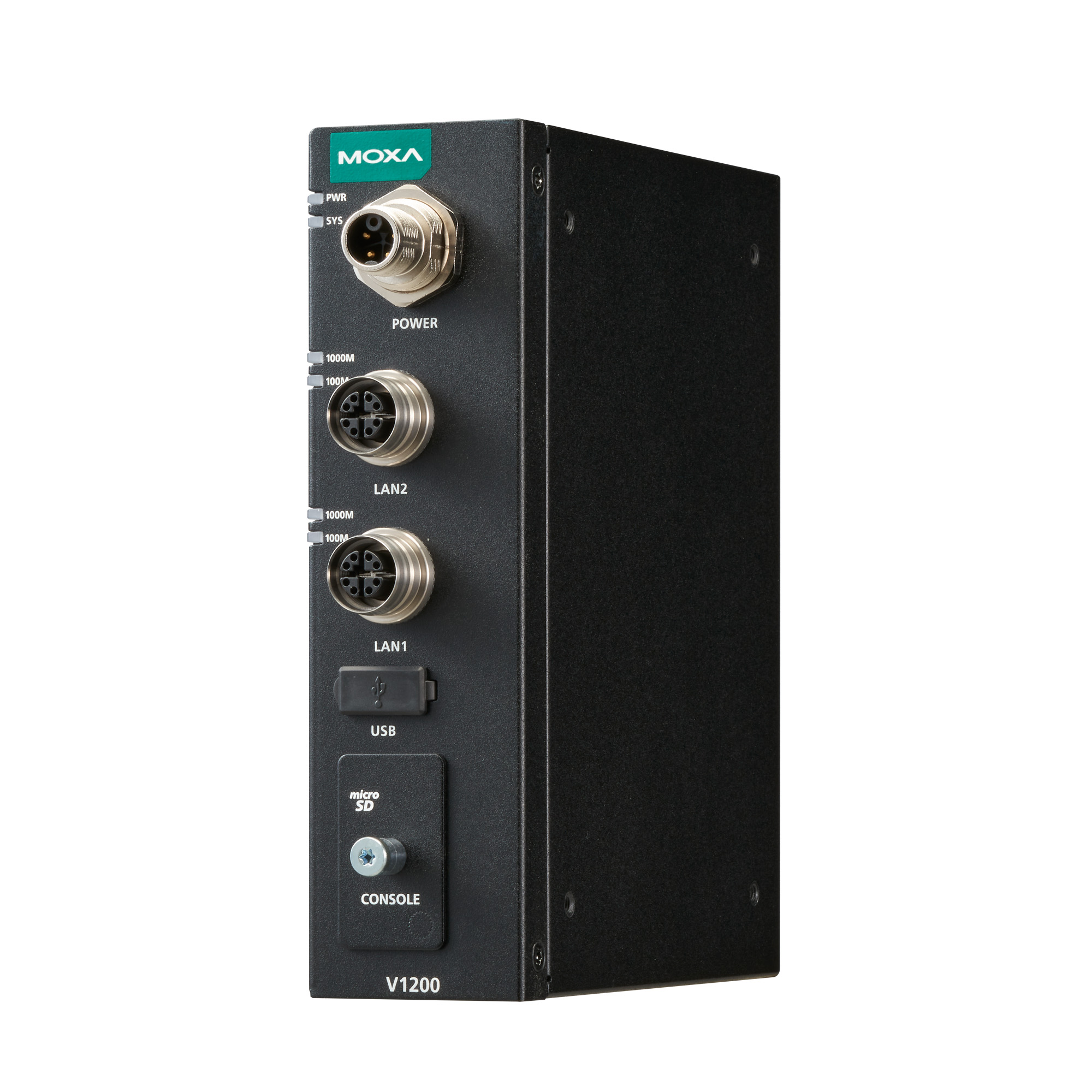

Arm Cortex-A53 quad-core 1.6 GHz

4 GB LPDDR4

Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL
See www.moxa.com/MIL

16 GB eMMC

microSD socket x 1

Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2

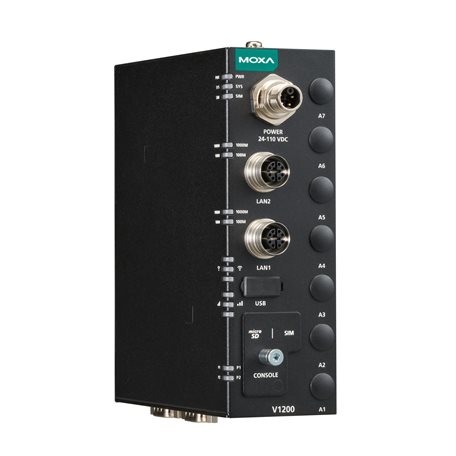

V1222-CT-T, V1222-W-CT-T:
RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

USB 2.0 hosts x 1, type-A connectors

V1222-CT-T, V1222-W-CT-T: QMA x 2

V1222-CT-T, V1222-W-CT-T: QMA x 4

V1222-CT-T, V1222-W-CT-T: QMA x 1

RS-232 (TxD, RxD, GND), 3-pin header output (115200, n, 8, 1)

M.2 E-key slot x1 (for Wi-Fi 6)
M.2 B-key slot x1 (for 5G)
mPCIe slot x1 (for LTE)

Note: 5G and LTE cannot be operated at the same time.

V1222-CT-T, V1222-W-CT-T: Nano

V1222-CT-T: 2 for 5G or 2 for LTE
V1222-W-CT-T: 2 for 5G

Reset button

TPM v2.0

V1222-CT-T, V1222-W-CT-T: 2

50 bps to 115.20 kbps

5, 6, 7, 8

1, 1.5, 2

None, Even, Odd, Space, Mark

RTS/CTS, XON/XOFF
ADDC (automatic data direction control) for RS-485
RTS Toggle (RS-232 only)

N/A

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Tx+, Tx-, Rx+, Rx-, GND

Data+, Data-, GND

Tx+, Tx-, Rx+, Rx-, GND

Band 1 (2100 MHz), Band 2 (1900 MHz), Band 3 (1800 MHz), Band 4 (1700 MHz), Band 5 (850 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 9 (1800 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 18 (850 MHz), Band 19 (850 MHz), Band 20 (800 MHz), Band 25 (1900 MHz), Band 26 (850 MHz), Band 28 (700 MHz)

NSA and SA bands:
n1 (2100 MHz), n2 (1900 MHz), n3 (1800 MHz), n5 (850 MHz), n7 (2600 MHz), n8 (900 MHz), n12 (700 MHz), n13 (700 MHz), n14 (700 MHz), n18 (800 MHz), n20 (800 MHz), n25 (1900 MHz), n26 (850 MHz), n28 (700 MHz), n29 (700 MHz), n30 (2300 MHz), n38 (2600 MHz), n40 (2300 MHz), n41 (2500 MHz), n48 (3600 MHz), n66 (1700 MHz), n71 (600 MHz), n75 (1500 MHz), n77 (3700 MHz), n78 (3500 MHz), n79 (4500 MHz)

Band 1 (2100 MHz), Band 2 (1900 MHz), Band 4 (1700 MHz), Band 5 (850 MHz), Band 6 (850 MHz), Band 8 (900 MHz), Band 19 (850 MHz)

Band 1 (2100 MHz), Band 2 (1900 MHz), Band 4 (1700 MHz), Band 5 (850 MHz), Band 6 (850 MHz), Band 8 (900 MHz), Band 19 (850 MHz)

B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz), B5 (850 MHz), B7 (2600 MHz), B8 (900 MHz), B12 (700 MHz), B13 (700 MHz), B14 (700 MHz), B17 (700 MHz), B18
(800 MHz), B19 (800 MHz), B20 (800 MHz), B25 (1900 MHz), B26 (850 MHz), B28 (700 MHz), B29 (700 MHz), B30 (2300 MHz), B32 (1500 MHz), B34 (2000 MHz), B38 (2600 MHz), B39 (1900 MHz), B40 (2300 MHz), B41 (2500 MHz), B42 (3500 MHz), B43 (3600 MHz), B46 (5200 MHz), B48 (3600 MHz), B66 (1700 MHz), B71 (600 MHz)

Band 2 (PCS_1900), Band 3 (DCS_1800), Band 5 (GSM_850), Band 8 (EGSM_900)

5G module: IPEX MHF4 to QMA cables x 5 (4 for data transition, 1 for GNSS)
LTE Module: IPEX MHF to QMA cables x 3 (2 for data transition, 1 for GNSS)

5G module:
Wide-band GNSS: 1559 to 1606 MHz (recommended) GPS: BW NB GPS 2.046 MHz
(centered at 1575.42 MHz)
GLONASS:
BW 8.3 MHz approx. (1597.05 to 1606 MHz) BeiDou: 4.092 MHz BW (1559.05 to 1563.14 MHz) Galileo: 4.092 MHz BW (centered at 1575.42 MHz)
LTE module:
Wide-band GNSS: 1559 to 1606 MHz (recommended) State-of-the-art GNSS solution with GPS/GLONASS/BeiDou/Galileo/QZSS

5G module:
Active antenna (default)
7.5 dB < Gain < 26 dB for nominal performance
1.5 dB < Gain < 7.5 dB for nominal performance
Configured via AT command
Passive antenna:
1.5 dBi < Gain < 3dBi
LTE module:
Typ. 14 dBi < Gain < 17 dBi (external active antenna with a GNSS pre-filter)

5G module:
Hot start: 1 s
Warm start: 27 s
Cold start: 28 s
Open Sky, mean TTFF
LTE module:
Hot start: 1.1s
Warm start: 22.1s
Cold start: 29.9s
GPS + GLONASS simulator test

5G module:
Cold starts: -146 dBm
Tracking: -161 dBm
Acquisition: -148 dBm
LTE module:
Cold starts: -145 dBm
Tracking: -160 dBm
Acquisition: -147 dBm

Minimum 1 Hz

802.11a/b/g/n/ac/ax

2.4 GHz / 6 GHz
2.4 GHz / 5 GHz

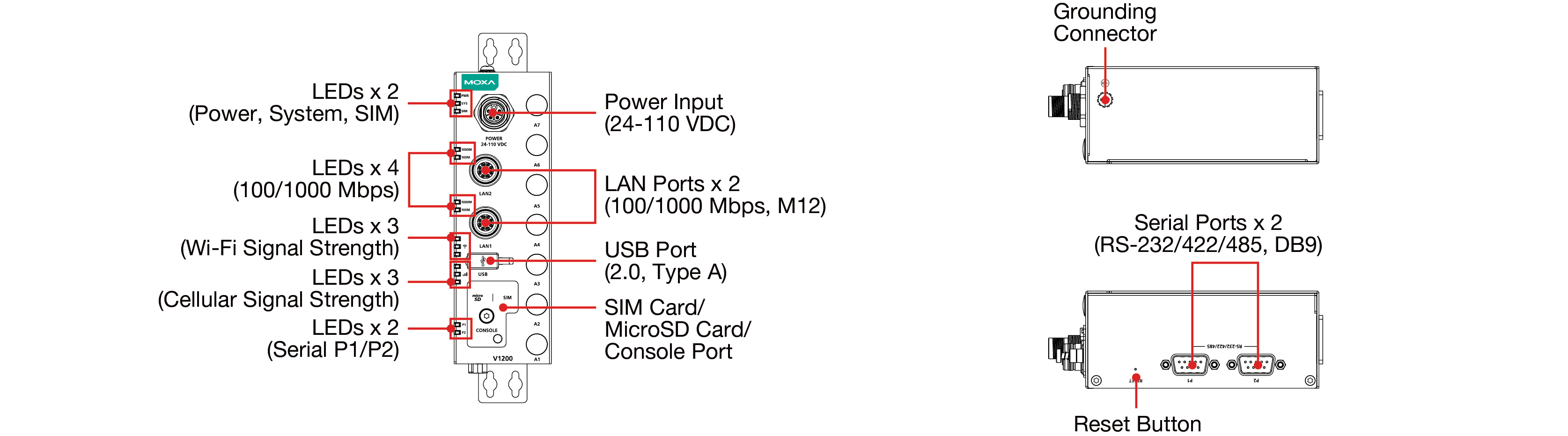

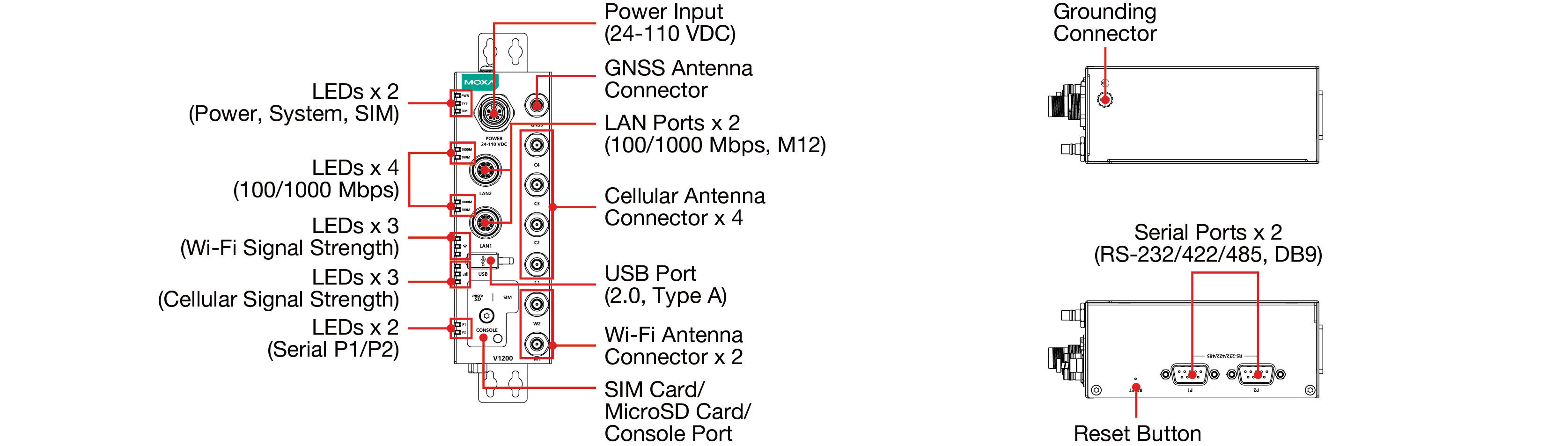

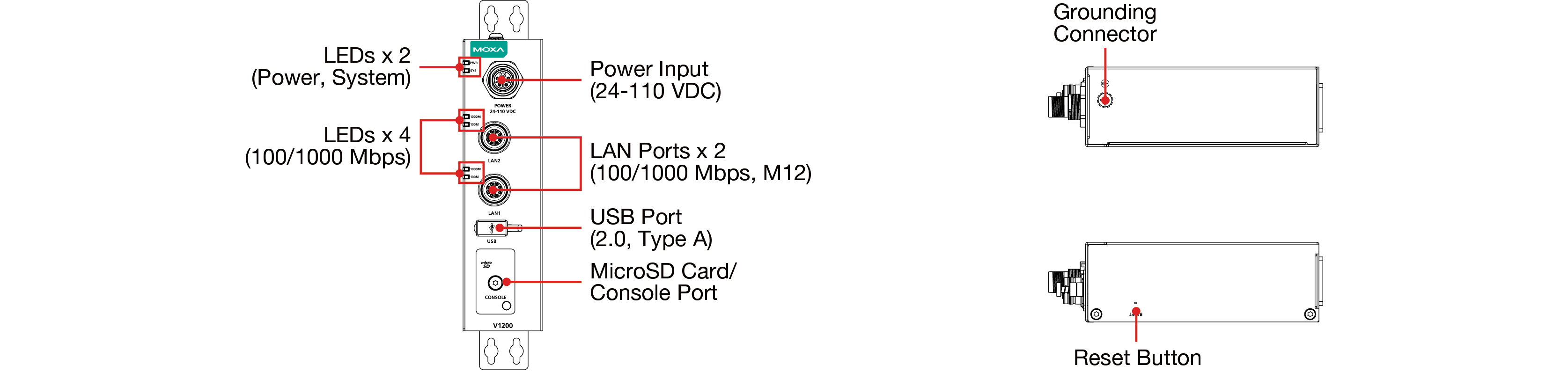

Power x 1
System x 1
SIM card indicator x 1

2 ports, 1 per port (10/100/1000 Mbps)

V1222-CT-T, V1222-W-CT-T:
1 LED per port for 2 serial ports

Cellular x 3
Wi-Fi x 3

1

24 to 110 VDC

V1202-CT-T: 0.4 A @ 24 VDC, 0.1 A @ 110
VDC V1222-CT-T: 0.6 A @ 24 VDC, 0.13 A @ 110 VDC
V1222-W-CT-T: 0.6 A @ 24 VDC, 0.13 A @ 110 VDC

V1202-CT-T: 7.4 W at 95% CPU loading
V1222-W-CT-T: 13.7 W (with 5G & Wi-Fi) at 95% CPU loading

M12 K-code power connector

Supported

External RTC (real-time clock)

External WDT (watchdog timer)

Metal
SECC

IP40

V1202-CT-T:
150 x 120 x 41 mm (5.90 x 4.72 x 1.61 in)
V1222-CT-T / V1222-W-CT-T:
150 x 120 x 50 mm (5.90 x 4.72 x 1.97 in)

Product only (without mounting ears)
V1202-CT-T: 665 g (1.47 lb)
V1222-CT-T : 935 g (2.06 lb)
V1222-W-CT-T : 1,005 g (2.22 lb)

Wall mounting (standard)
Desk mounting (with optional kit)
DIN-rail mounting (with optional kit)

With Cellular and Wi-Fi: -40 to 70°C (-40 to 158°F)

-40 to 85°C (-40 to 185°F)

5 to 95% (non-condensing)

EN 55032/35
EN 61000-6-2/-6-4

CISPR 32, FCC Part 15B Class A

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: line-to-line 2 kV, Signal: line-to-ground 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz; Signal: 10 V
IEC 61000-4-8 PFMF

EN 301 489-1/-17/-19/-52
EN 62311
EN 300 328 (WLAN 2.4G)
EN 301 893 (WLAN 5G)
EN 303 687 (WLAN 6 GHz)
EN 301 908-1
EN 303 413
FCC
UKCA

FCC
CE
UKCA
RCM (V1202-CT-T and V1222-CT-T)

IEC 62368-1
UL 62368-1

EN 45545-2
NFPA130

EN 50155: 2021
EN 50121-4

IEC 60068-2-27
IEC 61373
EN 50155

IEC 60068-2-64
IEC 61373
EN 50155

RoHS, CRoHS, WEEE

V1202-CT-T: 2,755,789 hrs
V1222-CT-T: 1,430,568 hrs
V1222-W-CT-T: 1,324,329 hrs

Telcordia Standard SR332, GB

5 years

See www.moxa.com/tw/warranty
