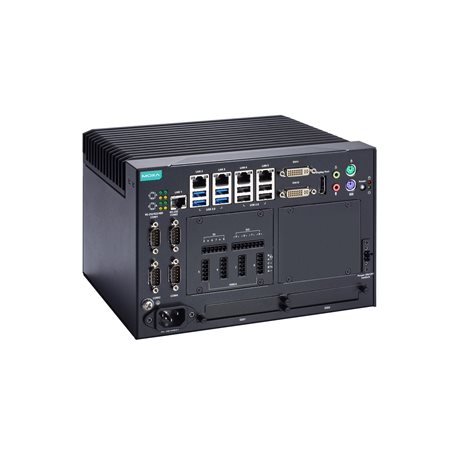

MC-7420-C1-DC
MC-7400 系列

x86 embedded computer with Intel® Celeron® G3902E processor, fanless, 4 serial ports, 4 NMEA 0183 ports, 5 Gigabit Ethernet ports, 4 DIs, 4 DOs, 5 USB 2.0 ports, 4 USB 3.0 ports, DVI-D, DVI-I, DisplayPort, PS/2, Mic-in/Audio-out, 2 SSD Tray and DC power inputs

Computer
  • CPU

    • Intel® Celeron® Processor G3902E (2M Cache, 1.60 GHz)
  • System Chipset

    • Mobile Intel® QM170 Chipset
  • Graphics Controller

    • Intel® HD Graphics 510
  • System Memory Slot

    • SODIMM DDR4 slot x 2
  • Supported OS

    • Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA
      Linux Debian 9
      Note: OS available by CTOS
  • Storage Slot

    • 2.5" HDD/SSD slots x 2
Computer Interface
  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 5
  • Serial Ports

    • RS-232 ports x 2 (DB9 male)
      RS-232/422/485 ports x 2, software selectable (DB9 male)
  • USB 2.0

    • USB 2.0 hosts x 5, type-A connectors
  • USB 3.0

    • USB 3.0 hosts x 4, type-A connectors
  • Audio Input/Output

    • Line in x 1, Line out x 1, 3.5 mm phone jack
  • Digital Input

    • DIs x 4
  • Digital Output

    • DOs x 4
  • NMEA Port

    • NMEA 0183 ports x 4 (terminal block)
  • Video Input

    • DVI-D x 1, 29-pin DVI-D connector (female)
      DVI-I x 1, 29-pin DVI-I connector (male)
  • Video Output

    • DisplayPort x 1
  • PS/2

    • Keyboard PS/2 x 1 + Mouse PS/2 x 1
Relays
  • Connector

    • Screw-fastened Euroblock terminal
  • Contact Current Rating

    • Resistive load: 2 A @ 30 VDC
  • Contact Resistance

    • 50 milli-ohms (max.)
  • Initial Insulation Resistance

    • 1000 mega-ohms (min.) @ 500 VDC
  • Mechanical Endurance

    • 100,000,000 operations
  • Minimum Permitted Load

    • 20 A @ 30 VDC
LED Indicators
  • System

    • Power x 1
      Storage x 1
  • LAN

    • 2 per port (10/100/1000 Mbps)
  • Serial

    • 2 per port (Tx, Rx)
Serial Interface
  • Baudrate

    • 50 bps to 115.2 kbps
  • Connector

    • DB9 male
  • Data Bits

    • 5, 6, 7, 8
  • Flow Control

    • ADDC® (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF
  • Isolation

    • None
  • Parity

    • None, Even, Odd, Space, Mark
  • NMEA Interface

    • NMEA 0183: RS-422
      Baudrate: 4800 bps
      Data Bits: 8
      Handshake: None
      Optical Isolation Protection: 3 kV
      Parity: None
      Stop Bits: 1, 1.5, 2
Power Parameters
  • Power Consumption

    • 100 W
  • Input Voltage

    • 24 VDC
  • Power Connector

    • Terminal block (for DC models)
Reliability
  • Automatic Reboot Trigger

    • Built-in WDT
Physical Characteristics
  • Weight

    • 6000 g (13.23 lb)
  • Dimensions (with ears)

    • 240 x 209 x 160 mm (9.45 x 8.23 x 6.3 in)
  • Housing

    • Metal
Environmental Limits
  • Operating Temperature

    • -25 to 55°C (-13 to 131°F)
  • Storage Temperature (package included)

    • -30 to 60°C (-22 to 140°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Maritime

    • IEC 60945
  • Safety

    • CE, IEC 62368-1, UL 60950-1
  • Radio Frequency

    • FCC
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 22, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Green Product

    • RoHS, CRoHS, WEEE
Warranty
