ioPAC 6500 系列 (65M) I/O 模組

模組化可編程 IIN 控制器的 I/O 模組

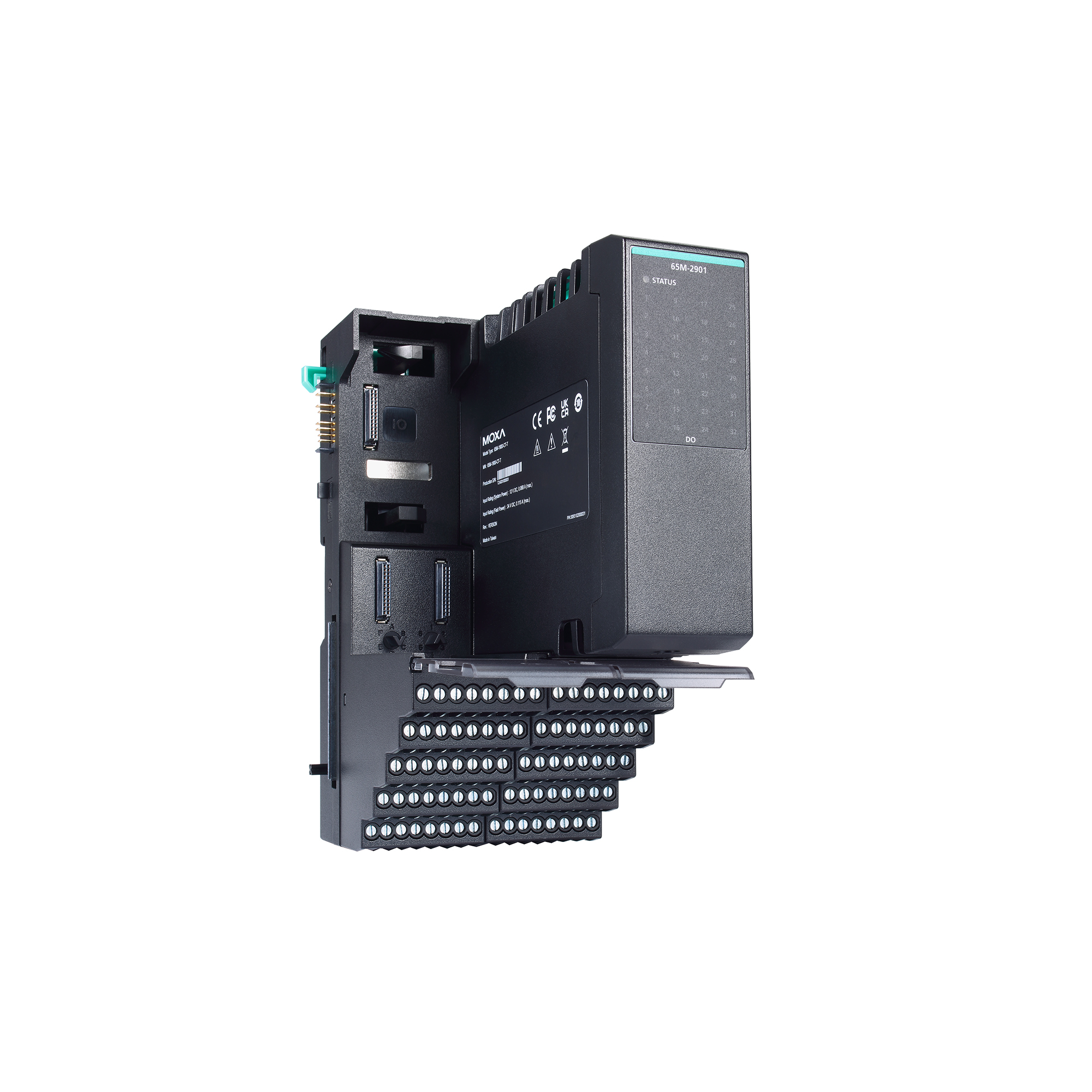

moxa-iopac-6500-series-65m-i-o-modules-image-(1).jpg | Moxa

特色與優點

  • 支援多種 IT/OT 通訊協定,為 SCADA、工廠資訊系統與雲端應用之間建立無縫通訊
  • 免工具硬體安裝與可熱插拔式設計,最大化操作效率
  • 完全模組化設計,將部署彈性提升到最高
  • 透過 Turbo Ring、Turbo Chain,以及 RSTP/STP 協議支援網路備援
  • IINxpress IDE 公用程式結合了 IEC 61131-3 程式編寫、配置與通訊協定服務,可簡化工作流程並輕鬆完成程式編寫
  • 依據 IEC 62443-4-2 SL2 標準開發,可確保為關鍵應用提供安全的基礎

認證

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
即將上市

聯絡銷售顧問

簡介

ioPAC 6500 系列是新一代 Linux 控制器,提供內建 Layer-2 管理型交換器。ioPAC 6500 系列 配備 Arm Cortex-A53 四核 CPU,可提供穩健的效能。

6C 能力

ioPAC 6500 系列為您的專案提供下列能力:

  • 控制:精確控制您的設備

  • 通訊:通訊協定支援連線至其他裝置與系統

  • 運算:運算及資料處理應用

  • 連線:ioPAC 6500 系列支援多種媒體介面組合

  • 雲端:雲端連線與雲端邊緣運算

  • 網路安全:保護裝置與資料的安全功能

完全模組化設計

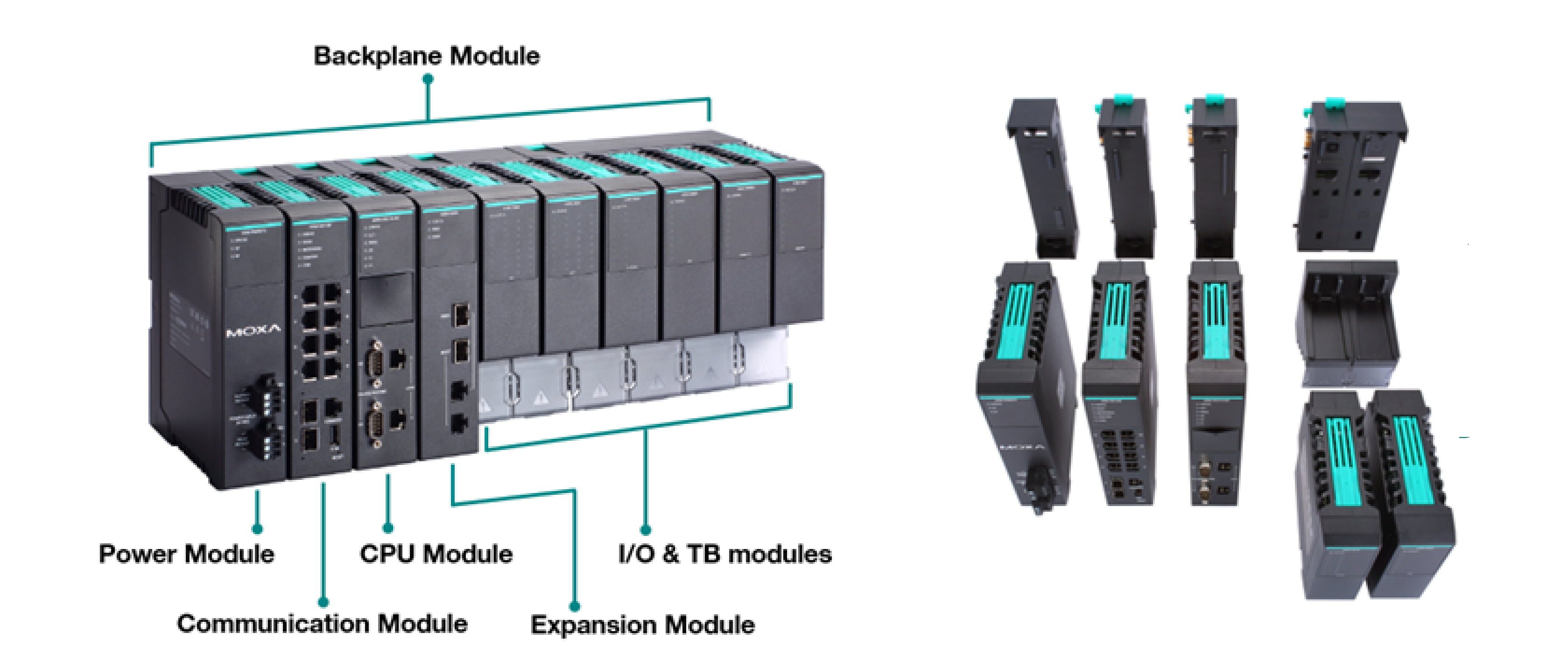

IoPAC 6500 系列提供獨特的樂高式機械設計,可允許進行彈性部署,同時輕鬆完成安裝。此系列可分成以下元件:背板模組、電源模組、通訊模組、CPU 模組、I/O 模組與接線端子模組。

IEC 61131-3 自動化編程

IoPAC 6500 系列具有 IEC 61131-3 自動化編程功能,可進行彈性自動化設計並在語法和語義方面達成一致性,提升系統間的互操作性,藉此降低自動化專案中的開發複雜度。提供五種語言:LD、FBD、SFC、IL 與 ST,允許自動化專業人員選擇最適合其需求的程式語言。

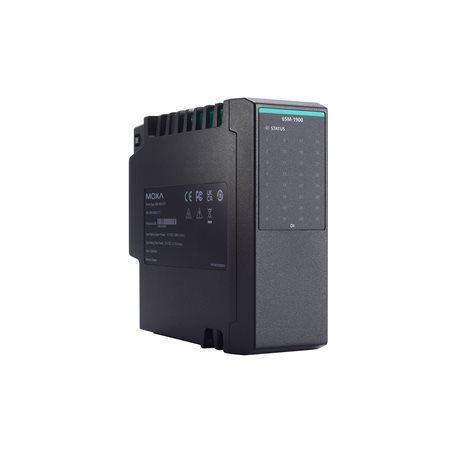

  • Digital Input Channels

    65M-1900-CT-T: 32

  • Digital Output Channels

    65M-2901-CT-T: 32

  • Analog Input Channels

    65M-3600-CT-T: 16 (current)
    65M-3610-CT-T: 16 (voltage)

  • Analog Output Channels

    65M-4820-CT-T: 8

  • Isolation

    65M-3600-CT-T/65M-3610-CT-T/65M-4820-CT-T:
    System: 3k VDC
    Signal: 1k VDC (between group for 1 min)
    All other models:
    System: 3k VDC
    Signal: 3k VDC

  • I/O Type

    Sink
    (Internal/external sensor supply for dry contact)

  • I/O Mode

    DI or event counter
    (channels 1 to 8, group configurable by software)

  • Input Voltage

    On: 11 to 30 VDC
    Off: 0 to 5 VDC

  • Input Current (voltage on)

    2.35 mA ± 20% per channel

  • Counter Frequency

    Square wave: 0 to 10 kHz

  • Digital Filtering Time Interval

    Software configurable

  • Diagnostics

    Input Wire-break Detection (current: 50 µA max., delay: 20 ms)
    Internal Field Circuit Supply Detection (17.5 VDC, 16 to 19 VDC)

  • I/O Type

    Source

  • I/O Mode

    DO or pulse output
    (channel 1 to 8, group configurable by software)

  • Pulse Duration

    500 μs

  • Protection

    Output Short-circuit Protection
    Common Power Input Over-voltage Protection
    Inductive Load Shutdown Voltage Protection

  • Diagnostics

    Wire Break Detection (on state, output current < 3 mA)
    Wire Break Detection (off state, output load impedance > 58 kilo-ohms)
    Output Short-Circuit Detection (output current > 0.87 A, range: 0.64 to 1.2 A)
    External Power Detection (17.5 VDC, 16 to 19 VDC)
    Failsafe Configuration (hold last/failsafe state)

  • I/O Mode

    65M-3600-CT-T: Current
    65M-3610-CT-T: Voltage

  • I/O Type

    Differential

  • Input Range

    65M-3600-CT-T:
    0 to 20 mA
    4 to 20 mA
    65M-3610-CT-T:
    0 to 10 V
    1 to 5 V

  • Overload Permitted on Inputs

    65M-3600-CT-T: ±30 mA
    65M-3610-CT-T: ±12 V

  • Measurement Resolution

    65M-3600-CT-T:
    2 μA (0 to 20 mA)
    1.6 μA (4 to 20 mA)
    65M-3610-CT-T:
    1 mV (0 to 10 V)
    0.4 mV (1 to 5 V)

  • Accuracy

    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 to 75°C

  • Conversion Time

    100 ms

  • Rejection Ratio

    Normal mode: > 60 dB @ 60 Hz (min.), conversion time: 100 ms
    Common mode: > 90 dB @ 60 Hz (min.), conversion time: 100 ms

  • Input Impedance

    65M-3600-CT-T: 250 ohms
    65M-3610-CT-T: 1 mega-ohms

  • Diagnostics

    65M-3800-3810-CT-T:
    Input Underflow/Overflow Detection
    65M-3600-CT-T:
    Internal Loop Power Detection (17.5 VDA, 16 to 19 VDC)
    Input Short-circuit Detection
    65M-3600-CT-T (in 4 to 20 mA mode):
    Input Wire-break Detection (delay: 0.8 s)
    65M-3610-CT-T:
    Input Wire-break Detection (delay:1.6 s max)

  • I/O Mode

    Voltage/Current

  • Output Range

    0 to 10 V
    1 to 5 V
    0 to 20 mA
    4 to 20 mA

  • Converter Resolution

    16-bit

  • Accuracy

    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 to 75°C

  • Output Refresh Time

    16 ms

  • Output Impedance

    Voltage mode:
    1 kilo-ohms (min.)
    Current mode:
    750 ohms (max.)

  • Diagnostics

    Output Short-circuit Detection (voltage)
    Failsafe Configuration (hold last/failsafe state)
    Output Wire-break Detection (current)

  • Connector

    Screw-fastened terminal block

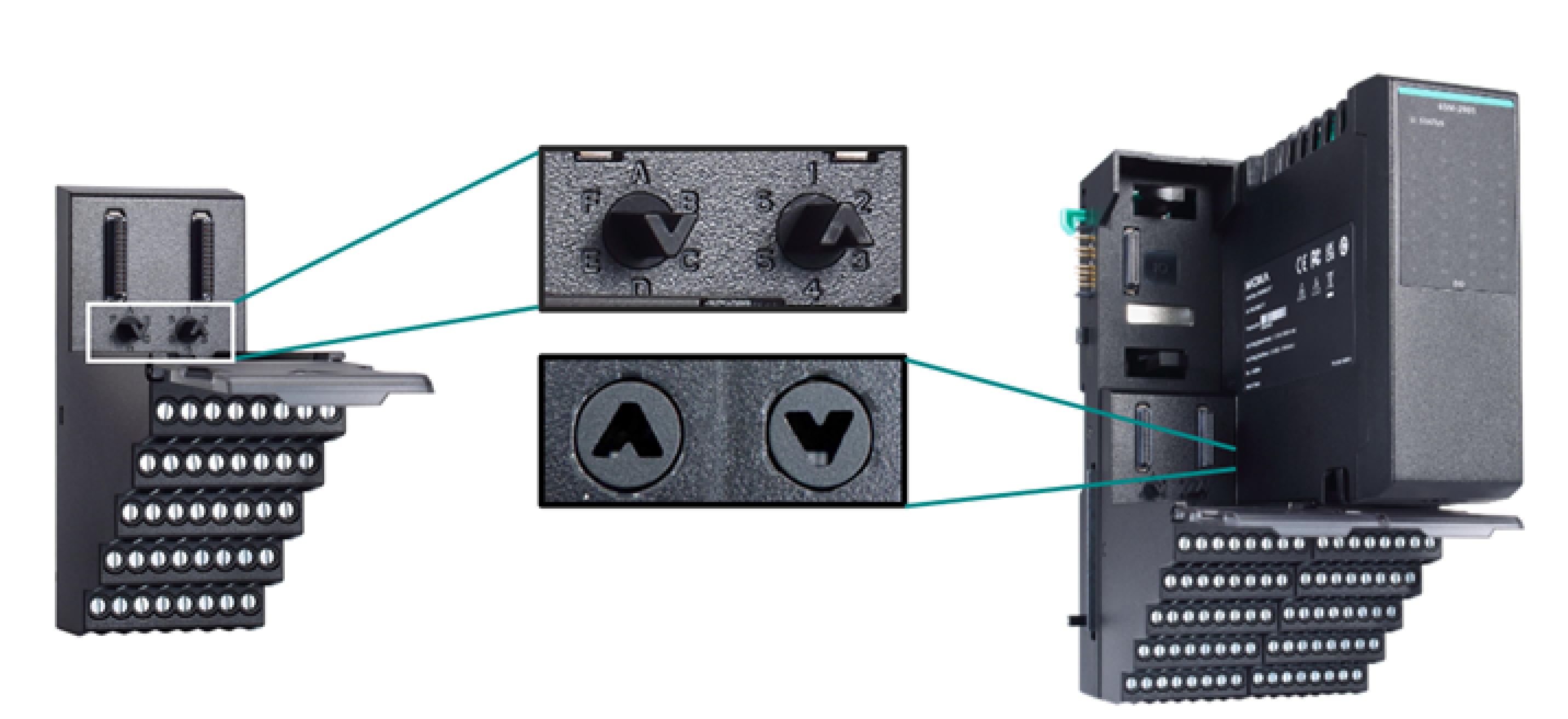

  • ID

    65M-TB-1900-CT-T: D1
    65M-TB-2901-CT-T: D2
    65M-TB-3600-CT-T: A1
    65M-TB-3610-CT-T: A2
    65M-TB-4820-CT-T: A5

  • Dimensions

    42.3 x 102.38 x 80.8 mm (1.67 x 4.03 x 3.18 in)

  • Weight

    164 g (0.36 lb)

  • System Power

    65M-1900-CT-T:
    0.019 A @ 24 VDC (without internal field circuit supply)
    0.115 A @ 24 VDC (32-channel dry contact with internal field circuit supply)
    65M-2901-CT-T:
    0.005 A @ 24 VDC
    65M-3600-CT-T:
    0.053 A @ 24 VDC (without internal loop power)
    0.466 A @ 24 VDC (16-channel 20 mA current input with internal loop power)
    65M-3610-CT-T:
    0.038 A @ 24 VDC
    65M-4820-CT-T:
    0.022 A @ 24 VDC (without external load)
    0.266 A @ 24 VDC (4 channels with 20 mA current output)

  • Field Power

    65M-1900-CT-T/65M-2901-CT-T:
    0.068 A @ 12 VDC
    65M-3610-CT-T/65M-4820-CT-T:
    0.069 A @ 12 VDC
    65M-3600-CT-T:
    0.073 A @ 12 VDC

  • Housing

    Plastic

  • Dimensions

    42 x 116 x 130 mm (1.65 x 4,57 x 5.12 in)

  • Weight

    65M-1900-CT-T: 253 g (0.56 lb)
    65M-2901-CT-T: 254 g (0.56 lb)
    65M-3600-CT-T: 267 g (0.59 lb)
    65M-3610-CT-T: 250 g (0.55 lb)
    65M-4820-CT-T: 257 g (0.57 lb)

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)
    Note: Proper airflow is required in an environment with temperature > 65°C.

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    Up to 2000 meters 如果您需要產品能在高海拔地區正常運作,請與 Moxa 聯繫。

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: (DC) 1 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: (DC) 0.5 kV L-N, 1 kV L/N-PE; Signal: 1 kV; IO: 0.5 kV
    IEC 61000-4-6 CS: Power: (DC) 10
    Vrms; Signal: 10 Vrms
    IEC 61000-4-8 PFMF: 30 A/m

  • Safety

    UL 61010-1
    UL 61010-2-201

  • Shock

    IEC 60068-2-27
    Half sine wave; acceleration: 15 g; time: 11 ms

  • Vibration

    IEC 60068-2-6
    DIN-rail mounted:
    7 mm peak-peak (p-p) (2 to 8.42 Hz), 1 g (8.42 to 150 Hz)
    Rack mounted (with optional kit):
    7 mm peak-peak (p-p) (2 to 8.42 Hz), 0.5 g (8.42 to 150 Hz)

  • Time

    65M-1900-CT-T: 2,057,118 hrs
    65M-2901-CT-T: 2,007,795 hrs
    65M-3600-CT-T: 1,686,798 hrs
    65M-3610-CT-T: 1,885,953 hrs
    65M-4820-CT-T: 1,874,152 hrs

  • Standards

    Telcordia Standard SR-332

支援文件

名稱 類型 語言 版本 發布日期
ioPAC 6500 系列 (65M) I/O 模組產品資料表
5.5 MB
產品資料表 中文 v1.0 2025年3月17日 2025年3月17日
