CP-118E-A-I/138E-A-I 系列

8埠 3-in-1, RS-422/485 PCI Express 串列通信多埠卡,內建 4kV 突波保護和 2 kV 光電隔離

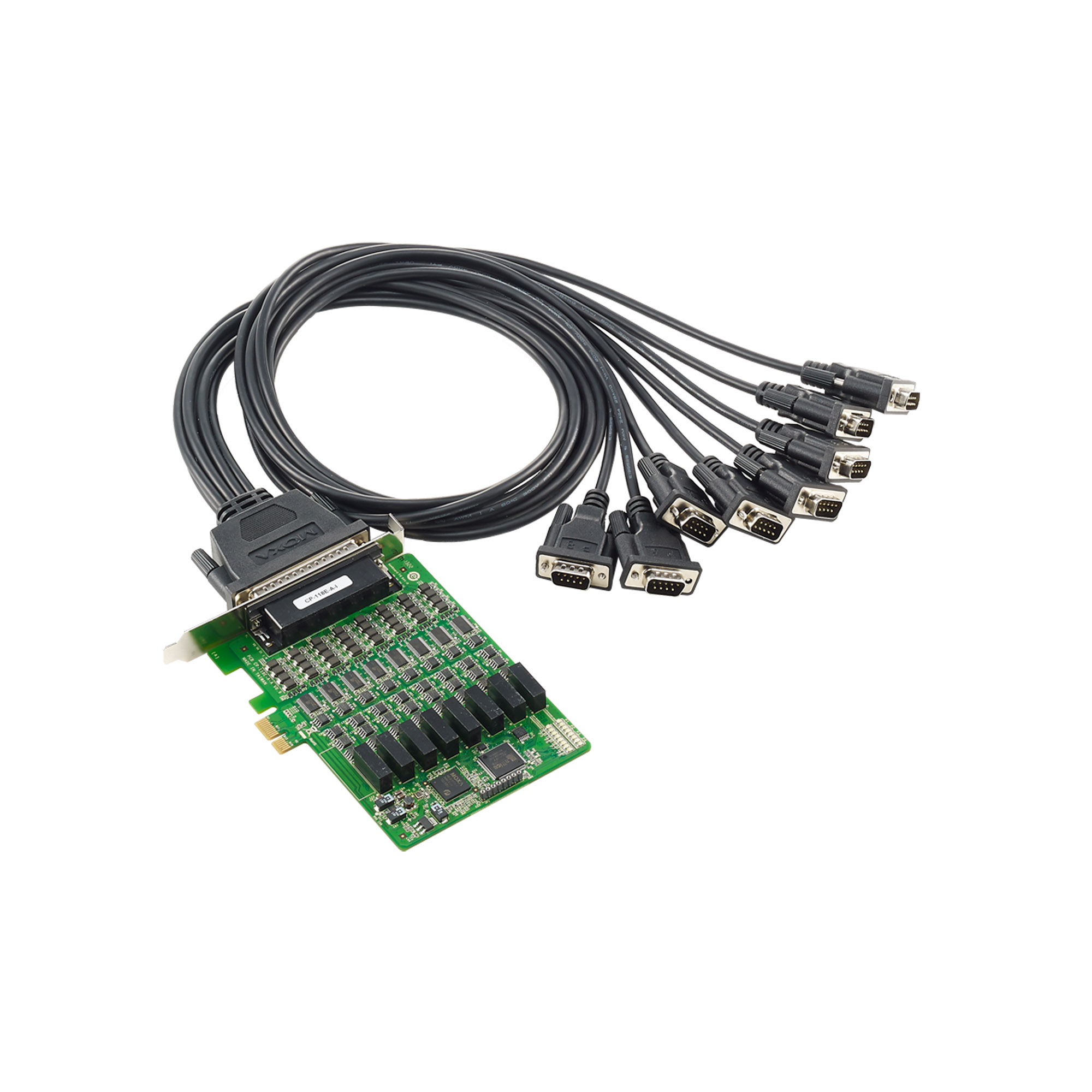

moxa-cp-118e-a-i-138e-a-i-series-image-1-(1).jpg | Moxa

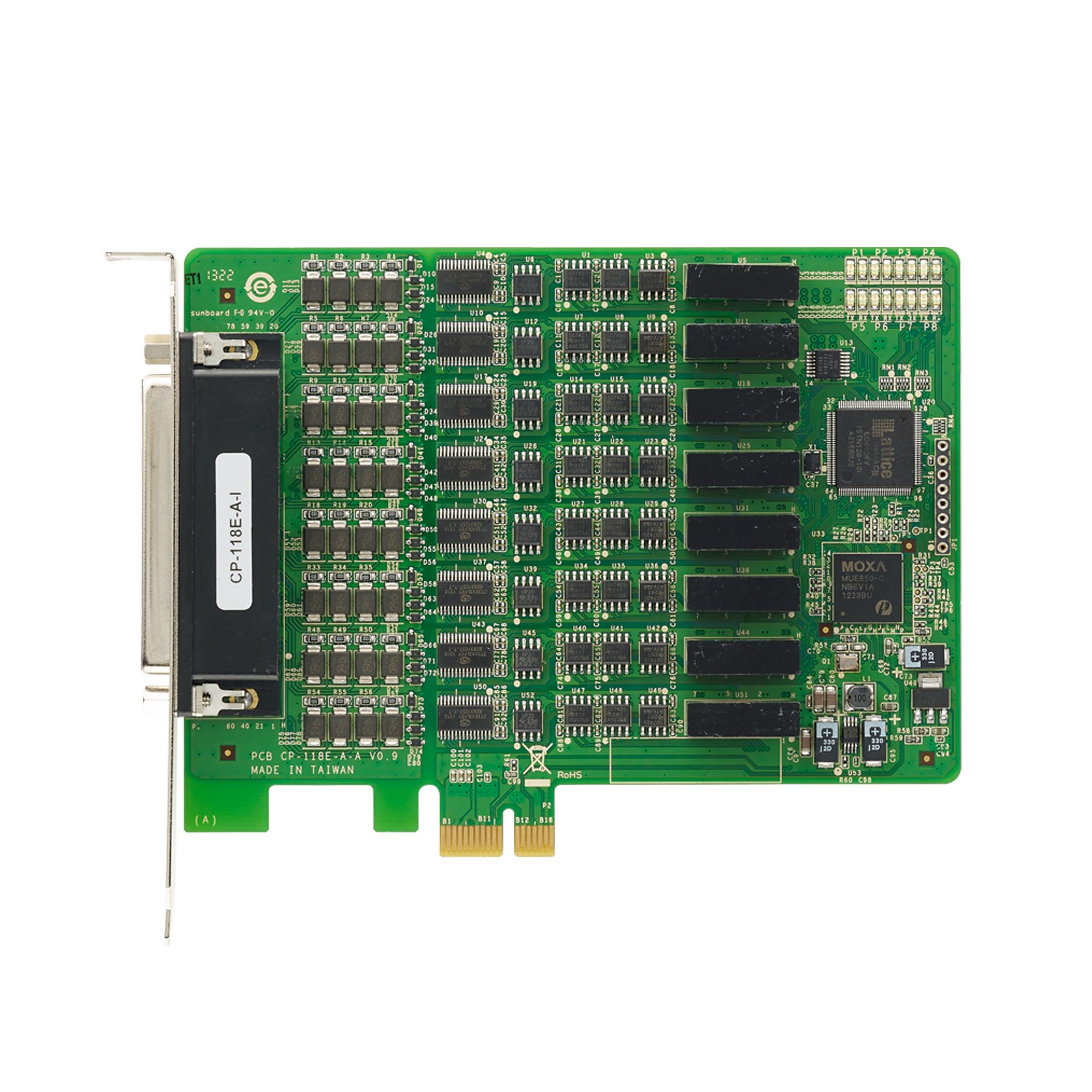

moxa-cp-118e-a-i-138e-a-i-series-image-2-(1).jpg | Moxa

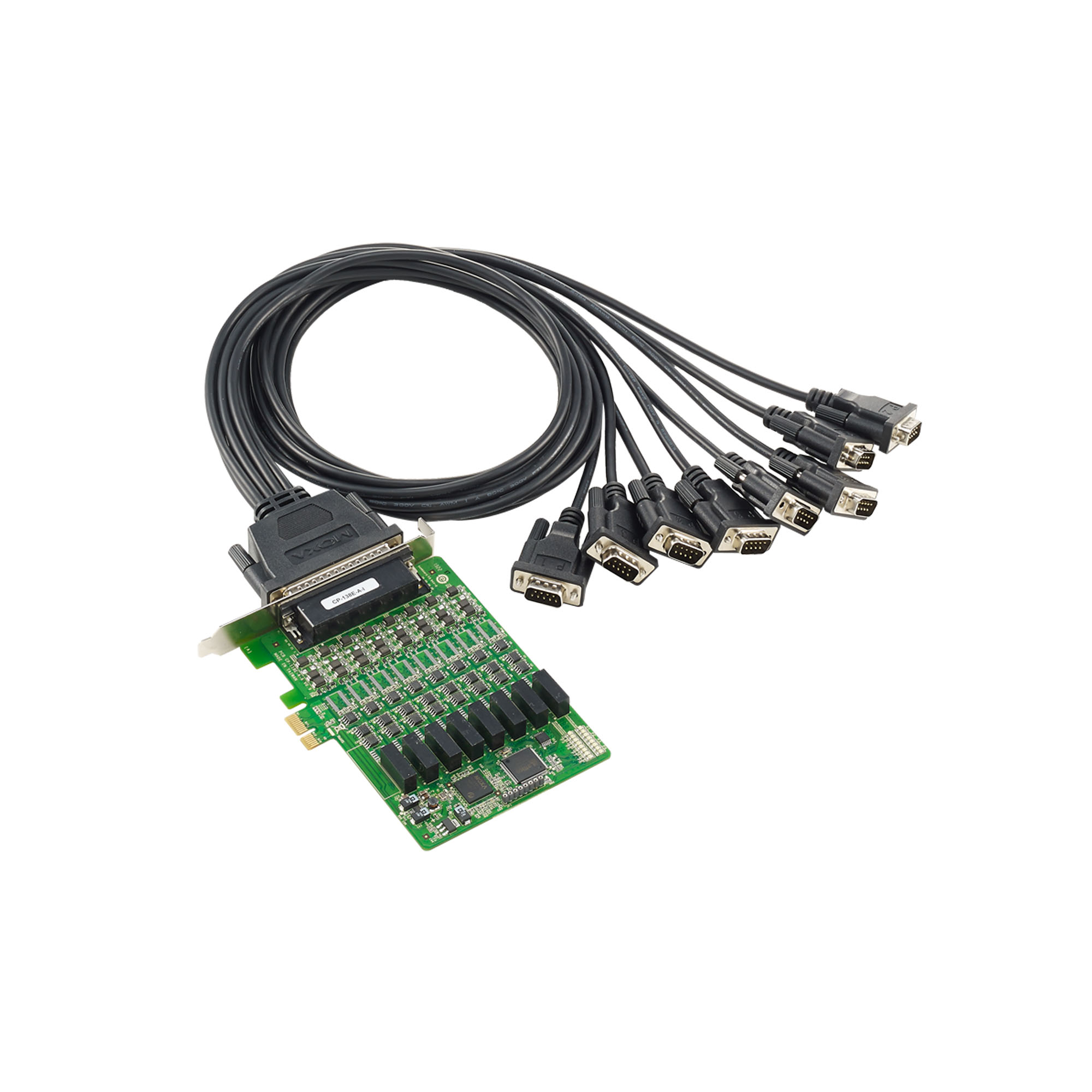

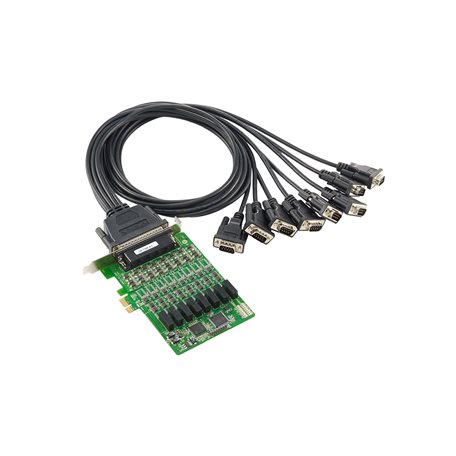

moxa-cp-118e-a-i-138e-a-i-series-image-3-(1).jpg | Moxa
moxa-cp-118e-a-i-138e-a-i-series-image-4-(1).jpg | Moxa

特色與優點

  • 相容於 PCI Express 1.0
  • 資料傳輸率最高達 921.6Kbps
  • 128 位元組 FIFO 和晶片內建軟硬體流量控制
  • 提供 RS-232/422/485 的多種連接線和接線盒選擇
  • 支援最新的 Windows、Linux 和 Unix 驅動程式
  • 內建 LED 指示燈和管理軟体,可輕鬆維護

認證

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

CP-118E-A-I/CP-138E-A-I 是專為 POS 和 ATM 應用所設計的智慧型 PCI Express 串列通信多埠卡,適用於工業自動化系統造商和系統整合商。CP-118E-A-I/CP-138E-A-I 相容於所有主要的作業系統,它的 8 個串列埠口皆支援高達 921.6 kbps 的資料傳輸率,並提供完整的數據機控制訊號,可確保與多種串列週邊設備的相容性。此外,CP-118E-A-I/CP-138E-A-I 相容於 PCI Expressx1,使它可被安裝於任何 PCI Express 插槽。



透過智慧型RS-485完成簡易安裝及偵測除錯

設定 RS-485 網路是相對比較簡單的。挑戰來自於當電源被啟動,且連接到網路上的設備開始傳送和接收數據時。在大多數情況下,工程師需要透過在網路配置高/低電阻來進一步調整系統。Moxa 的新智能型 RS-485 科技支援可以輕易滿足以上需求的二個基本功能,第一個是一鍵安裝,它可以自動分析網路的拓撲架構,然後調整高/低電阻,第二個是一鍵偵錯,它可以告訴你該做些什麼調整,使網路恢復可用。



  • Comm.Controller

    16C550C compatible

  • Bus

    PCI Express 1.0

  • Connector

    DB78 female

  • FIFO

    128 bytes

  • Max. No. of Boards per PC

    8

  • No. of Ports

    8

  • Serial Standards

    CP-118E-A-I w/o cable: RS-232, RS-422, RS-485
    CP-138E-A-I w/o cable: RS-422, RS-485

  • Baudrate

    50 bps to 921.6 kbps (supports non-standard baudrates)

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    CP-118E-A-I w/o cable: None, RTS/CTS, XON/XOFF
    CP-138E-A-I w/o cable: None, XON/XOFF

  • Isolation

    2 kV

  • Surge

    4 kV

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Serial Interface

    CP-118E-A-I w/o cable: RS-232/422/485
    CP-138E-A-I w/o cable: RS-422/485

  • Windows Drivers

    DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Drivers

    Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x

  • UNIX Drivers

    Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6

  • Input Current

    2,356 mA @ 3.3 VDC

  • Dimensions

    107 x 136.9 mm (4.21 x 5.39 in)

  • Weight

    139.7 g (0.31 lb)

  • LED Indicators

    Built-in Tx, Rx LEDs for each port

  • Operating Temperature

    0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    -20 to 85°C (-4 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    390,883 hrs
    221,331 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
Linux Kernel 6.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
181.9 KB
驅動程式
SHA-512
v6.0
  • Linux Kernel 6.x
2023年7月31日 2023年7月31日 版本說明
Linux Kernel 4.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
161.1 KB
驅動程式
SHA-512
v4.2
  • Linux Kernel 4.x
2023年1月17日 2023年1月17日 版本說明
Linux Kernel 5.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
162.0 KB
驅動程式
SHA-512
v5.2
  • Linux Kernel 5.x
2023年1月17日 2023年1月17日 版本說明
Driver for Multiport Serial PCI Express and Universal PCI Boards (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
6.4 MB
驅動程式
SHA-512
v3.1
  • Windows 10
  • Windows 10
  • Windows 7
  • Windows 7
  • Windows 8
  • Windows 8
  • Windows 8.1
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2019
  • Windows Server 2022
  • Windows Server 2022
2022年9月6日 2022年9月6日 版本說明
Driver for Multiport Serial PCI Express and Universal PCI Boards (Windows 11 and Windows Server 2022, WHQL certified)
4.1 MB
驅動程式
SHA-512
v4.0
  • Windows 11
  • Windows Server 2022
2022年9月2日 2022年9月2日 版本說明
MSB Linux kernel 5.x.x driver
160.1 KB
驅動程式
SHA-512
v5.1
  • Linux Kernel 5.x
2021年10月25日 2021年10月25日 版本說明
MSB Linux kernel 4.x.x driver
161.9 KB
驅動程式
SHA-512
v4.1
  • Linux Kernel 4.x
2021年10月25日 2021年10月25日 版本說明
Driver for Linux kernel 2.x.x
161.3 KB
驅動程式
SHA-512
v2.0
  • Linux Kernel 2.4.x
  • Linux Kernel 2.6.x
2019年12月31日 2019年12月31日 版本說明
Driver for Linux kernel 3.x.x
161.1 KB
驅動程式
SHA-512
v3.0
  • Linux Kernel 3.x
2019年12月31日 2019年12月31日 版本說明
Driver for CP-118E-A-I/138E-A-I Series (Windows XP, 2008 or earlier)
759.9 KB
驅動程式
SHA-512
v1.24
  • Windows 2000
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2017年10月17日 2017年10月17日 版本說明
Driver for CP-118E-A-I/138E-A-I Series (DOS)
634.2 KB
驅動程式
SHA-512
v1.12
  • DOS
2014年3月31日 2014年3月31日 版本說明
Driver for CP-118E-A-I/138E-A-I Series (SCO 5)
649.5 KB
驅動程式
SHA-512
v1.13
  • SCO OpenServer 5
2014年3月30日 2014年3月30日 版本說明
Driver for CP-118E-A-I/138E-A-I Series (SCO 6)
322.0 KB
驅動程式
SHA-512
v1.13
  • SCO OpenServer 6
2014年3月30日 2014年3月30日 版本說明
Driver for CP-118E-A-I/138E-A-I Series (Sun Solaris)
118.0 KB
驅動程式
SHA-512
v1.1
  • Solaris 10
2014年3月30日 2014年3月30日 版本說明
Driver for CP-118E-A-I/138E-A-I Series (UnixWare)
330.0 KB
驅動程式
SHA-512
v1.13
  • SCO UnixWare 7
2014年3月30日 2014年3月30日 版本說明
PComm Lite - Serial Communication Tool for Windows
1.6 MB
工具程式
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
2012年5月13日 2012年5月13日 版本說明
Driver for CP-118E-A-I/138E-A-I Series (Windows ME or prior)
341.1 KB
驅動程式
SHA-512
v5.11
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
2010年7月12日 2010年7月12日 版本說明
Driver for CP-118E-A-I/138E-A-I Series (UnixWare 2.1)
270.0 KB
驅動程式
SHA-512
v1.7
  • SCO UnixWare 2.x
2010年7月12日 2010年7月12日 版本說明
Driver for CP-118E-A-I/138E-A-I Series (WinCE)
370.8 KB
驅動程式
SHA-512
v1.1
  • Windows CE 5.0
2010年7月11日 2010年7月11日 版本說明
Viewcom
434.6 KB
工具程式
SHA-512
v1.0
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2010年7月11日 2010年7月11日 版本說明
Driver for CP-118E-A-I/138E-A-I Series (QNX6)
120.8 KB
驅動程式
SHA-512
v1.1
  • QNX 6.x
2010年2月10日 2010年2月10日 版本說明
Driver for CP-118E-A-I/138E-A-I Series (WinXP Embedded)
289.1 KB
驅動程式
SHA-512
v1.16
  • Windows XP Embedded
2010年2月8日 2010年2月8日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
QIG for PCI Express Multiport Serial Board Series
495.4 KB
QIG 英文 v2.4 2023年4月17日 2023年4月17日
Manual for Multiport Serial PCI Express Boards
16.1 MB
使用者手冊 英文 v12.1 2022年9月16日 2022年9月16日
CP-118E-A-I/138E-A-I 系列產品資料表
3.3 MB
產品資料表 中文 v1.2 2020年3月5日 2020年3月5日
2D CAD for CP-118E
917.1 KB
2D CAD 英文 2012年5月14日 2012年5月14日

可供選擇的機型 (2)

顯示圖片

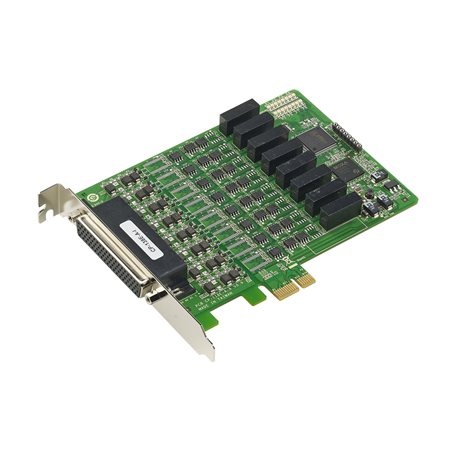

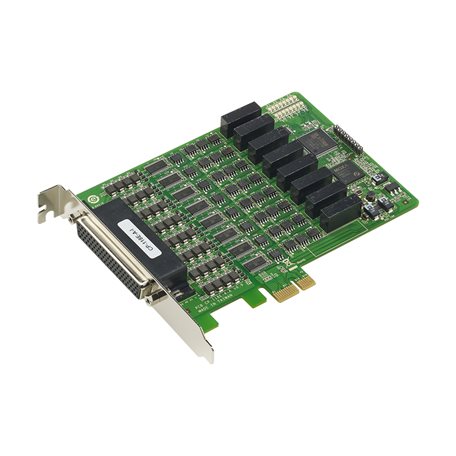

moxa-cp-118e-a-i-image.jpg | MoxaCP-118E-A-I w/o cablemoxa-cp-138e-a-i-image.jpg | MoxaCP-138E-A-I w/o cable
