CP-134U 系列

4 埠 RS-422/485 Universal PCI 串列擴充卡,內建選購的 2 kV 光電隔離保護

moxa-cp-134u-series-image-1-(1).jpg | Moxa

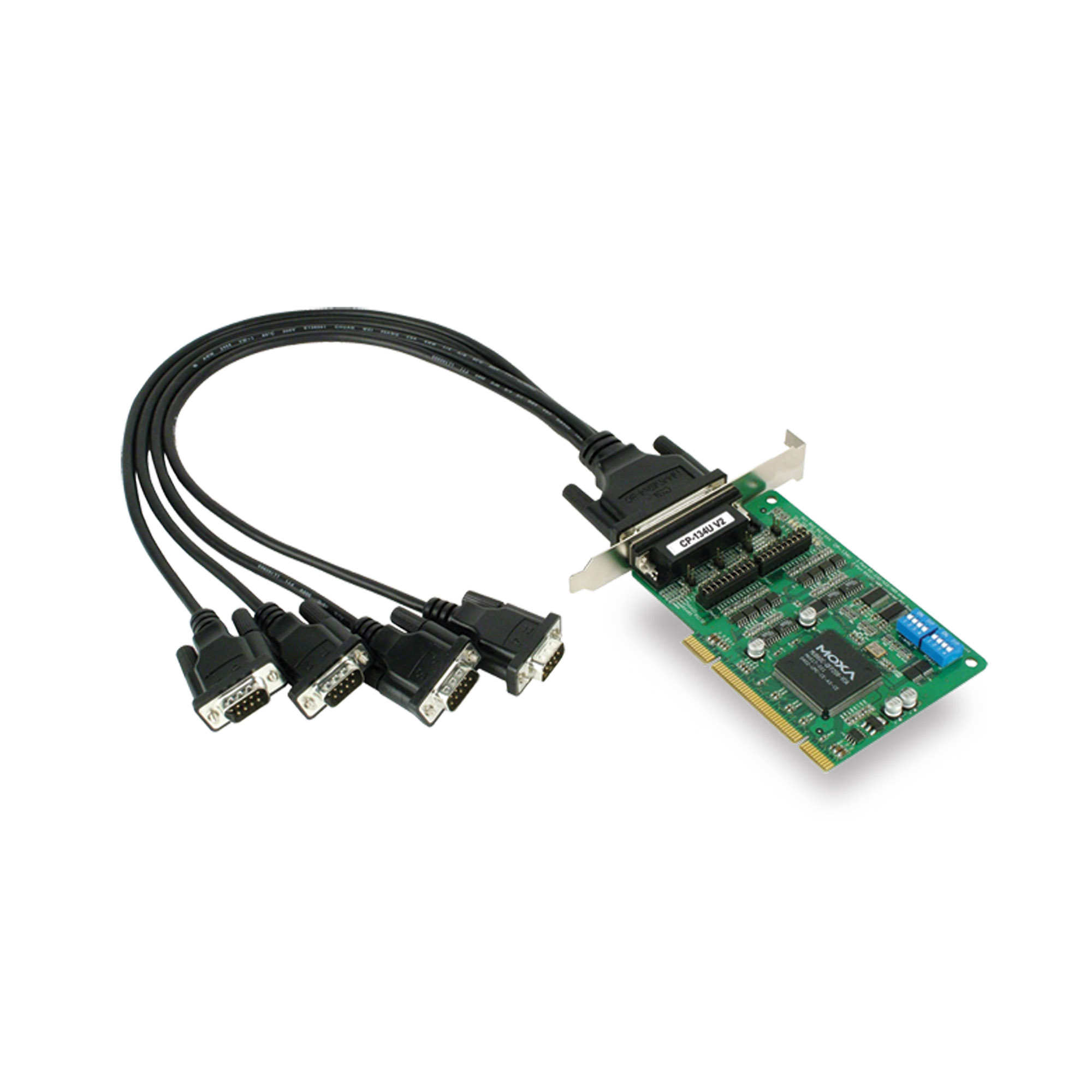

moxa-cp-134u-series-image-2-(1).jpg | Moxa

特色與優點

  • 超過 700 kbps 數據傳輸量,可提供最高效能
  • 快速資料傳輸,最高傳輸率達 921.6 Kbps
  • ADDC® 提供對於 RS-485 訊號的自動數據流向控制
  • 128 位元 FIFO 和晶片內建軟硬體流量控制
  • 與 3.3/5 V PCI 和 PCI-X 相容
  • 為多種作業系統提供的驅動程式,包括 Windows、Linux 和 UNIX
  • 連接埠 1 和 2 支援 RS-232 和 RS-422/485
  • 提供寬溫版本,適合 -40 至 85°C 的作業環境

認證

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

CP-134U 和 CP-134U-I 是 4 埠 Universal PCI 擴充卡,專為需要長距離、多點、PC 型數據擷取解決方案的工業自動化應用所設計。



晶片內建自動數據流向控制,可提供精確的 RS-485 通訊

RS-485 通訊需要精確的定時控制以啟用和停用線路驅動器。Moxa Turbo Serial Engine™ 晶片為附有晶片內建 ADDC® 的 CP-134U 擴充卡提供動力,使得 RS-485 在使用方面和 RS-232 一樣容易。



RS-485 Multidrop 可連接 1.2 公里範圍內高達 31 台裝置

CP-134U Universal PCI 擴充卡有四個 RS-422/485 串列埠,每個串列埠可以達成高達 921.6 kbps 的數據傳輸率。在 RS-485 模式中,擴充卡可連接 1.2 公里範圍內高達 31 台菊鏈 RS-485 裝置。對於長距離 RS-485 通訊,請選擇 CP-134U-I,其所附的 2 kV 光電隔離保護可避免設備損壞。



為 Windows、Linux 和 UNIX 提供的驅動程式

我們持續為各種不同的作業系統提供支援,CP-134U 和 CP-134U-I 擴充卡也不例外。我們提供適用於所有 Moxa 擴充卡並且極為可靠的 Windows、Linux 和 UNIX 驅動程式,而其他作業系統(例如 WEPOS)也支援嵌入式整合。



  • Comm. Controller

    MU860 (16C550C compatible)

  • Bus

    32-bit Universal PCI

  • Connector

    DB44 female

  • FIFO

    128 bytes

  • Max. No. of Boards per PC

    8

  • No. of Ports

    4

  • Serial Standards

    2 x RS-232/422/485, 2 x RS-422/485

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, XON/XOFF

  • Isolation

    CP-134U-I Series: 2 kV

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Windows Drivers

    DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Drivers

    Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x

  • UNIX Drivers

    QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD

  • Input Current

    CP-134U Series: 180 mA @ 5 VDC
    CP-134U-I Series: 850 mA @ 5 VDC

  • Dimensions

    CP-134U Series: 82.5 x 120 mm (3.24 x 4.72 in)
    CP-134U-I Series: 115 x 120 mm (4.52 x 4.72 in)

  • LED Indicators

    Built-in Tx, Rx LEDs for each port

  • Operating Temperature

    Standard Models: 0 to 55°C (32 to 131°F)
    Wide Temp. Models: -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    480,209 hrs

  • Standards

    Telcordia SR332

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
Linux Kernel 6.x Driver for Multiport Serial PCI Express and Universal PCI Boards
780.0 KB
驅動程式
SHA-512
v6.1
  • Linux Kernel 6.x
2024年10月1日 2024年10月1日 版本說明
PComm Lite Suite - Serial Communication Tool for Windows
3.5 MB
工具程式
SHA-512
v1.7
  • Windows
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
2023年6月19日 2023年6月19日 版本說明
Linux Kernel 4.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
161.1 KB
驅動程式
SHA-512
v4.2
  • Linux Kernel 4.x
2023年1月17日 2023年1月17日 版本說明
Linux Kernel 5.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
162.0 KB
驅動程式
SHA-512
v5.2
  • Linux Kernel 5.x
2023年1月17日 2023年1月17日 版本說明
Driver for Multiport Serial PCI Express and Universal PCI Boards (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
6.4 MB
驅動程式
SHA-512
v3.1
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2022年9月6日 2022年9月6日 版本說明
Driver for Multiport Serial PCI Express and Universal PCI Boards (Windows 11 and Windows Server 2022, WHQL certified)
4.1 MB
驅動程式
SHA-512
v4.0
  • Windows 11
  • Windows Server 2022
2022年9月2日 2022年9月2日 版本說明
MSB Linux kernel 5.x.x driver
160.1 KB
驅動程式
SHA-512
v5.1
  • Linux Kernel 5.x
2021年10月25日 2021年10月25日 版本說明
Driver for Linux kernel 2.x.x
161.3 KB
驅動程式
SHA-512
v2.0
  • Linux Kernel 2.6.x
2019年12月31日 2019年12月31日 版本說明
Driver for Linux kernel 3.x.x
161.1 KB
驅動程式
SHA-512
v3.0
  • Linux Kernel 3.x
2019年12月31日 2019年12月31日 版本說明
Driver for CP-134U Series (Windows XP, 2008 or earlier)
759.9 KB
驅動程式
SHA-512
v1.24
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2017年10月17日 2017年10月17日 版本說明
Driver for CP-134U Series (DOS)
634.2 KB
驅動程式
SHA-512
v1.12
  • DOS
2014年3月31日 2014年3月31日 版本說明
Driver for CP-134U Series (SCO 5)
649.5 KB
驅動程式
SHA-512
v1.13
  • SCO OpenServer 5
2014年3月30日 2014年3月30日 版本說明
Driver for CP-134U Series (SCO 6)
322.0 KB
驅動程式
SHA-512
v1.13
  • SCO OpenServer 6
2014年3月30日 2014年3月30日 版本說明
Driver for CP-134U Series (Sun Solaris)
118.0 KB
驅動程式
SHA-512
v1.1
  • Solaris 10
2014年3月30日 2014年3月30日 版本說明
Driver for CP-134U Series (UnixWare)
330.0 KB
驅動程式
SHA-512
v1.13
  • SCO UnixWare 7
2014年3月30日 2014年3月30日 版本說明
PComm Lite - Serial Communication Tool for Windows
1.6 MB
工具程式
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
2012年5月13日 2012年5月13日 版本說明
Driver for CP-134U Series (Windows ME or prior)
341.1 KB
驅動程式
SHA-512
v5.11
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
2010年7月12日 2010年7月12日 版本說明
Viewcom
434.6 KB
工具程式
SHA-512
v1.0
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2010年7月11日 2010年7月11日 版本說明
Driver for CP-134U Series (UnixWare 2.1)
270.0 KB
驅動程式
SHA-512
v1.7
  • SCO UnixWare 2.x
2010年7月11日 2010年7月11日 版本說明
Driver for CP-134U Series (WinCE 5)
370.8 KB
驅動程式
SHA-512
v1.1
  • Windows CE 5.0
2010年7月11日 2010年7月11日 版本說明
Driver for CP-134U Series (WinCE 6)
280.7 KB
驅動程式
SHA-512
v1.0
  • Windows CE 6.0
2010年7月11日 2010年7月11日 版本說明
Driver for CP-134U Series (Windows 95/98)
341.1 KB
驅動程式
SHA-512
v5.11
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
2010年7月11日 2010年7月11日 版本說明
Driver for CP-134U Series (WinNT)
193.5 KB
驅動程式
SHA-512
v5.11
  • Windows NT
2010年7月11日 2010年7月11日 版本說明
Driver for CP-134U Series (QNX6)
120.8 KB
驅動程式
SHA-512
v1.1
  • QNX 6.x
2010年2月10日 2010年2月10日 版本說明
Driver for CP-134U Series (FreeBSD)
33.0 KB
驅動程式
SHA-512
v1.3
  • FreeBSD 4.x
  • FreeBSD 5.x
2010年2月10日 2010年2月10日 版本說明
Driver for CP-134U Series (WinXP Embedded)
289.1 KB
驅動程式
SHA-512
v1.16
  • Windows XP Embedded
2010年2月8日 2010年2月8日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
FOSS Statement for Multiport Serial PCI Express and Universal PCI Boards Linux Driver
108.4 KB
聲明書 英文 v1.0 2024年10月29日 2024年10月29日
FOSS Statement for Multiport Serial PCI Express and Universal PCI Boards Windows Driver
150.4 KB
聲明書 英文 v1.0 2024年10月29日 2024年10月29日
Declaration of Conformity for CP-134U-I Series
298.4 KB
聲明書 英文 v1.0 2024年5月29日 2024年5月29日
Declaration of Conformity for CP-134U Series
297.4 KB
聲明書 英文 v1.0 2024年5月29日 2024年5月29日
CP-134U 系列產品資料表
3.2 MB
產品資料表 中文 v1.3 2021年9月16日 2021年9月16日
QIG for Universal PCI Smart Serial Board
301.8 KB
QIG 英文 v1.2 2021年5月18日 2021年5月18日
Manual for CP-134U Series
10.8 MB
使用者手冊 英文 v12.1 2019年12月31日 2019年12月31日
Tech Note: The Secrets of Flow Control in Serial Communication
42.8 KB
技術說明 英文 v1.0 2010年2月22日 2010年2月22日
Tech Note: The Secrets of RS-485 Half-duplex Communication
35.0 KB
技術說明 英文 v1.0 2010年2月22日 2010年2月22日
Tech Note: The Secrets of UART FIFO
41.1 KB
技術說明 英文 v1.0 2010年2月22日 2010年2月22日
Tech Note: WinXP Embedded System Images with Moxa MSB
133.5 KB
技術說明 英文 v1.0 2010年2月10日 2010年2月10日

可供選擇的機型 (8)

顯示圖片

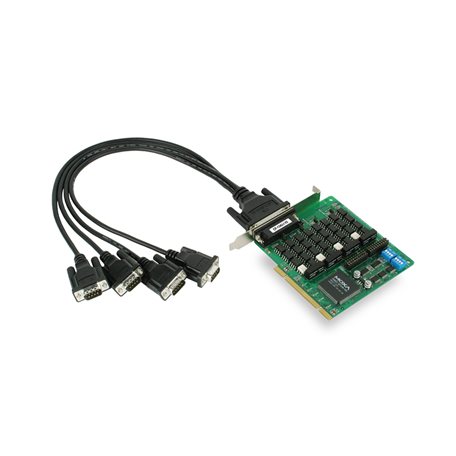

moxa-cp-134u-image.jpg | MoxaCP-134U w/o Cablemoxa-cp-134u-db9m-image.jpg | MoxaCP-134U-DB9Mmoxa-cp-134u-db25m-image.jpg | MoxaCP-134U-DB25Mmoxa-cp-134u-i-image.jpg | MoxaCP-134U-I w/o Cable
Serial Standards2 x RS-232/422/485
2 x RS-422/485
2 x RS-232/422/485
2 x RS-422/485
2 x RS-232/422/485
2 x RS-422/485
2 x RS-232/422/485
2 x RS-422/485
No. of Serial Ports4444
Serial Isolation Protection2 kV
Operating Temp.0 to 55°C0 to 55°C0 to 55°C0 to 55°C
Included CableCBL-M44M9x4-50CBL-M44M25x4-50
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
moxa-cp-134u-i-db9m-image.jpg | MoxaCP-134U-I-DB9Mmoxa-cp-134u-i-db25m-image.jpg | MoxaCP-134U-I-DB25Mmoxa-cp-134u-t-image.jpg | MoxaCP-134U-Tmoxa-cp-134u-i-t-image.jpg | MoxaCP-134U-I-T
Serial Standards2 x RS-232/422/485
2 x RS-422/485
2 x RS-232/422/485
2 x RS-422/485
2 x RS-232/422/485
2 x RS-422/485
2 x RS-232/422/485
2 x RS-422/485
No. of Serial Ports4444
Serial Isolation Protection2 kV2 kV2 kV
Operating Temp.0 to 55°C0 to 55°C-40 to 85°C-40 to 85°C
Included CableCBL-M44M9x4-50CBL-M44M25x4-50
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細

product image

Buy online from distributors
