Fieldbus 轉光纖轉換器

Moxa Fieldbus 轉光纖轉換器可將 Fieldbus 信號轉換為光纖信號,並提供簡單的配置和輕鬆的故障排除功能。我們的工業級 ICF 轉換器可將 PROFIBUS 信號轉換為光纖信號,即使在惡劣環境中也可穩定轉換。

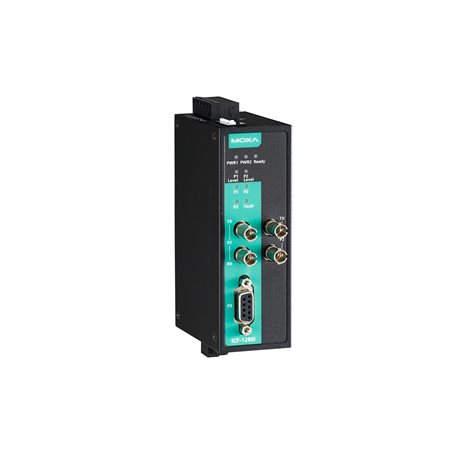

ICF-1280I-M-ST-T
ICF-1280I 系列

PROFIBUS to fiber converter, multi-mode, 2 ST connectors, -40 to 75°C

Serial Interface
  • Optical Fiber

    • ICF-1280I-M-ST Series: 100BaseFX ports (multi-mode ST connector)
      ICF-1280I-S-ST Series: 100BaseFX ports (single-mode ST connector)
  • Optical Fiber

PROFIBUS Interface
  • Baudrate

    • 9600 bps to 12 Mbps
  • Connector

    • DB9 female
  • Industrial Protocols

    • PROFIBUS DP
  • Isolation

    • 2 kV (built-in)
  • No. of Ports

    • 1
Power Parameters
  • Input Current

    • 370 mA @ 12 to 48 VDC
  • Input Voltage

    • 12 to 48 VDC
  • No. of Power Inputs

    • 2
  • Overload Current Protection

    • Supported
  • Power Connector

    • Terminal block (for DC models)
  • Power Consumption

    • 370 mA @ 12 to 48 VDC
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 39 x 115 x 70 mm (1.54 x 4.53 x 2.76 in)
  • Weight

    • 225 g (0.49 lb)
  • Installation

    • DIN-rail mounting
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 0.5 kV
      IEC 61000-4-5 Surge: Power: 0.5 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
  • Environmental Testing

    • IEC 60068-2-1
      IEC 60068-2-2
      IEC 60068-2-3
  • Hazardous Locations

    • ATEX, Class I Division 2, IECEx
  • Safety

    • EN 60950-1, IEC 60950-1
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 1,870,854 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
