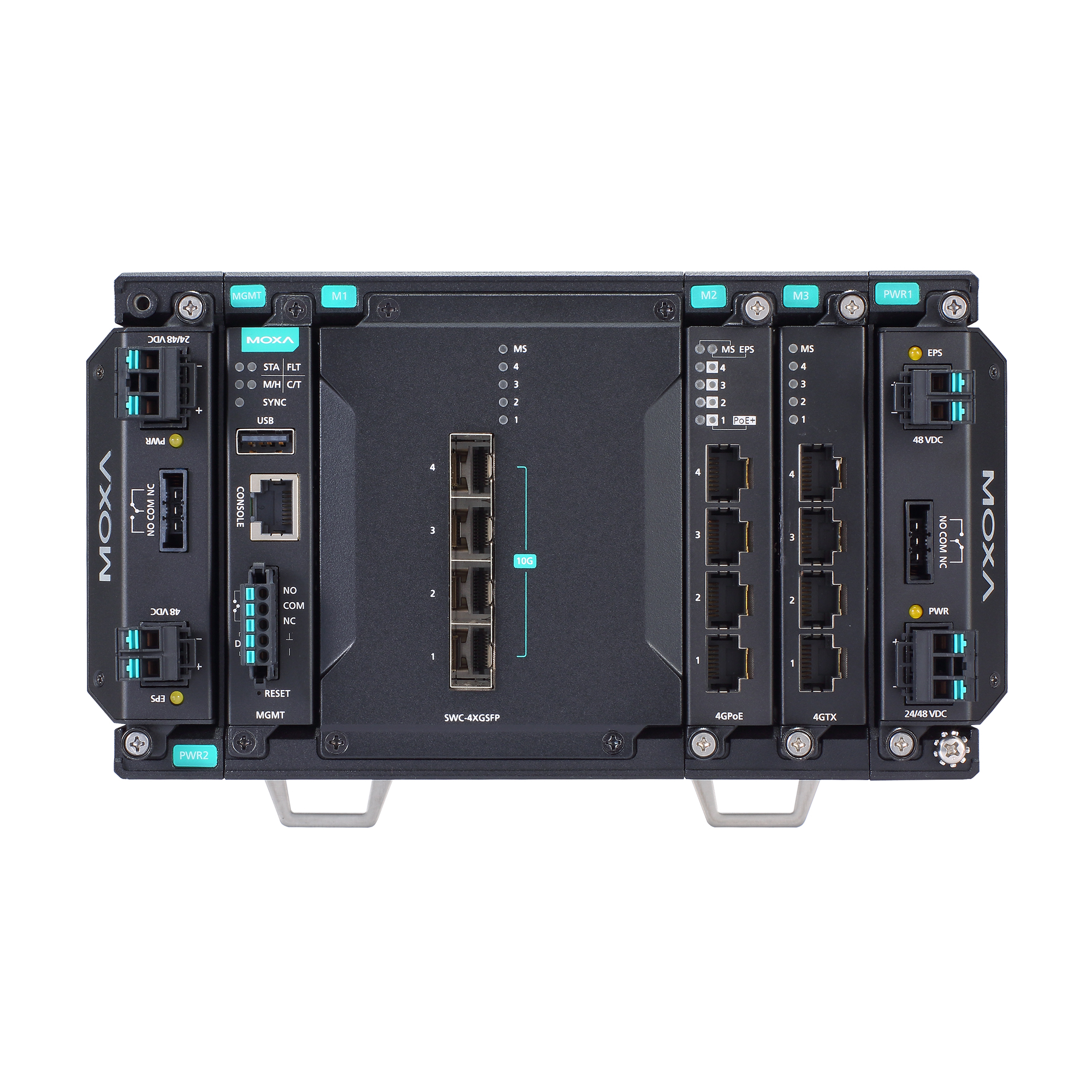

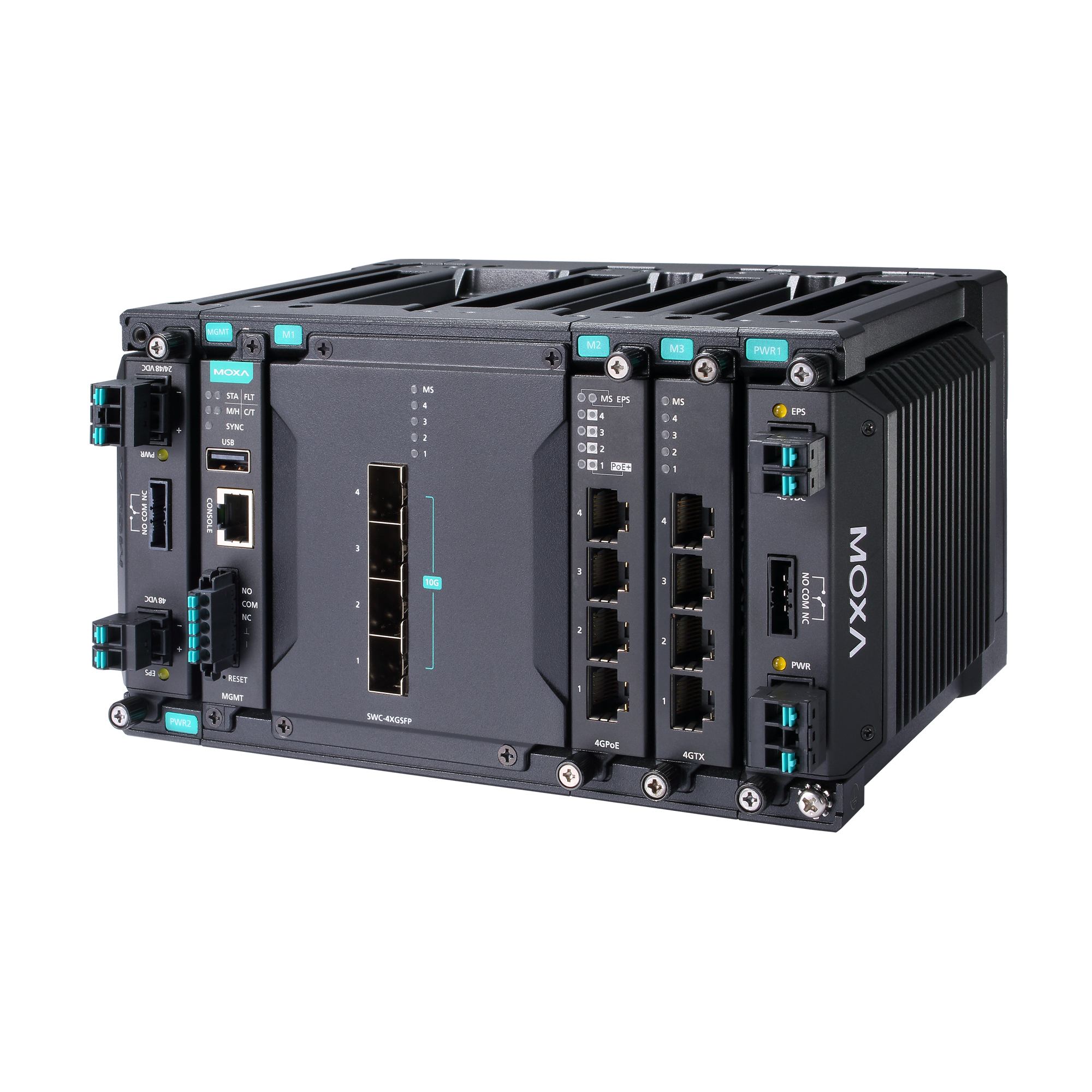

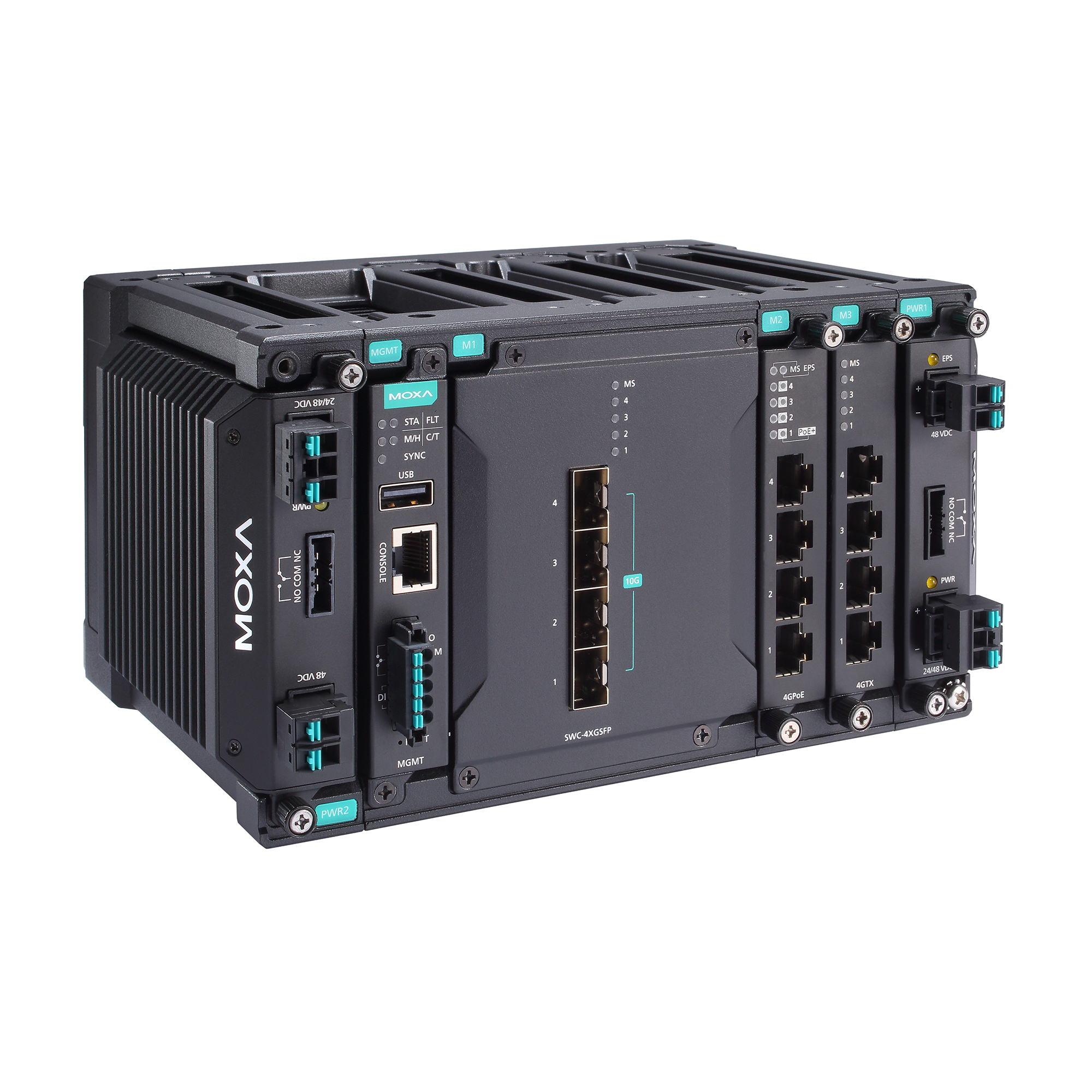

4 embedded 10Gigabit ports

2 slots for optional 4-port FE/GE modules

See the LM-7000H module series datasheet for more information.

Note: The required power module depends on the choice of LM-7000H module. Refer to the following power/module combination requirements.

LM-7000H non-PoE modules:
Any power module

LM-7000H PoE modules:
PWR-HV-P48-A, PWR-LV-P48-A only

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1X for authentication

IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB

GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier

STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, Loop Protection, MSTP

VRRP

Broadcast storm protection, Rate Limit, Trust access control, Static Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, Login and Password Policy, Secure Boot, MAC Authentication Bypass, Access control list

SNTP, IEEE 1588v2 PTP (hardware-based), NTP Server/Client, NTP Authentication

IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog

OSPF, Static Route

P-BRIDGE MIB, Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9

MMS

16 K

256

VID 1 to 4094

1024

8

12 Mbits

RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

USB Type A

1 (On MGMT Module)

+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA

3 (On MGMT, PWR1, PWR2 Module)
Relay output with current carrying capacity of 2 A @ 30 VDC

With PWR-HV-P48–A installed:
110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz, PoE: 48 VDC

With PWR-LV-P48–A installed:
24/48 VDC, PoE: 48 VDC

With PWR-HV-NP installed
110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz

With PWR-LV-NP installed:
24/48 VDC

With PWR-HV-P48–A installed:
88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz, PoE: 46 to 57 VDC

With PWR-LV-P48–A installed:
18 to 72 VDC, PoE: 46 to 57 VDC

With PWR-HV-NP installed:
88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz

With PWR-LV-NP installed:
18 to 72 VDC

With PWR-HV-P48–A/PWR-HV-NP installed:
Max. 0.11 A @ 110 VDC
Max. 0.06 A @ 220 VDC
Max. 0.29 A @ 110 VAC
Max. 0.18 A @ 220 VAC

With PWR-LV-P48–A/PWR-LV-NP installed:
Max. 0.53 A @ 24 VDC
Max. 0.28 A @ 48 VDC

Supported

Supported

36 W

Max. 360 W (with one power supply) for total PD consumption at 48 VDC input for PoE systems

Max. 360 W (with one power supply) for total PD consumption at 53 to 57 VDC input for PoE+ systems

Max. 720 W (with two power supplies) for total PD consumption at 48 VDC input for PoE systems

Max. 720 W (with two power supplies) for total PD consumption at 53 to 57 VDC input for PoE+ systems

IP40

197 x 115 x 163.25 mm (7.76 x 4.53 x 6.43 in)
212 x 115 x 163.25 mm (8.35 x 4.53 x 6.43 in) with dual PWR-HV-P48-A/PWR-LV-P48-A power modules installed

3,030 g (6.68 lb)

DIN-rail mounting, Wall mounting (with optional kit), Rack mounting (with optional kit)

-40 to 75°C (-40 to 167°F)

-40 to 85°C (-40 to 185°F)

5 to 95% (non-condensing)

EN 62368-1, IEC 62368-1, UL 62368-1, IEC 60950-1, EN 61010-2-201, UL 61010-2-201

EN 55032/35, EN 61000-6-2/-6-4

CISPR 32, FCC Part 15B Class A

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
IEC 61000-4-11

EN 50121-4

NEMA TS2

IEC 60068-2-27

IEC 60068-2-31

IEC 60068-2-6

IEC 61850-3, IEEE 1613

794,532 hrs

Telcordia SR332

5 years
