MOXA

安全路由器

Moxa EDR 系列工業安全路由器可保護關鍵設施控制網路，並維持快速的資料傳輸。它們專為自動化網路而設計，可將工業級防火牆、VPN、路由器和 L2 交換功能，無縫整合到可保護遠端存取和關鍵設備完整性的單一設備，是您不可或缺的整合式網路安全解決方案。

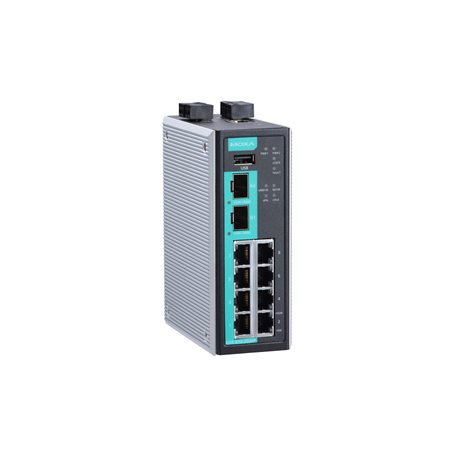

EDR-810-2GSFP
EDR-810 系列

8+2G SFP industrial multiport secure router with Firewall/NAT, -10 to 60°C operating temperature

Input/Output Interface

  • Alarm Contact Channels

    • Resistive load: 1 A @ 24 VDC

  • Buttons

    • Reset button

  • Digital Input Channels

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 8

  • 100/1000BaseSFP Slots

    • 2

  • Standards

    • IEEE 802.1Q for VLAN Tagging
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      Static Port Trunk
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3x for flow control
      IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet Software Features

  • Broadcast Forwarding

    • IP directed broadcast, broadcast forwarding

  • Management

    • Back Pressure Flow Control, DDNS, DHCP Server/Client, Web Console (HTTP/HTTPS), LLDP, QoS/CoS/ToS, SNMPv1/v2c/v3, Telnet, TFTP

  • Multicast Routing

    • DVMRP, PIM-SM, PIM-SSM

  • Redundancy Protocols

    • RSTP, STP, Turbo Ring v2

  • Routing

    • Throughput: 10,000 packets per second (max. 100 Mbps)

  • Routing Redundancy

    • VRRP

  • Security

    • HTTPS/SSL, SSH, L2TP (server), RADIUS

  • Time Management

    • NTP Server/Client, SNTP

  • Unicast Routing

    • OSPF, RIPV1/V2, Static Route

  • Filter

    • IGMP v1/v2/v3
Switch Properties

  • VLAN ID Range

    • VID 1 to 4094

  • IGMP Groups

    • 256

  • Max. No. of VLANs

    • 16
LED Interface

  • LED Indicators

    • STATE, PWR1, PWR2, FAULT, 10/100/1000M
DoS and DDoS Protection

  • Technology

    • ARP-Flood, FIN Scan, ICMP-Death, NEWWithout-SYN Scan, NMAP-ID Scan, NMAP-Xmas Scan, Null Scan, SYN/FIN Scan, SYN/RST Scan, SYN-Flood, Xmas Scan
Firewall

  • Deep Packet Inspection

    • Modbus TCP
      Modbus UDP

  • Filter

    • DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports

  • Quick Automation Profiles

    • DNP, EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, FTP, HTTP, IEC 60870-104, IPsec, L2TP, LonWorks, Modbus TCP, PPTP, PROFINET, RADIUS, SSH, Telnet

  • Stateful Inspection

    • Router firewall
      Transparent (bridge) firewall

  • Throughput

    • Max. 10,000 packets per second (max. 100 Mbps)
NAT

  • Features

    • 1-to-1, N-to-1, Port forwarding
Real-Time Firewall / VPN Event Log

  • Event Type

    • Firewall event

  • Media

    • Local storage, SNMP Trap, Syslog server
Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
Power Parameters

  • Connection

    • Removable terminal block

  • Input Voltage

    • 12 to 48 VDC

  • Input Current

    • 0.706 A @ 12 VDC, 0.353 A @ 24 VDC, 0.187 A @ 48 VDC

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • Housing

    • Metal

  • Dimensions

    • 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

  • Weight

    • 830 g (2.10 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Safety

    • UL 508

  • EMC

    • EN 55032/24

  • Hazardous Locations

    • UL/cUL Class I Division 2 Groups A/B/C/D

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Railway

    • EN 50121-4

  • Traffic Control

    • NEMA TS2

  • Shock

    • IEC 60068-2-27

  • Freefall

    • IEC 60068-2-32

  • Vibration

    • IEC 60068-2-6
MTBF

  • Time

    • 981,954 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
