MOXA

安全路由器

Moxa EDR 系列工業安全路由器可保護關鍵設施控制網路,並維持快速的資料傳輸。它們專為自動化網路而設計,可將工業級防火牆、VPN、路由器和 L2 交換功能,無縫整合到可保護遠端存取和關鍵設備完整性的單一設備,是您不可或缺的整合式網路安全解決方案。

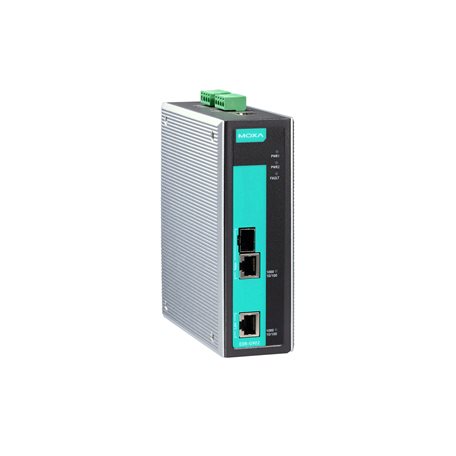

EDR-G902-T
EDR-G902 系列

Industrial Gigabit firewall/NAT secure router with 1 WAN port, 10 VPN tunnels, -40 to 75°C operating temperature

Input/Output Interface
  • Alarm Contact Channels

    • 1 relay output with current carrying capacity of 1 A @ 24 VDC
  • Buttons

    • Reset button
  • Digital Input Channels

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
Ethernet Interface
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 1
  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

    • 1
  • Standards

    • IEEE 802.1Q for VLAN Tagging
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
      IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
  • WAN Ports, RJ45/Fiber Combo Port

    • 1
  • LAN Ports, RJ45 port

    • 1
Ethernet Software Features
  • Management

    • Back Pressure Flow Control, DDNS, DHCP Server/Client, HTTP, LLDP, QoS/CoS/ToS, SMTP, SNMPv1/v2c/v3, Telnet, TFTP, QoS, PPPOE, Traffic prioritization
  • Routing

    • Throughput: 25,000 packets per second (max. 300 Mbps)
  • Routing Redundancy

    • VRRP
  • Security

    • HTTPS/SSL, SSH, IPsec, OpenVPN (client and server), UDP and TCP Tunnel mode (routing) and TAP mode (bridge), L2TP (server), RADIUS
  • Time Management

    • NTP Server/Client, SNTP
  • Unicast Routing

    • OSPF, RIPV1/V2, Static Route
Switch Properties
  • Max. No. of VLANs

    • 10
DoS and DDoS Protection
  • Technology

    • ARP-Flood, FIN Scan, ICMP-Death, NEWWithout-SYN Scan, NMAP-ID Scan, NMAP-Xmas Scan, Null Scan, SYN/FIN Scan, SYN/RST Scan, SYN-Flood, Xmas Scan
Firewall
  • Deep Packet Inspection

    • Modbus TCP
      Modbus UDP
  • Filter

    • DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports
  • Quick Automation Profiles

    • DNP, EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, FTP, HTTP, IEC 60870-104, IPsec, L2TP, LonWorks, Modbus TCP, PPTP, PROFINET, RADIUS, SSH, Telnet
  • Stateful Inspection

    • Router firewall
      Transparent (bridge) firewall
  • Throughput

    • Max. 25000 packets per second (max. 300 Mbps)
IPsec VPN
  • Authentication

    • MD5 and SHA (SHA-256)
      RSA (key size: 1024-bit, 2048-bit)
      X.509 v3 certificate
  • Concurrent VPN Tunnels

    • Max. 50 IPsec VPN tunnels
  • Encryption

    • 3DES, AES-128, AES-192, AES-256, DES
  • Protocols

    • IPsec, L2TP (server), PPTP (client)
  • Throughput

    • Max. 60 Mbps (Conditions: AES-256, SHA-256)
NAT
  • Features

    • 1-to-1, bidirectional 1-to-1, N-to-1, Port forwarding
OpenVPN
  • Authentication

    • User password by MD5 and SHA1
  • Concurrent VPN Tunnels

    • Client Mode: max. 2 external servers
      Server Mode: max. 5 external clients
  • Encryption

    • AES-128/192/256 CBC, Blowfish CBC, DES CBC, DES-EDE3 CBC
  • Protocols

    • OpenVPN (client and server), UDP, and TCP, Tunnel mode (routing) and TAP mode (bridge)
Real-Time Firewall / VPN Event Log
  • Event Type

    • Firewall event, System event, VPN event
  • Media

    • Local storage, SNMP Trap, Syslog server
Serial Interface
  • Console Port

    • RS-232
Power Parameters
  • Connection

    • Removable terminal block
  • Input Voltage

    • 12/24/48 VDC
  • Inrush Current (Max.)

    • 0.45 A @ 24 VDC
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 51 x 152 x 131.1 mm (2.01 x 5.98 x 5.16 in)
  • Weight

    • 1250 g (2.82 lb)
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Freefall

    • IEC 60068-2-32
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Maritime

    • DNV-GL
  • Safety

    • UL 508
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 981,233 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
