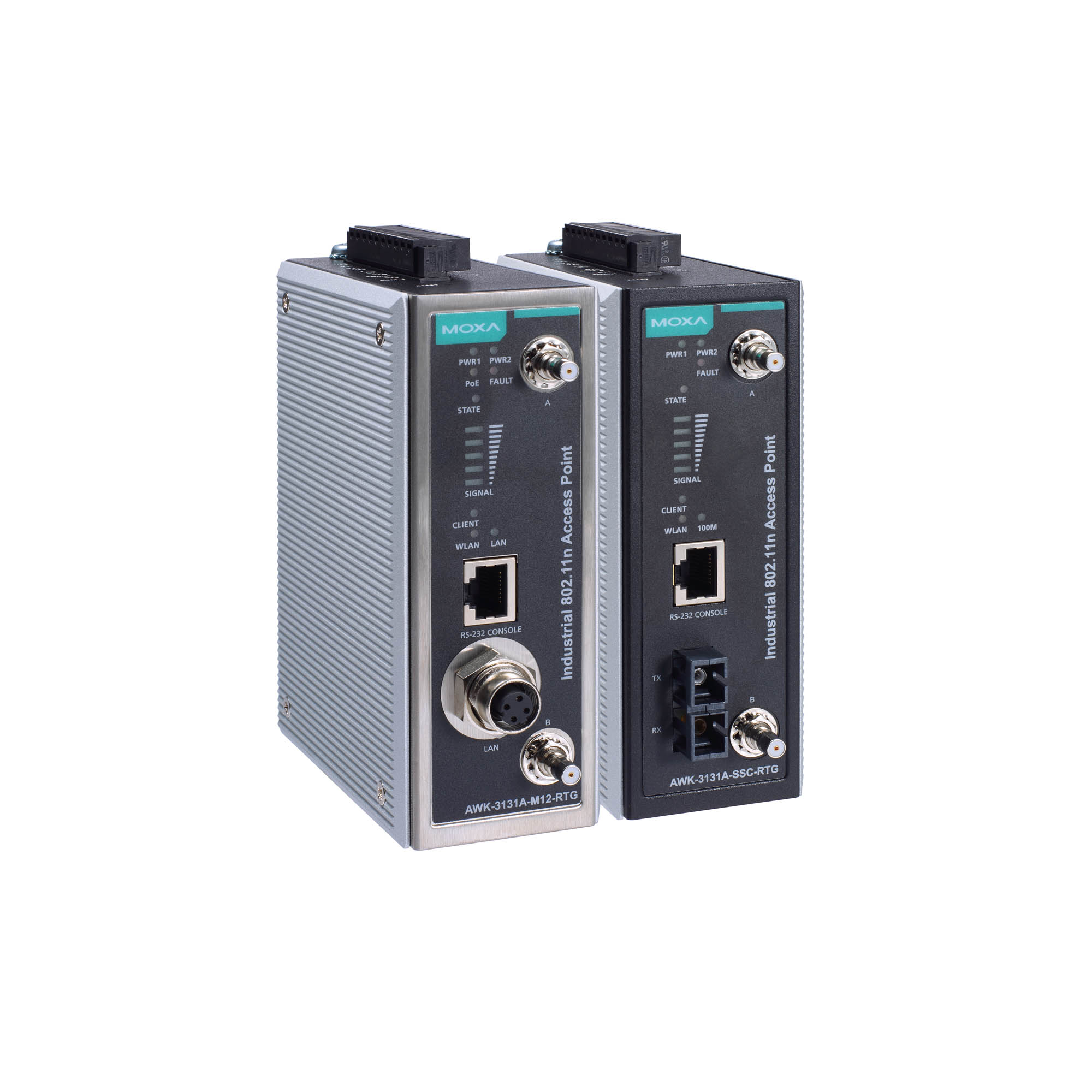

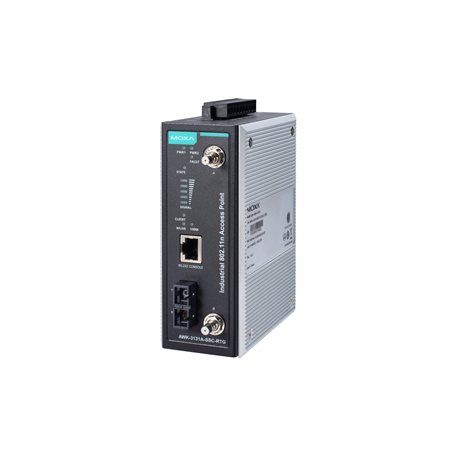

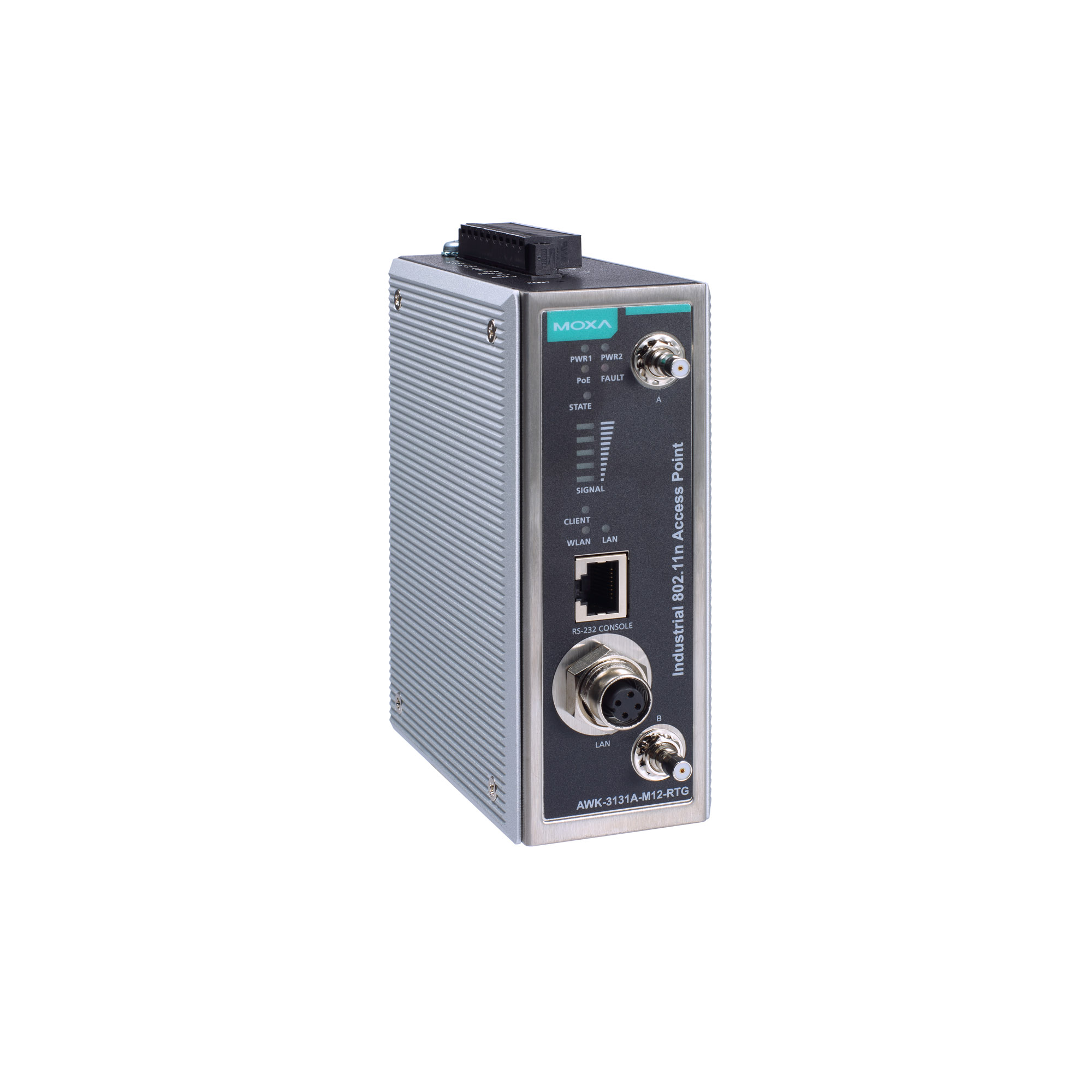

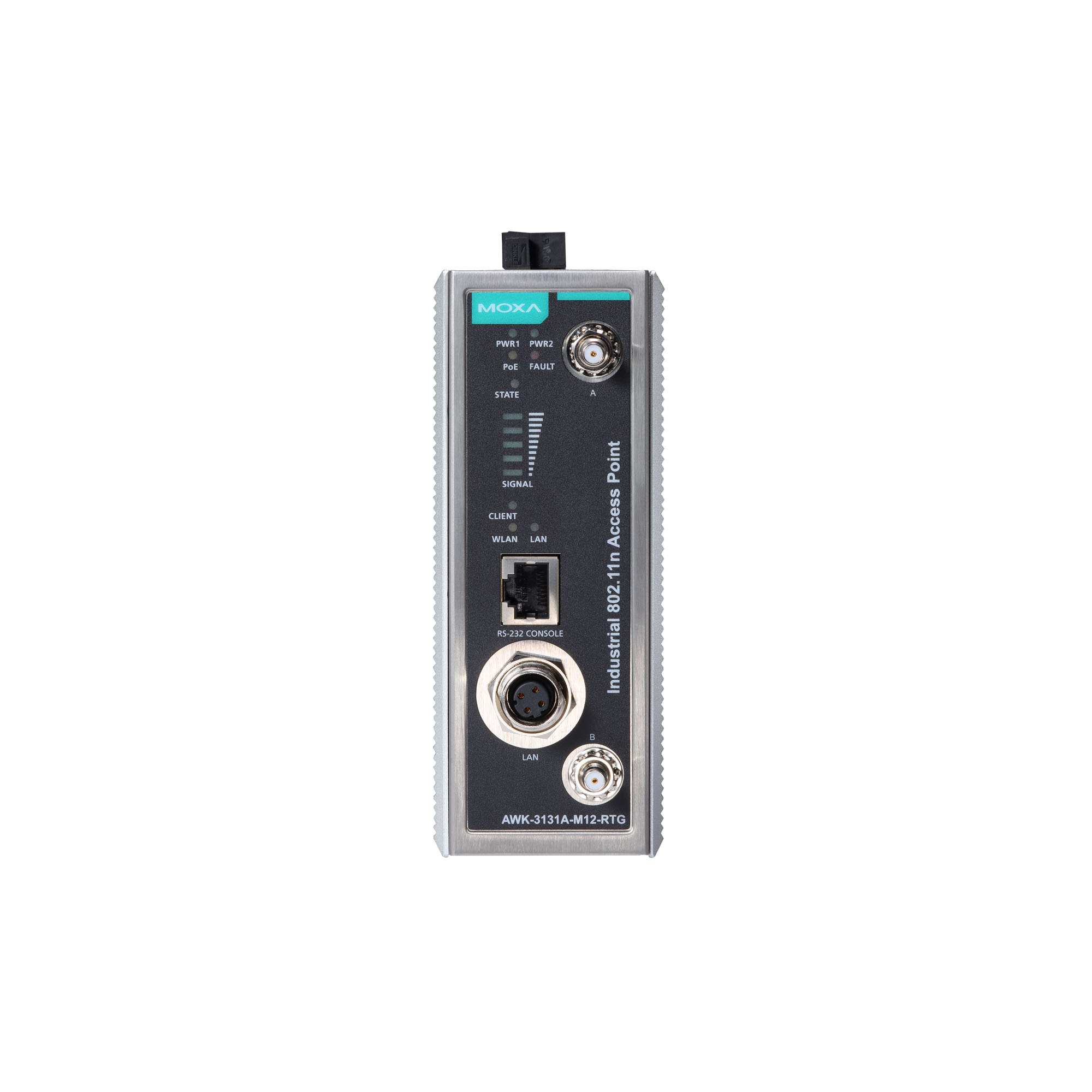

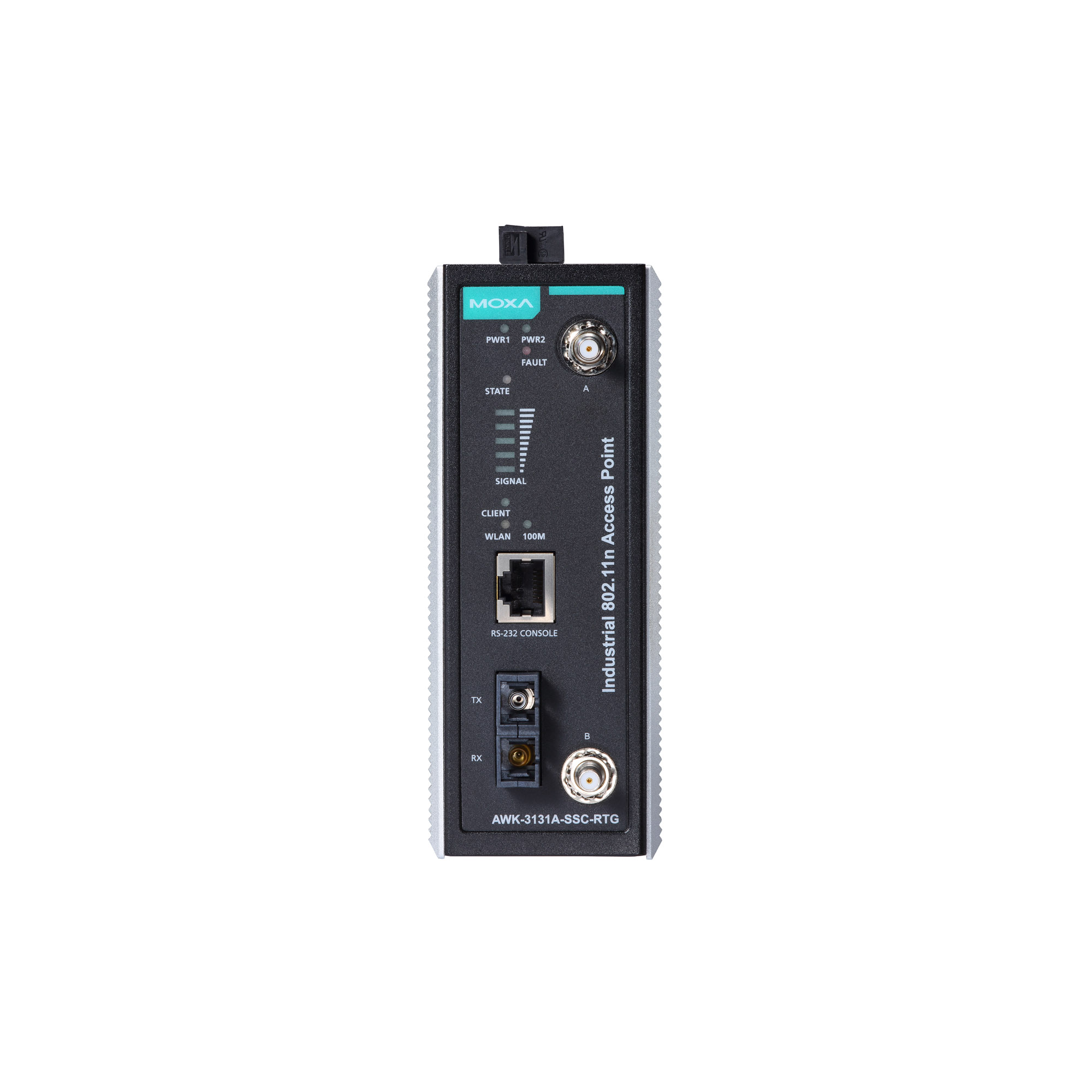

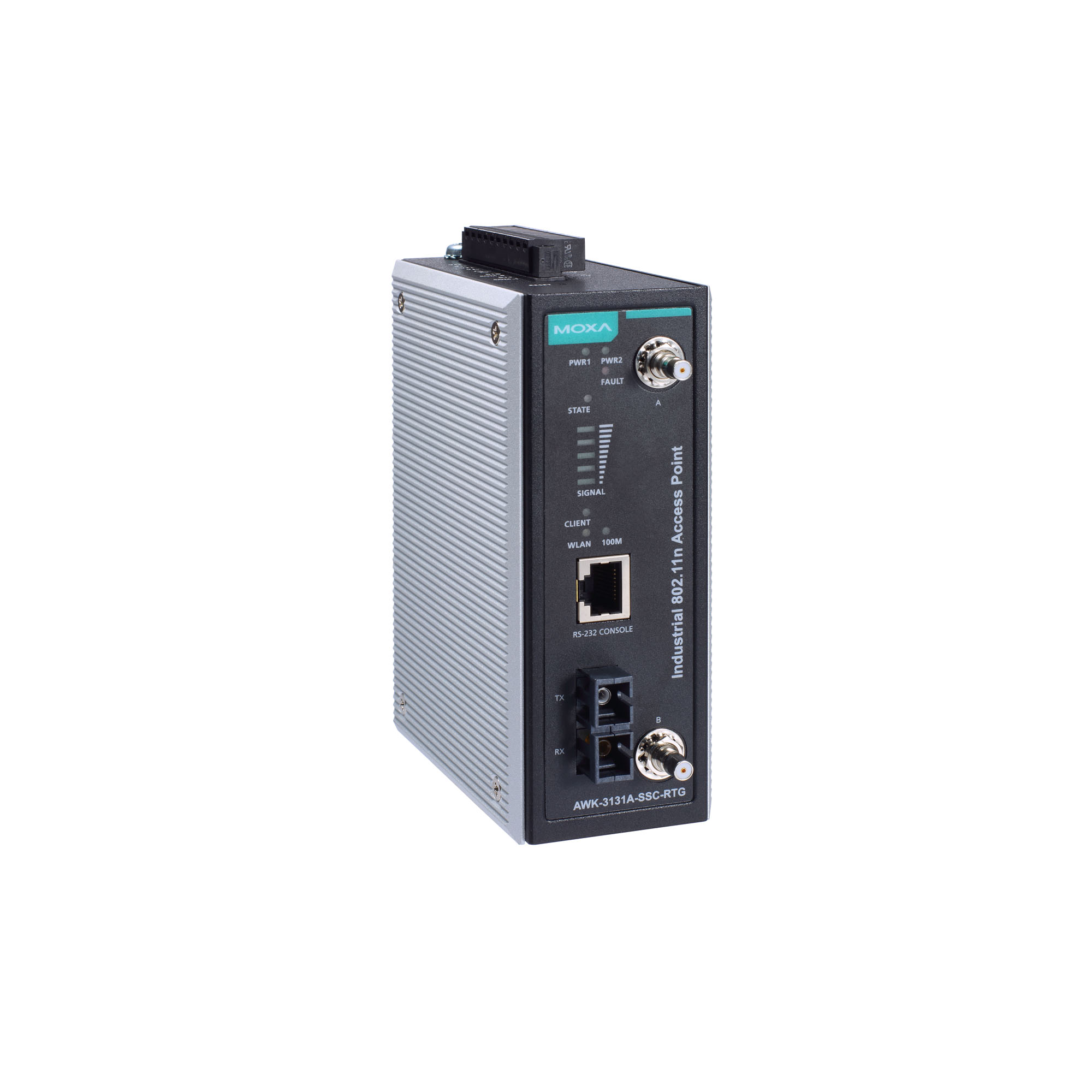

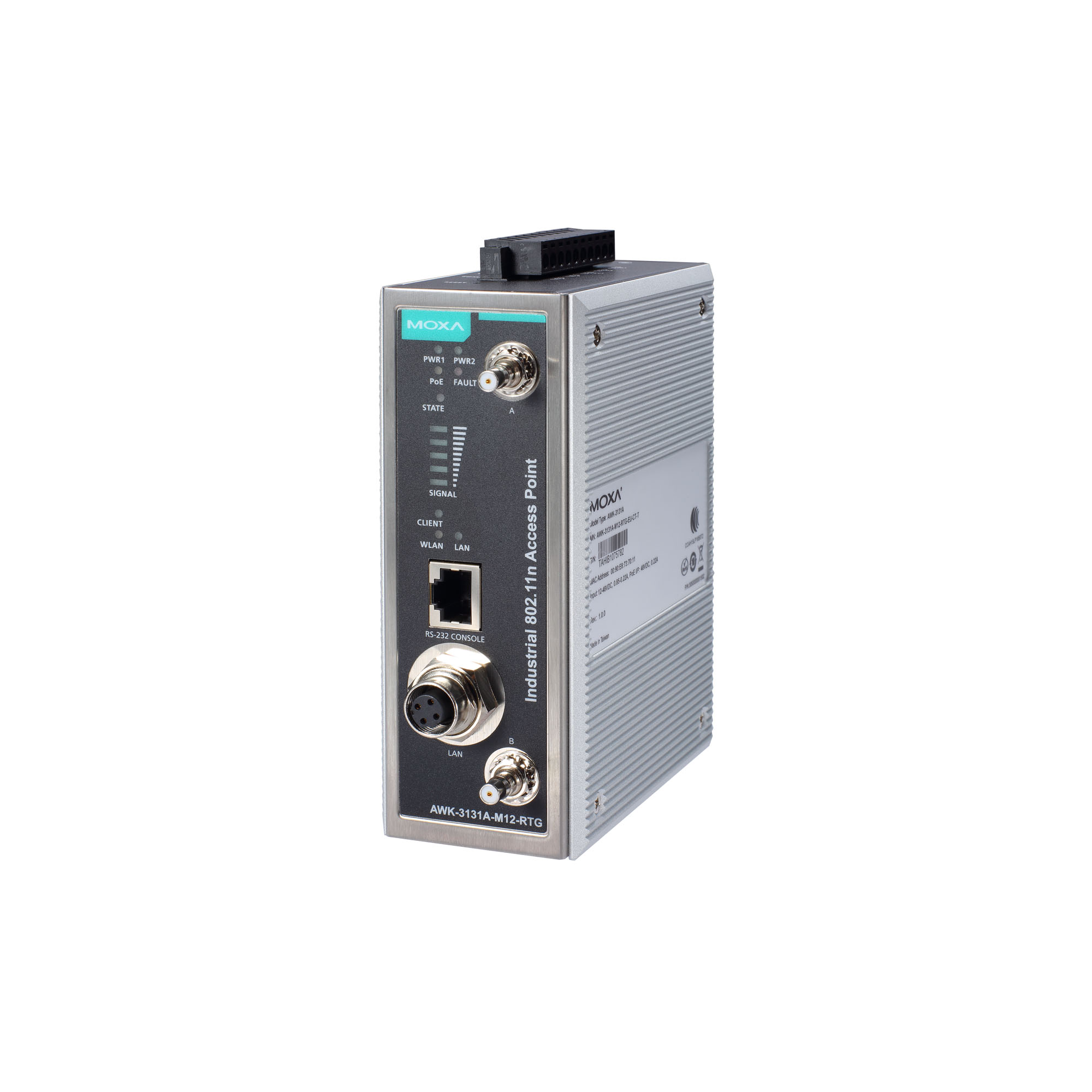

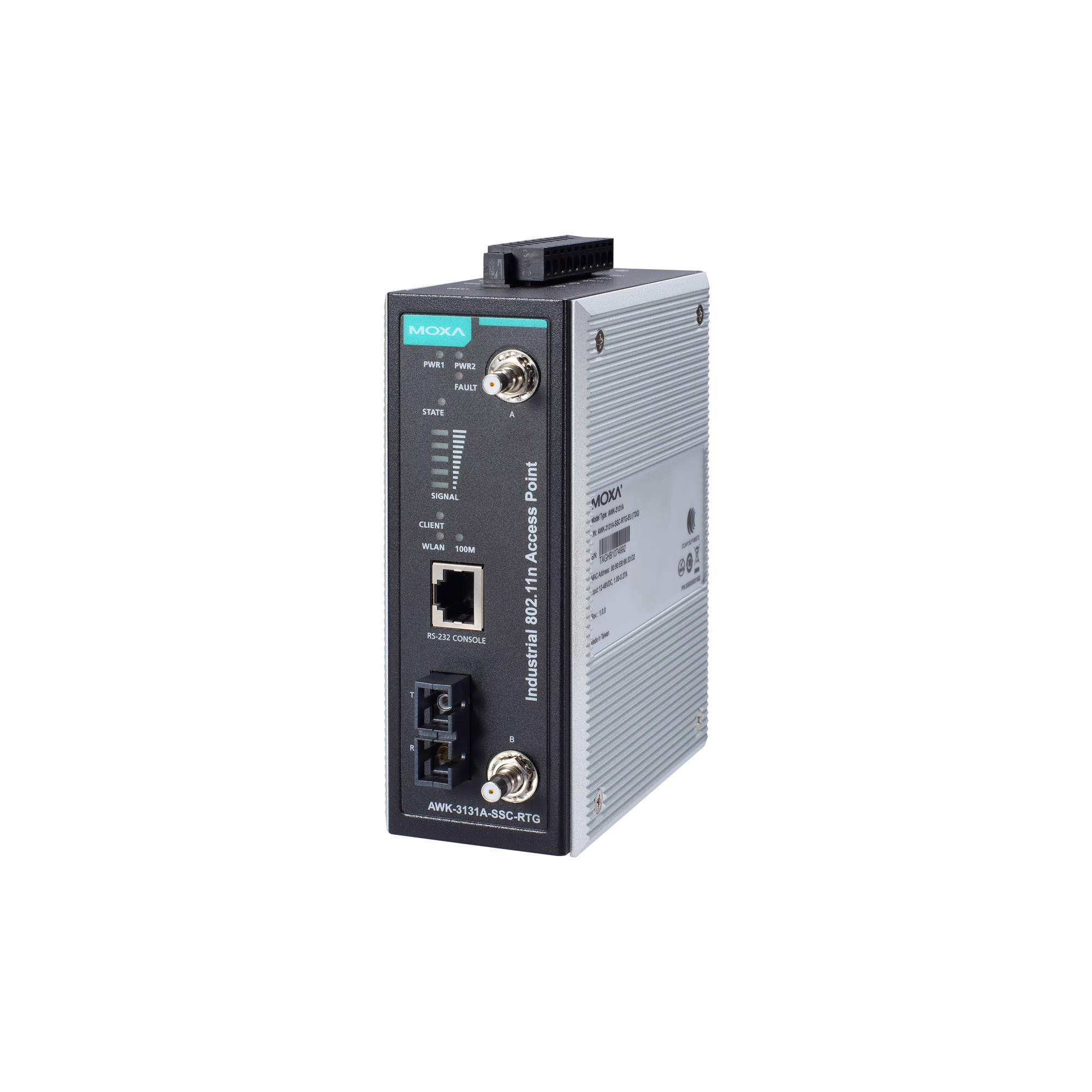

AWK-3131A-RTG 系列

軌道車載室內單一無線電,802.11n AP/client,IP30

moxa-awk-3131a-rtg-series-image-(1).jpg | Moxa
moxa-awk-3131a-rtg-series-image-1-(1).jpg | Moxa
moxa-awk-3131a-rtg-series-image-2-(1).jpg | Moxa
moxa-awk-3131a-rtg-series-image-3-(1).jpg | Moxa
moxa-awk-3131a-rtg-series-image-4-(1).jpg | Moxa
moxa-awk-3131a-rtg-series-image-5-(1).jpg | Moxa
moxa-awk-3131a-rtg-series-image-6-(1).jpg | Moxa

特色與優點

  • 符合 IEEE 802.11a/b/g/n 規範
  • M12 防震連接器
  • SC 光纖連接
  • QoS(WMM)和 VLAN 提供有效率的網路傳輸
  • 基於控制器的 Turbo Roaming(小於 50 毫秒) 此處所指的 Turbo Roaming 快速漫遊復原時間是在最佳狀態下,配置無干擾 20 MHz RF 頻道、WPA2-PSK 安全性和預設的 Turbo Roaming 快速漫遊參數,所得到的測試結果平均值。用戶端設定為在 100 Kbps 流量負載下 3 個頻道漫遊。其他情況也有可能會影響漫遊的效能。若想了解更多關於 Turbo Roaming 快速漫遊的參數設定,請參閱產品手冊。
  • 符合所有 EN 50155 規範強制性測試項目 此產品適用於符合 EN 50155 標準所定義的所有軌道車輛應用。若需更詳細的說明,請參照:www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • 提供寬溫度型號,適合 -40 至 75°C 的作業環境

認證

  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

AWK-3131A-RTG 二合一工業 Ap/client 裝置專為列車對地通訊所設計,即使列車時速高達 120 公里依然能夠可靠運作。AWK-3131A-RTG 部分 EN 50155 規範部分項目,涵蓋操作溫度、電源輸入電壓、突波、ESD 和震動,使得 AWK-3131A-RTG 適用於多種的工業應用。 安裝簡易,可利用 DIN 軌道安裝或置於配電箱中,其 DIN 軌道安裝功能、寬操作溫度範圍、具備 LED 指示燈的 IP30 機箱,使得 AWK-3131A-RTG 成為軌道應用最簡便且可靠的解決方案。

進階安全性

  • 64 位元和 128 位元 WEP(Wired Equivalent Privacy,有線等效加密)

  • 啟用/停用 SSID 廣播

  • WPA/WPA2(Wi-Fi 存取保護)和支援802.11i

  • 支援 IEEE802.1X/RADIUS

  • 針對存取控制提供強力的篩選機制

專為車對地應用所設計

  • 若為用戶端,Turbo Roaming 快速漫遊在 3 個頻道及 WPA2 時,切換時間 < 150 毫秒

  • 若為控制端,Turbo Roaming 快速漫遊(僅限於和 WAC-1001 或 WAC-2004 並用時支援)在 3 個頻道及 WPA2 時,切換時間 < 50 毫秒

  • 多種漫遊參數,適用於不同的安裝架構和天線類型

  • WLAN Standards

    802.11a/b/g/n
    802.11i Wireless Security

  • Modulation Type

    DSSS
    OFDM
    802.11b: CCK @ 11/5.5 Mbps
    802.11b: DQPSK @ 2 Mbps
    802.11b: DBPSK @ 1 Mbps
    802.11a/g: 64QAM @ 54/48 Mbps
    802.11a/g: 16QAM @ 36/24 Mbps
    802.11a/g: QPSK @ 18/12 Mbps
    802.11a/g: BPSK @ 9/6 Mbps
    802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps

  • Frequency Band for US (20 MHz operating channels)

    2.412 to 2.462 GHz (11 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.500 to 5.700 GHz (8 channels) excluding 5.600 to 5.640 GHz DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.745 to 5.825 GHz (5 channels)

  • Frequency Band for EU (20 MHz operating channels)

    2.412 to 2.472 GHz (13 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.

  • Frequency Band for JP (20 MHz operating channels)

    2.412 to 2.484 GHz (14 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.

  • Wireless Security

    SSID broadcast enable/disable
    WEP encryption (64-bit and 128-bit)
    WPA/WPA2-Personal
    WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)

  • Transmission Rate

    802.11b: 1 to 11 Mbps
    802.11a/g: 6 to 54 Mbps
    802.11n: 6.5 to 300 Mbps

  • Transmitter Power for 802.11a

    23±1.5 dBm @ 6 to 24 Mbps
    21±1.5 dBm @ 36 Mbps
    20±1.5 dBm @ 48 Mbps
    18±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (5 GHz)

    23±1.5 dBm @ MCS0 20 MHz
    20±1.5 dBm @ MCS1 20 MHz
    20±1.5 dBm @ MCS2 20 MHz
    20±1.5 dBm @ MCS3 20 MHz
    19±1.5 dBm @ MCS4 20 MHz
    18±1.5 dBm @ MCS5 20 MHz
    18±1.5 dBm @ MCS6 20 MHz
    18±1.5 dBm @ MCS7 20 MHz
    23±1.5 dBm @ MCS8 20 MHz
    20±1.5 dBm @ MCS9 20 MHz
    20±1.5 dBm @ MCS10 20 MHz
    20±1.5 dBm @ MCS11 20 MHz
    19±1.5 dBm @ MCS12 20 MHz
    19±1.5 dBm @ MCS13 20 MHz
    18±1.5 dBm @ MCS14 20 MHz
    18±1.5 dBm @ MCS15 20 MHz
    23±1.5 dBm @ MCS0 40 MHz
    20±1.5 dBm @ MCS1 40 MHz
    20±1.5 dBm @ MCS2 40 MHz
    20±1.5 dBm @ MCS3 40 MHz
    19±1.5 dBm @ MCS4 40 MHz
    18±1.5 dBm @ MCS5 40 MHz
    18±1.5 dBm @ MCS6 40 MHz
    18±1.5 dBm @ MCS7 40 MHz
    23±1.5 dBm @ MCS8 40 MHz
    20±1.5 dBm @ MCS9 40 MHz
    20±1.5 dBm @ MCS10 40 MHz
    20±1.5 dBm @ MCS11 40 MHz
    19±1.5 dBm @ MCS12 40 MHz
    19±1.5 dBm @ MCS13 40 MHz
    18±1.5 dBm @ MCS14 40 MHz
    18±1.5 dBm @ MCS15 40 MHz

  • Transmitter Power for 802.11b

    26±1.5 dBm @ 1 Mbps
    26±1.5 dBm @ 2 Mbps
    26±1.5 dBm @ 5.5 Mbps
    25±1.5 dBm @ 11 Mbps

  • Transmitter Power for 802.11g

    23±1.5 dBm @ 6 to 24 Mbps
    21±1.5 dBm @ 36 Mbps
    19±1.5 dBm @ 48 Mbps
    18±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (2.4 GHz)

    23±1.5 dBm @ MCS0 20 MHz
    21±1.5 dBm @ MCS1 20 MHz
    21±1.5 dBm @ MCS2 20 MHz
    21±1.5 dBm @ MCS3 20 MHz
    20±1.5 dBm @ MCS4 20 MHz
    19±1.5 dBm @ MCS5 20 MHz
    18±1.5 dBm @ MCS6 20 MHz
    18±1.5 dBm @ MCS7 20 MHz
    23±1.5 dBm @ MCS8 20 MHz
    21±1.5 dBm @ MCS9 20 MHz
    21±1.5 dBm @ MCS10 20 MHz
    21±1.5 dBm @ MCS11 20 MHz
    20±1.5 dBm @ MCS12 20 MHz
    19±1.5 dBm @ MCS13 20 MHz
    18±1.5 dBm @ MCS14 20 MHz
    18±1.5 dBm @ MCS15 20 MHz
    23±1.5 dBm @ MCS0 40 MHz
    20±1.5 dBm @ MCS1 40 MHz
    20±1.5 dBm @ MCS2 40 MHz
    20±1.5 dBm @ MCS3 40 MHz
    19±1.5 dBm @ MCS4 40 MHz
    19±1.5 dBm @ MCS5 40 MHz
    18±1.5 dBm @ MCS6 40 MHz
    17±1.5 dBm @ MCS7 40 MHz
    23±1.5 dBm @ MCS8 40 MHz
    20±1.5 dBm @ MCS9 40 MHz
    20±1.5 dBm @ MCS10 40 MHz
    20±1.5 dBm @ MCS11 40 MHz
    20±1.5 dBm @ MCS12 40 MHz
    19±1.5 dBm @ MCS13 40 MHz
    18±1.5 dBm @ MCS14 40 MHz
    17±1.5 dBm @ MCS15 40 MHz

  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

    Typ. -90 @ 6 Mbps
    Typ. -88 @ 9 Mbps
    Typ. -88 @ 12 Mbps
    Typ. -85 @ 18 Mbps
    Typ. -81 @ 24 Mbps
    Typ. -78 @ 36 Mbps
    Typ. -74 @ 48 Mbps
    Typ. -74 @ 54 Mbps
    Note Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.

  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

    Typ. -88 dBm @ MCS0 20 MHz
    Typ. -85 dBm @ MCS1 20 MHz
    Typ. -82 dBm @ MCS2 20 MHz
    Typ. -79 dBm @ MCS3 20 MHz
    Typ. -76 dBm @ MCS4 20 MHz
    Typ. -71 dBm @ MCS5 20 MHz
    Typ. -70 dBm @ MCS6 20 MHz
    Typ. -69 dBm @ MCS7 20 MHz
    Typ. -95 dBm @ MCS8 20 MHz
    Typ. -91 dBm @ MCS9 20 MHz
    Typ. -87 dBm @ MCS10 20 MHz
    Typ. -80 dBm @ MCS11 20 MHz
    Typ. -78 dBm @ MCS12 20 MHz
    Typ. -74 dBm @ MCS13 20 MHz
    Typ. -72 dBm @ MCS14 20 MHz
    Typ. -71 dBm @ MCS15 20 MHz
    Typ. -84 dBm @ MCS0 40 MHz
    Typ. -81 dBm @ MCS1 40 MHz
    Typ. -77 dBm @ MCS2 40 MHz
    Typ. -75 dBm @ MCS3 40 MHz
    Typ. -71 dBm @ MCS4 40 MHz
    Typ. -67 dBm @ MCS5 40 MHz
    Typ. -64 dBm @ MCS6 40 MHz
    Typ. -63 dBm @ MCS7 40 MHz
    Typ. -90 dBm @ MCS8 40 MHz
    Typ. -85 dBm @ MCS9 40 MHz
    Typ. -82 dBm @ MCS10 40 MHz
    Typ. -81 dBm @ MCS11 40 MHz
    Typ. -77 dBm @ MCS12 40 MHz
    Typ. -73 dBm @ MCS13 40 MHz
    Typ. -71 dBm @ MCS14 40 MHz
    Note Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
    Typ. -68 dBm @ MCS15 40 MHz

  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

    Typ. -93 dBm @ 1 Mbps
    Typ. -93 dBm @ 2 Mbps
    Typ. -93 dBm @ 5.5 Mbps
    Typ. -88 dBm @ 11 Mbps

  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

    Typ. -88 dBm @ 6 Mbps
    Typ. -86 dBm @ 9 Mbps
    Typ. -85 dBm @ 12 Mbps
    Typ. -85 dBm @ 18 Mbps
    Typ. -85 dBm @ 24 Mbps
    Typ. -82 dBm @ 36 Mbps
    Typ. -78 dBm @ 48 Mbps
    Typ. -74 dBm @ 54 Mbps

  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

    Typ. -89 dBm @ MCS0 20 MHz
    Typ. -85 dBm @ MCS1 20 MHz
    Typ. -85 dBm @ MCS2 20 MHz
    Typ. -82 dBm @ MCS3 20 MHz
    Typ. -78 dBm @ MCS4 20 MHz
    Typ. -74 dBm @ MCS5 20 MHz
    Typ. -72 dBm @ MCS6 20 MHz
    Typ. -70 dBm @ MCS7 20 MHz
    Typ. -95 dBm @ MCS8 20 MHz
    Typ. -90 dBm @ MCS9 20 MHz
    Typ. -87 dBm @ MCS10 20 MHz
    Typ. -83 dBm @ MCS11 20 MHz
    Typ. -80 dBm @ MCS12 20 MHz
    Typ. -74 dBm @ MCS13 20 MHz
    Typ. -71 dBm @ MCS14 20 MHz
    Typ. -69 dBm @ MCS15 20 MHz
    Typ. -87 dBm @ MCS0 40 MHz
    Typ. -83 dBm @ MCS1 40 MHz
    Typ. -83 dBm @ MCS2 40 MHz
    Typ. -80 dBm @ MCS3 40 MHz
    Typ. -76 dBm @ MCS4 40 MHz
    Typ. -73 dBm @ MCS5 40 MHz
    Typ. -69 dBm @ MCS6 40 MHz
    Typ. -67 dBm @ MCS7 40 MHz
    Typ. -93 dBm @ MCS8 40 MHz
    Typ. -88 dBm @ MCS9 40 MHz
    Typ. -85 dBm @ MCS10 40 MHz
    Typ. -82 dBm @ MCS11 40 MHz
    Typ. -78 dBm @ MCS12 40 MHz
    Typ. -73 dBm @ MCS13 40 MHz
    Typ. -69 dBm @ MCS14 40 MHz
    Typ. -67 dBm @ MCS15 40 MHz

  • WLAN Operation Mode

    Access point, Client, Client-Router, Sniffer

  • Antenna Connectors

    QMA

  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    1, AWK-3131A-M12-RTG only

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3af for PoE
    IEEE 802.1Q for VLAN Tagging

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    1, 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection (AWK-3131A-M12-RTG only)

  • 100BaseFX Ports (single-mode SC connector)

    1, AWK-3131A-SSC-RTG only

  • Optical Fiber

  • Optical Fiber

  • Management

    General: Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCP
    AP-only: ARP, BOOTP, DHCP, STP/RSTP (IEEE 802.1D/w)

  • Security

    RADIUS

  • Filter

    MAC/IP Protocol/Port-based

  • Console Port

    RS-232 (RJ45-type)

  • LED Indicators

    PWR1, PWR2, PoE*, FAULT, STATE, SIGNAL, CLIENT, WLAN, LAN (AWK-3131A-M12-RTG only),100M (AWK-3131A-SSC-RTG only)
    *PoE is only available for the AWK-3131A-M12-RTG

  • Digital Inputs

    2
    +13 to +30 V for state 1
    +3 to -30 V for state 0
    Max. input current: 8 mA

  • Alarm Contact Channels

    Relay output with current carrying capacity of 1 A @ 24 VDC

  • Buttons

    Reset button

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    52.9 x 151.9 x 127.4 mm (2.08 x 5.98 x 5.02 in)

  • Weight

    850 g (1.87 lb)

  • Installation

    DIN-rail mounting, Wall mounting (with optional kit)

  • Input Current

    AWK-3131A-M12-RTG: 0.85 A @ 12 VDC, 0.22 A @ 48 VDC
    AWK-3131A-SSC-RTG: 1.0 A @ 12 VDC, 0.27 A @ 48 VDC

  • Input Voltage

    12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet

  • Power Connector

    1 removable 10-contact terminal block(s)

  • Power Consumption

    AWK-3131A-M12-RTG: Maximum 10.5 W
    AWK-3131A-SSC-RTG: Maximum 13 W

  • Reverse Polarity Protection

    Supported

  • Operating Temperature

    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8

  • Railway

    EN 50155, EN 50121-4

  • Railway Fire Protection

    EN 45545-2

  • Radio

    EN 301 489-1/17, EN 300 328, EN 301 893, MIC, FCC ID SLE-WAPN008, SRRC, NCC, IDA

  • Safety

    UL 60950-1, IEC 60950-1, EN 60950-1 (LVD)

  • Time

    AWK-3131A-M12-RTG: 552,454 hrs
    AWK-3131A-SSC-RTG: 528,478 hrs

  • Standards

    Telcordia SR332

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
Software Package for MXview One Series (Windows version)
300.8 MB
軟體套件
SHA-512
v1.4.1
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2024年9月20日 2024年9月20日 版本說明
Software Package for MXview One Series (Linux version)
404.8 MB
軟體套件
SHA-512
v1.4.1
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
2024年9月20日 2024年9月20日 版本說明
Firmware for AWK-3131A-RTG Series
7.6 MB
韌體
SHA-512
v1.8
2021年11月30日 2021年11月30日 版本說明
Library for AWK-3131A-RTG Series
190.0 KB
程式庫
SHA-512
v1.8
2021年11月30日 2021年11月30日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
QIG for AWK-3131A-RTG Series
1.8 MB
QIG 英文 v2.1 2021年4月29日 2021年4月29日
AWK-3131A-RTG 系列產品資料表
3.5 MB
產品資料表 中文 v3.1 2019年8月20日 2019年8月20日
Manual for AWK-3131A-RTG Series
5.3 MB
使用者手冊 英文 v1.0 2019年1月6日 2019年1月6日

product image

Buy online from distributors

已加入詢價列表
