The Cold Storage Warehouse Where Wireless Doesn’t Freeze Up

Jan 03, 2017
You can manage and share your saved list in My Moxa
Teaser Image
Share
You can manage and share your saved list in My Moxa

Automated storage and retrieval systems (AS/RSs) are increasingly reliant on wireless technology, as wiring is not always a viable option. Particularly in harsh environments, a reliable wireless network is essential for AS/RSs to get the job done without a hitch. One recent success story in China provides a good example of how to deploy robust wireless networks where space is limited and extreme temperatures are the norm.

Streamlining Storage

AS/RSs are smart systems used in warehouses, distribution centers, and manufacturing facilities to streamline storage processes and increase productivity. These smart systems are typically used in applications where large numbers of loads are moved into and out of storage, storage density is high due to space constraints, and accuracy is important because damage to goods can lead to big losses. Usually, AS/RS feature a shuttle-storage-shelving design that automatically moves goods up and down and back and forth between shelves, eliminating the possibility of human error.

Going Industrial Wireless

Wireless networks in industrial applications are gaining ground because of their numerous advantages. As wireless networks don’t require a large number of cables, cost is reduced, and engineers avoid the headache of deploying meters and meters of cabling, especially in large-scale networks. Using cables for industrial mobile equipment, such as AS/RS systems, is not only too expensive, but they would also restrict the system’s mobility.

However, wireless networks in industrial environments can easily encounter wireless interference that interrupts the wireless connection, resulting in system downtime. Developing a reliable wireless network to minimize these interruptions can be a major benefit for industrial operators.

Success Story

Recently, an AS/RS manufacturer In China helped a food company develop a smart storage warehouse to store fresh food at very low temperatures. Early on in the development phase, it was apparent that installing cables would be too complicated and disruptive to their operation. The obvious alternative was a reliable wireless network to enable communications between the control center and the large number of shuttle systems.

As these shuttle systems have limited space to carry a large number of devices, the wireless apparatus needed to be small but ruggedly designed to ensure seamless operations. Furthermore, the warehouse setup called for a wireless network that would endure sub-zero temperatures and deliver fast hand-over times to ensure the real-time control and monitoring of the shuttle systems. Other system requirements included full wireless coverage on shuttle systems to maintain a connection with the control center and isolation design to protect the wireless devices from electrical interference generated by the motors on the shuttle systems.

To ensure that the shuttle systems in this AS/RS operate at peak performance, wireless devices need to excel in three aspects: a compact but rugged design, seamless roaming ability, and greater wireless coverage.

Moxa’s Solutions


The rugged, palm-sized AWK-1131A is designed to keep wireless operations stable in harsh industrial environments, including cold-storage warehouses in which temperatures can get as cold as -40°C, and to fit comfortably in space-restricted shuttle systems. Moreover, the AWK-1131A has power and RF-isolation built in to protect wireless devices from electrical interference generated by motors. These two design features save space and eliminate the cost of installing extra isolator accessories.

Roaming performance is always an essential feature of wireless devices. The AWK-1131A series supports client-based Turbo Roaming technology that offers millisecond-level handover times to ensure that client devices on the shuttle systems can always connect with access points (APs), therefore increasing productivity because the shuttle equipment can easily move between shelves.

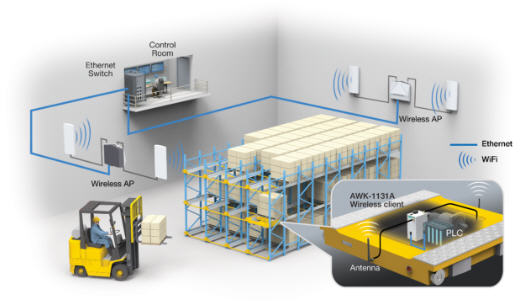

Finally, the AWK-1131A supports the 802.11n standard to offer a throughput rate of up to 300 Mbps and MIMO technology to maximize wireless availability in shuttle systems. Installing an antenna on both the front and back of the shuttle system ensures seamless connections with APs mounted on the wall. Moreover, the 5 GHz channel offers a low-traffic channel for wireless communications to avoid unexpected timeout due to oversaturated channel use.

To learn more, download our entire collection of industrial wireless success stories.
