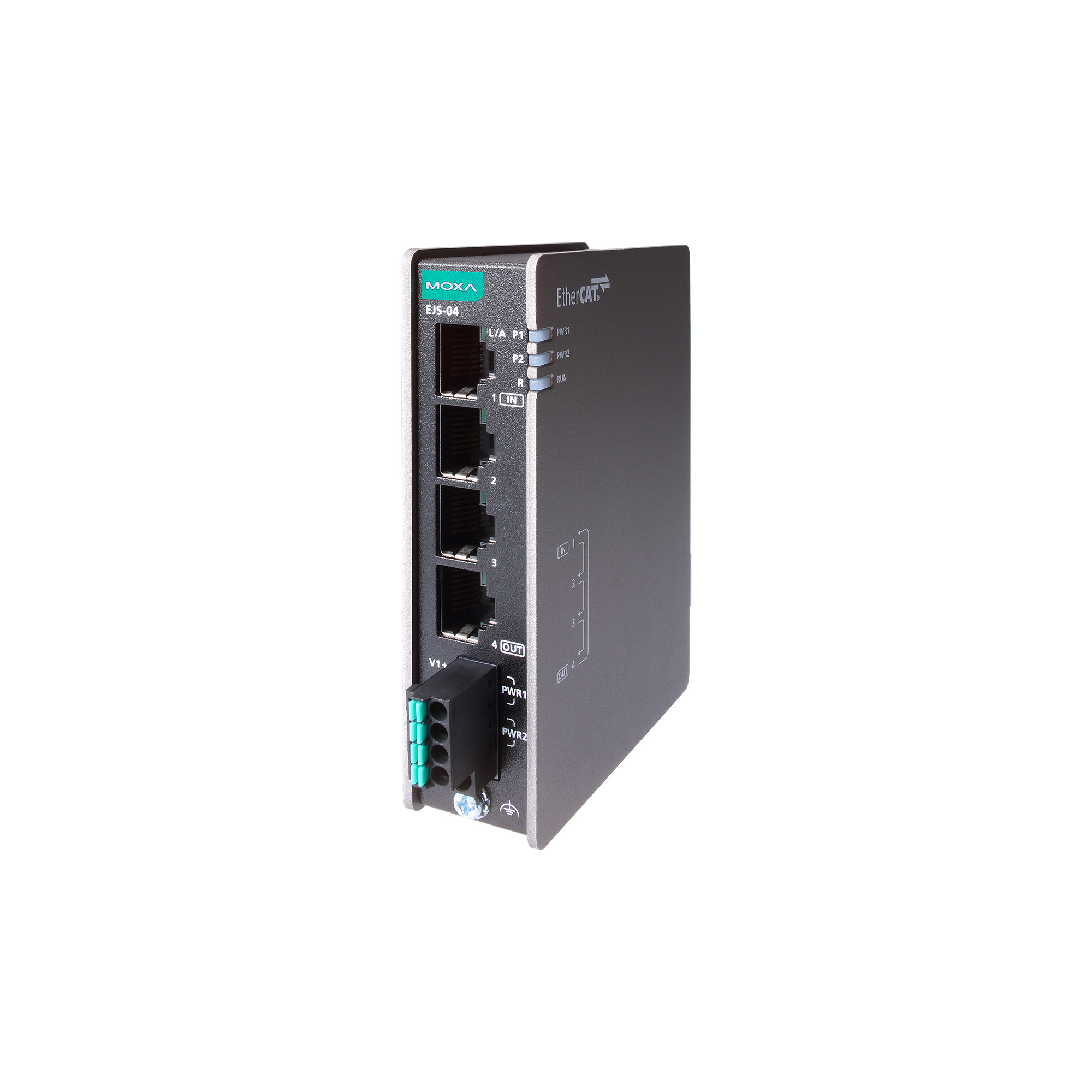

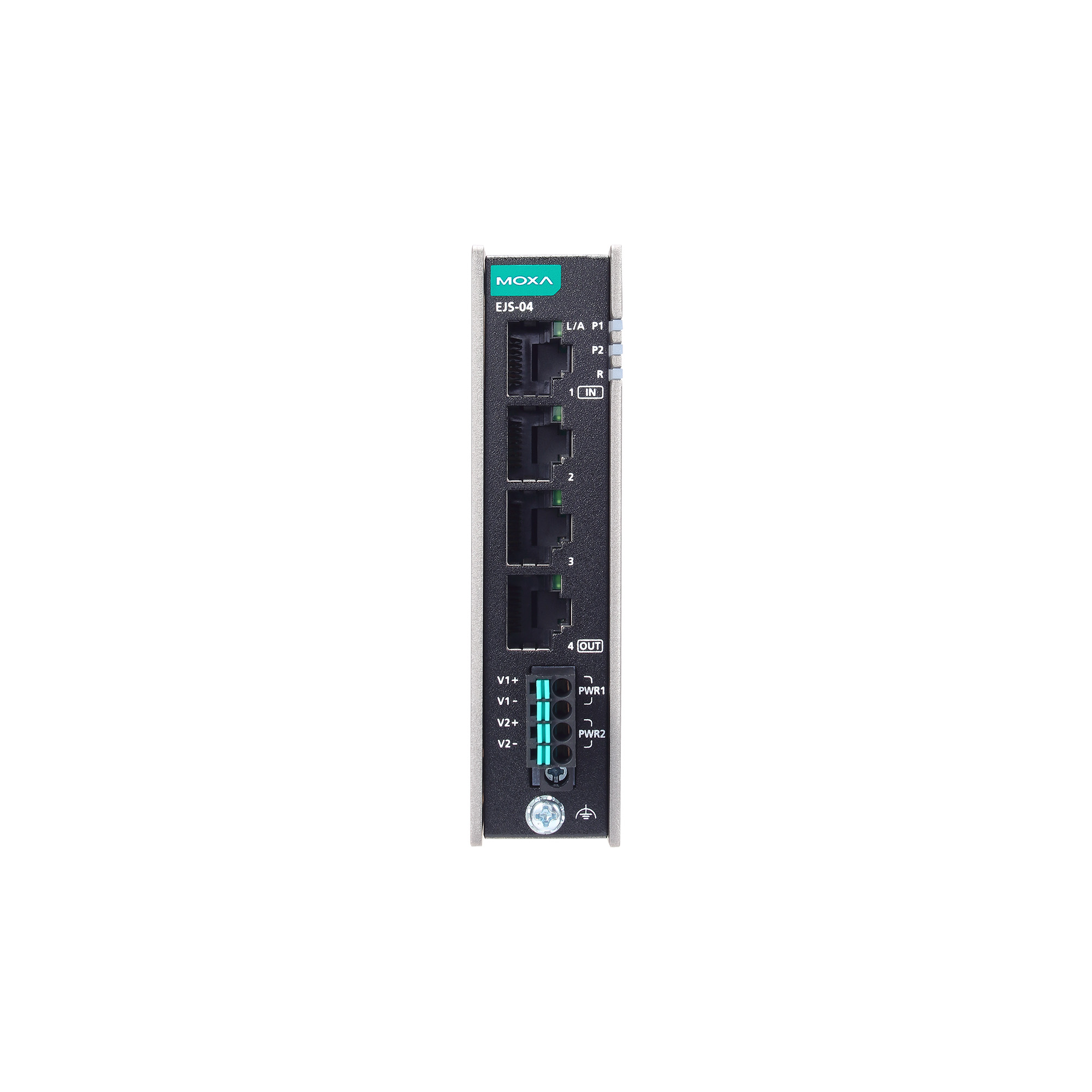

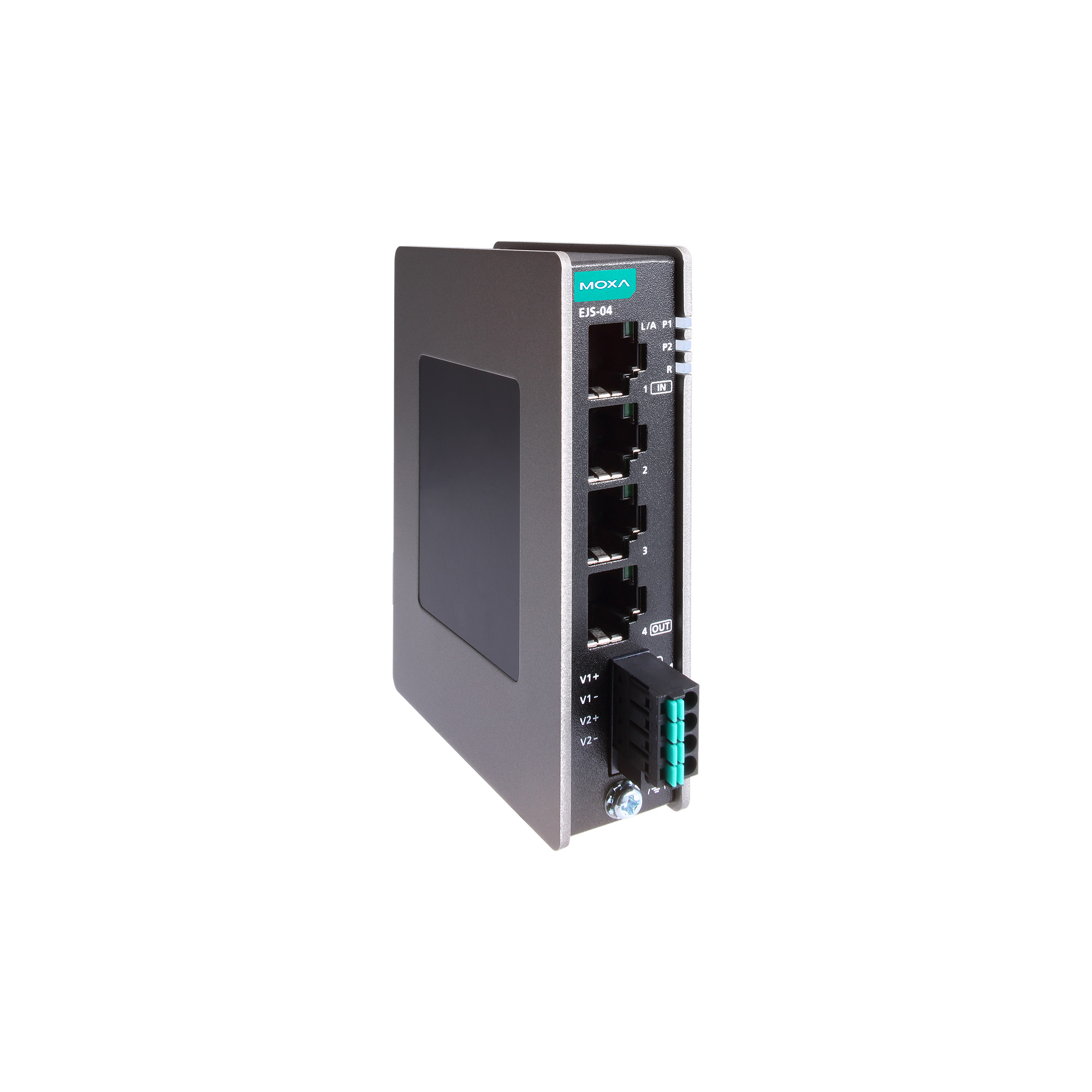

Moxa’s EJS-04 Series EtherCAT junctions are equipped with 4 Fast Ethernet EtherCAT ports. These devices support star, line, ring, or tree topology conversion, enabling multiple EtherCAT devices to be connected in a modular and efficient manner. The EJS Series features a robust metal housing with high electromagnetic compatibility to shield against environmental inference while support for multiple grounding methods simplifies wiring and installation.
The EJS Series supports a range of redundancy features to enhance the reliability and availability of EtherCAT networks. Topology conversion minimizes production line interruptions and improves troubleshooting efficiency. The dual power input design lets you connect a redundant power supply for non-stop availability in the event of a main power failure. Moreover, the EJS Series can be used in redundancy topologies to provide alternative data paths in case one data path fails, ensuring that the exchange of data is not interrupted.
The EJS Series is certified for the EtherCAT Conformance Test by the EtherCAT Technology Group (ETG), meaning the EJS Series integrates into your existing network seamlessly, making the EJS Series ideal for use in any EtherCAT application.
Save
8
Star Line Tree Ring
4 x 100BaseT(X) ports (RJ45 connector) Auto MDI/MDI-X connection
1 (IN), 3 (OUT)
1 μs per port (approximately)
Valid address range: 1 to 4095
1 removable 4-contact terminal block(s)
0.13 A (max.)
12/24/48 VDC
9.6 to 60 VDC
Supported
PWR1, PWR2, RUN
24.5 x 100 x 75 mm (0.96 x 3.94 x 2.95 in)
245 g (0.54 lb)
100 m
Metal
DIN-rail mounting Wall mounting (with optional kit)
Standard models: -10 to 60°C (14 to 140°F)Wide temp models: -40 to 75°C (-40 to 167°F)
5 to 95% (non-condensing)
-40 to 85°C (-40 to 185°F)
UL 61010-2-201 EN 62368-1
EN 55032/35 EN 61000-6-2/-6-4
CISPR 22/32, FCC Part 15B Class A
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
IEC 60068-2-27
IEC 60068-2-6 IEC 60068-2-64
ISTA-1A (with package)
8,718,114 hrs
Telcordia (Bellcore), GB
5 years
See www.moxa.com/warranty
