Power Adapters

Moxa offers a wide variety of power adapters that meet space and power source input/output requirements for most industrial control systems.

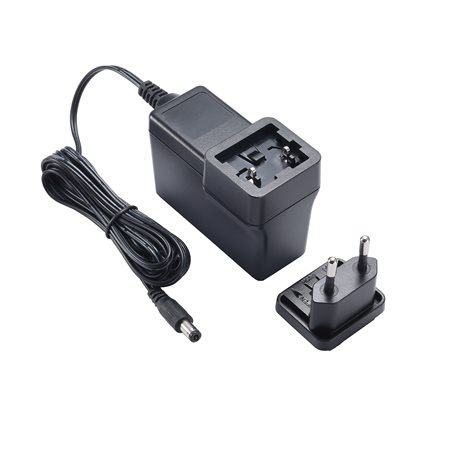

PWR-12150-WPEU-S2
Power Adapters

Unlocking barrel plug, 12 VDC, 1.5 A, 100 to 240 VAC, EU plug, 0 to 40°C operating temperature

Input Power Parameters
  • Voltage Range

    • 100 to 240 VAC (50 to 60 Hz)
Power Parameters
  • Input Plug Type

    • EU
  • Output Power Rating

    • 1.5 A @ 12 VDC
  • Output Plug Type

    • Connector Type: S-Type 5.5/2.1/9.5
Physical Characteristics
  • Dimensions

    • 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
  • Weight

    • 136 g (0.30 lb)
  • Cord Length

    • 1500±100 mm (59.06±3.94 in)
Environmental Limits
  • Operating Temperature

    • 0 to 40°C (32 to 104°F)
  • Storage Temperature

    • -20 to 70°C (-4 to 158°F)
Standards and Certifications
  • Safety

    • CE/FCC/UL/RCM/PSE/CCC/GS
Warranty
