Power Adapters

AC power adapters

moxa-power-adapters-image-(1).jpg | Moxa
moxa-power-adapters-image-1-(1).jpg | Moxa
moxa-power-adapters-image-2-(1).jpg | Moxa
moxa-power-adapters-image-3-(1).jpg | Moxa
moxa-power-adapters-image-4-(1).jpg | Moxa
moxa-power-adapters-image-5-(1).jpg | Moxa

Features and Benefits

  • 100 to 240 VAC power input
  • -40 to 75°C operating temperature range (-T models)

Contact Sales

Introduction

The power adapters in Moxa’s Power Adapter Series provide a reliable power source for many Moxa products.

  • Voltage Range

    100 to 240 VAC (50 to 60 Hz)

  • Input Plug Type

    PWR-AU Series: Australia plug type

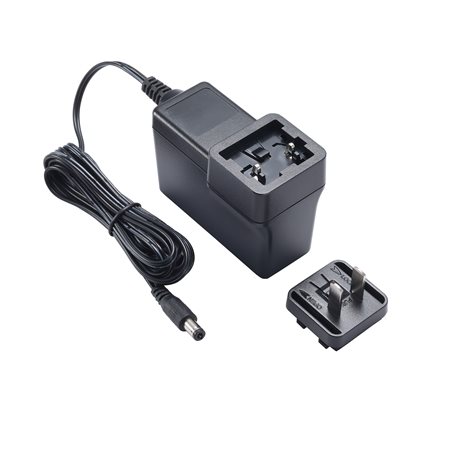

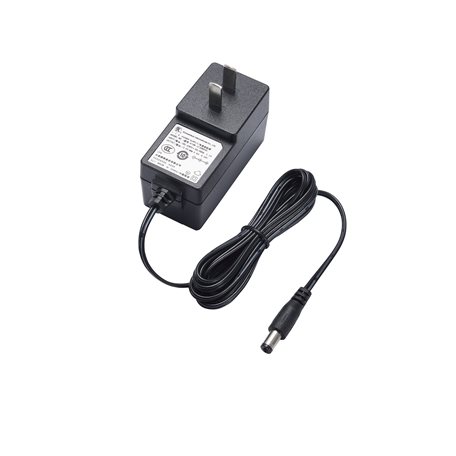

    PWR-CN Series: China plug type
    PWR-EU Series: Europe plug type

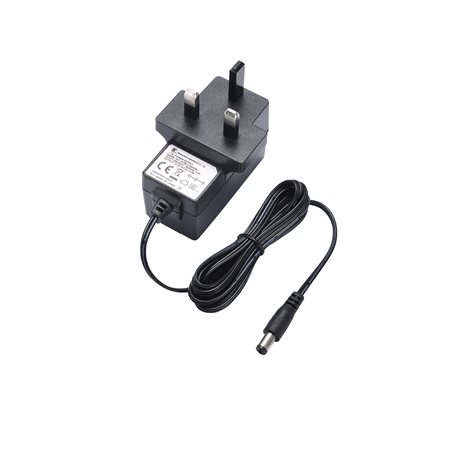

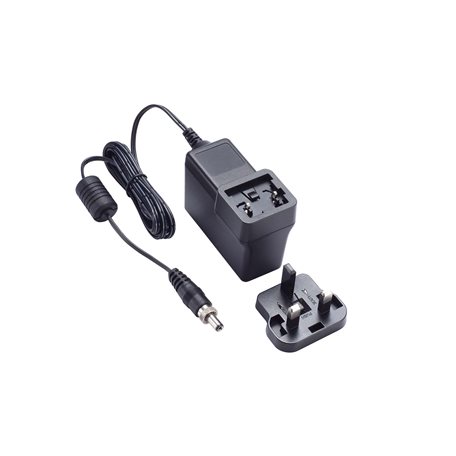

    PWR-UK Series: United Kingdom plug type

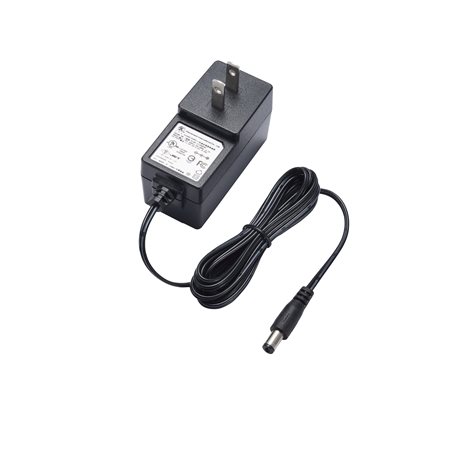

    PWR-USJP Series: United States/Japan plug type

  • Output Power Rating

    PWR-12050 Series: 0.5 A @ 12 VDC
    PWR-12125-USJP-S1: 1.25 A @ 12 VDC
    PWR-12150 Series: 1.5 A @ 12 VDC
    PWR-12125-DT-S2: 1.25 A @ 12 VDC
    PWR-12200-DT-S1: 2 A @ 12 VDC
    PWR-12300 Series: 3 A @ 12 VDC

  • Output Plug Type

    PWR-12050-S1 Series: S-Type 5.5/2.1/7.5
    PWR-12300 Series: S-Type 5.5/2.1/7.5
    PWR-12050-S2 Series: L-Type 5.5/2.1/9.0
    PWR-12125-USJP-S1: L-Type 5.5/2.1/9.5
    PWR-12150 Series: L-Type 5.5/2.1/9.0
    PWR-12125-DT-S2: S-Type 5.5/2.1/7.5
    PWR-12200-DT-S1: S-Type 5.5/2.1/7.5
    PWR-12150-SA-T Series: L-Type 5.5/2.1/7.5
    Outer Diameter: 5.5 ± 0.1 mm (0.22 ± 0.004 in)
    Inner Diameter: 2.1 ± 0.1 mm (0.08 ± 0.004 in)

  • Dimensions

    PWR-12050-WPAU-S1: 64 x 40.5 x 58.5 mm (2.52 x 1.59 x 2.30 in)
    PWR-12050-WPAU-S2: 64 x 40.5 x 56.2 mm (2.52 x 1.59 x 2.30 in)
    PWR-12050-WPCN-S1: 64 x 40.5 x 46.5 mm (2.52 x 1.59 x 1.83 in)
    PWR-12050-WPCN-S2: 64 x 40.5 x 46.5 mm (2.52 x 1.59 x 1.83 in)
    PWR-12050-WPEU-S1: 64 x 40.5 x 68.7 mm (2.52 x 1.59 x 2.71 in)

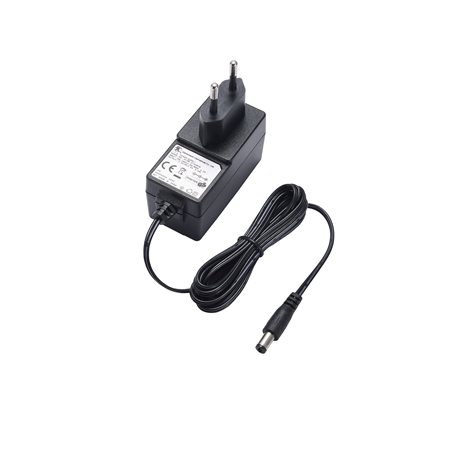

    PWR-12050-WPEU-S2: 64 x 40.5 x 68.7 mm (2.52 x 1.59 x 2.71 in)
    PWR-12050-WPUK-S1: 64 x 40.5 x 56.2 mm (2.52 x 1.59 x 2.21 in)
    PWR-12050-WPUK-S2: 64 x 40.5 x 56.2 mm (2.52 x 1.59 x 2.21 in)
    PWR-12050-WPUSJP-S1: 64 x 40.5 x 47.5 mm (2.52 x 1.59 x 1.87 in)
    PWR-12050-WPUSJP-S2: 64 x 40.5 x 30 mm (2.52 x 1.59 x 1.18 in)
    PWR-12125-USJP-S1: 74 x 43.5 x 52.5 mm (2.91 x 1.71 x 2.07 in)

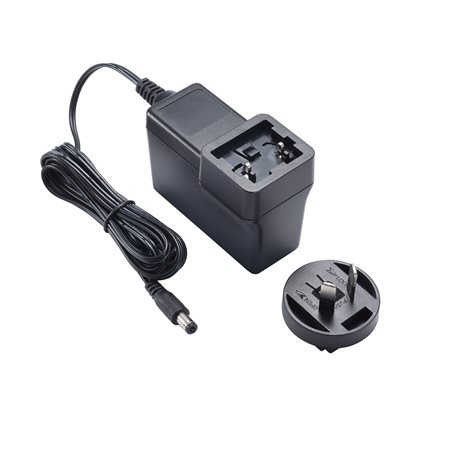

    PWR-12150-AU-S2: 70 x 55 x 56 mm (2.76 x 2.17 x 2.21 in)
    PWR-12150-CN-S1: 70 x 45 x 54 mm (2.76 x 1.77 x 2.13 in)
    PWR-12150-EU-S2: 70 x 45 x 66.5 mm (2.76 x 1.77 x 2.62 in)

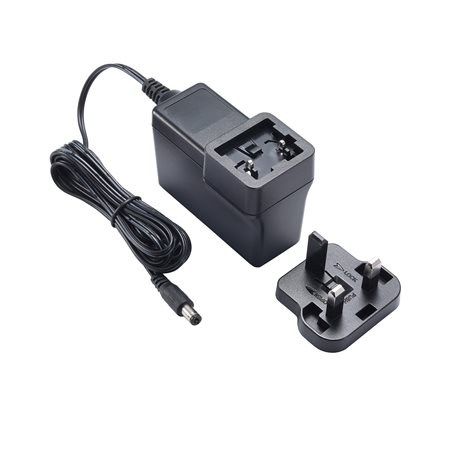

    PWR-12150-UK-S2: 70 x 48 x 60 mm (2.76 x 1.89 x 2.36 in)
    PWR-12300-WPAU-S1: 74 x 43.5 x 63.3 mm (2.91 x 1.71 x 2.49 in)
    PWR-12300-WPCN-S1: 74 x 43.5 x 51.3 mm (2.91 x 1.71 x 2.02 in)

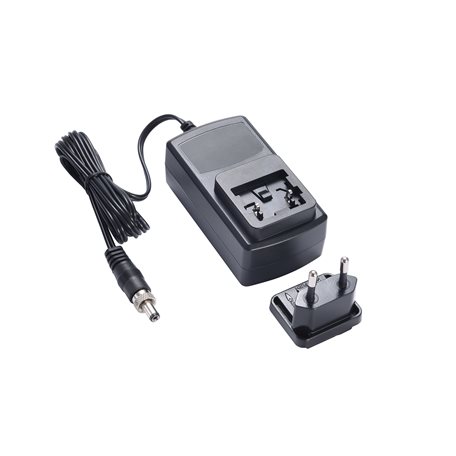

    PWR-12300-WPEU-S1: 74 x 43.5 x 73.5 mm (2.91 x 1.71 x 2.89 in)

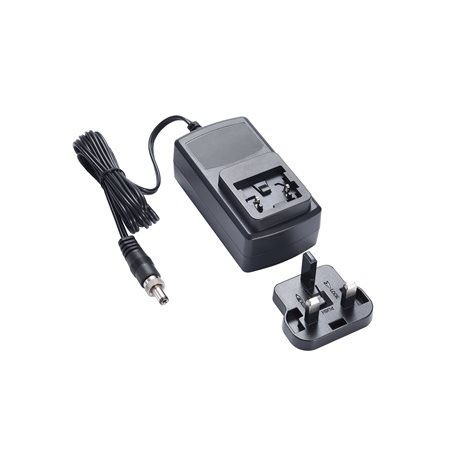

    PWR-12300-WPUK-S1: 74 x 43.5 x 61 mm (2.91 x 1.71 x 2.40 in)
    PWR-12300-WPUSJP-S1: 74 x 43.5 x 52.3 mm (2.91 x 1.71 x 2.06 in)
    PWR-12125-DT-S2: 75 x 47.5 x 27.3 mm (2.95 x 1.87 x 1.07 in)
    PWR-12200-DT-S1: 110.8 x 51.8 x 32 mm (4.36 x 2.04 x 1.26 in)

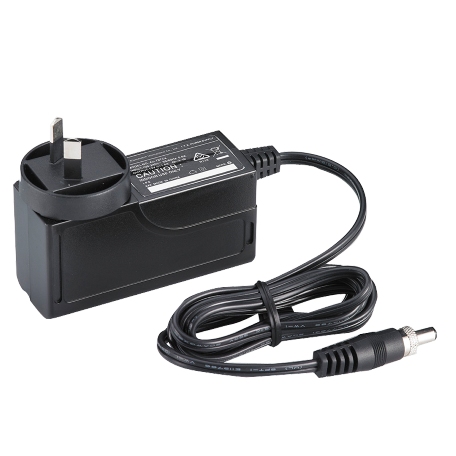

    PWR-12150-AU-SA-T: 41 x 73.9 x 89.5 mm (1.61 x 2.91 x 3.52 in)

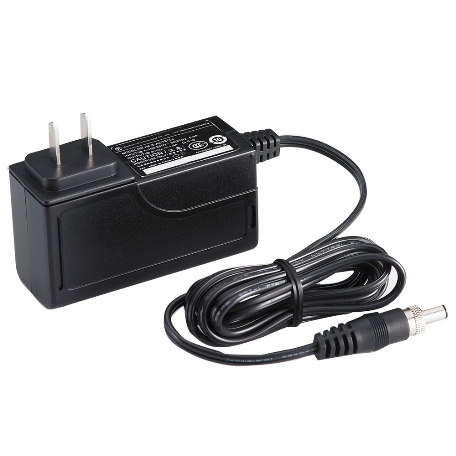

    PWR-12150-CN-SA-T: 32 x 60 x 88 mm (1.26 x 2.36 x 3.46 in)

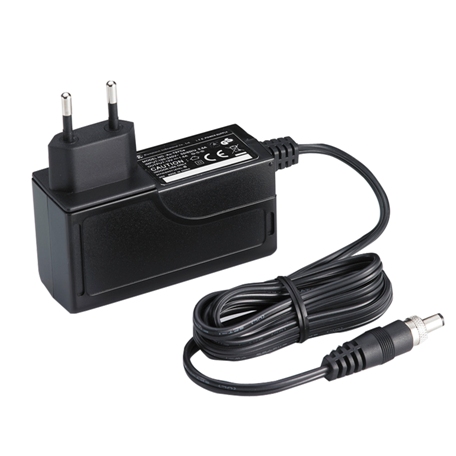

    PWR-12150-EU-SA-T: 32 x 85.3 x 88 mm (1.26 x 3.36 x 3.46 in)

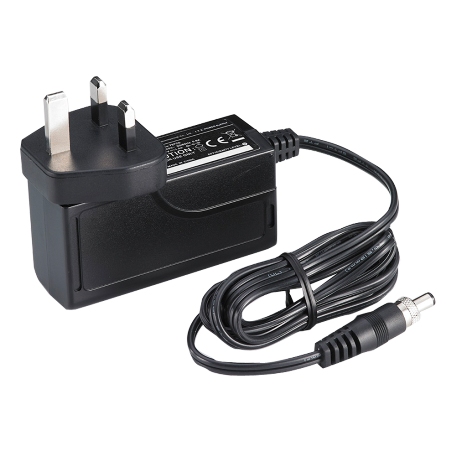

    PWR-12150-UK-SA-T: 50 x 91 x 82.5 mm (1.97 x 3.58 x 3.25 in)

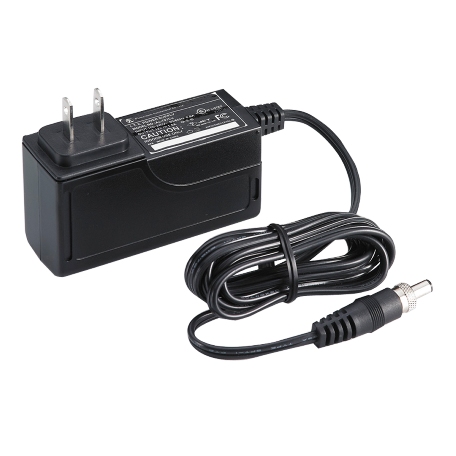

    PWR-12150-USJP-SA-T: 32 x 70.3 x 88 mm (1.26 x 2.77 x 3.46 in)

  • Weight

    PWR-12050 Series: 70 g ( 0.15 lb )
    PWR-12125-US-JP-S1: 108 g (0.24 lb )
    PWR-12150 Series: 200 g ( 0.44 lb )
    PWR-12300-S1 Series: 163 g ( 0.36 lb )
    PWR-DT Series: 200 g ( 0.44 lb )

  • Cord Length

    PWR-12050-S1 Series: 1530±100 mm (60.24±3.94 in)
    PWR-12050-S2 Series: 1830±100 mm (72.05±3.94 in)
    PWR-12125-USJP-S1: 1530±100 mm (60.24±3.84 in)
    PWR-12150 Series: 1800±200 mm (70.87±7.87 in)
    PWR-12300 Series: 1530±200 mm (60.24±7.87 in)
    PWR-12200-DT-S1: 1800±200 mm (70.87±7.87 in)
    PWR-12125-DT-S2: 1530±100 mm (60.24±3.94 in)

  • Operating Temperature

    Standard models: 0 to 40°C (32 to 104°F)
    Wide T models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature

    Standard models: -20 to 70°C (-4 to 158°F)
    Wide T models: -40 to 75°C (-40 to 167°F)

  • Safety

    PWR-12050-S1 Series: CE/FCC/UL/RCM/PSE/CCC/GS
    PWR-12300 Series: CE/FCC/UL/RCM/PSE/CCC/GS
    PWR-12050-S2 Series: CE/FCC/UL/RCM/PSE/CCC
    PWR-12125-USJP-S1: CE/FCC/UL/RCM/PSE/GS
    PWR-12150-AU-S2: RCM
    PWR-12150-CN-S1: CCC
    PWR-12150-EU-S2: CE/GS
    PWR-12150-UK-S2: CE
    PWR-12200-DT-S1: Efficiency Level 5: CE/FCC/UL/RCM/PSE/CCC; Efficiency Level 6: CE/FCC/UL/PSE
    PWR-12125-DT-S2: CE/FCC/UL/PSE/GS
    PWR-12150-AU-SA-T: RCM
    PWR-12150-CN-SA-T: CCC
    PWR-12150-EU-SA-T: TUV/CE/GS
    PWR-12150-UK-SA-T: CE
    PWR-12150-USJP-SA-T: FCC/UL/PSE

Available Models (27)

Show Images
moxa-pwr-12150-uk-sa-t-image.jpg | MoxaPWR-12150-UK-SA-Tmoxa-pwr-12050-wpusjp-s2-image.jpg | MoxaPWR-12050-WPUSJP-S2moxa-pwr-12125-dt-s2-image.jpg | MoxaPWR-12125-DT-S2moxa-pwr-12125-usjp-s1-image.jpg | MoxaPWR-12125-USJP-S1
Barrel-plug TypeLockingNon-lockingLockingNon-locking
Input-plug TypeUKUS/JPDesktopUS/JP
Output Rating1.5 A @ 12 VDC0.5 A @ 12 VDC1.25 A @ 12 VDC1.25 A @ 12 VDC
Operating Temperature-40 to 75°C (-40 to 167°F)0 to 40°C (32 to 104°F)0 to 40°C (32 to 104°F)0 to 40°C (32 to 104°F)
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-pwr-12150-au-s2-image.jpg | MoxaPWR-12150-AU-S2moxa-pwr-12150-eu-s2-image.jpg | MoxaPWR-12150-EU-S2moxa-pwr-12150-uk-s2-image.jpg | MoxaPWR-12150-UK-S2moxa-pwr-12200-dt-s1-image.jpg | MoxaPWR-12200-DT-S1
Barrel-plug TypeNon-lockingNon-lockingNon-lockingLocking
Input-plug TypeAUEUUKDesktop
Output Rating1.5 A @ 12 VDC1.5 A @ 12 VDC1.5 A @ 12 VDC2 A @ 12 VDC
Operating Temperature0 to 40°C (32 to 104°F)0 to 40°C (32 to 104°F)0 to 40°C (32 to 104°F)0 to 40°C (32 to 104°F)
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-pwr-12300-wpau-s1-image.jpg | MoxaPWR-12300-WPAU-S1moxa-pwr-12300-wpcn-s1-image.jpg | MoxaPWR-12300-WPCN-S1moxa-pwr-12300-wpeu-s1-image.jpg | MoxaPWR-12300-WPEU-S1moxa-pwr-12300-wpuk-s1-image.jpg | MoxaPWR-12300-WPUK-S1
Barrel-plug TypeLockingLockingLockingLocking
Input-plug TypeAUCNEUUK
Output Rating3 A @ 12 VDC3 A @ 12 VDC3 A @ 12 VDC3 A @ 12 VDC
Operating Temperature0 to 40°C (32 to 104°F)0 to 40°C (32 to 104°F)0 to 40°C (32 to 104°F)0 to 40°C (32 to 104°F)
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-pwr-12300-wpusjp-s1-image.jpg | MoxaPWR-12300-WPUSJP-S1moxa-pwr-12150-au-sa-t-image.jpg | MoxaPWR-12150-AU-SA-Tmoxa-pwr-12150-cn-sa-t-image.jpg | MoxaPWR-12150-CN-SA-Tmoxa-pwr-12150-eu-sa-t-image.jpg | MoxaPWR-12150-EU-SA-T
Barrel-plug TypeLockingLockingLockingLocking
Input-plug TypeUS/JPAUCNEU
Output Rating3 A @ 12 VDC1.5 A @ 12 VDC1.5 A @ 12 VDC1.5 A @ 12 VDC
Operating Temperature0 to 40°C (32 to 104°F)-40 to 75°C (-40 to 167°F)-40 to 75°C (-40 to 167°F)-40 to 75°C (-40 to 167°F)
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-pwr-12150-cn-s1-image.jpg | MoxaPWR-12150-CN-S1moxa-pwr-12050-wpau-s1-image.jpg | MoxaPWR-12050-WPAU-S1moxa-pwr-12050-wpau-s2-image.jpg | MoxaPWR-12050-WPAU-S2moxa-pwr-12050-wpcn-s1-image.jpg | MoxaPWR-12050-WPCN-S1
Barrel-plug TypeNon-lockingLockingNon-lockingLocking
Input-plug TypeCNAUAUCN
Output Rating1.5 A @ 12 VDC0.5 A @ 12 VDC0.5 A @ 12 VDC0.5 A @ 12 VDC
Operating Temperature0 to 40°C (32 to 104°F)0 to 40°C (32 to 104°F)0 to 40°C (32 to 104°F)0 to 40°C (32 to 104°F)
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-pwr-12050-wpcn-s2-image.jpg | MoxaPWR-12050-WPCN-S2moxa-pwr-12050-wpeu-s1-image.jpg | MoxaPWR-12050-WPEU-S1moxa-pwr-12050-wpeu-s2-image.jpg | MoxaPWR-12050-WPEU-S2moxa-pwr-12050-wpuk-s1-image.jpg | MoxaPWR-12050-WPUK-S1
Barrel-plug TypeNon-lockingLockingNon-lockingLocking
Input-plug TypeCNEUEUUK
Output Rating0.5 A @ 12 VDC0.5 A @ 12 VDC0.5 A @ 12 VDC0.5 A @ 12 VDC
Operating Temperature0 to 40°C (32 to 104°F)0 to 40°C (32 to 104°F)0 to 40°C (32 to 104°F)0 to 40°C (32 to 104°F)
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-pwr-12050-wpuk-s2-image.jpg | MoxaPWR-12050-WPUK-S2moxa-pwr-12050-wpusjp-s1-image.jpg | MoxaPWR-12050-WPUSJP-S1moxa-pwr-12150-usjp-sa-t-image.jpg | MoxaPWR-12150-USJP-SA-T
Barrel-plug TypeNon-lockingLockingLocking
Input-plug TypeUKUS/JPUS/JP
Output Rating0.5 A @ 12 VDC0.5 A @ 12 VDC1.5 A @ 12 VDC
Operating Temperature0 to 40°C (32 to 104°F)0 to 40°C (32 to 104°F)-40 to 75°C (-40 to 167°F)
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
