MOXA

Power Adapters

Moxa offers a wide variety of power adapters that meet space and power source input/output requirements for most industrial control systems.

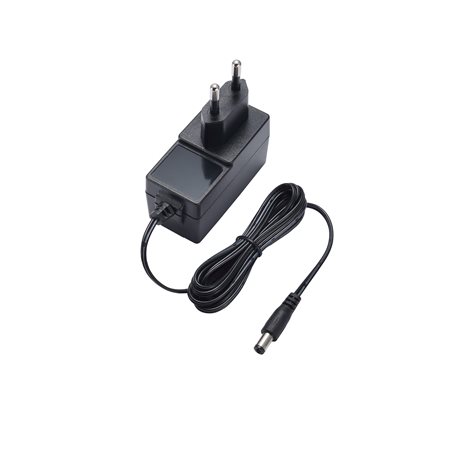

PWR-12050-KR-S2
Power Adapters

Unlocking barrel plug, 12 VDC, 0.5 A, 100 to 240 VAC, KR plug, 0 to 40°C operating temperature

Input Power Parameters
  • Voltage Range

    • 100 to 240 VAC (50 to 60 Hz)
Power Parameters
  • Input Plug Type

    • KR
  • Output Power Rating

    • 0.5 A @ 12 VDC
  • Output Plug Type

    • Connector Type: S-Type 5.5/2.1/9.5
Physical Characteristics
  • Dimensions

    • 67.7 x 33.0 x 55.1 mm (2.67 x 1.30 x 2.17 in)
  • Cord Length

    • 1500±100 mm (59.06±3.94 in)
Environmental Limits
  • Operating Temperature

    • 0 to 40°C (32 to 104°F)
  • Storage Temperature

    • -20 to 70°C (-4 to 158°F)
Standards and Certifications
  • Safety

    • KCC
Warranty
