Arm-Based Computers

Moxa's Arm-based compact fanless industrial-grade computers are wireless-ready and come with comprehensive security features. They are built for space-critical applications. The computers are specifically designed for long-term operations and come with both a 5-year hardware warranty and 10-year support for Moxa Industrial Linux, making them an ideal choice for remote monitoring and data-acquisition applications.



For more information, visit our Arm Linux IIoT gateway solution portal site.

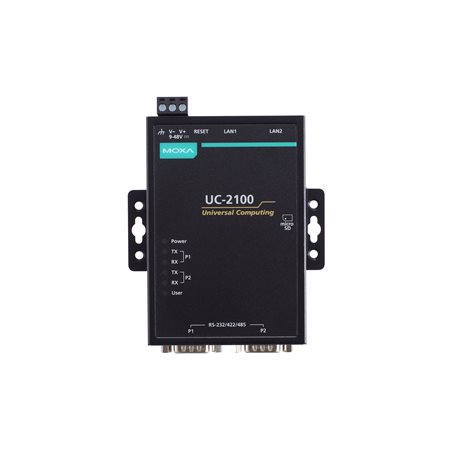

UC-2112-LX
UC-2100 Series

Compact RISC-based embedded computer with 1 GHz processor, 2 serial ports, 2 LAN ports (1 Gb Ethernet), and microSD slot

Computer

  • CPU

    • Armv7 Cortex-A8 1 GHz

  • DRAM

    • 512 MB DDR3

  • Storage Pre-installed

    • 8 GB eMMC

  • Supported OS

    • Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL
      See www.moxa.com/MIL

  • Storage Slot

    • Micro SD slots x 1
Computer Interface

  • Ethernet Ports

    • Auto-sensing 10/100 Mbps ports (RJ45 connector) x 1
      Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 1

  • Serial Ports

    • RS-232/422/485 ports x 2, software selectable (DB9 male)

  • Console Port

    • RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)

  • Buttons

    • Reset button
      DIP switch for serial port configuration
Ethernet Interface

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface

  • Baudrate

    • 50 bps to 921.6 kbps

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • RTS/CTS, XON/XOFF
      ADDC (automatic data direction control) for RS-485
      RTS Toggle (RS-232 only)

  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms

  • ESD Protection

    • 4 kV, for all signals
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
LED Indicators

  • System

    • Power x 1

  • LAN

    • 2 per port (10/100 Mbps)
      2 per port (10/100/1000 Mbps)

  • Serial

    • 2 per port (Tx, Rx)

  • User Programmable

    • User x 1
Physical Characteristics

  • Dimensions (with ears)

    • 99 x 111 x 25.5 mm (3.90 x 4.37 x 1.00 in)

  • Dimensions (without ears)

    • 77 x 111 x 25.5 mm (3.03 x 4.37 x 1.00 in)

  • Weight

    • 290 g (0.64 lb)

  • Housing

    • Metal

  • Installation

    • Wall mounting
      DIN-rail mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -10 to 60°C (14 to 140°F)

  • Storage Temperature

    • -20 to 70°C (-4 to 158°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Shock

    • IEC 60068-2-27

  • Vibration

    • 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
Power Parameters

  • Input Voltage

    • 9 to 48 VDC

  • Input Current

    • 0.45 A @ 9 VDC, 0.084 A @ 48 VDC

  • Power Consumption

    • 4 W
MTBF

  • Time

    • 982,882 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Reliability

  • Alert Tools

    • External RTC (real-time clock)

  • Automatic Reboot Trigger

    • External WDT (watchdog timer)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF

  • Safety

    • IEC 60950-1
      UL 60950-1

  • Hazardous Locations

    • Class I Division 2
      ATEX Zone 2

  • Green Product

    • RoHS, CRoHS, WEEE
Warranty
