Home Products Industrial Computing Arm-Based Computers UC-5100 Series UC-5111-LX
MOXA

Arm-Based Computers

Moxa's Arm-based compact fanless industrial-grade computers are wireless-ready and come with comprehensive security features. They are built for space-critical applications. The computers are specifically designed for long-term operations and come with both a 5-year hardware warranty and 10-year support for Moxa Industrial Linux, making them an ideal choice for remote monitoring and data-acquisition applications.



For more information, visit our Arm Linux IIoT gateway solution portal site.

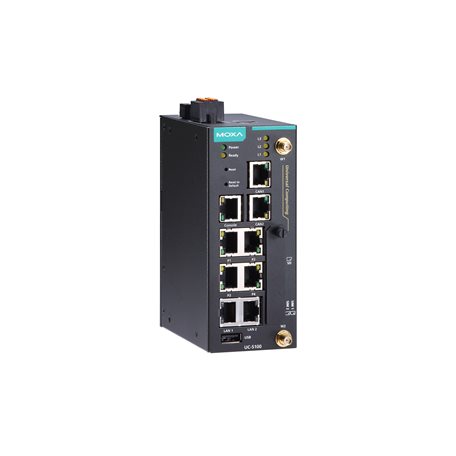

UC-5111-LX
UC-5100 Series

Arm-based industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, 1 SD slot, 2 CAN ports, 4 DIs, 4 DOs, 1 USB port, -10 to 60°C operating temperature range

Computer

  • CPU

    • Armv7 Cortex-A8 1 GHz

  • DRAM

    • 512 MB DDR3

  • Supported OS

    • Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL
      See www.moxa.com/MIL

  • Storage Pre-installed

    • 8 GB eMMC

  • Storage Slot

    • SD slots x 1
Computer Interface

  • Ethernet Ports

    • Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2

  • Serial Ports

    • RS-232/422/485 ports (software-selectable, RJ45 connector) x 4

  • Digital Input

    • DIs x 4

  • Digital Output

    • DOs x 4

  • USB 2.0

    • USB 2.0 hosts x 1, type-A connectors

  • Number of SIMs

    • 2

  • SIM Format

    • Micro

  • Buttons

    • Reset button
      DIP switch for serial and CAN port configuration

  • Console Port

    • RS-232 (TxD, RxD, GND), RJ45 output (115200, n, 8, 1)
Ethernet Interface

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface

  • Baudrate

    • 50 bps to 921.60 kbps

  • Data Bits

    • 7, 8

  • Stop Bits

    • 1, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • RTS/CTS, XON/XOFF
      ADDC (automatic data direction control) for RS-485
      RTS Toggle (RS-232 only)
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
CAN Interface

  • No. of Ports

    • 2

  • Signals

    • CAN_L, CAN_H, CAN Signal GND

  • Terminator

    • N/A, 120 ohms (by DIP)
Digital Inputs

  • Voltage

    • 0 to 0.8 VDC
      2.0 to 5.5 VDC
Digital Outputs

  • Current Rating

    • 24 mA per channel

  • Voltage

    • 0 to 0.55 VDC
      2.5 to 3.3 VDC
LED Indicators

  • System

    • Programmable x 3

  • LAN

    • 2 per port (10/100 Mbps)

  • Serial

    • 2 per port (Tx, Rx)

  • CAN

    • 2 per port (Tx, Rx)
Physical Characteristics

  • Dimensions

    • 57 x 136 x 100 mm (2.24 x 5.35 x 3.94 in)

  • Weight

    • 600 g (1.32 lb)

  • Housing

    • Metal

  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Power Parameters

  • Input Voltage

    • 9 to 48 VDC

  • Input Current

    • 0.95 A @ 9 VDC, 0.23 A @ 48 VDC

  • Power Consumption

    • 11 W
Environmental Limits

  • Operating Temperature

    • -10 to 60°C (14 to 140°F)

  • Storage Temperature

    • -20 to 70°C (-4 to 158°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Vibration

    • 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)

  • Shock

    • IEC 60068-2-27
Standards and Certifications

  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4
      UKCA
      VCCI

  • EMI

    • EN 55032 Class A
      EN 61000-6-4 Class A
      FCC Part 15B Class A
      ICES-003 Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; 1.4 GHz to 6 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: line to line: 1 kV; line to PE: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • International Approval

    • CE
      FCC
      UKCA
      VCCI

  • Safety

    • EN 62368-1
      IEC 62368-1
      UL 62368-1

  • Green Product

    • RoHS, CRoHS, WEEE
Reliability

  • Alert Tools

    • External RTC (real-time clock)

  • Automatic Reboot Trigger

    • External WDT (watchdog timer)
MTBF

  • Time

    • 706,021 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
