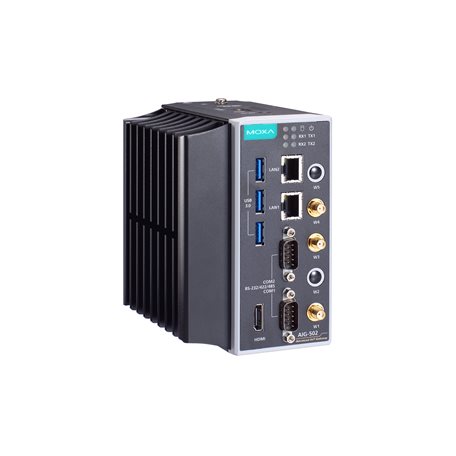

AIG-502-T-AP-AZU-LX
AIG-502 Series

Advanced IIoT gateways with Intel® Core™ i7 processor, Azure IoT Edge software, LTE Cat. 4 module for Asia-Pacific region, -40 to 70°C operating temperature

Computer

  • CPU

    • Intel® Core™ i7-7600U processor (4M cache, up to 3.90 GHz)

  • DRAM

    • 32 GB SODIMM DDR4

  • Storage Pre-installed

    • 32 GB mSATA

  • Pre-installed OS

    • Moxa Industrial Linux (Debian 11, kernel 5.10.x)

  • Graphics Controller

    • Intel® HD Graphics 620
Computer Interface

  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

  • Serial Ports

    • RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

  • USB 3.0

    • USB 3.0 hosts x 3, type-A connectors

  • Wi-Fi Antenna Connector

    • RP-SMA x 2

  • Cellular Antenna Connector

    • SMA x 2

  • GPS Antenna Connector

    • SMA x 1

  • Expansion Slots

    • mPCIe slots x 1 (for optional Wi-Fi module)

  • SIM Format

    • Nano

  • Number of SIMs

    • 2

  • Video Output

    • HDMI x 1

  • TPM

    • TPM v2.0
Ethernet Interface

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 2

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features

  • Industrial Protocols

    • Azure IoT Edge

  • Configuration Options

    • Web Console (HTTP/HTTPS)

  • Time Management

    • NTP Server/Client
      GPS

  • Security

    • SSH
      HTTPS/SSL
      TLS
      Firewall
Serial Interface

  • No. of Ports

    • 2

  • Connector

    • DB9 male

  • Baudrate

    • 50 bps to 115.2 kbps

  • Data Bits

    • 7, 8

  • Stop Bits

    • 1, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • RTS/CTS, XON/XOFF, ADDC (automatic data direction control) for RS-485
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Data+, Data-, GND
Serial Software Features

  • Industrial Protocols

    • Modbus RTU/ASCII Master
Cellular Interface

  • Cellular Standards

    • LTE Cat. 4

  • Band Options (US)

    • LTE Band 2 (1900 MHz) / LTE Band 4 (1700 MHz) / LTE Band 5 (850 MHz) / LTE Band 12
      (700 MHz) / LTE Band 13 (700 MHz) / LTE Band 14 (700 MHz) / LTE Band 66 (1700 MHz)
      / LTE Band 71 (600 MHz)
      UMTS/HSPA 850 MHz / 1900 MHz
      Carrier Approval: Verizon, AT&T
      Note: LTE Band 71 (600 MHz). is not included in the selectable antenna support range.
      Please contact Moxa if you need to use this band.

  • Band Options (EU)

    • LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8
      (900 MHz) / LTE Band 20 (800 MHz)
      UMTS/HSPA 900 MHz / 1800 MHz / 2100 MHz

  • Band Option (APAC)

    • LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8
      (900 MHz) / LTE Band 28 (700 MHz)
      UMTS/HSPA 850 MHz / 900 MHz / 2100 MHz
GPS Interface

  • Receiver Types

    • GPS/GLONASS/BeiDou/Galileo/QZSS

  • Accuracy

    • Position: 2.0 m @CEP50

  • Sensitivity

    • Acquisition: -147.0 dBm
      Cold starts: -145 dBm
      Tracking: -160 dBm

  • Update Rate

    • 1 Hz
Azure IoT Edge

  • Versions Supported

    • v1.4.33

  • Authentication Methods

    • Manual / Connection String
      DPS / Symmetric Encryption
      DPS / X.509 Certificate
      DPS / TPM

  • Azure Direct Methods

    • Reboot
      Software Upgrade
      Remote API Invocation

  • Azure Module Twin

    • Device Configuration

  • Moxa Functions

    • Custom Payload
      Message Group
Modbus RTU/ASCII

  • Mode

    • Client (Master)

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Commands

    • 256 per port

  • Max. No of Connected Devices

    • 31 slave devices per serial port
Modbus TCP

  • Mode

    • Client (Master), Server (Slave)

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Server Connections

    • 64

  • Max. No. of Client Connections

    • 4

  • Max. No. of Commands

    • 3000
LED Indicators

  • System

    • Power x 2

  • LAN

    • 2 per port (10/100/1000 Mbps)

  • Serial

    • 2 per port (Tx, Rx)
Power Parameters

  • Input Voltage

    • 9 to 36 VDC
      12 to 36 VDC, 6A (for hazardous locations)

  • Input Current

    • 8 A @ 9 VDC
      2 A @ 36 VDC

  • Power Consumption

    • 72 W (max.)

  • Power Connector

    • 3-pin terminal block
Reliability

  • Automatic Reboot Trigger

    • External WDT (watchdog timer)
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP20

  • Dimensions

    • 134 x 60.4 x 120 mm (5.28 x 2.38 x 4.72 in)

  • Weight

    • 1,500 g (3.3 lb)

  • Installation

    • DIN-rail mounting (with optional kit)
      Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-64
Standards and Certifications

  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Safety

    • UL 62368-1
      EN 62368-1

  • Radio

    • NCC
      RCM

  • Carrier Approvals

    • AT&T
      Verizon
      PTCRB

  • RED

    • EN 300 328
      EN 301 489-1/17/19/52
      EN 301 511
      EN 301 893
      EN 301 908-1
      EN 303 413
      EN 62311

  • Hazardous Locations

    • Class I Division 2, ATEX, IECEx

  • International Approval

    • BSMI

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 510,913 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR, GB
Warranty
