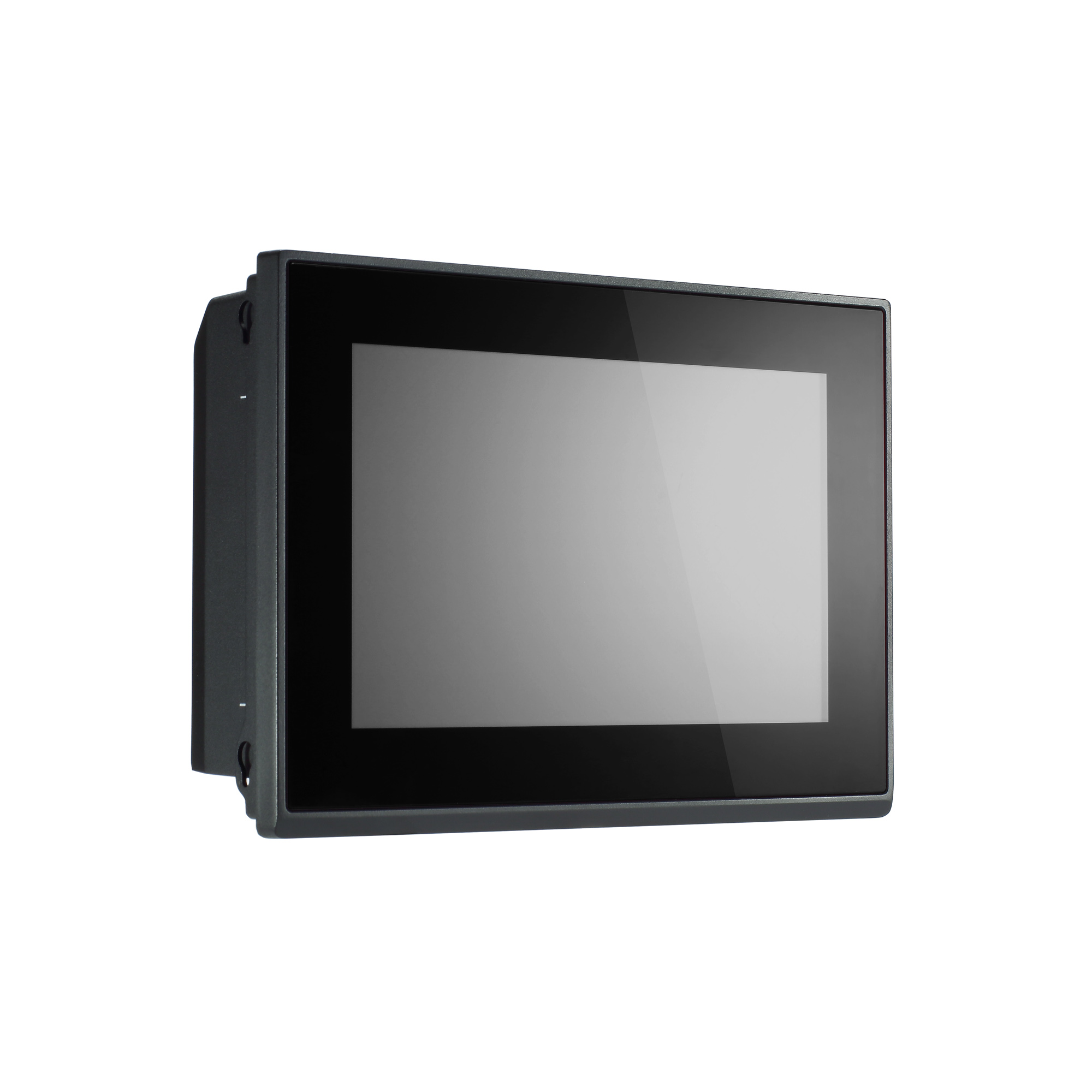

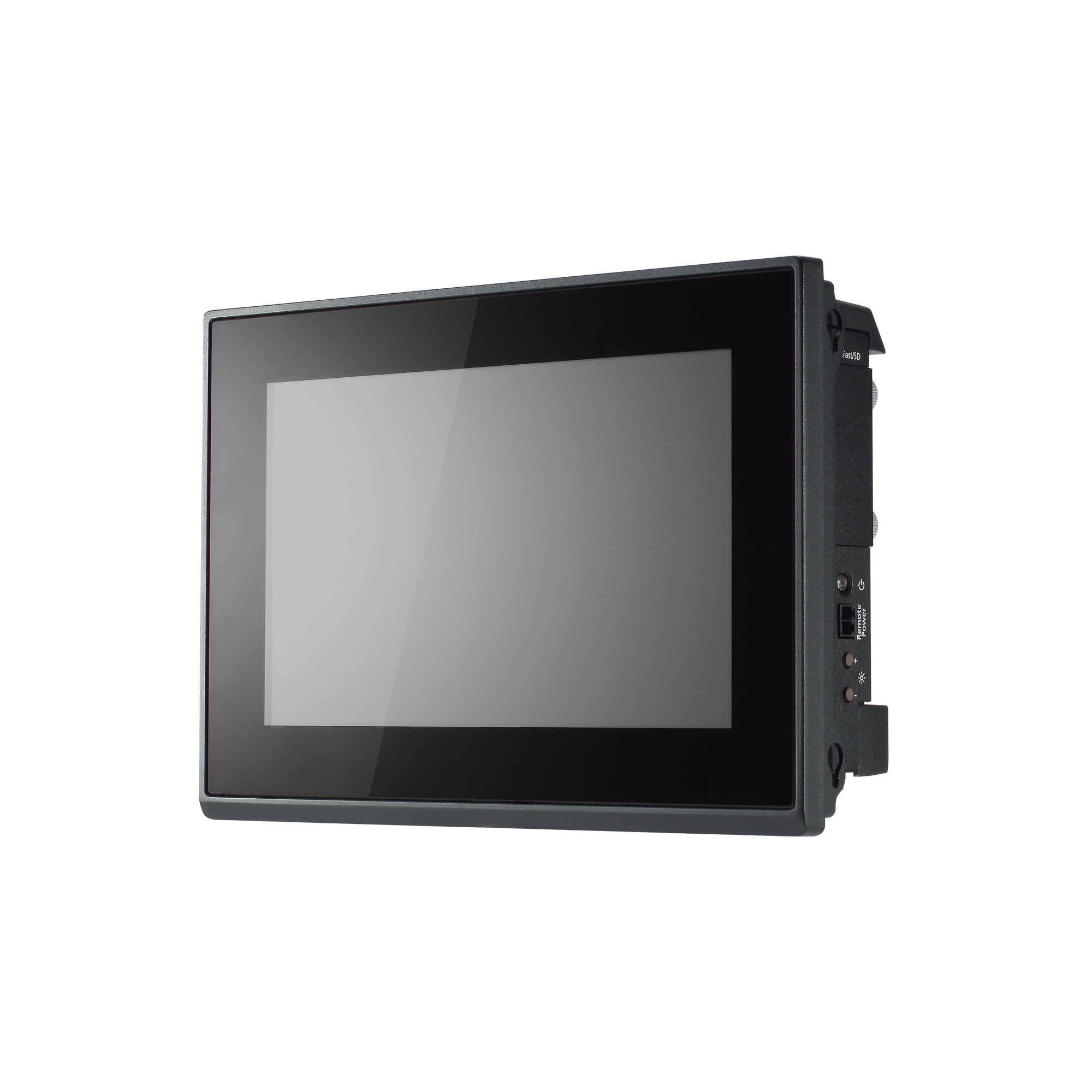

MPC-2070 Series

7-inch fanless industrial panel PCs

Features and Benefits

7-inch panel computer
Intel Atom® processor E3826 1.46 GHz
-40 to 70°C wide-temperature design, no fan or heater
1000-nit sunlight-readable LCD
Glove-friendly, multi-touch screen
Class 1 Division 2, ATEX Zone 2, and IECEx compliant Certification is underway for DNV, ATEX, and IECEx. Please check Moxa’s website for the most up-to-date certification status.
Wide-range 10 to 36 VDC power input

Certifications

You can track updates for your followed products in My Moxa

Contact Sales

Introduction

The MPC-2070 7-inch panel computers with E3800 Series Intel Atom® processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two software selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC-2070 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.

The MPC-2070 Series panel computers are designed with a wide, -40 to 70°C temperature range, and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation. This makes the MPC-2070 Series one of the most reliable industrial platforms available for harsh, hot, outdoor environments like oil and gas fields, or drilling platforms. The MPC-2070 also features a 1000-nit LCD panel offering a sunlight-readable, projected-capacitive, glove-friendly, multi-touch screen, providing an excellent user experience for outdoor applications._newline

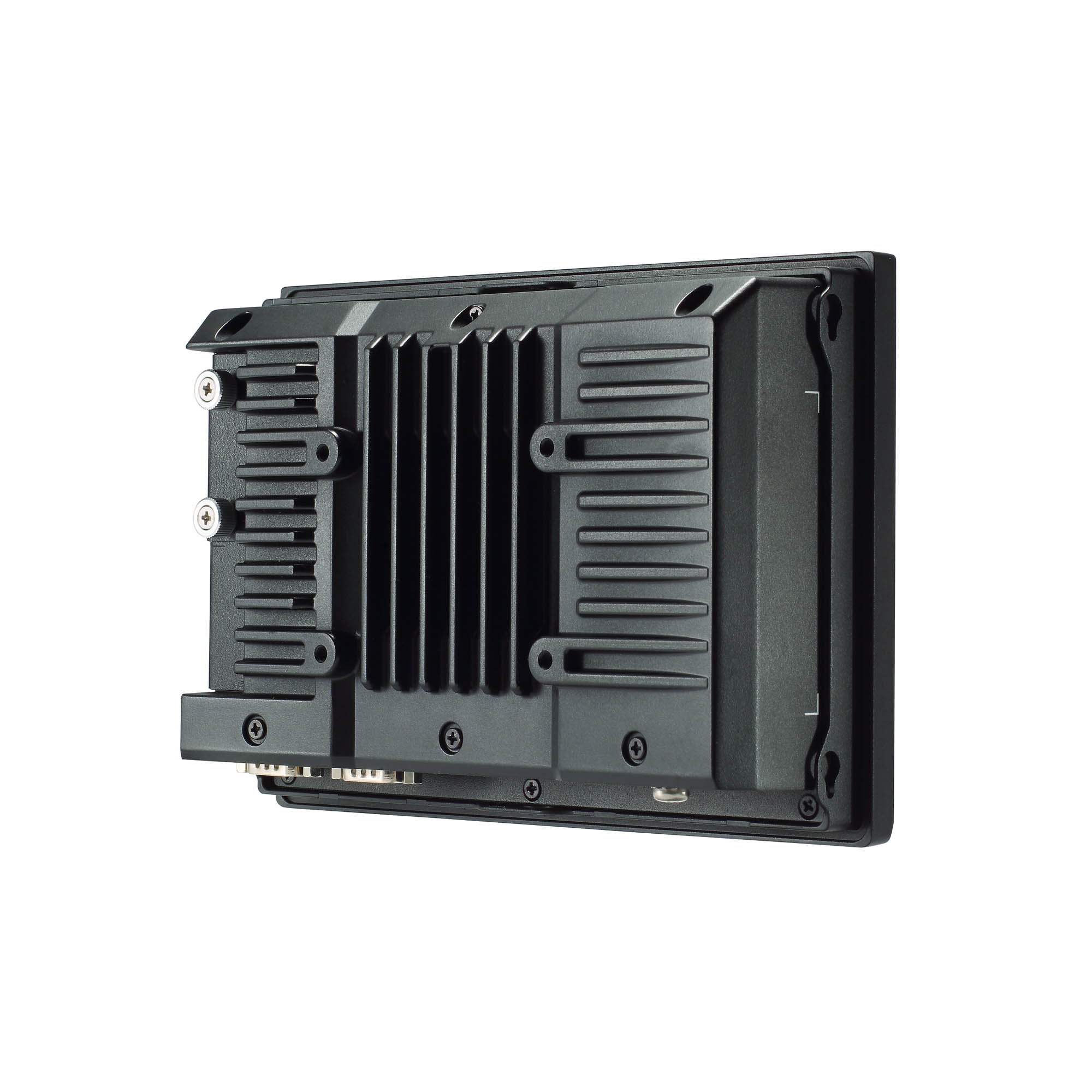

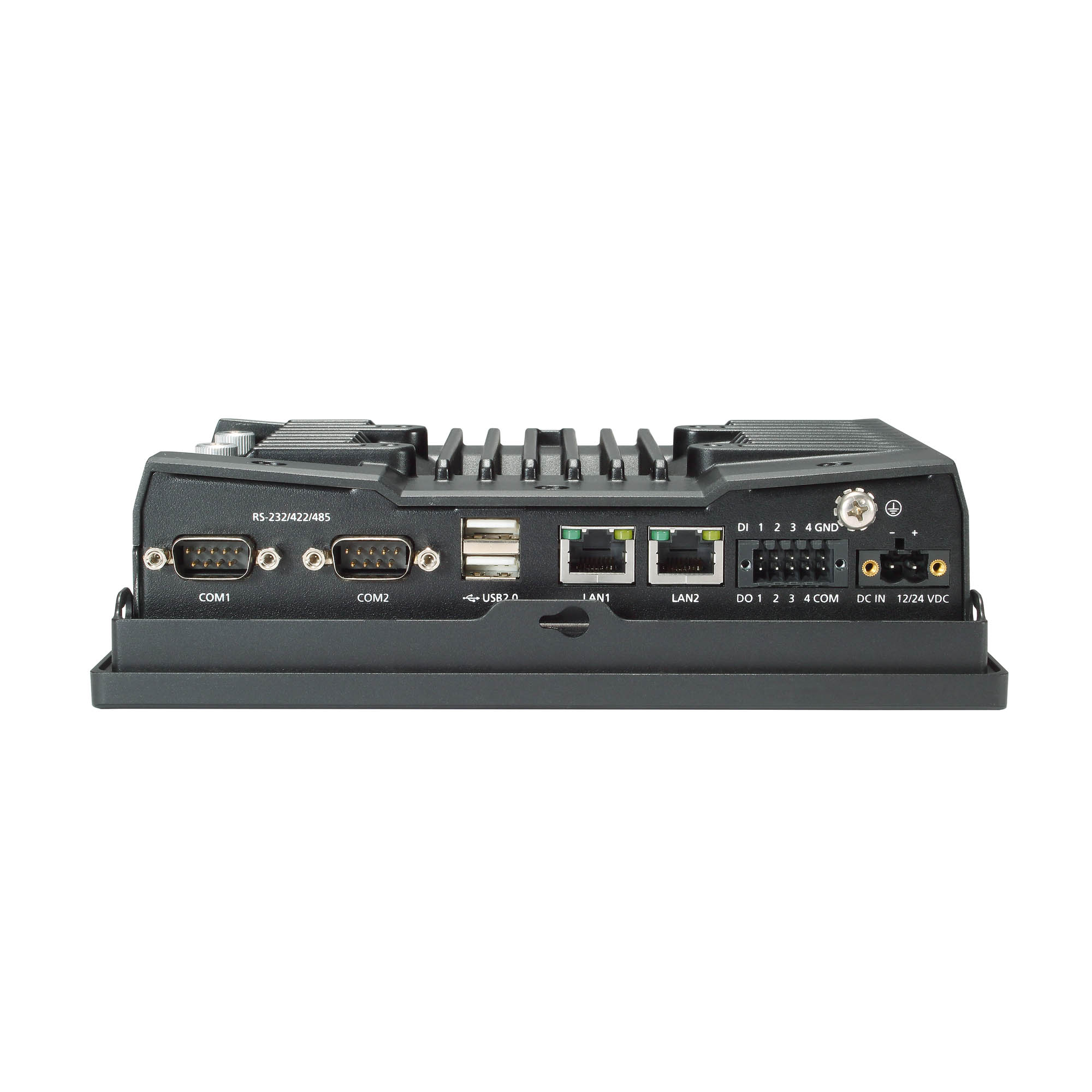

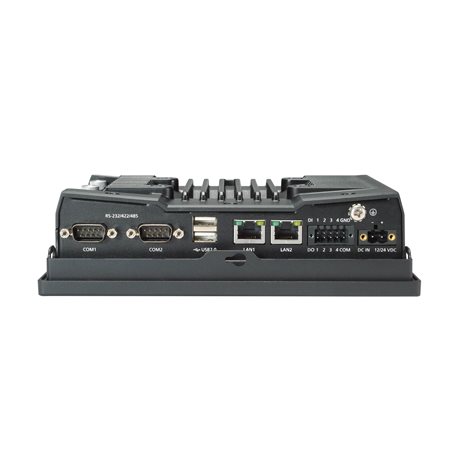

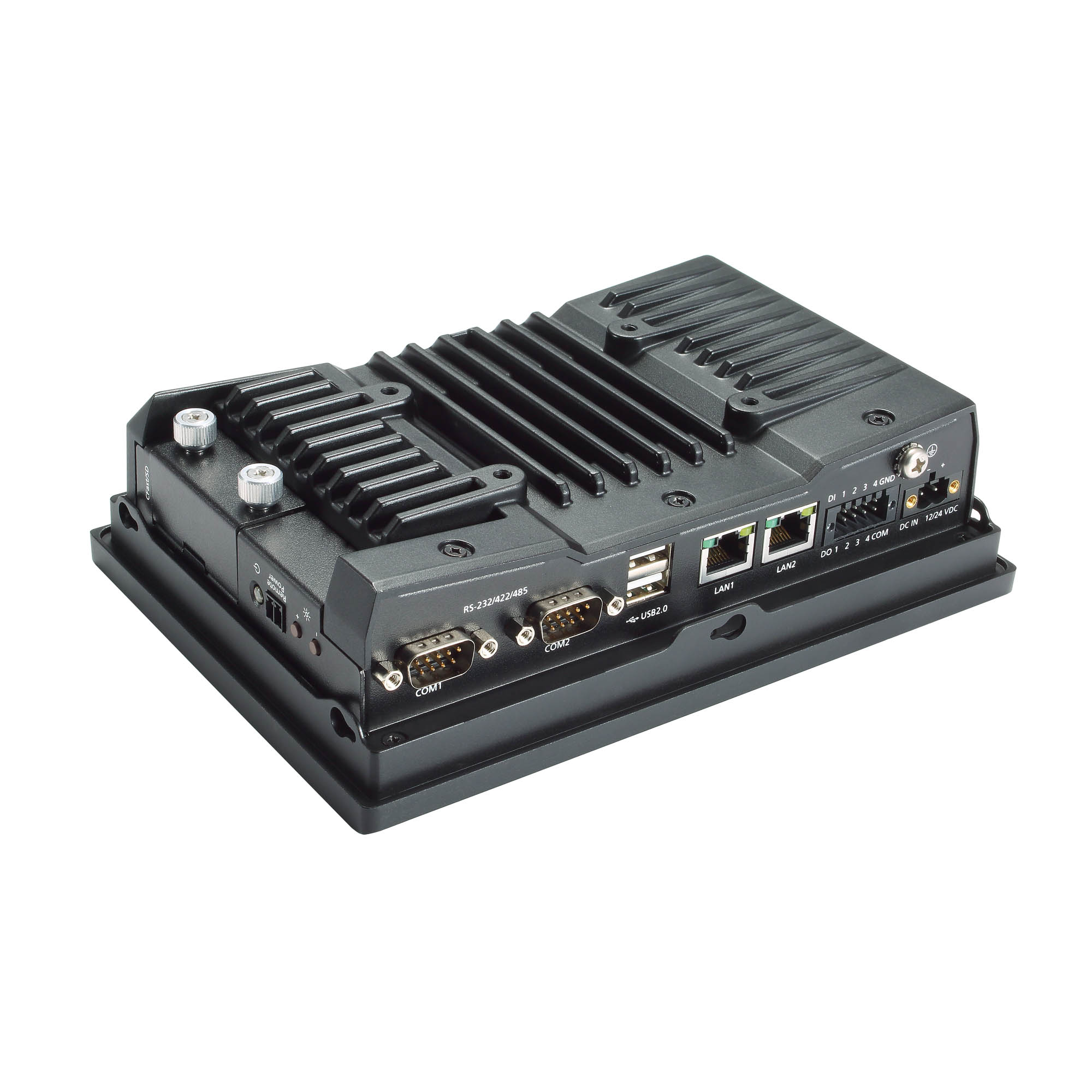

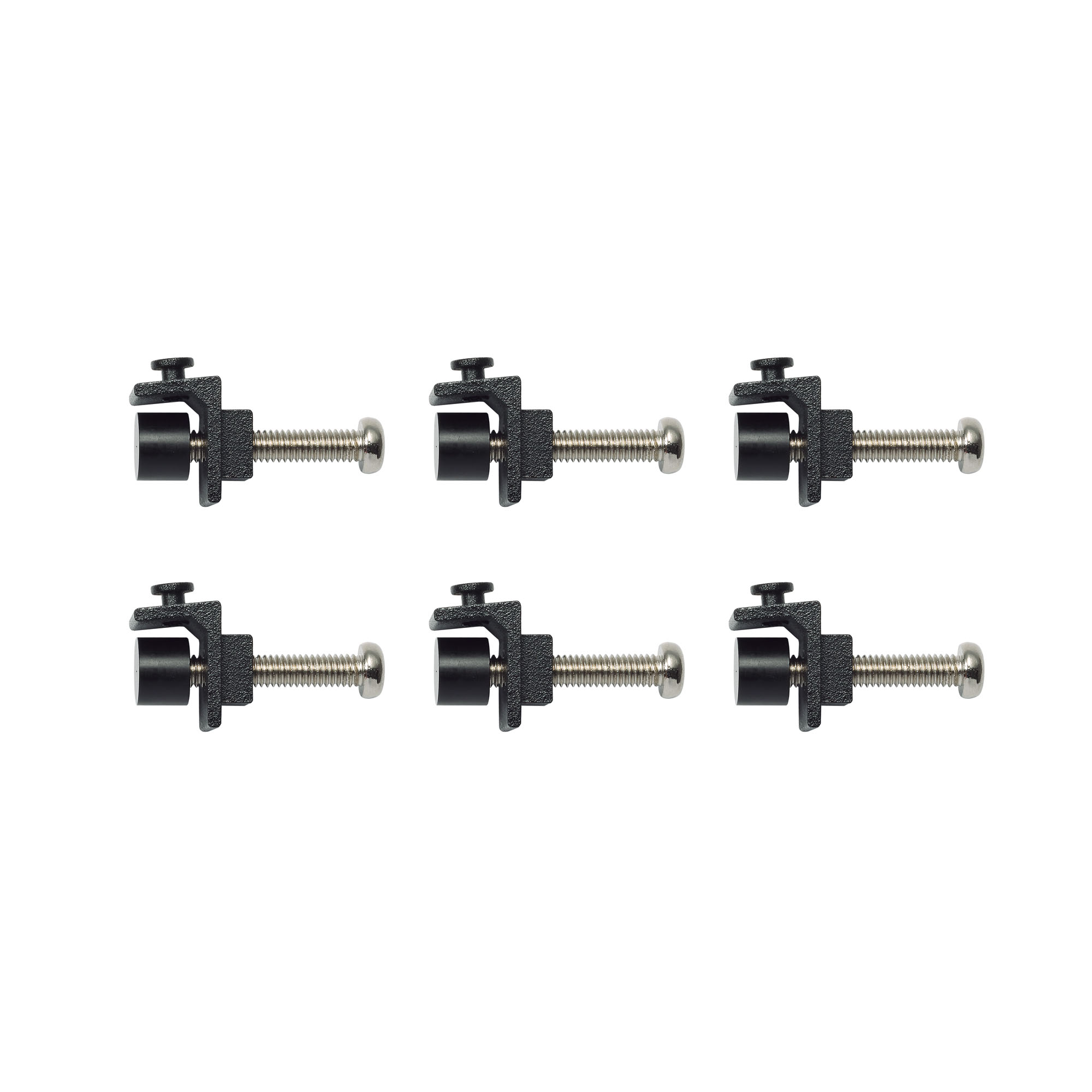

Appearance

Download datasheet
Print this page
Save

You can manage and share your saved list in My Moxa

CPU

Intel Atom® E3826 processor (1M cache, 1.46 GHz)
Graphics Controller

Intel® HD Graphics
System Memory Pre-installed

4 GB DDR3L
System Memory Slot

SODIMM DDR3/DDR3L slot x 1
Pre-installed OS

MPC-2070-E2-T/MPC-2070-E2-LB-T: OS is not pre-installed
MPC-2070-E2-T-W7E/MPC-2070-E2-LB-T-W7E: OS is pre-installed
Supported OS

Windows 7 Pro for Embedded Systems
Windows Embedded Standard 7 (WS7P) 64-bit
Windows 10 Pro 64-bit
Windows 10 Embedded IoT Ent 2016 LTSB Entry 64-bit
Linux Debian 9
Storage Slot

CFast slot x 1
SD slots x 1, SD 3.0 (SDHC/SDXC) socket
Storage Pre-installed

MPC-2070-E2-T-W7E/MPC-2070-E2-LB-T-W7E: 32 GB CFast card pre-installed

Ethernet Ports

Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial Ports

RS-232/422/485 ports x 2, software selectable (DB9 male)
USB 2.0

USB 2.0 hosts x 2, type-A connectors
Digital Input

DIs x 4
Digital Output

DOs x 4

System

Power x 1
LAN

2 per port (10/100/1000 Mbps)

Active Display Area

152.4 (H) x 91.44 (V) mm
Contrast Ratio

600:1
Light Intensity (Brightness)

MPC-2070-E2-T Series: 1000 cd/m²
MPC-2070-E2-LB-T Series: 350 cd/m²
Max. No. of Colors

16.2M (8-bit/color)
Panel Size

7-inch viewable image
Panel Type

TN
Pixel Pitch (RGB)

0.1905 (H) x 0.1905 (V) mm
Pixels

800 x 480
Response Time

5 ms (gray to gray)
Viewing Angles

140°/120°

Touch Type

Capacitive Touch (PCAP)
Touch Support Points

4 points
Glove Support

Yes

Baudrate

50 bps to 115.2 kbps
Data Bits

5, 6, 7, 8
Flow Control

RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Parity

None, Even, Odd, Space, Mark
Stop Bits

1, 1.5, 2

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422

Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w

Data+, Data-, GND
RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

Input Voltage

10 to 36 VDC
Power Consumption

40 W (max.)

Housing

Metal
IP Rating

IP66, front
IP20, rear
Dimensions

200 x 140 x 45 mm (7.9 x 5.5 x 1.8 in)
Weight

1,400 g (3.09 lb)

Operating Temperature

-40 to 70°C (-40 to 158°F)
Storage Temperature (package included)

-40 to 70°C (-40 to 158°F)
Ambient Relative Humidity

5 to 95% (non-condensing)

EMC

EN 55032/24
EMI

CISPR 32, FCC Part 15B Class A
EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Environmental Testing

IEC 60068-2-1, DNV-CG-0339
IEC 60068-2-2, DNV-CG-0339
IEC 60068-2-2, IEC 60945
IEC 60068-2-30, IEC 60945
Hazardous Locations

ATEX
Class I Division 2
IECEx
Maritime

DNV
Mechanical Protection Rating

IEC 60529, IP code
Safety

EN 60950-1
IEC 60950-1
UL 60950-1
Shock

IEC 60068-2-27
Vibration

IEC 60068-2-6
IEC 60068-2-6, IEC 60945
IEC 60068-2-64, DNV-CG-0339

Green Product

RoHS, CRoHS, WEEE

Warranty Period

LCD: 1 year
System: 3 years
Details

See www.moxa.com/warranty

Download datasheet

Software, Firmware, and Drivers

Name	Type	Checksum	Version	Operating System	Release Date
Utility for MPC-2070 Series (Windows 10 IoT Enterprise LTSC 2021)	Utility	SHA-512	v1.1	Windows 10 IoT Enterprise LTSC 2021	Feb 16, 2024 Feb 16, 2024
Driver for MPC-2070 Series (Windows 10 IoT Enterprise LTSC 2019)	Driver	SHA-512	v1.1	Windows 10 IoT Enterprise LTSC 2019	Feb 16, 2024 Feb 16, 2024
Utility for MPC-2070 Series (Windows 10 IoT Enterprise LTSC 2019)	Utility	SHA-512	v1.1	Windows 10 IoT Enterprise LTSC 2019	Feb 16, 2024 Feb 16, 2024
Driver for MPC-2070 Series (Windows 10 IoT Enterprise LTSC 2021)	Driver	SHA-512	v1.1	Windows 10 IoT Enterprise LTSC 2021	Feb 16, 2024 Feb 16, 2024
x86 Computers (Linux drivers and SDK) 802.0 bytes	Software Package	B047FD18E30735783C0FDCF7559CA5735757323DE8412E4352523FAB57E3609C0DE5C5424F3037A6DC2ACE983A7C325B9DA866F83DCA639B0E051EE65EB471D4 SHA-512	v1.1	CentOS 7.9 Debian 11.x Ubuntu 20.04	Nov 28, 2022 Nov 28, 2022 Release notes
Software Package for MPC-2070 Series (example code for Windows 10 IoT Enterprise LTSC 2021) 11.0 MB	Software Package	E0BF37B69F74DDFC5C1C30F069E4CEED78D8A088C1E096BBD091055E9E7383B678287C77CFE647EFE430E1F69EA52D11311DA90AE0535566235D4E0D416D8FE3 SHA-512	v2.0	Windows 10 IoT Enterprise LTSC 2021	Mar 31, 2022 Mar 31, 2022 Release notes
Driver for MPC-2070 Series (Linux Debian 9) 1.7 MB	Driver	3AF42CF1504C9FC734AA86FDF3574179C58E5B303700E572A5B9318B10D3563D4CADCCA9C8D2B99943617D1A4C463DEFD4342C0A8FC670D41E3CC7303493CA96 SHA-512	v1.0	Linux	Nov 05, 2019 Nov 05, 2019 Release notes
Driver for MPC-2070 Series (Win10) 364.9 MB	Driver	1CED5E71451080D910C0F892830A4E4AEC18D96896B28D2ECBC97AB454D781B36E8E337DF3BA068446580BCD627B38BF8422E95308FACD387CD1E690CCC260A3 SHA-512	v1.0	Windows 10	Aug 26, 2019 Aug 26, 2019 Release notes
Firmware for MPC-2070 Series (Linux) 1.3 GB	Firmware	B07B13CAE2BDE1683986885584067620B8D0B6960A7D98682A8FEB603FDCF08B9AD119F52F99F7FEB0E6D4D745B225309F6ED6B2EB39931470895F9C90FB40CD SHA-512	v1.0	Debian 9.x	Mar 11, 2019 Mar 11, 2019 Release notes
Driver for MPC-2070 Series (Windows 7 Embedded)	Driver	SHA-512	v1.2	Windows 7	Jul 27, 2017 Jul 27, 2017
Utility for MPC-2070 Series (Windows 7 Embedded)	Utility	SHA-512	v1.0	Windows 7	Jul 27, 2017 Jul 27, 2017
Driver for MPC-2070 Series 364.9 MB	Driver	1CED5E71451080D910C0F892830A4E4AEC18D96896B28D2ECBC97AB454D781B36E8E337DF3BA068446580BCD627B38BF8422E95308FACD387CD1E690CCC260A3 SHA-512	v1.0	Windows 7	Jul 26, 2017 Jul 26, 2017
Utility for MPC-2070 Series (SerialInterface) 280.5 KB	Utility	FEA9D28AFAA5D004CA3E1A2277A4362972A033381BDC3871BB85CCB73E14AFD298BCBCA271DBE52078708556FD6E3817A7CFDF9D2BB4B425BD106EB8116B3178 SHA-512	v1.0	Windows 7	Jul 26, 2017 Jul 26, 2017
Software Package for MPC-2070 Series 479.6 KB	Software Package	17FA2B255E46B447E45A1839DB05CCAC57AB5309E0A2FCDA6112EE93D5E3514C988E959B7B6FCF4CE73A4B8548EF48864AAFF058F00A29A7494CF30F627979B1 SHA-512	v1.0	Windows 7	Jul 26, 2017 Jul 26, 2017
Utility for MPC-2070 Series (MxOSD) 163.8 KB	Utility	A9B82248A1C0DF514EDA77B5DE6D92EE3FBFAEC7F1641A3A7329DA8F3F74C369E1C4FF02E4A2E502F30C3DBEB086F96F86FD349BEF3F8DCA666BB8B5EEEAD74E SHA-512	v1.0	Windows 7	Jul 26, 2017 Jul 26, 2017

Support Documents

Name	Type	Version	Release Date
FOSS Statement for MPC-2070 Series, MPC-2120 Series 204.0 KB	Declaration	v1.0	Oct 10, 2024 Oct 10, 2024
Declaration of Conformity for MPC-2070/2120 Series 311.6 KB	Declaration	v1.0	Apr 19, 2024 Apr 19, 2024
Datasheet for MPC-2070 Series 1.2 MB	Datasheet	v2.0	Jul 07, 2023 Jul 07, 2023
Windows 10 IoT Enterprise LTSC 2021 (212H) User Manual for x86 Computers 9.4 MB	Manual	v1.2	Jan 20, 2023 Jan 20, 2023
Manual for MPC-2070 Series (hardware) 6.7 MB	Manual	v2.0	Nov 11, 2021 Nov 11, 2021
QIG for MPC-2070 Series 825.2 KB	QIG	v2.1	Apr 21, 2021 Apr 21, 2021
Manual for MPC-2070 Series (Linux UM) 4.9 MB	Manual	v1.0	Aug 21, 2019 Aug 21, 2019
Manual for MPC-2000 Series (Linux) 4.4 MB	Manual	v1.1	Aug 21, 2019 Aug 21, 2019
Manual for MPC-2070 Series (Windows 7 Embedded) 3.1 MB	Manual	v1.0	Jul 27, 2017 Jul 27, 2017

	Compare MPC-2070-E2-T-W7E	Compare MPC-2070-E2-LB-T-W7E	Compare MPC-2070-E2-LB-T	Compare MPC-2070-E2-T
Panel	7" (16:9) 1,000 nits	7" (16:9) 350 nits	7" (16:9) 350 nits	7" (16:9) 1,000 nits
CPU	Intel Atom® E3826	Intel Atom® E3826	Intel Atom® E3826	Intel Atom® E3826
RAM	4 GB	4 GB	4 GB	4 GB
OS Preinstalled	W7E OS 32 GB CFast	W7E OS 32 GB CFast	–	–
Touchscreen	Capacitive	Capacitive	Capacitive	Capacitive
LAN	2	2	2	2
Serial	2	2	2	2
DI/DO	4/4	4/4	4/4	4/4
Power Input	12/24 VDC	12/24 VDC	12/24 VDC	12/24 VDC
IP Rating	IP66 (front), IP20 (rear)	IP66 (front), IP20 (rear)	IP66 (front), IP20 (rear)	IP66 (front), IP20 (rear)
Operating Temp.	-40 to 70°C	-40 to 70°C	-40 to 70°C	-40 to 70°C
