BXP-A101 Series

Compact box computers with Intel Atom® x6211E/x6425E processor

moxa-bxp-a101-series-image-(1).jpg | Moxa
moxa-bxp-a101-series-image-1-(1).jpg | Moxa
moxa-bxp-a101-series-image-2-(1).jpg | Moxa
moxa-bxp-a101-series-image-3-(1).jpg | Moxa
moxa-bxp-a101-series-image-4-(1).jpg | Moxa

Features and Benefits

  • Box-type computer with fanless design
  • Intel Atom® X Series processor
  • Compact size to fit most field applications
  • -30 to 70°C operating temperature range
  • External dual storage with a removable cover design for easy maintenance

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-bsmi-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa

Contact Sales

Introduction

The BXP-A101 wall-mount computers are powered by an Intel Atom® X processor. The computers come with 2 software-selectable RS-232/422/485 serial ports, 2 gigabit Ethernet ports, 4 digital inputs, and 4 digital outputs. A dual-storage design that includes CFast and SD slots enables easy storage expansion. A removeable cover design enables users to quickly and easily swap their storage in any location, delivering one more user-friendly feature in a reliable, durable, and versatile platform.

The BXP-A101 compact wall-mountable computers come in a fanless design and can withstand a temperature range of -30 to 70°C, making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The BXP-A101 is an intelligent computing solution that perfectly fulfills both OT and IT requirements of industrial environments.

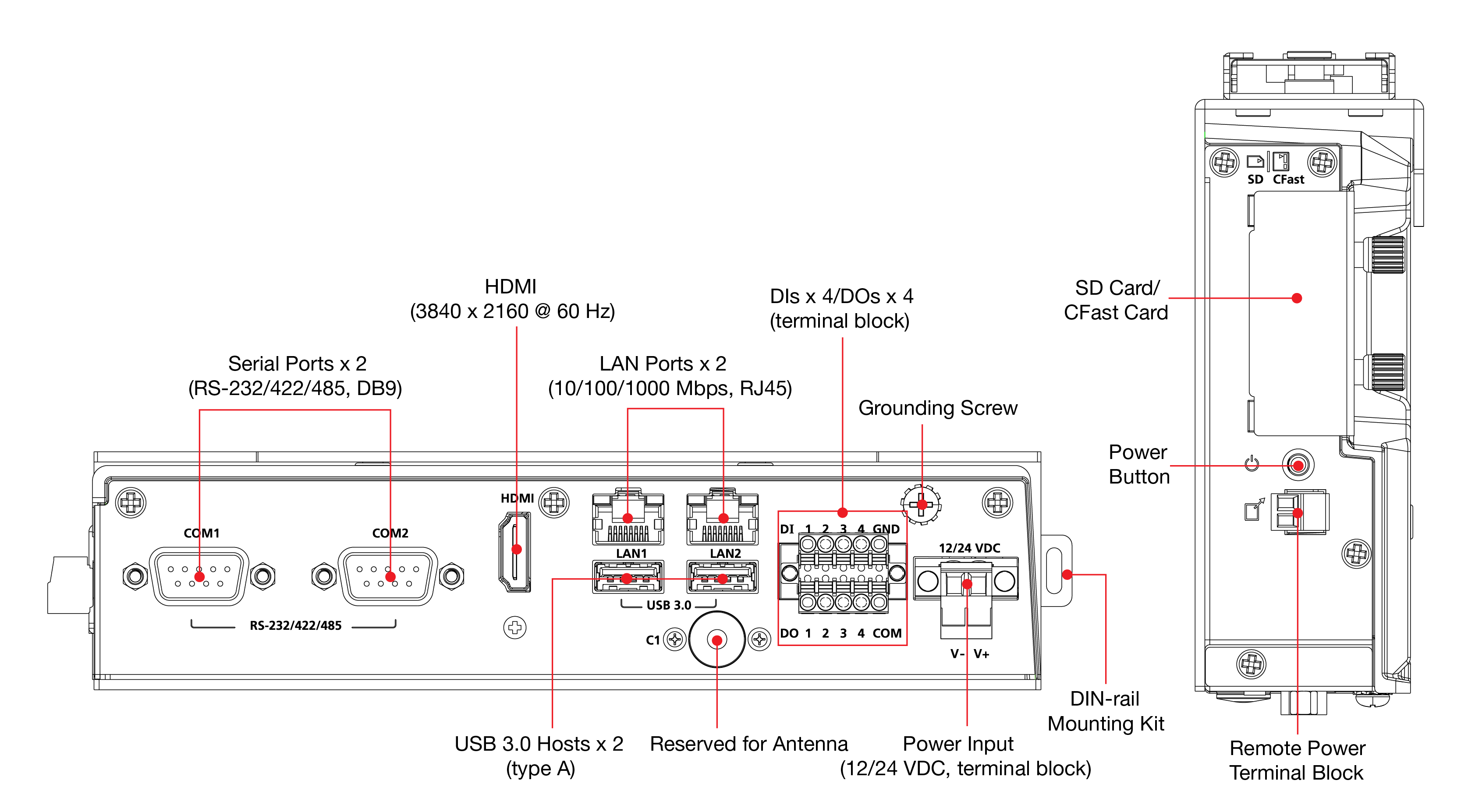

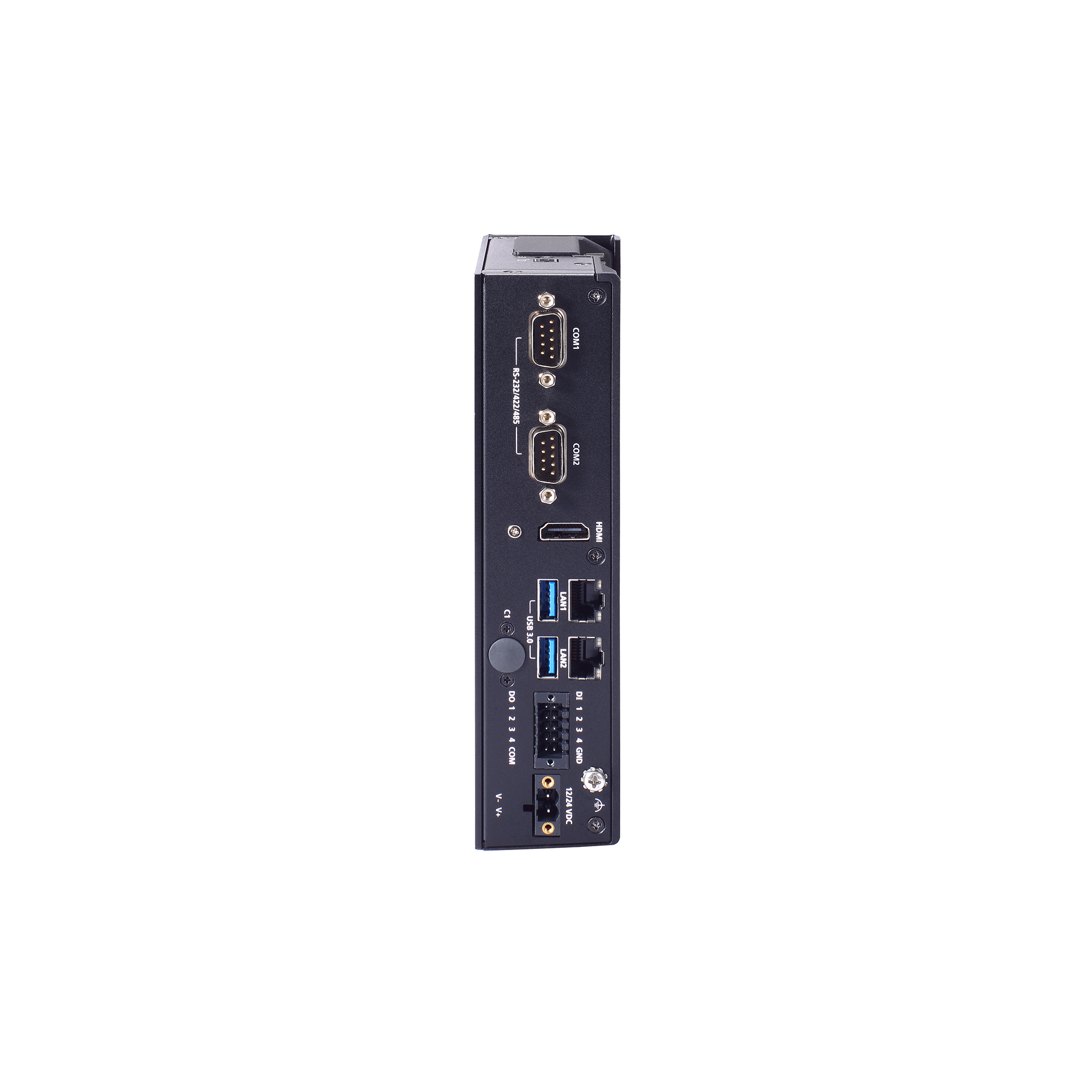

Appearance

  • CPU

    BXP-A101-E2-T: Intel Atom® x6211E processor (dual-core, 1.5 M cache, 1.30 GHz)
    BXP-A101-E4-T: Intel Atom® x6425E processor (quad-core, 1.5 M cache, 2.00 GHz)

  • System Memory Slot

    SODIMM DDR4 slots x 1, up to 32 GB max.

  • System Memory Pre-installed

    8 GB DDR4

  • Storage Slot

    CFast slot x 1 (SATAIII interface)
    SD slots x 1, SD 3.0 interface (SDHC/SDXC)

  • Expansion Slots

    mPCIe slots x 1

  • Supported OS

    Windows images and drivers supported:
    - Windows 10 IoT Enterprise LTSC 2021 64-bit

    Linux image supported:
    - Debian 12 (kernel 6.10)

    Linux drivers supported:
    - Debian 12 (kernel 6.10)
    - Ubuntu 22.04 LTS (kernel 5.15)
    - RHEL 9 (kernel 5.14)

  • Graphics Controller

    Intel® UHD Graphics

  • Ethernet Ports

    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

  • Serial Ports

    RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

  • USB 3.0

    USB 3.0 hosts x 2, type-A connectors

  • Digital Input

    DIs x 4

  • Digital Output

    DOs x 4

  • TPM

    TPM v2.0

  • Video Output

    HDMI 1.2a x 1, (type-A connector)

  • SIM Format

    Nano

  • Number of SIMs

    1

  • Buttons

    Power button

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Baudrate

    50 bps to 115.2 kbps

  • Connector

    DB9 male

  • Data Bits

    5, 6, 7, 8

  • Parity

    None, Even, Odd, Space, Mark

  • Stop Bits

    1, 1.5, 2

  • Flow Control

    RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Connector

    Spring-type Euroblock terminal

  • Sensor Type

    Dry contact
    Wet contact (NPN)

  • Dry Contact

    Logic 0: Close to GND
    Logic 1: Open

  • Wet Contact (COM to DI)

    Logic 0: 10 to 30 VDC
    Logic 1: 3 VDC max

  • Connector

    Spring-type Euroblock terminal

  • I/O Type

    Sink

  • Current Rating

    200 mA per channel

  • Voltage

    Logic 0: 200mA max. per channel, sink
    Logic 1: 24 VDC (typ.), 30 VDC (max.), open collector

  • System

    Power x 1

  • LAN

    2 per port (10/100/1000 Mbps)

  • Input Voltage

    12/24 VDC

  • Power Connector

    Screw-fastened Euroblock terminal

  • Power Consumption

    50 W

  • Housing

    Metal

  • IP Rating

    IP20

  • Dimensions

    207 x 116.1 x 44.5 mm (8.14 x 4.57 x 1.75 in)

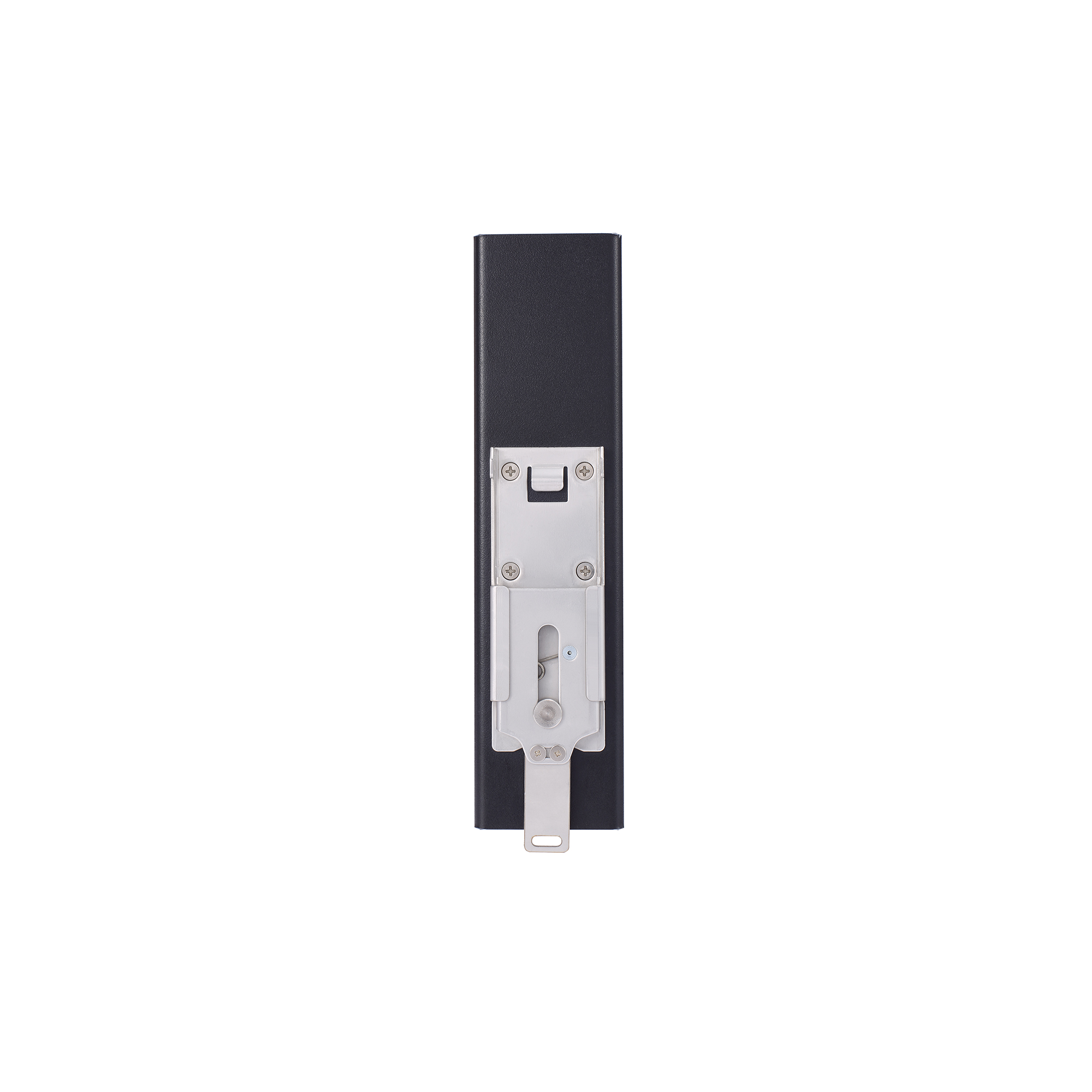

  • Installation

    Wall mounting

  • Weight

    1,225 g (2.7 lb)

  • Operating Temperature

    -30 to 70°C (-22 to 158°F)

  • Storage Temperature

    -40 to 70°C (-40 to 158°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A
    BSMI

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
    IEC 61000-4-6 CS: 3 V
    IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz

  • Safety

    BSMI
    IEC 62368-1
    UL 62368-1

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-64

  • Package Drop Test

    ISTA 1A

  • Package Vibration Test

    ISTA 1A

  • Green Product

    RoHS, CRoHS, WEEE

  • Time Source

    Built-in RTC (real-time clock) with lithium-battery backup

  • Automatic Reboot Trigger

    Built-in WDT

  • Time

    1,581,038 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Software Package for BXP-A101 Series (Linux SDK)
53.3 MB
Software Package
SHA-512
v1.0
  • Debian 12.x
  • RHEL 9
  • Ubuntu 22.04
Jan 21, 2025 Jan 21, 2025 Release notes
Driver for BXP-A101 Series (Windows 10 Enterprise LTSC 21H2)
596.5 MB
Driver
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
Jan 21, 2025 Jan 21, 2025 Release notes
Software Package for BXP-A101 Series (Windows 10 Enterprise LTSC 21H2 example code)
8.4 MB
Software Package
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
Jan 21, 2025 Jan 21, 2025 Release notes
Utility for BXP-A101 Series (Windows 10 Enterprise LTSC 21H2)
5.9 MB
Utility
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
Jan 21, 2025 Jan 21, 2025 Release notes

Support Documents

Name Type Version Release Date
DRP/BXP/RKP Series Linux User Manual
1.7 MB
Manual v3.0 Jan 21, 2025 Jan 21, 2025
Manual for BXP-A101 Series (hardware)
4.0 MB
Manual v1.0 Jan 20, 2025 Jan 20, 2025
Datasheet for BXP-A101 Series
1.7 MB
Datasheet v1.0 Jan 20, 2025 Jan 20, 2025
QIG for BXP-A101 Series
1.3 MB
QIG v1.0 Jan 20, 2025 Jan 20, 2025
Manual for BXP-A101 Series (Windows 10 IoT Enterprise LTSC 21H2)
6.6 MB
Manual v1.0 Jan 20, 2025 Jan 20, 2025
Declaration of Conformity for BXP-A101 Series
649.3 KB
Declaration v1.0 Dec 18, 2024 Dec 18, 2024

Available Models (2)

Show Images

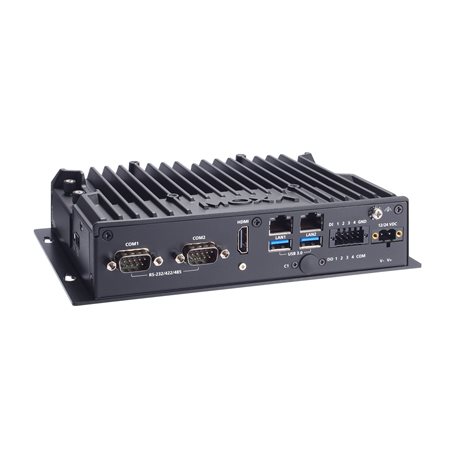

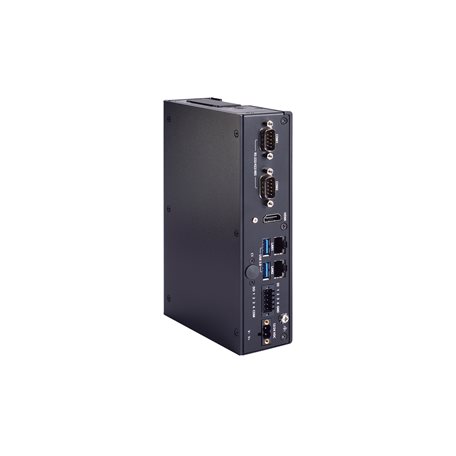

moxa-bxp-a101-e4-t-image.jpg | MoxaBXP-A101-E4-Tmoxa-bxp-a101-e2-t-image.jpg | MoxaBXP-A101-E2-T
CPUIntel Atom® x6425E Intel Atom® x6211E
Memory8 GB8 GB
Storage Slots1 x CFast
1 x SD
1 x CFast
1 x SD
OS Preinstalled
LAN/Serial2/22/2
USB 3.022
DIs/
DOs
4 x DIs
4 x DOs
4 x DIs
4 x DOs
Video Outputs1 x HDMI1 x HDMI
Power Input12/24 VDC12/24 VDC
