DA-681A Series

Intel® 3rd Gen Core™ CPU, IEC-61850, 1U rackmount computer with 6 Gigabit Ethernet ports, 12 isolated serial ports

moxa-da-681a-series-image-1-(1).jpg | Moxa
moxa-da-681a-series-image-2-(1).jpg | Moxa
moxa-da-681a-series-image-3-(1).jpg | Moxa
moxa-da-681a-series-image-4-(1).jpg | Moxa

Features and Benefits

  • IEC 61850-3, IEEE 1613, and IEC 60255 compliant for power substation automation systems (DPP and DPP-T models only)
  • 3rd Gen Intel® Core™ Celeron 1047UE 1.4 GHz CPU
  • 1 built-in DDR3 memory socket
  • 1 mSATA for OS and 1 SATA III for storage expansion
  • 6 Gigabit Ethernet ports for network redundancy
  • 4 USB 2.0 ports for high-speed peripherals
  • 2 isolated RS-232/422/485 and 10 isolated RS-485 ports
  • Embedded Debian 8 Linux (W7E by CTOS)
  • Supports both 100 to 240 VAC and 100 to 240 VDC power inputs (single-power and dual-power models available)
  • Optional IRIG-B expansion module available for DPP and DPP-T models

Certifications

  • moxa-iec61850-3-ieee1613-black-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa

Contact Sales

Introduction

The DA-681A Series x86-based rackmount embedded computers are designed for control, monitoring, data acquisition, and protocol conversion applications. With their high density and robust design, the DA-681A computers are suitable for industrial automation applications, such as power automation, transportation, oil and gas, and factory automation.

The DA-681A is based on the 3rd Gen Intel® Core™ Celeron 1047UE 1.4 GHz CPU and HM65 chipset, which supports standard x86, 1 x VGA, 4 x USB, 6 Gigabit LAN ports, 2 RS/232/422/485 3-in-1 serial ports, and 10 RS-485 (RS-422 by CV) ports. The DA-681A has a mini PCIe slot for mSATA and comes with Linux preinstalled; Windows 7 Embedded is also supported by a CTOS (Configuration To Order Service) process.

Another plus is that the serial ports come with 2 kV digital galvanic isolation protection to guarantee communication reliability in harsh industrial environments. In addition, the state-of-art IEC 61850-3, IEEE 1613, and IEC 60255 compliance all-in-one design provides rich interfaces, especially well-suited for power substation automation applications.

Smart Recovery Function

The DA-681A's Smart Recovery function minimizes downtime by making it easy to recover from operating system crashes. Engineers who are experts in a particular vertical market may not have enough computer domain knowledge to know how to fix the operating system problems. Moxa Smart Recovery™ is an automated BIOS-level recovery system tool that allows engineers to automatically trigger OS recovery to minimize downtime.

Proactive Monitoring Function

Moxa Proactive Monitoring is a small-footprint, resource-friendly, easy-to-use utility that allows users to track a number of system parameters. Users can view the current parameter values for these key parts by simply clicking on the icons corresponding to the parameters in the user interface. User-defined key part indicators (KPIs) are used to monitor the computer’s key parts. Visible and/or audio alerts are triggered automatically via relay and SNMP traps when these KPIs exceed their preset threshold values, making it extremely convenient for operators to avoid system downtime by setting up predictive maintenance tasks well in advance.

Appearance

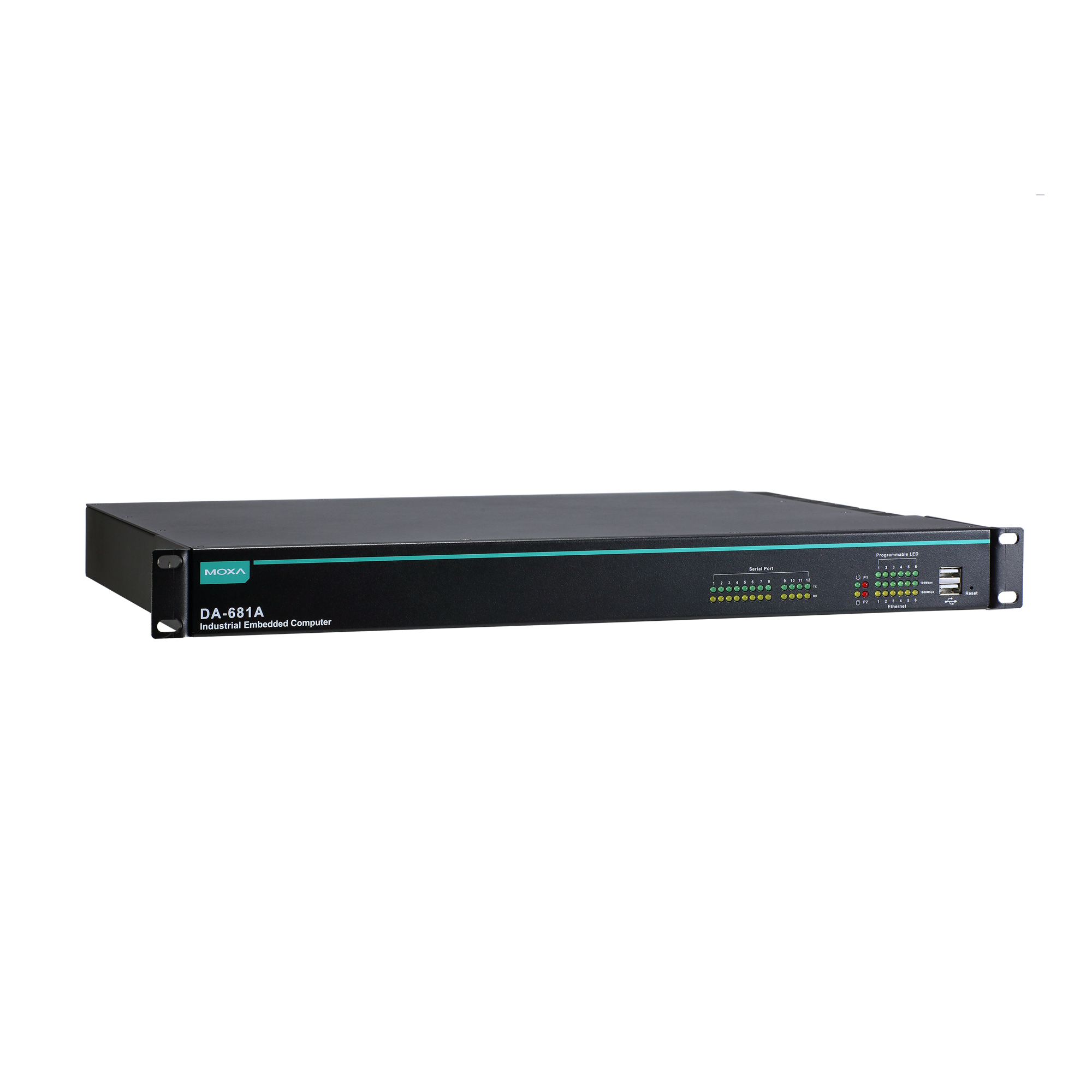

Front View

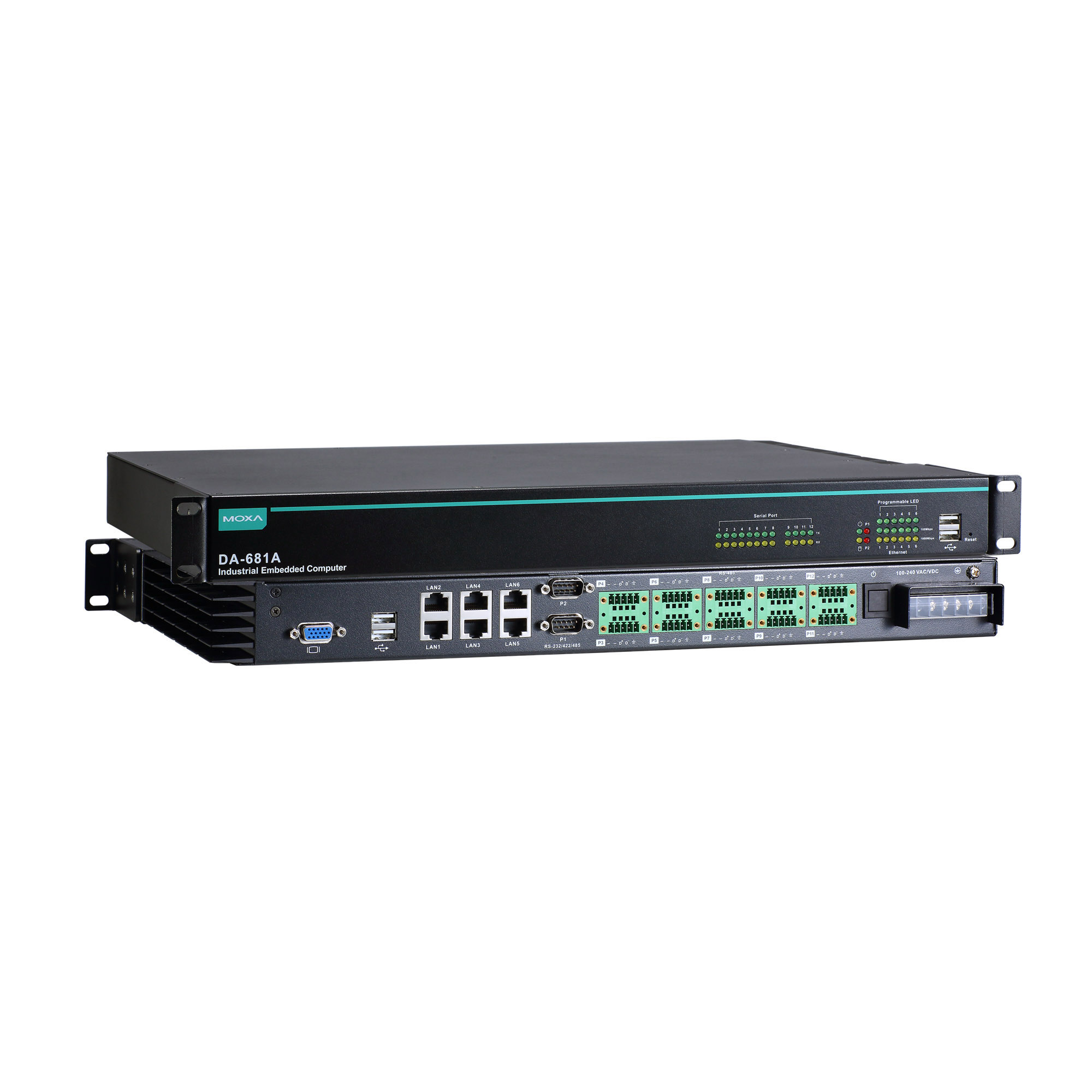

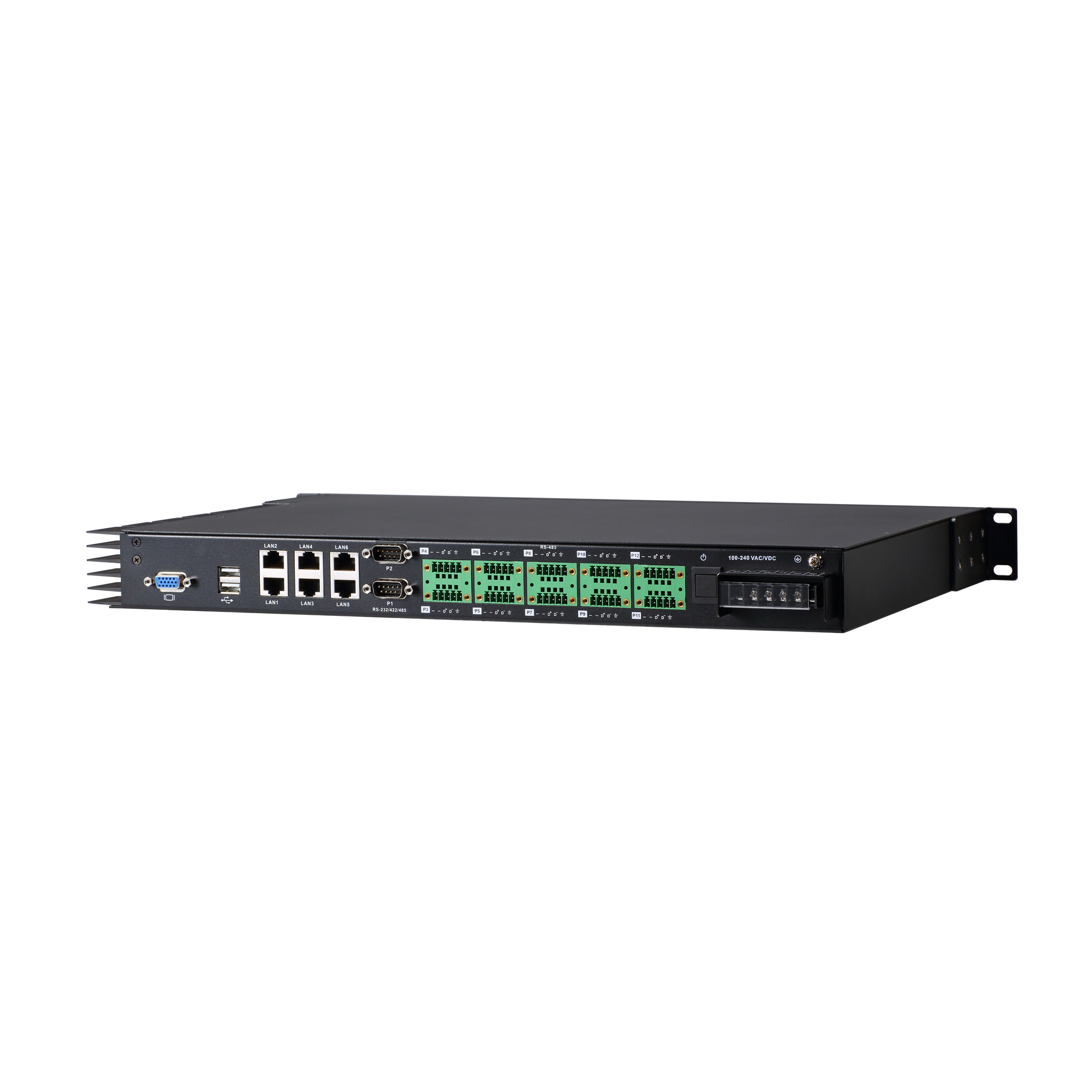

Rear View

  • CPU

    Intel® Celeron® Processor 1047UE (2M Cache, 1.40 GHz)

  • System Chipset

    Mobile Intel® HM65 Express Chipset

  • Graphics Controller

    Intel® HD Graphics

  • Storage Slot

    2.5-inch HDD/SSD slots x 1
    mSATA x 1

  • System Memory Slot

    SODIMM DDR3/DDR3L slot x 1

  • Supported OS

    Linux Debian 8 (Linux kernel v4.1)
    Windows Embedded Standard 7 (WS7P) 32-bit
    Windows Embedded Standard 7 (WS7P) 64-bit
    Note: W7E available by CTOS

  • Ethernet Ports

    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6

  • USB 2.0

    USB 2.0 hosts x 4, type-A connectors

  • Serial Ports

    RS-232/422/485 ports x 2, software selectable (DB9 male)
    RS-485 ports x 10, software-selectable (terminal block)

  • Video Input

    VGA x 1, 15-pin D-sub connector (female)

  • System

    Power x 1
    Storage x 1
    Programmable x 6

  • LAN

    2 per port (10/100/1000 Mbps)

  • Baudrate

    50 bps to 115.2 kbps

  • Data Bits

    5, 6, 7, 8

  • Flow Control

    RTS/CTS, XON/XOFF

  • Isolation

    2 kV

  • Parity

    None, Even, Odd, Space, Mark

  • Stop Bits

    1, 1.5, 2

  • Surge

    DA-681A-I-DPP models only: 4 kV

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Operating Voltage

    100 to 240 VDC, 100 to 240 VAC

  • Power Button

    ON/OFF (rear panel)
    Reset button
    (front panel)

  • Power Consumption

    25 W (max.)

  • Housing

    Metal

  • Dimensions (without ears)

    440 x 315 x 45 mm (17.32 x 12.40 x 1.77 in)

  • Weight

    4,500 g (10 lb)

  • Installation

    19-inch rack mounting

  • Operating Temperature

    Standard Models: -25 to 55°C (-13 to 131°F)
    Wide Temp. Models: -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-11 DIPs
    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8: 20 A/m

  • Power Substation

    IEC 61850-3, IEEE 1613

  • Protection Relay

    IEC 60255

  • Safety

    EN 60950-1, IEC 60950-1, UL 60950-1

  • Shock

    IEC 60068-2-27, IEC 60870-2-2, IEC 61850-3 Edition 1.0

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    SP models: 240,784 hrs
    DPP models: 215,436 hrs

  • Standards

    Telcordia SR332
