x86 Computers

Moxa’s x86 industrial-grade fanless computers have passed rigorous tests and strictly adhere to industrial standards to ensure they can provide long-lasting, reliable operation even in harsh environments, making them perfect for a variety of industrial-automation applications.

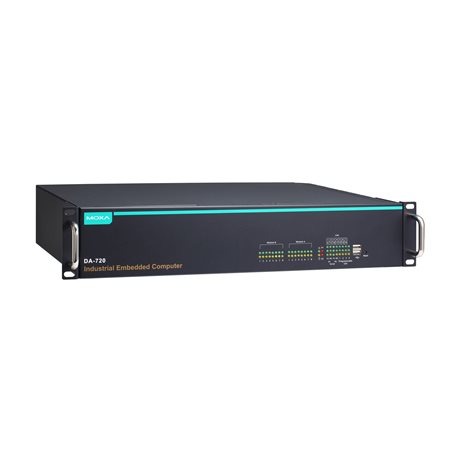

DA-720-C5-DPP
DA-720 Series

Rackmount computer with Core i5-6300U, 2.4 GHz processor, dual-core processor, 14 Gigabit Ethernet ports, 2 isolated RS-232/422/485 ports, 4 USB ports, 3 PCIe expansion slots, 1 VGA port, 1 DVI-D port, IEC 61850-3 compliant, -25 to 55°C operating temperature

Computer
  • CPU

    • Intel® Core™ i5-6300U Processor (3M Cache, up to 3.00 GHz)
  • Graphics Controller

    • Intel® HD Graphics 520
  • System Memory Slot

    • SODIMM DDR4 slot x 2
  • Supported OS

    • Linux Debian 8 (Linux kernel v4.1)
      Windows 10 Embedded IoT Ent 2016 LTSB High End EPKEA
      Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA
      Note: W10 available by CTOS
  • Storage Slot

    • 2.5-inch HDD/SSD slots x 1
      mSATA slots x 1, internal mini-PCIe socket
Computer Interface
  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 14
  • Serial Ports

    • RS-232/422/485 ports x 2, software-selectable (terminal block)
  • USB 2.0

    • USB 2.0 hosts x 2, type-A connectors (front)
  • USB 3.0

    • USB 3.0 hosts x 2, type-A connectors (rear)
  • Expansion Slots

    • Proprietary PCIe slot x 3
  • Video Input

    • DVI-D x 1, 29-pin DVI-D connectors (female)
      VGA x 1, 15-pin D-sub connector (female)
  • TPM

    • TPM v2.0
  • Secure Boot

    • UEFI
LED Indicators
  • System

    • Power x 1
      Storage x 1
      Programmable x 4
  • LAN

    • 1 per port (10/100/1000 Mbps)
  • Serial

    • 2 per port (Tx, Rx)
Serial Interface
  • Baudrate

    • 50 bps to 115.2 kbps
  • Connector

    • Terminal block
  • ESD

    • 8 kV (level 4)
  • Isolation

    • 2 kV
  • Serial Standards

    • RS-232/422/485
  • Surge

    • 2 kV: line-to-line
      4 kV: line-to-ground
Serial Signals
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-232

    • TxD, RxD, RTS, CTS, GND
Power Parameters
  • Input Current

    • 100 to 240 VAC, 50 to 60 Hz, 0.82 A (max)
      100 to 240 VDC, 0.84 A (max)
  • Power Button

    • Reset button (front panel)
      ON/OFF (rear panel)
Physical Characteristics
  • Housing

    • Metal
  • Dimensions (without ears)

    • 440 x 301 x 90 mm (17.32 x 12.20 x 3.54 in)
  • Weight

    • 6,500 g (14.33 lb)
  • Installation

    • 19-inch rack mounting
Environmental Limits
  • Operating Temperature

    • -25 to 55°C (-13 to 131°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8: 20 A/m
      IEC 61000-4-11
  • Power Substation

    • IEC 61850-3
      IEEE 1613
  • Protection Relay

    • IEC 60255
  • Railway

    • EN 50121-4
  • Safety

    • EN 62368-1
      IEC 60950-1
      UL 60950-1
  • Shock

    • IEC 60870-2-2, IEC 61850-3 Edition 1.0
  • Vibration

    • IEC 61850-3, IEC 60870-2-2
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 138,319 hrs
  • Standards

    • Telcordia SR332
