DA-820C Series

Intel® 7th Gen Xeon® and Core™ processor, IEC-61850, 3U rackmount computers with PRP/HSR card support

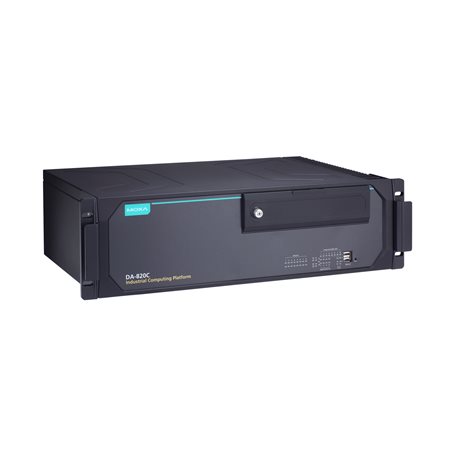

moxa-da-820c-series-image-1-(1).jpg | Moxa

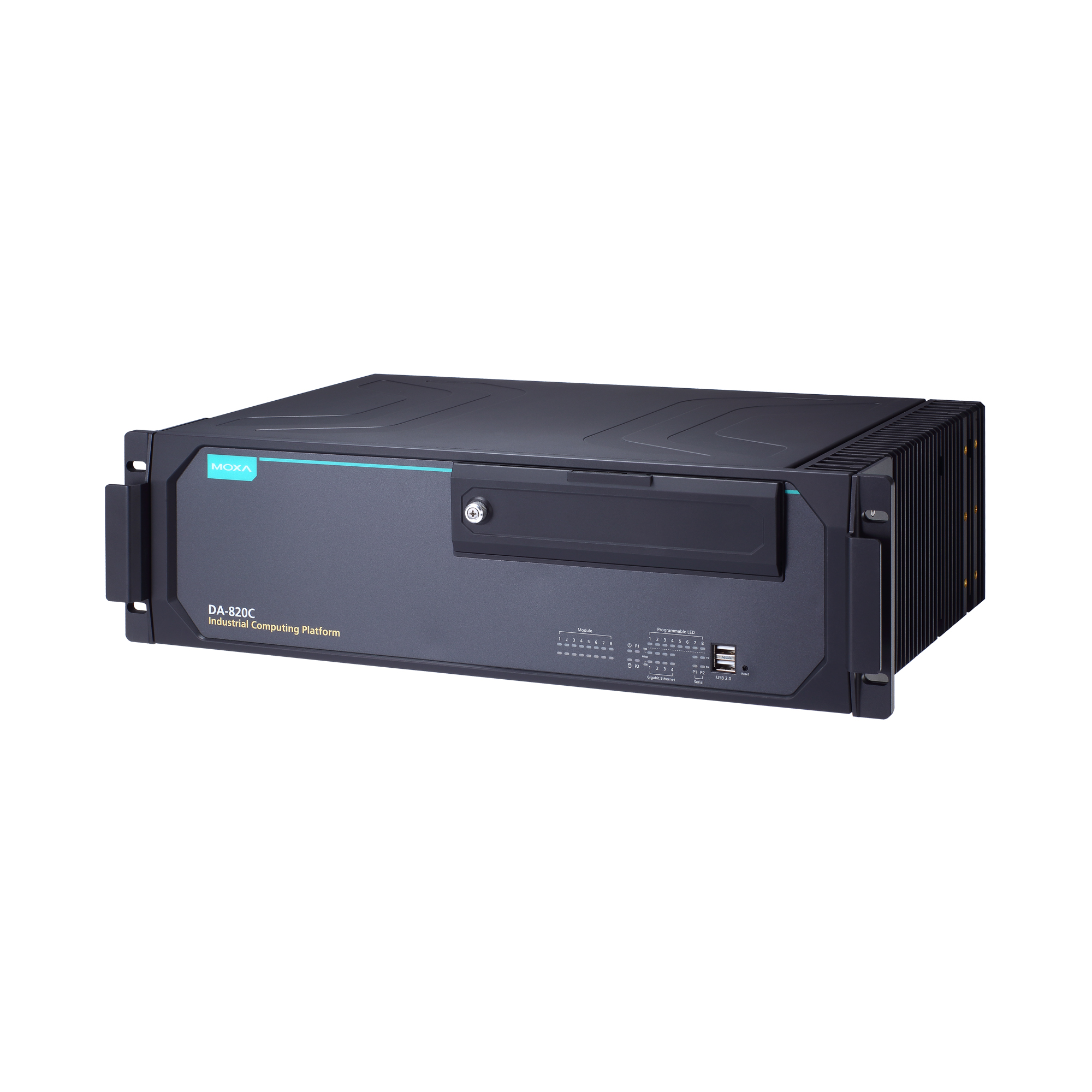

moxa-da-820c-series-image-2-(1).jpg | Moxa

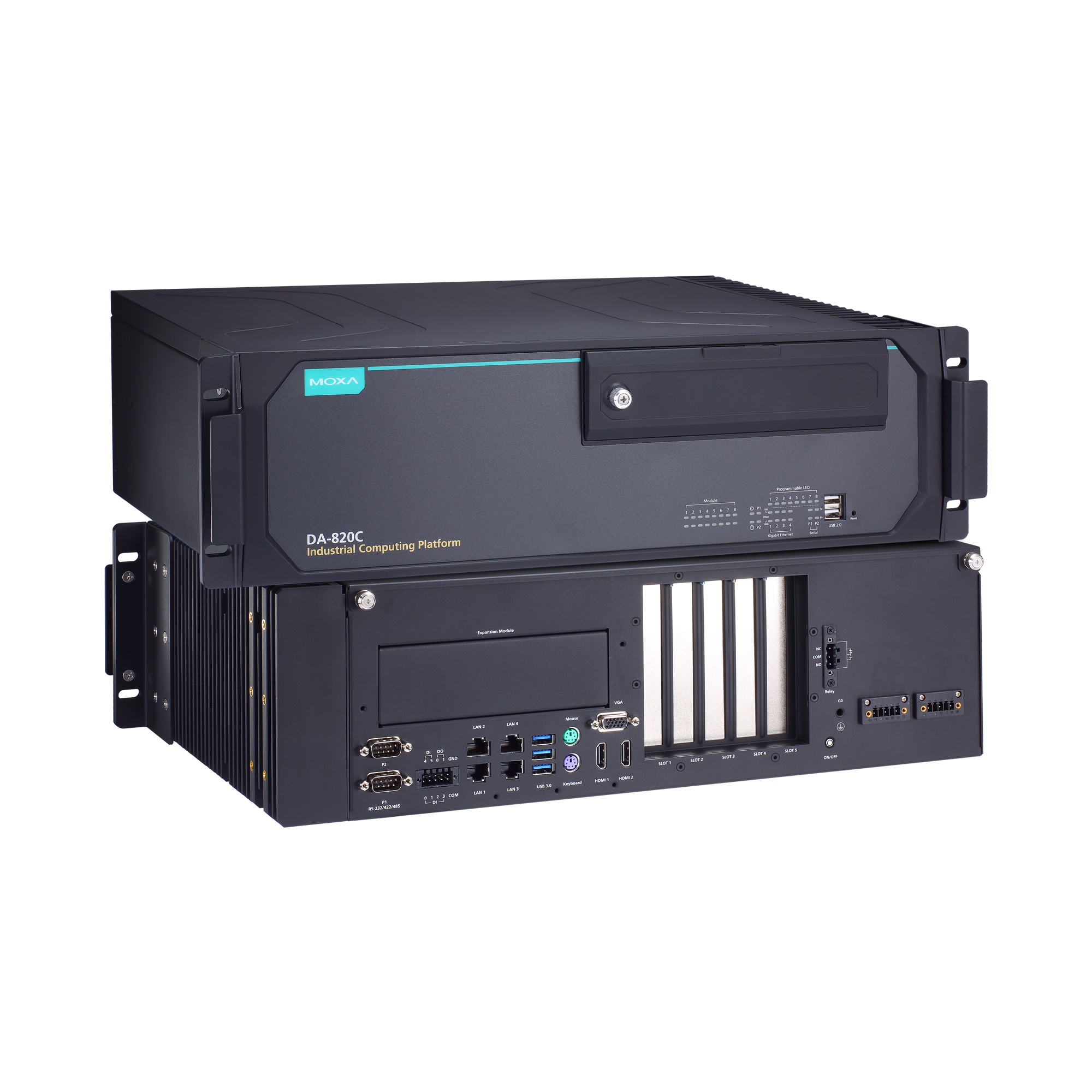

moxa-da-820c-series-image-3-(1).jpg | Moxa

moxa-da-820c-series-image-4-(1).jpg | Moxa

moxa-da-820c-series-image-5-(1).jpg | Moxa

Features and Benefits

IEC 61850-3, IEEE 1613, and IEC 60255 compliant power-automation computer
EN 50121-4 compliant for railway wayside applications
7th Generation Intel® Xeon® and Core™ Processor
Up to 64 GB RAM (two built-in SODIMM ECC DDR4 memory slots)
4 SSD slots, supports Intel® RST RAID 0/1/5/10
PRP/HSR technology for network redundancy (with a PRP/HSR expansion module)
MMS server based on IEC 61850-90-4 for integration with Power SCADA
PTP (IEEE 1588) and IRIG-B time synchronization (with an IRIG-B expansion module)
Security options such as TPM 2.0, UEFI Secure Boot, and physical security
1 PCIe x16, 1 PCIe x4, 2 PCIe x1, and 1 PCI slots for expansion modules
Redundant power supply (100 to 240 VAC/VDC)

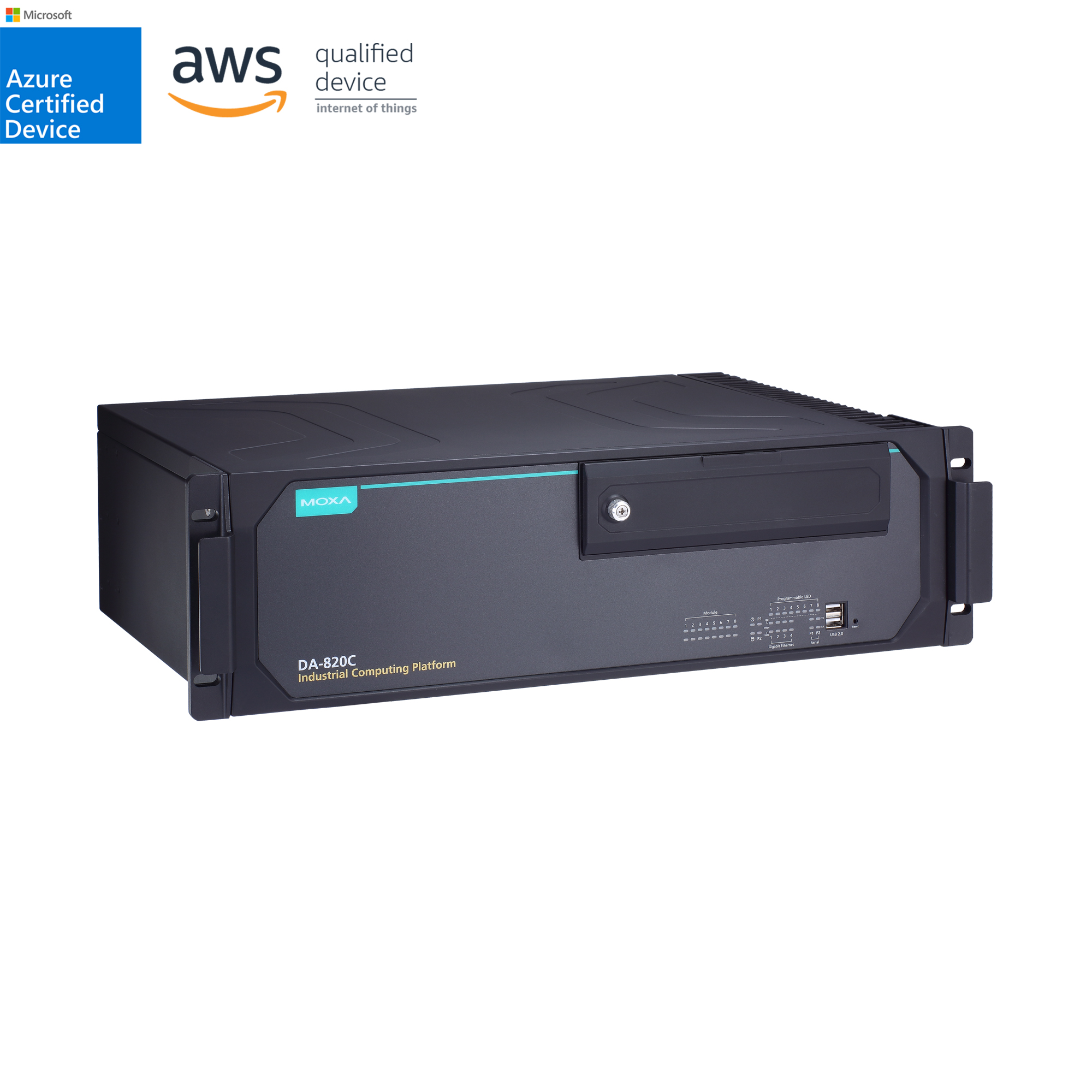

Certifications

You can track updates for your followed products in My Moxa

Contact Sales

Introduction

The DA-820C Series is a high-performance 3U rackmount industrial computer built around a 7th Gen Intel® Core™ i3/i5/i7 or Intel® Xeon® processor and comes with 3 display ports (HDMI x 2, VGA x 1), 6 USB ports, 4 gigabit LAN ports, two 3-in-1 RS-232/422/485 serial ports, 6 DI ports, and 2 DO ports. The DA-820C is also equipped with 4 hot swappable 2.5” HDD/SSD slots that support Intel® RST RAID 0/1/5/10 functionality and PTP/IRIG-B time synchronization.

The DA-820C complies with IEC-61850-3, IEEE 1613, IEC 60255, and EN50121-4 standards to deliver stable and reliable system operations for power applications.

IEC 60255 is one of the most widely used standards for the protection of electrical relays in a smart substation. Compliance with the standard ensures that the DA-820C will work reliably and seamlessly with IEDs as part of a robust substation automation system.

EN 50121-4 compliance confirms that the DA-820C can deliver stable and reliable system operations in rail wayside applications, such as station SCADA systems, wayside disaster prevention, traction power, and signaling and safety systems, to provide an integrated view of your smart rail setup.

Proactive Monitoring Function

Moxa Proactive Monitoring is a small-footprint, resource-friendly, easy-to-use utility available with some Moxa computers to track a number of system parameters. You can view the current values for key parts by simply clicking on the icons corresponding to the parameters in a Windows-based user interface. User-defined key part indicators (KPIs) are used to monitor the computer’s key parts. Visible and/or audio alerts are triggered automatically via relays and SNMP traps when these KPIs exceed their preset threshold values, making it extremely convenient for operators to avoid system downtime by setting up predictive maintenance tasks well in advance.

Appearance

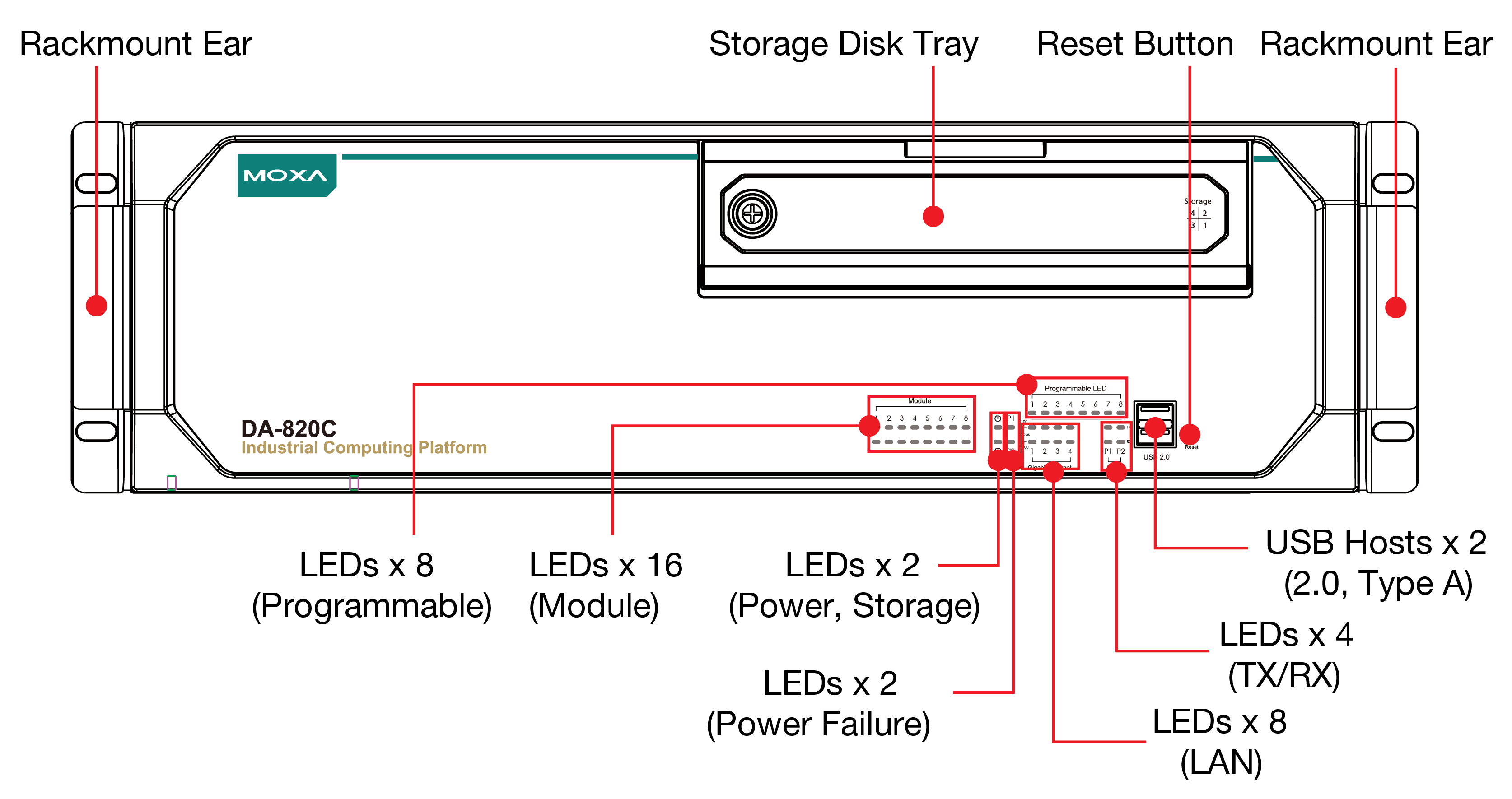

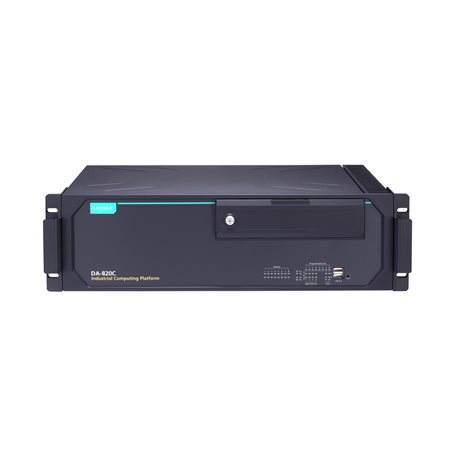

Front View

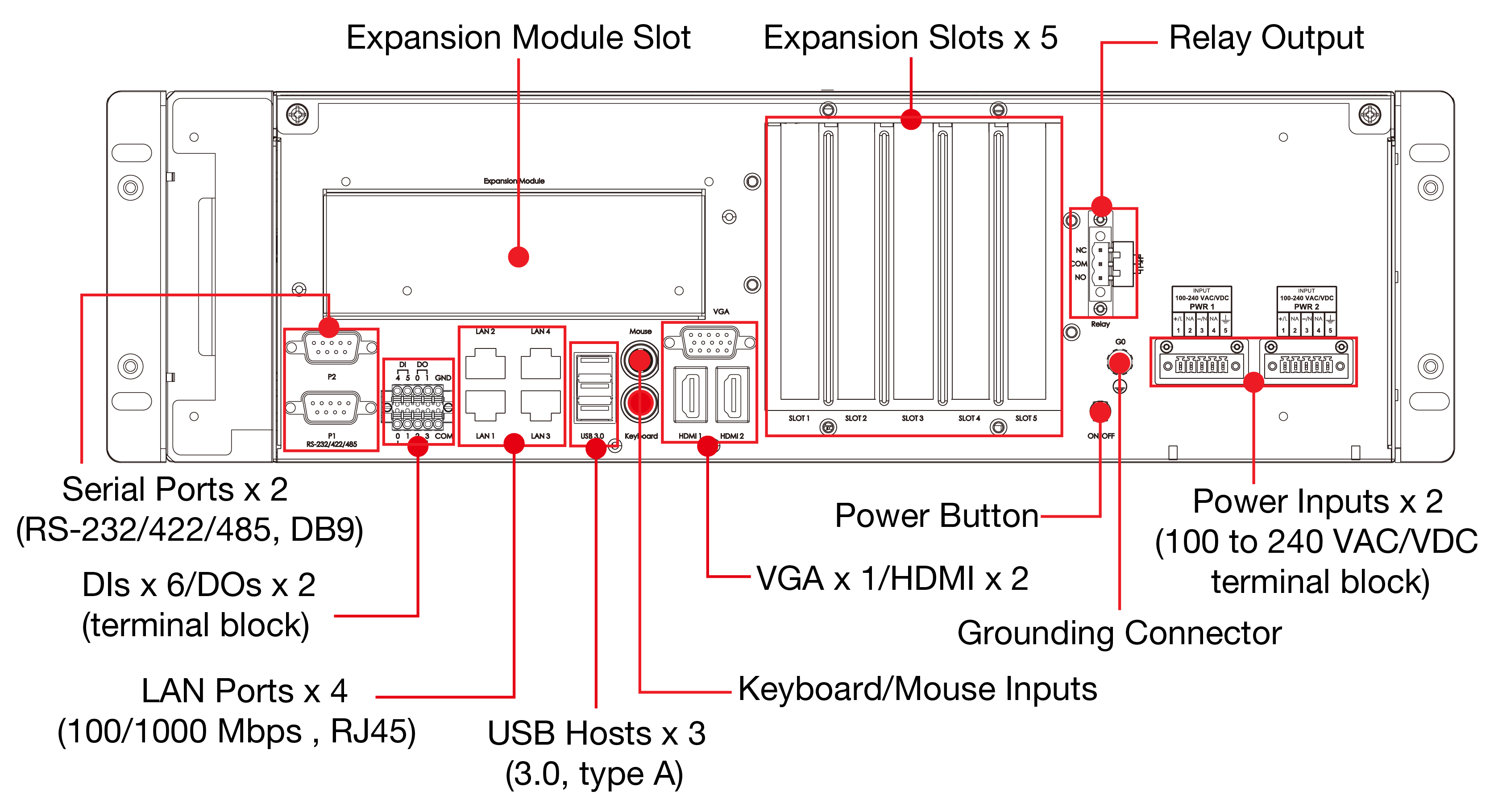

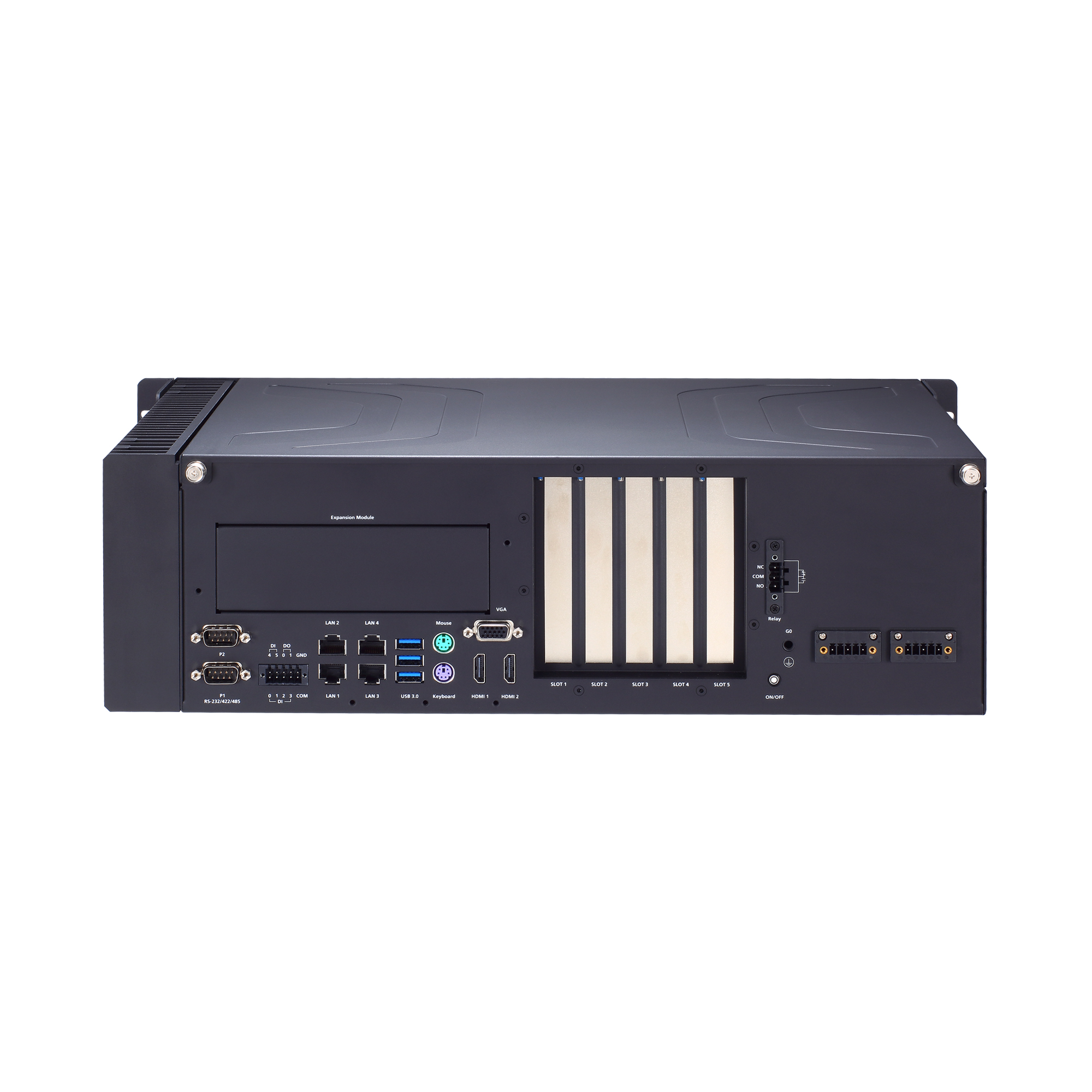

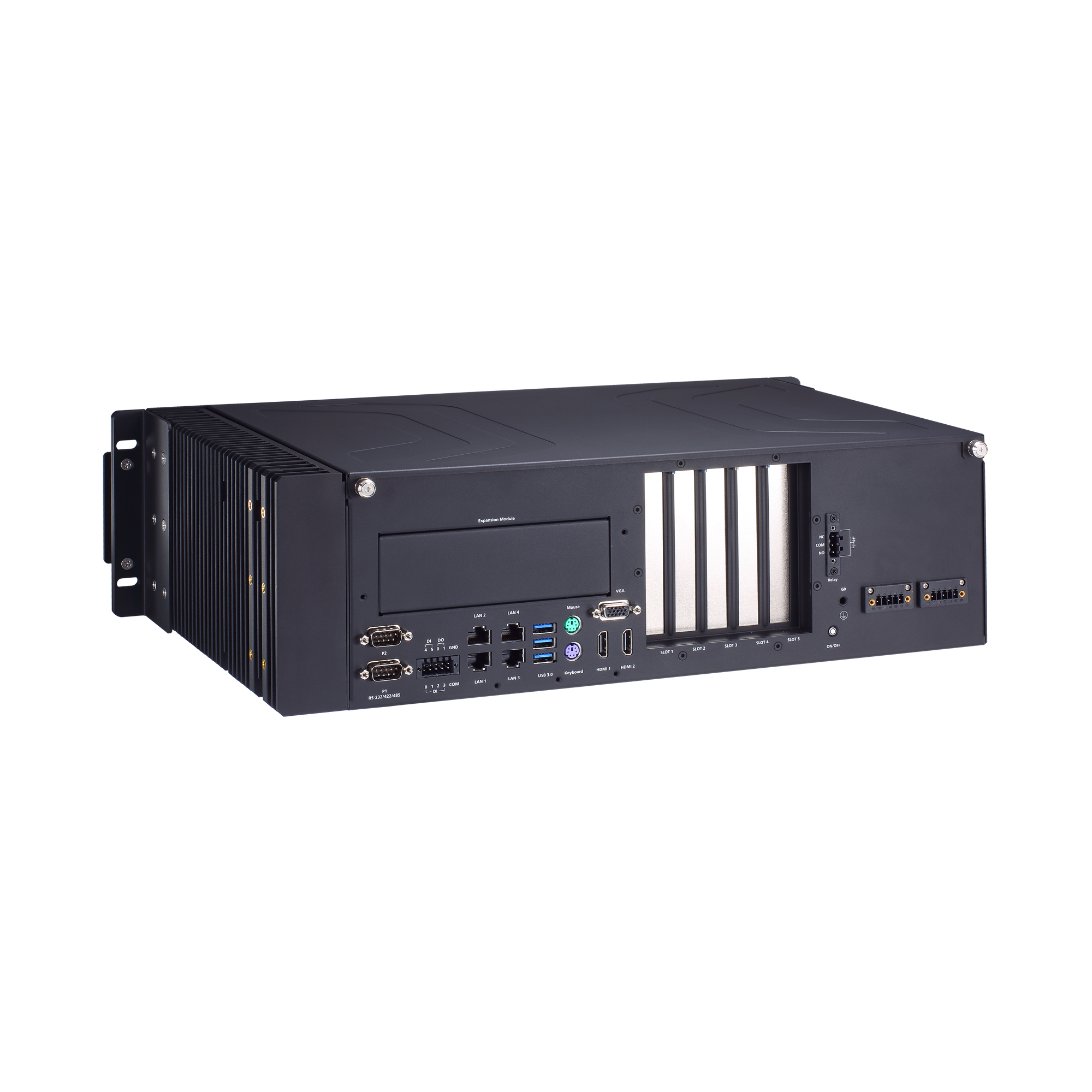

Rear View

Download datasheet
Print this page
Save

You can manage and share your saved list in My Moxa

CPU

Intel® Xeon® Processor E3-1505M v6 (8M Cache, 3.00 GHz)
Intel® Xeon® Processor E3-1505L v6 (8M Cache, 2.20 GHz)
Intel® Core™ i7-7820EQ Processor (8M Cache, up to 3.70 GHz)
Intel® Core™ i5-7442EQ Processor (6M Cache, up to 2.90 GHz)
Intel® Core™ i3-7102E Processor (3M Cache, 2.10 GHz)
System Memory Slot

SODIMM DDR4 slots x 2
DRAM

64 GB max. capacity (SODIMM x 2, each supporting 2400 MHz and 32 GB maximum per module)
ECC RAM only supports i3 CPU and Xeon CPU models
Graphics Controller

Intel® Xeon® E3-1505MV6: Intel® HD Graphics P630
Intel® Xeon® E3-1505LV6: Intel® HD Graphics P630
Intel® Core™ i7-7820EQ: Intel® HD Graphics 630
Intel® Core™ i5-7442EQ: Intel® HD Graphics 630
Intel® Core™ i3-7102E: Intel® HD Graphics 630
Storage Slot

2.5-inch HDD/SSD slots x 4
mSATA slots x 1, internal mini-PCIe socket
Supported OS

Windows 10 IoT Enterprise LTSC 2021 64-bit
Windows 10 IoT Enterprise LTSC 2019 64-bit
Windows Server 2019
Linux Debian 11
Linux Debian 9
Linux drivers can be downloaded from
https://docs.moxa.online/mil/manuals/
MMS

IEC 61850-90-4 MMS Server for power SCADA
IEC 61850-90-4 MMS ICD file

Ethernet Ports

Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
Serial Ports

RS-232/422/485 ports x 2, software selectable (DB9 male)
Digital Input

DIs x 6
Digital Output

DOs x 2
USB 2.0

USB 2.0 hosts x 3, type-A connectors
2 ports on the front panel, 1 port inside the computer
USB 3.0

USB 3.0 hosts x 3, type-A connectors
3 ports on the rear panel
Expansion Slots

PCIe x16 slot x 1
PCIe x4 slots x 1
PCIe x1 slots x 2
PCI slots x 1
Video Output

HDMI x 2, HDMI connector (type A)
VGA x 1, 15-pin D-sub connector (female)
Time Synchronization

PTP, IRIG-B (with an expansion module)
TPM

TPM v2.0
Secure Boot

UEFI

System

Power x 1
Storage x 1
Programmable x 8
Serial

2 per port (Tx, Rx)
LAN

8 per port (10/100/1000 Mbps)

Baudrate

300 bps to 115.2 kbps
Connector

DB9 male
ESD

8 kV (level 4)
Isolation

2 kV
Serial Standards

RS-232/422/485
Surge

2 kV

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422

Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w

Data+, Data-, GND
RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

Digital Input Channels

DIs x 6
Voltage

0 to 30 VDC at 25 Hz
Wet Contact (DI to COM)

On: 10 to 30 VDC

Digital Output Channels

DOs x 2
Current Rating

Max. 200 mA per channel
Voltage

24 to 30 VDC
I/O Type

Sink

Input Current

100 to 240 VAC, 50/60 Hz, 1.15 A (max)
100 to 240 VDC, 1.15 A (max)
Input Voltage

100 to 240 VAC
100 to 240 VDC
Power Button

Reset button (front panel)
ON/OFF (rear panel)

Housing

Metal
Dimensions (without ears)

440 x 132.8 x 281.4 mm (17.3 x 5.2 x 11.1 in)
Weight

14,000 g (31.11 lb)
Installation

19-inch rack mounting

Operating Temperature

Standard Models: -25 to 55°C (-13 to 131°F)
Wide Temp. Models: -40 to 70°C (-40 to 158°F)
Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity

5 to 95% (non-condensing)

EMC

EN 61000-6-2/-6-4
EN 55032/35
EMI

CISPR 32, FCC Part 15B Class A
EMS

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8: 20 A/m
IEC 61000-4-11
Power Substation

IEC 61850-3
IEEE 1613
Protection Relay

IEC 60255
Safety

IEC 60950-1
IEC 62368-1
UL 62368-1
Shock

IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2

Green Product

RoHS, CRoHS, WEEE

Time

325,730 hrs
Standards

Telcordia SR332

Warranty Period

3 years
Details

See www.moxa.com/warranty
