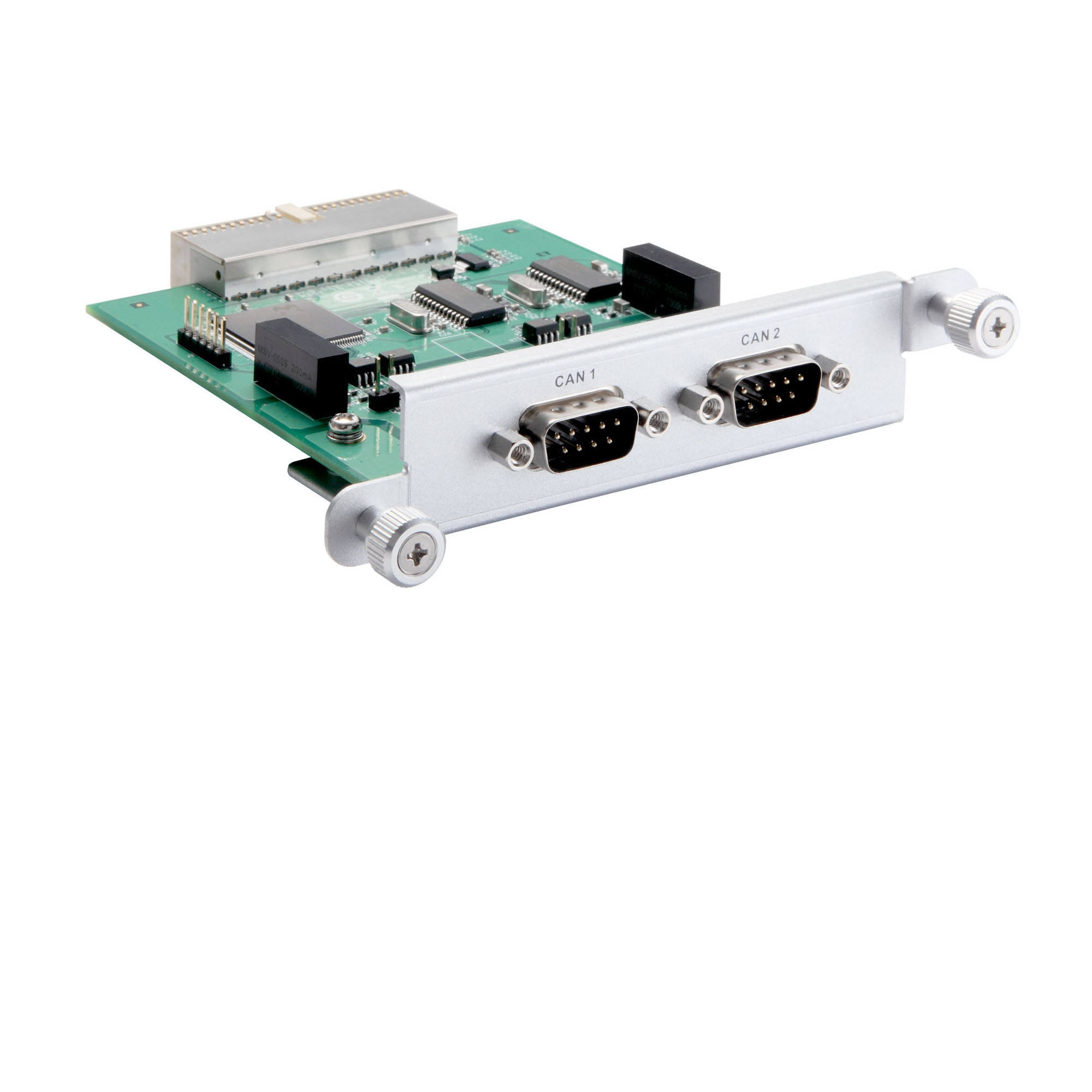

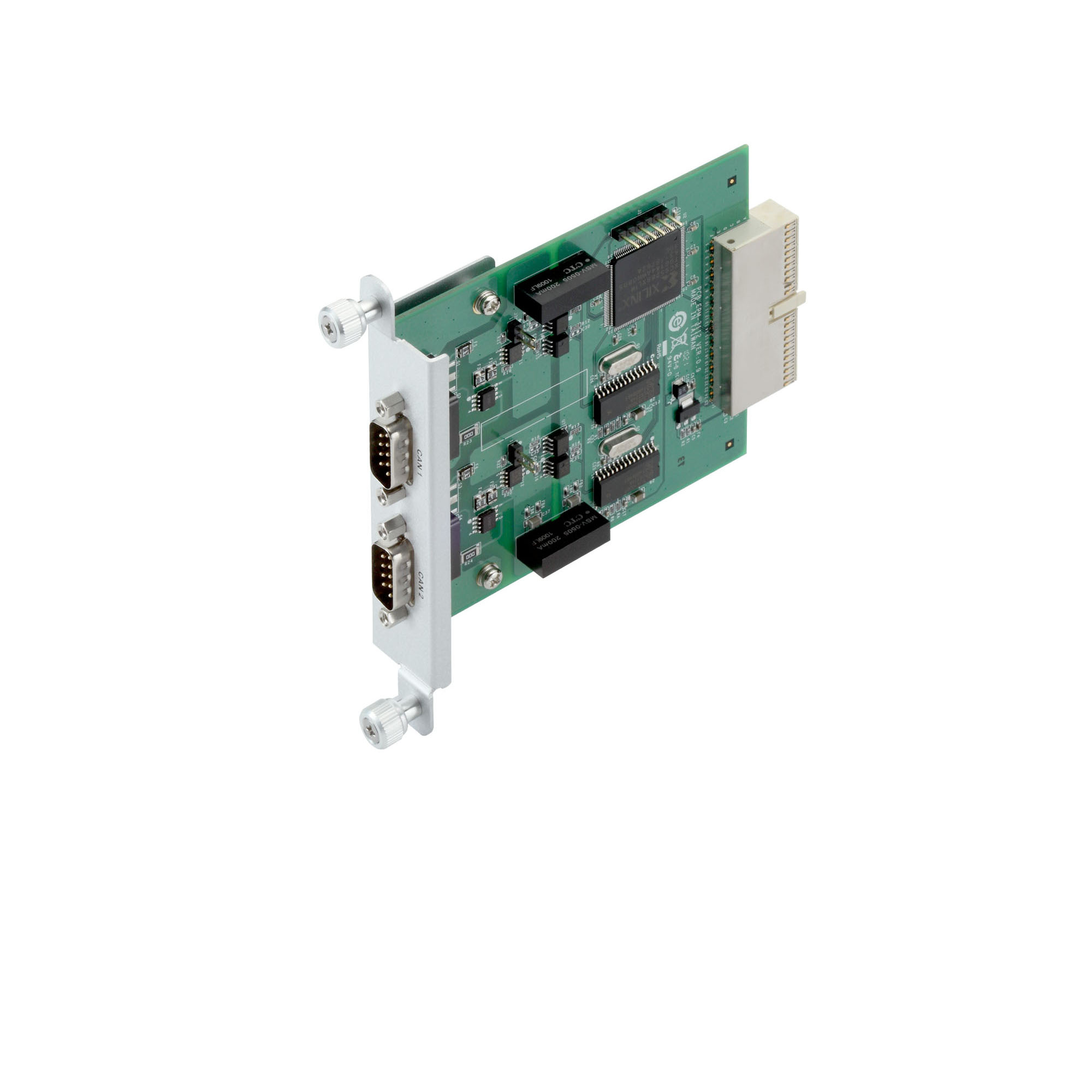

EPM-3112 Expansion Module

Expansion peripheral modules (EPM) for the V2400 Series

moxa-epm-3112-expansion-module-image-1-(1).jpg | Moxa
moxa-epm-3112-expansion-module-image-2-(1).jpg | Moxa

Features and Benefits

  • 2 isolated CAN ports with DB9 connectors

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

Moxa’s EPM-3112 expansion module comes with 2 isolated CAN ports with DB9 connectors that can be used with Moxa’s V2426 embedded computers to give end users the best flexibility for setting up and expanding a variety of industrial applications.

Appearance

  • No. of Ports

    2

  • Connector

    DB9 male

  • Industrial Protocols

    CAN 2.0A, CAN 2.0B

  • Signals

    CAN_H and CAN_L
    CAN_H
    CAN_L

  • Isolation

    2 kV

  • Speed

    1 Mbps

  • Dimensions (without ears)

    104 x 121 x 34 mm (4.09 x 4.76 x 1.34 in)

  • Weight

    127 g (0.28 lb)

  • Operating Temperature

    -25 to 55°C (-13 to 131°F)

Support Documents

Name Type Version Release Date
Datasheet for EPM-3112 Expansion Module
329.3 KB
Datasheet v1.0 2018-11-12 Nov 12, 2018

Available Models (1)

Show Images
moxa-epm-3112-image.jpg | MoxaEPM-3112
miniPCIe Expansion Slots
SIM Slots
RS-232/422/485 Ports
CAN Ports2
Digital Input Channels
Digital Output Channels
Operating Temp.-25 to 55°C
