RKP-A110 Series

Rackmount 1U computers with Elkhart Lake Intel Atom® X Series processor base model and high-interface models

moxa-rkp-a110-series-image-(1).jpg | Moxa
moxa-rkp-a110-series-image-1-(1).jpg | Moxa
moxa-rkp-a110-series-image-2-(1).jpg | Moxa
moxa-rkp-a110-series-image-3-(1).jpg | Moxa
moxa-rkp-a110-series-image-4-(1).jpg | Moxa
moxa-rkp-a110-series-image-5-(1).jpg | Moxa
moxa-rkp-a110-series-image-6-(1).jpg | Moxa

Features and Benefits

  • 1U rackmount computer with fanless design
  • Intel Atom® X Series processor
  • Rich interface options for up to 12 LAN ports and up to 10 serial ports
  • Standard form factor that fits most field applications
  • Unified front-panel connectivity design for easy access of interfaces
  • -30 to 60°C operating temperature range

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-bsmi-certification-logo-image.png | Moxa

Contact Sales

Introduction

The RKP-A110 rackmount computers are powered by an Intel Atom® X Series processor. The computers come with a rich set of interface options including up to 12 gigabit Ethernet ports, 10 software-selectable RS-232/422/485 serial ports, and 8 digital inputs and 8 digital outputs. The communication interfaces are all located on the front panel, enabling easy access and convenient expansion for industrial applications. Two hand-rotated 2.5” SSD storage drives and an external replaceable RTC battery design deliver a reliable, durable, and versatile yet user-friendly computing platform.

Designed as 1U fanless rackmount computers with an operating temperature range of -30 to 60°C and a build-in TPM 2.0 module, the RKP-A110 computers are ideal as secure and reliable computing platforms for industrial applications in extreme operating environments.

Appearance

Front View

RKP-A110-E2-T/E4-T/E2-T-Win10/E4-T-Win10 Models

RKP-A110-E2-8L-T/A110-E4-8L-T Models

RKP-A110-E2-8C-T/A110-E4-8C-T Models

RKP-A110-E2-2L4C-T/E4-2L4C-T Models

RearView

  • CPU

    RKP-A110-E2 Models:
    Intel Atom® x6211E processor (Dual core, 1.5M cache, 1.30 GHz)
    RKP-A110-E4 Models:
    Intel Atom® x6425E processor (Quad core, 1.5M cache, 2.00 GHz)

  • System Memory Slot

    SODIMM DDR4 slots x 1, up to 32 GB max.

  • System Memory Pre-installed

    8 GB DDR4

  • Storage Slot

    2.5-inch SSD slots x 2 (SATAIII interface)

  • Storage Pre-installed

    RKP-A110-E2-T-Win10/E4-T-Win10:
    64 GB SSD

  • Supported OS

    Windows Images and Drivers Supported:
    - Windows 10 IoT Enterprise LTSC 2021 64-bit
    - Windows 11 Professional 64-bit

    Linux Drivers Supported:
    - Debian 11 (kernel 5.10)
    - Ubuntu 22.04 LTS (kernel 5.15)
    - RHEL 9 (kernel 5.14)

  • Graphics Controller

    Intel® UHD Graphics

  • Ethernet Ports

    RKP-A110-E2-8L-T/E4-8L-T Models:
    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 12
    RKP-A110-E2-2L4C-T/E4-2L4C-T Models:
    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6
    RKP-A110-E2-T/E4-T/E2-8C-T/E4-8C-T/E2-T-Win10/E4-T-Win10 Models:
    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4

  • Serial Ports

    RKP-A110-E2-8C-T/E4-8C-T Models:
    RS-232/422/485 ports x 10, software selectable (DB9 male)
    RKP-A110-E2-2L4C-T/4-2L4C-T Models:
    RS-232/422/485 ports x 6, software selectable (DB9 male)
    RKP-A110-E2-T/E4-T/E2-8L-T/E4-8L-T/E2-T-Win10/E4-T-Win10 Models:
    RS-232/422/485 ports x 2, software selectable (DB9 male)

  • USB 3.0

    USB 3.0 hosts x 3, type-A connectors

  • Digital Input

    DIs x 8

  • Digital Output

    DOs x 8

  • TPM

    TPM v2.0

  • Video Output

    HDMI 2.0b x 1, (type-A connector)
    VGA x 1, 15-pin D-sub connector (female)

  • Buttons

    Reset button
    Power button

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Baudrate

    50 bps to 115.2 kbps

  • Connector

    DB9 male

  • Data Bits

    5, 6, 7, 8

  • Parity

    None, Even, Odd, Space, Mark

  • Stop Bits

    1, 1.5, 2

  • Flow Control

    RTS/CTS, XON/XOFF

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Connector

    Spring-type Euroblock terminal

  • Sensor Type

    Dry contact

  • Dry Contact

    Logic 0: Short to GND
    Logic 1: Open

  • Connector

    Spring-type Euroblock terminal

  • I/O Type

    Sink

  • Current Rating

    200 mA per channel

  • Voltage

    0 to 24 VDC

  • System

    Power x 1
    Storage x 1

  • LAN

    2 per port (10/100/1000 Mbps)

  • Input Voltage

    12/24 VDC

  • Power Connector

    Screw-fastened Euroblock terminal

  • Power Consumption

    50 W

  • Housing

    Metal

  • IP Rating

    IP20

  • Dimensions

    440 x 230 x 43.6 mm (17.32 x 9.06 x 1.72 in)

  • Weight

    RKP-A110-E2-8C-T/E4-8C-T/E2-2L4C-T/E4-2L4C-T Models:
    3,520 g (7.76 lb)
    RKP-A110-E2-8L-T/E4-8L-T Models:
    3,510 g (7.74 lb)
    RKP-A110-E2-T/E4-T/E2-T-Win10/E4-T-Win10 Models:
    3,330 g (7.34 lb)

  • Installation

    Rack mounting (standard 1U)

  • Operating Temperature

    -30 to 60°C (-22 to 140°F)

  • Storage Temperature

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A
    BSMI

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
    IEC 61000-4-6 CS: 3 V
    IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz

  • Safety

    UL 62368-1 (CB)
    BSMI

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-64

  • Package Drop Test

    ISTA 1A

  • Package Vibration Test

    ISTA 1A

  • Green Product

    RoHS, CRoHS, WEEE

  • Time Source

    Built-in RTC (real-time clock) with lithium-battery backup

  • Automatic Reboot Trigger

    Built-in WDT

  • Time

    465,664 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

All Driver Software Package Utility
Name Type Checksum Version Operating System Release Date
Software Package for RKP-A110 Series (Windows 10 IoT Enterprise LTSC 2021 example code)
18.2 MB 		Software Package
SHA-512
v1.1
  • Windows 10 IoT Enterprise LTSC 2021
 Dec 05, 2023 Dec 05, 2023 Release notes
Utility for RKP-A110 Series (Windows 10 IoT Enterprise LTSC 2021)
4.4 MB 		Utility
SHA-512
v1.1
  • Windows 10 IoT Enterprise LTSC 2021
 Dec 05, 2023 Dec 05, 2023 Release notes
Driver for RKP-A110 Series (Windows 10 IoT Enterprise LTSC 2021)
1.3 GB 		Driver
SHA-512
v1.1
  • Windows 10 IoT Enterprise LTSC 2021
 Dec 05, 2023 Dec 05, 2023 Release notes
Driver for RKP-A110 Series (Windows 11 Professional 2022)
1.3 GB 		Driver
SHA-512
v1.1
  • Windows 11 Professional 2022
 Dec 05, 2023 Dec 05, 2023 Release notes
Software Package for RKP-A110 Series (Windows 11 Professional 2022 example code)
18.2 MB 		Software Package
SHA-512
v1.1
  • Windows 11 Professional 2022
 Dec 05, 2023 Dec 05, 2023 Release notes
Utility for RKP-A110 Series (Windows 11 Professional 2022)
4.4 MB 		Utility
SHA-512
v1.1
  • Windows 11 Professional 2022
 Dec 05, 2023 Dec 05, 2023 Release notes
DRP/BXP/RKP Series Computers (Linux drivers and SDK)
1.6 MB 		Software Package
SHA-512
v1.0
  • Debian 11.x
  • RHEL 9
  • Ubuntu 22.04
 Oct 06, 2023 Oct 06, 2023 Release notes

Support Documents

FILTER

All Datasheet Declaration Manual QIG
Name Type Version Release Date
DRP/BXP/RKP Series Computers Windows 10 IoT Enterprise LTSC 2021 Manual
14.5 MB 		Manual v1.2 Mar 01, 2024 Mar 01, 2024
DRP/BXP/RKP Series Computers Windows 11 Professional 2022 Manual
9.4 MB 		Manual v1.1 Mar 01, 2024 Mar 01, 2024
Manual for RKP-A110 Series (hardware)
3.3 MB 		Manual v1.1 Feb 21, 2024 Feb 21, 2024
RKP Series Quick Installation Guide
1.6 MB 		QIG v1.3 Feb 01, 2024 Feb 01, 2024
Declaration of Conformity for RKP-A110 Series
310.9 KB 		Declaration v1.0 Jan 24, 2024 Jan 24, 2024
Datasheet for RKP-A110 Series
3.4 MB 		Datasheet v1.2 Dec 28, 2023 Dec 28, 2023
DRP/BXP/RKP Series Computers Linux Installation Manual
639.9 KB 		Manual v1.0 Nov 01, 2023 Nov 01, 2023

Related Content

FILTER

All Spotlight Video

Available Models (10)

Show Images
Compare
moxa-rkp-a110-e2-t-image.jpg | MoxaRKP-A110-E2-T
Compare
moxa-rkp-a110-e2-t-win10-image.jpg | MoxaRKP-A110-E2-T-Win10
Compare
moxa-rkp-a110-e2-8l-t-image.jpg | MoxaRKP-A110-E2-8L-T
Compare
moxa-rkp-a110-e2-8c-t-image.jpg | MoxaRKP-A110-E2-8C-T
CPUIntel Atom® x6211EIntel Atom® x6211EIntel Atom® x6211EIntel Atom® x6211E
RAM8 GB8 GB8 GB8 GB
Storage Slots2 x 2.5” SSD2 x 2.5” SSD2 x 2.5” SSD2 x 2.5” SSD
OS Preinstalled–Win 10 LTSC
(64 GB SSD)		––
LAN/Serial4/24/212/24/10
USB 3.03333
DIs/
DOs		8 x DIs
8 x DOs		8 x DIs
8 x DOs		8 x DIs
8 x DOs		8 x DIs
8 x DOs
Video Outputs1 x VGA
1 x HDMI		1 x VGA
1 x HDMI		1 x VGA
1 x HDMI		1 x VGA
1 x HDMI
Power Input12/24 VDC12/24 VDC12/24 VDC12/24 VDC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Compare
moxa-rkp-a110-e2-2l4c-t-image.jpg | MoxaRKP-A110-E2-2L4C-T
Compare

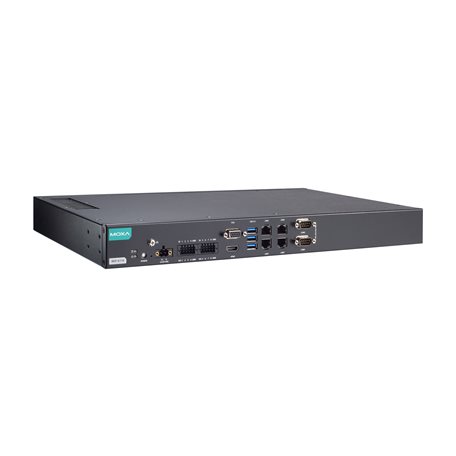

moxa-rkp-a110-e4-t-image.jpg | MoxaRKP-A110-E4-T
Compare
moxa-rkp-a110-e4-t-win10-image.jpg | MoxaRKP-A110-E4-T-Win10
Compare
moxa-rkp-a110-e4-8l-t-image.jpg | MoxaRKP-A110-E4-8L-T
CPUIntel Atom® x6211EIntel Atom® x6425EIntel Atom® x6425EIntel Atom® x6425E
RAM8 GB8 GB8 GB8 GB
Storage Slots2 x 2.5” SSD2 x 2.5” SSD2 x 2.5” SSD2 x 2.5” SSD
OS Preinstalled–Win 10 LTSC
(64 GB SSD)		–
LAN/Serial6/64/24/212/2
USB 3.03333
DIs/
DOs		8 x DIs
8 x DOs		8 x DIs
8 x DOs		8 x DIs
8 x DOs		8 x DIs
8 x DOs
Video Outputs1 x VGA
1 x HDMI		1 x VGA
1 x HDMI		1 x VGA
1 x HDMI		1 x VGA
1 x HDMI
Power Input12/24 VDC12/24 VDC12/24 VDC12/24 VDC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Compare
moxa-rkp-a110-e4-8c-t-image.jpg | MoxaRKP-A110-E4-8C-T
Compare
moxa-rkp-a110-e4-2l4c-t-image.jpg | MoxaRKP-A110-E4-2L4C-T
CPUIntel Atom® x6425EIntel Atom® x6425E
RAM8 GB8 GB
Storage Slots2 x 2.5” SSD2 x 2.5” SSD
OS Preinstalled––
LAN/Serial4/106/6
USB 3.033
DIs/
DOs		8 x DIs
8 x DOs		8 x DIs
8 x DOs
Video Outputs1 x VGA
1 x HDMI		1 x VGA
1 x HDMI
Power Input12/24 VDC12/24 VDC
Add to QuoteView BagAdd to QuoteView Bag
