RKP-C110 Series

Rackmount computers with 11th Gen Intel® Core™ Tiger Lake processor base model and high-interface models

moxa-rkp-c110-series-image-(1).jpg | Moxa
moxa-rkp-c110-series-image-1-(1).jpg | Moxa
moxa-rkp-c110-series-image-2-(1).jpg | Moxa
moxa-rkp-c110-series-image-3-(1).jpg | Moxa
moxa-rkp-c110-series-image-4-(1).jpg | Moxa
moxa-rkp-c110-series-image-5-(1).jpg | Moxa
moxa-rkp-c110-series-image-6-(1).jpg | Moxa

Features and Benefits

  • 1U rackmount computer with fanless design
  • 11th Gen Intel® Celeron®, or Intel® Core™ i5 or i7 processor
  • Rich interface options for up to 12 LAN ports and up to 10 serial ports
  • Standard form factor that fits most field applications
  • Unified front-panel connectivity design for easy access of interfaces
  • -30 to 60°C operating temperature range

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-bsmi-certification-logo-image.png | Moxa

Contact Sales

Introduction

The RKP-C110 rackmount computers are powered by 11th Gen Intel® Celeron®, or Intel® Core™ i5 or i7 processor. The computers come with a rich set of interface options including up to up to 12 Gigabit Ethernet ports, 10 software-selectable RS-232/422/485 serial ports, and 8 digital inputs and 8 digital outputs. The communication interfaces are all located on the front panel for enabling easy access and convenient expansion for industrial applications. Two hand-rotated 2.5” SSD storages and an outer replaceable RTC battery design deliver a reliable, durable, and versatile platform for a more user-friendly option.

Designed as 1U standard form factor fanless rackmount computers with an operating temperature range of -30 to 60°C and a build-in TPM 2.0 module, the RKP-C110 computers are ideal as reliable and secure computing platforms for industrial applications in extreme operating environments.

Appearance

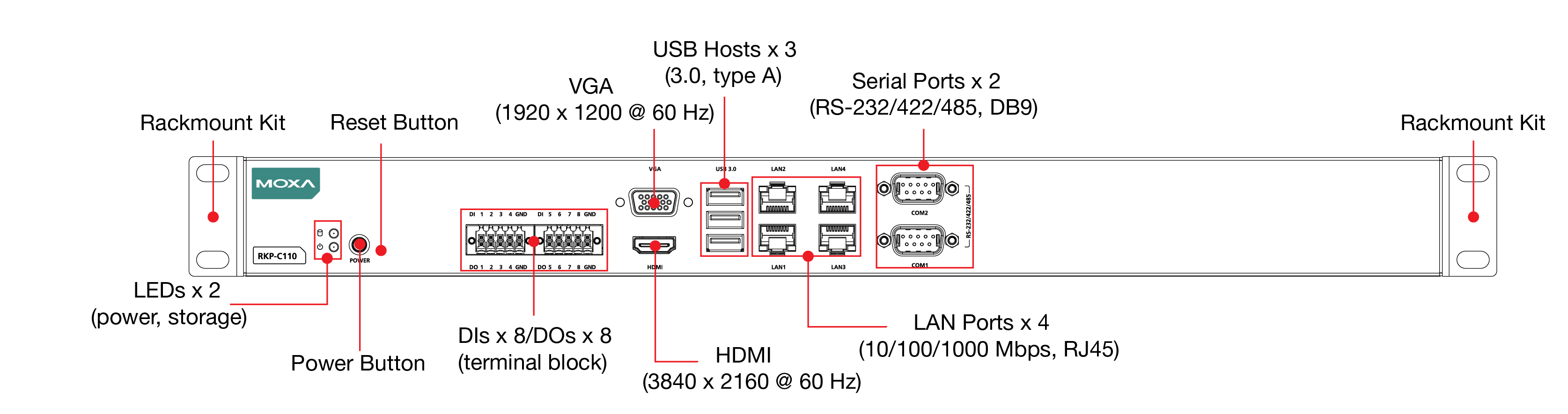

Front View

RKP-C110-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10 Models

RKP-C110-C1-8L-T/C5-8L-T/C7-8L-T Models

RKP-C110-C1-8C-T/C5-8C-T/C7-8C-T Models

RKP-C110-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T Models

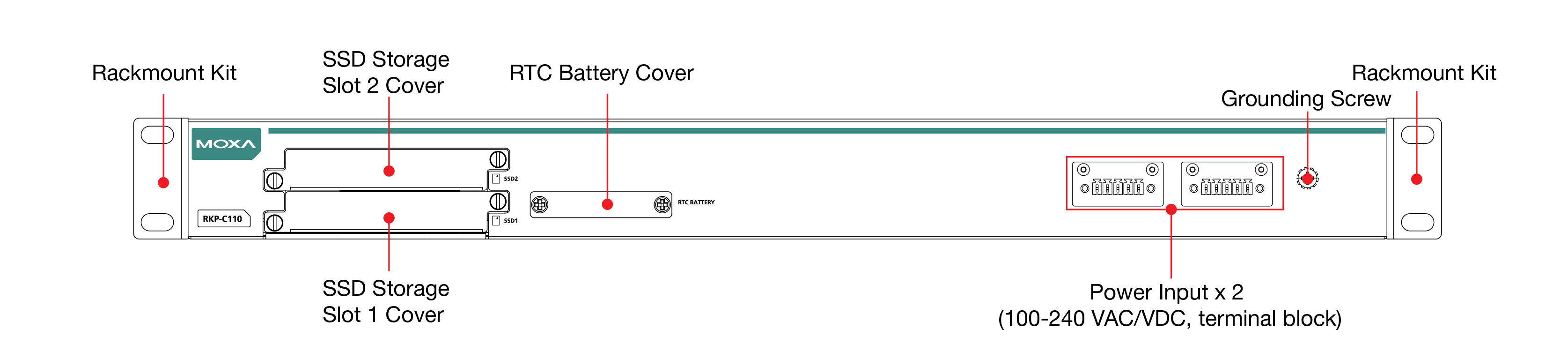

RearView

  • CPU

    RKP-C110-C1 Series: Intel® Celeron® 6305E "(Dual core, 4M cache, 1.80 GHz)
    RKP-C110-C5 Series: Intel® Core™ Processor i5-1145G7E (Quad core, 8M cache, 2.60 GHz, Base:1.50 GHz)
    RKP-C110-C7 Series: Intel® Core™ Processor i7-1185G7E (Quad core, 12M cache, 2.80 GHz, Base:1.80 GHz)

  • System Memory Slot

    SODIMM DDR4 slots x 1, up to 32 GB max.

  • System Memory Pre-installed

    8 GB DDR4

  • Storage Slot

    2.5-inch SSD slots x 2 (SATAIII interface)
    RAID 0/1 support

  • Storage Pre-installed

    8 GB

  • Supported OS

    Windows Images and Drivers Supported:
    - Windows 10 IoT Ent LTSC 2021 64-bit
    - Windows 11 Professional 64-bit

    Linux Drivers Supported:
    - Debian 11 (Kernel 5.10)
    - Ubuntu 22.04 LTS (Kernel 5.15)
    - RHEL 9 (Kernel 5.14)

  • Graphics Controller

    Intel® UHD Graphics

  • Ethernet Ports

    RKP-C110-C1-8L-T/C5-8L-T/C7-8L-T Models:
    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 12
    RKP-C110-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T Models:
    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6
    All Other Models:
    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4

  • Serial Ports

    RKP-C110-C1-8C-T/C5-8C-T/C7-8C-T Models:
    RS-232/422/485 ports x 10, software selectable (DB9 male)
    RKP-C110-C1-2L4C-T/C5-2L4C-TC7-2L4C-T Models:
    RS-232/422/485 ports x 6, software selectable (DB9 male)
    All Other Models:
    RS-232/422/485 ports x 2, software selectable (DB9 male)

  • USB 3.0

    USB 3.0 hosts x 3, type-A connectors

  • Digital Input

    DIs x 8

  • Digital Output

    DOs x 8

  • TPM

    TPM v2.0

  • Video Output

    HDMI 2.0b x 1, (type A connector)
    VGA x 1, 15-pin D-sub connector (female)

  • Buttons

    Reset button
    Power button

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Baudrate

    50 bps to 115.2 kbps

  • Connector

    DB9 male

  • Data Bits

    5, 6, 7, 8

  • Parity

    None, Even, Odd, Space, Mark

  • Stop Bits

    1, 1.5, 2

  • Flow Control

    RTS/CTS, XON/XOFF

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Connector

    Spring-type Euroblock terminal

  • Sensor Type

    Dry contact

  • Dry Contact

    Logic 0: Short to GND
    Logic 1: Open

  • Connector

    Spring-type Euroblock terminal

  • I/O Type

    Sink

  • Current Rating

    200 mA per channel

  • Voltage

    0 to 24 VDC

  • System

    Power x 1
    Storage x 1

  • LAN

    2 per port (10/100/1000 Mbps)

  • Input Voltage

    12/24 VDC

  • Power Connector

    Screw-fastened Euroblock terminal

  • Power Consumption

    90 W

  • Housing

    Metal

  • IP Rating

    IP20

  • Dimensions

    440 x 230 x 43.6 mm (17.32 x 9.06 x 1.72 in)

  • Weight

    RKP-C110-C1-8C-T/C5-8C-T/C7-8C-T Models:
    3,610 g (7.95 Ib)
    RKP-C110-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T Models:
    3,540 g (7.80 Ib)
    RKP-C110-C1-8L-T/C5-8L-T/C7-8L-T Models:
    3,800 g (8.37 Ib)
    RKP-C110-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10 Models:
    3,350 g (7.38 Ib)

  • Installation

    Rack mounting (standard 1U)

  • Operating Temperature

    -30 to 60°C (-22 to 140°F)

  • Storage Temperature

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A
    BSMI

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
    IEC 61000-4-6 CS: 3 V
    IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz

  • Safety

    UL 62368-1 (CB)
    BSMI

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-64

  • Package Drop Test

    ISTA 1A

  • Package Vibration Test

    ISTA 1A

  • Green Product

    RoHS, CRoHS, WEEE

  • Time Source

    Built-in RTC (real-time clock) with lithium-battery backup

  • Automatic Reboot Trigger

    Built-in WDT

  • Time

    493,336 hrs

  • Standards

    Telcordia (Bellcore), GB
