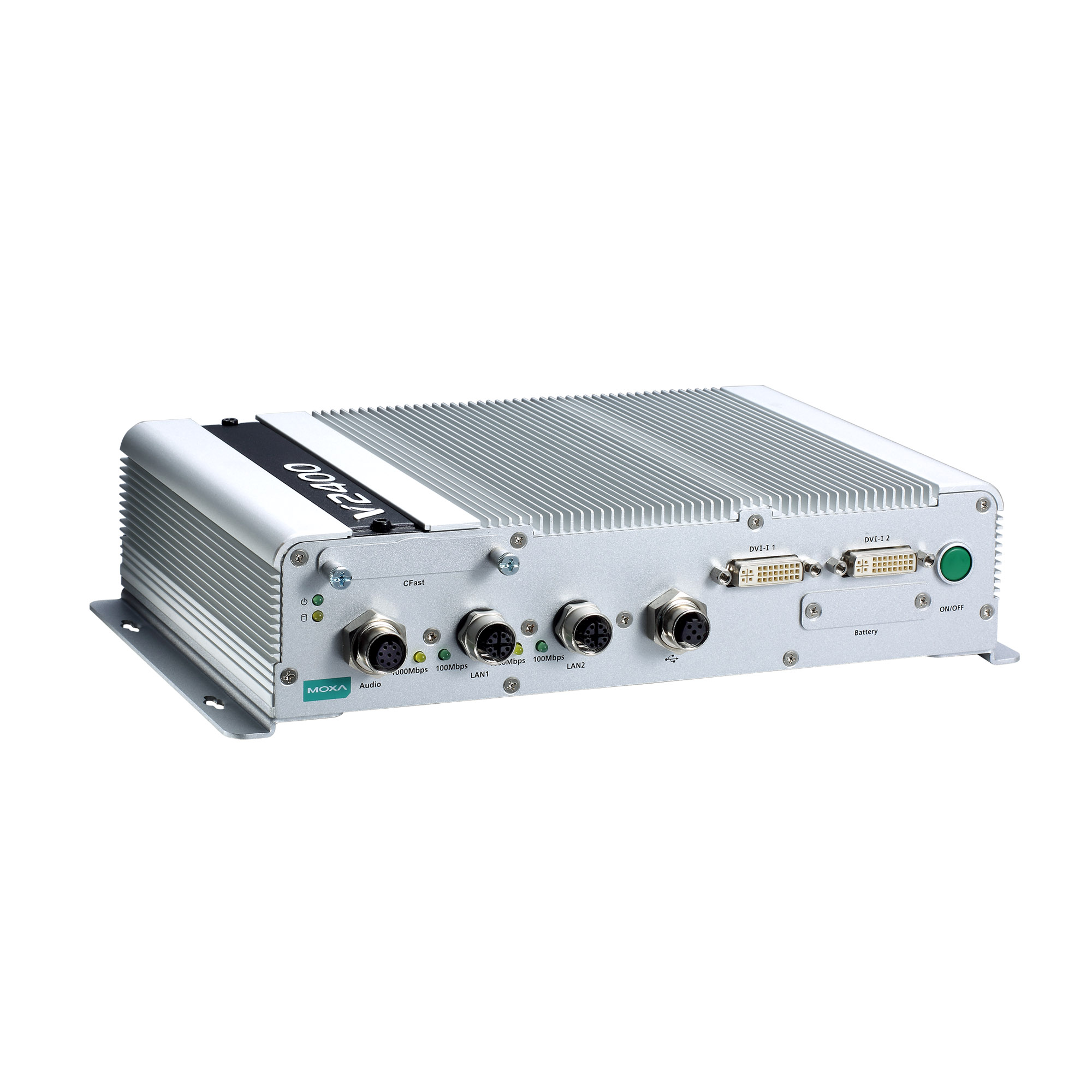

V2406A Series

Intel® 3rd Gen Core™ CPU, EN 50155 railway computer

moxa-v2406a-series-image-1-(1).jpg | Moxa

Features and Benefits

  • Intel Celeron/Core i7 processor
  • Dual independent DVI-I displays
  • 2 Gigabit Ethernet ports with M12 X-coded connectors
  • 1 SATA connector and 2 CFast sockets for storage expansion
  • M12 A-coded power connector
  • Compliant with EN 50121-4
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • Ready-to-run Debian 7, Windows Embedded Standard 7, and Windows 10 Embedded IoT Enterprise 2016 LTSB platforms
  • -40 to 70°C wide-temperature models available
  • Supports SNMP-based system configuration, control, and monitoring (Windows only)

Certifications

  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The V2406A Series embedded computers are based on the Intel 3rd Gen processor, and feature 4 RS-232/422/485 serial ports, dual LAN ports, audio in/out, 3 USB 2.0 hosts, 2 CFast sockets, and 1 SATA storage socket. The V2406A computers provide dual DVI-I outputs, and in addition are compliant with the mandatory test items of the EN 50155 standard, making the computers suitable for a variety of industrial applications.

The dual megabit/Gigabit Ethernet ports with M12 X-coded connectors offer a reliable solution for network redundancy, promising continuous operation for data communication and management. As an added convenience, the V2406A computers have 6 DIs and 2 DOs for connecting digital input/output devices, and the CFast feature provides the reliability needed for industrial applications that require data buffering and storage expansion.

Preinstalled with Linux Debian 7 or Windows Embedded Standard 7, the V2406A Series provides programmers with a friendly environment for developing sophisticated, bug-free application software at a low cost. Wide-temperature models of the V2406A Series that operate reliably in a -40 to 70°C operating temperature range are also available, offering an optimal solution for applications subjected to harsh environments.

Appearance

Front View

Rear View

  • CPU

    V2406A-C2 Series: Intel® Celeron® Processor 1047UE (2 M cache, 1.40 GHz)
    V2406A-C7 Series: Intel® Core™ i7-3517UE Processor (4 M cache, up to 2.80 GHz)

  • System Chipset

    Mobile Intel® HM65 Express Chipset

  • Graphics Controller

    Intel® HD Graphics 4000 (integrated)

  • System Memory Pre-installed

    4 GB DDR3

  • System Memory Slot

    SODIMM DDR3/DDR3L slot x 1

  • Supported OS

    Linux Debian 7
    Windows Embedded Standard 7 (WS7E) 32-bit
    Windows Embedded Standard 7 (WS7E) 64-bit

  • Storage Slot

    2.5-inch HDD/SSD slots x 1
    CFast slot x 2

  • Ethernet Ports

    Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2

  • Serial Ports

    RS-232/422/485 ports x 4, software selectable (DB9 male)

  • USB 2.0

    USB 2.0 hosts x 1, M12 D-coded connector
    USB 2.0 hosts x 2, type-A connectors

  • Audio Input/Output

    Line in x 1, Line out x 1, M12 D-coded

  • Digital Input

    DIs x 6

  • Digital Output

    DOs x 2

  • Video Output

    DVI-I x 2, 29-pin DVI-I connectors (female)

  • Isolation

    3k VDC

  • Connector

    Screw-fastened Euroblock terminal

  • Dry Contact

    On: short to GND
    Off: open

  • I/O Mode

    DI

  • Sensor Type

    Dry contact
    Wet contact (NPN or PNP)

  • Wet Contact (DI to COM)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • Connector

    Screw-fastened Euroblock terminal

  • Current Rating

    200 mA per channel

  • I/O Type

    Sink

  • Voltage

    24 to 30 VDC

  • System

    Power x 1
    Storage x 1

  • LAN

    2 per port (10/100/1000 Mbps)

  • Serial

    2 per port (Tx, Rx)

  • Baudrate

    50 bps to 921.6 kbps

  • Flow Control

    RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)

  • Parity

    None, Even, Odd, Space, Mark

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Input Voltage

    12 to 48 VDC

  • Power Connector

    M12 A-coded male connector

  • Power Consumption (Max.)

    3.3 A @ 12 VDC
    0.82 A @ 48 VDC

  • Power Consumption

    40 W (max.)

  • Housing

    Aluminum

  • IP Rating

    IP30

  • Dimensions (with ears)

    275 x 63 x 154 mm (10.83 x 2.47 x 6.06 in)

  • Dimensions (without ears)

    250 x 57 x 154 mm (9.84 x 2.23 x 6.06 in)

  • Weight

    2,000 g (4.44 lb)

  • Installation

    DIN-rail mounting (optional), Wall mounting (standard)

  • Protection

    V2406A-C2-CT-T/C7-CT-T: PCB conformal coating

  • Operating Temperature

    Standard Models: -25 to 55°C (-13 to 131°F)
    Wide Temp. Models: -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Railway

    EN 50121-4, IEC 60571

  • Railway Fire Protection

    EN 45545-2

  • Safety

    EN 60950-1, UL 60950-1

  • Shock

    IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    IEC 60068-2-64, IEC 61373, EN 50155

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    332,173 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
Driver for V2406A Series (Linux)
4.5 MB
Driver v1.0
  • Debian 7.x
Nov 12, 2015 Nov 12, 2015 Release notes
Firmware for V2406A Series (Linux)
436.9 MB
Firmware v1.0
  • Debian 7.x
Nov 12, 2015 Nov 12, 2015 Release notes
Library for V2406A Series (Linux)
48.2 KB
Library v1.0
  • Debian 7.x
Nov 12, 2015 Nov 12, 2015 Release notes
Utility for V2406A Series (Linux)
1.7 MB
Utility v1.0
  • Debian 7.x
Nov 12, 2015 Nov 12, 2015 Release notes
Utility for V2406A Series (InnoComm AP)
3.0 MB
Utility v1.0
  • Windows Embedded Standard 7
Apr 24, 2015 Apr 24, 2015 Release notes
Utility for V2406A Series (mxdiagnostic)
689.9 KB
Utility v1.0
  • Windows Embedded Standard 7
Apr 24, 2015 Apr 24, 2015 Release notes
Utility for V2406A Series (mxHotswap)
583.3 KB
Utility v1.0
  • Windows Embedded Standard 7
Apr 24, 2015 Apr 24, 2015 Release notes
Utility for V2406A Series (mxSerialInterface)
322.6 KB
Utility v1.0
  • Windows Embedded Standard 7
Apr 24, 2015 Apr 24, 2015 Release notes
Utility for V2406A Series (mxSynMap)
21.9 MB
Utility v1.0
  • Windows Embedded Standard 7
Apr 24, 2015 Apr 24, 2015 Release notes
Driver for V2406A Series (Peripheral for Windows 7)
699.3 MB
Driver v1.0
  • Windows Embedded Standard 7
Apr 24, 2015 Apr 24, 2015 Release notes
Library for V2406A Series (Windows 7 Embedded)
8.1 MB
Library v1.0
  • Windows Embedded Standard 7
Apr 23, 2015 Apr 23, 2015 Release notes
Utility for V2406A Series (mxterm)
215.6 KB
Utility v1.0
  • Windows Embedded Standard 7
Apr 23, 2015 Apr 23, 2015 Release notes

Support Documents

Name Type Version Release Date
Datasheet for V2406A Series
1.5 MB
Datasheet v2.4 Jan 22, 2020 Jan 22, 2020
Manual for V2406A Series (Instruction Guide)
4.8 MB
Manual v1.0 Apr 24, 2017 Apr 24, 2017
Manual for V2406A Series (Hardware)
7.6 MB
Manual v3.0 Mar 21, 2017 Mar 21, 2017
Compatibility Guide for V2406A Series (Wide Temperature)
264.7 KB
Compatibility Guide v2.1 Dec 15, 2016 Dec 15, 2016
Compatibility Guide for V2406A Series (Standard Temperature)
263.5 KB
Compatibility Guide v2.1 Dec 15, 2016 Dec 15, 2016
Manual for V2406A Series (Linux)
4.8 MB
Manual v1.0 Aug 24, 2015 Aug 24, 2015
Manual for V2406A Series (Windows)
10.5 MB
Manual v2.0 May 14, 2015 May 14, 2015
QIG for V2406A Series
984.2 KB
QIG v2.0 Apr 23, 2015 Apr 23, 2015

Available Models (9)

Show Images
moxa-v2406a-c2-image.jpg | MoxaV2406A-C2moxa-v2406a-c2-t-image.jpg | MoxaV2406A-C2-Tmoxa-v2406a-c2-ct-t-image.jpg | MoxaV2406A-C2-CT-Tmoxa-v2406a-c7-image.jpg | MoxaV2406A-C7
CPUCeleron 1047UECeleron 1047UECeleron 1047UECore i7-3517UE
Memory (Default)4 GB4 GB4 GB4 GB
OS CFast (CTO)1 (Optional)1 (Optional)1 (Optional)1 (Optional)
Backup CFast (CTO)1 (Optional)1 (Optional)1 (Optional)1 (Optional)
SSD/HDD Tray (CTO)1 (Optional)1 (Optional)1 (Optional)1 (Optional)
Operating Temp.-25 to 55°C-40 to 70°C-40 to 70°C-25 to 55°C
Conformal Coating
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-v2406a-c7-t-image.jpg | MoxaV2406A-C7-Tmoxa-v2406a-c7-ct-t-image.jpg | MoxaV2406A-C7-CT-Tmoxa-v2406a-c2-w7e-image.jpg | MoxaV2406A-C2-W7Emoxa-v2406a-c2-t-w7e-image.jpg | MoxaV2406A-C2-T-W7E
CPUCore i7-3517UEi7-3517UECeleron 1047UECeleron 1047UE
Memory (Default)4 GB4 GB4 GB4 GB
OS CFast (CTO)1 (Optional)1 (Optional)8 GB8 GB
Backup CFast (CTO)1 (Optional)1 (Optional)1 (Optional)1 (Optional)
SSD/HDD Tray (CTO)1 (Optional)1 (Optional)1 (Optional)1 (Optional)
Operating Temp.-40 to 70°C-40 to 70°C-25 to 55°C-40 to 70°C
Conformal Coating
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-v2406a-c7-t-w7e-image.jpg | MoxaV2406A-C7-T-W7E
CPUi7-3517UE
Memory (Default)4 GB
OS CFast (CTO)8 GB
Backup CFast (CTO)1 (Optional)
SSD/HDD Tray (CTO)1 (Optional)
Operating Temp.-40 to 70°C
Conformal Coating
Add to QuoteView Bag
